It is used to convey clean water and other liquids with properties similar to those of water.
Model :
AC15Imported caliber (DN) :
25Export caliber (DN) :
25Rated flow (m³/h) :
3Rated head (m) :
8Motor power (kw) :
0.15Material :
Cast iron pump casing/stainless steel impellerFOB Price （USD$） :

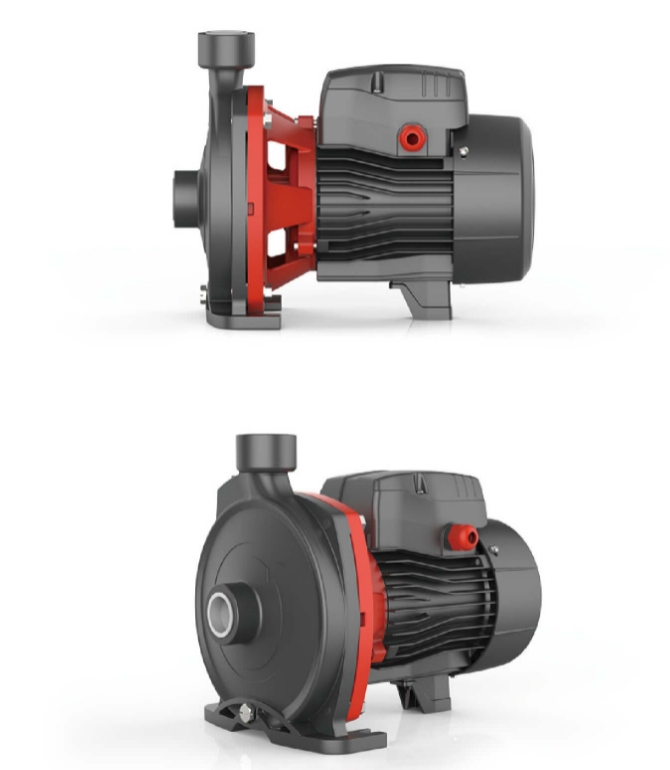

82Centrifugal Water Pump
Technical parameter:
Flow rate, Q: maximum 71 m³/h
Head, H: maximum 49m
Application environment
For conveying water and other liquids similar to water. It is suitable for industrial and urban water supply, high-rise building pressurization, fire protection system, garden irrigation, long-distance water transportation, HVAC, hot and cold water circulation pressurization and supporting facilities.

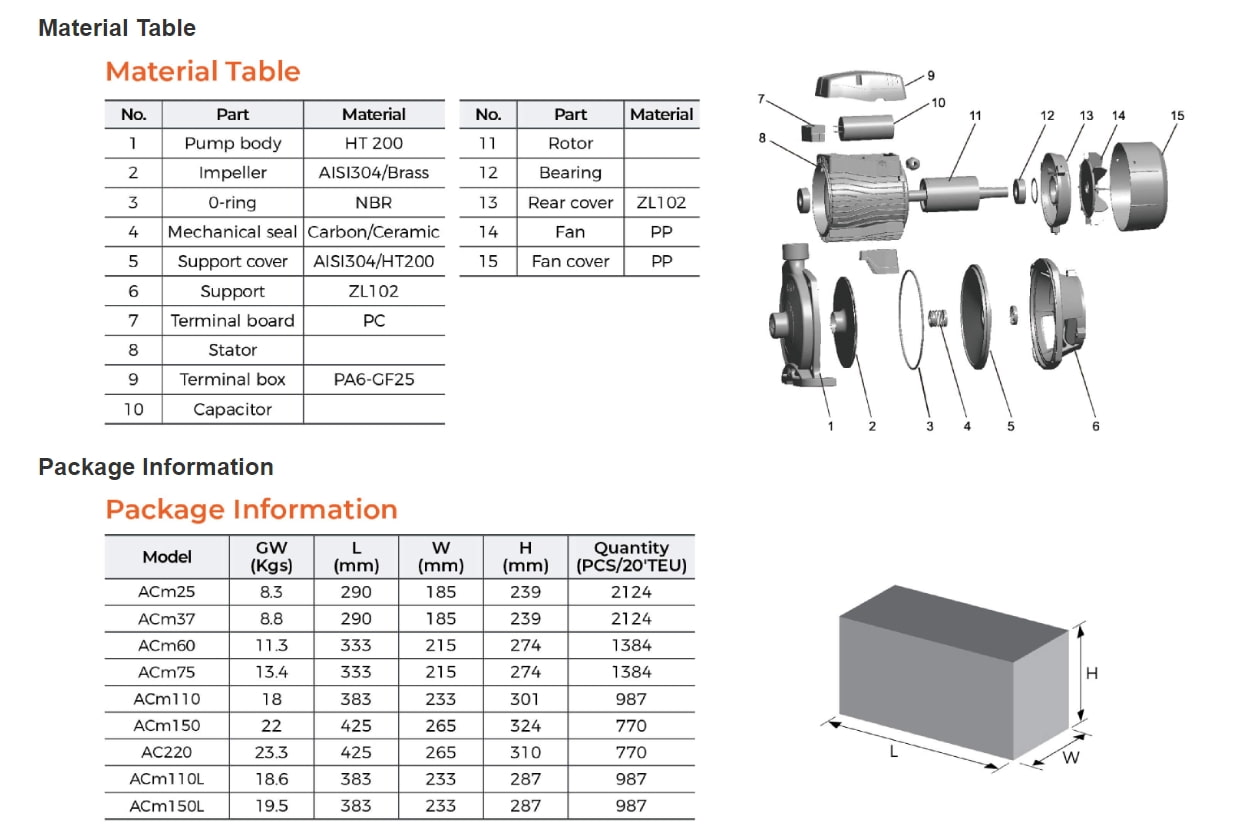

Pump
Cast iron pump body, after a special rust prevention treatment
Stainless steel impeller
AISI304 Stainless steel welded shaft
Maximum liquid temperature: + 60℃
Maximum suction and upper height: + 8m
Electrical Appliances
High efficiency bearing
Copper wire motor
Single-phase electric generator with built-in thermal protection device
insulation grade:F
Protection level: IPX 4
Maximum ambient temperature: + 40℃
Horizontal type, using extended coupling, single-stage radial split volute (pump size larger than 125 adopts two-stage design) adopts back-pumping design, with replaceable shaft sleeve/shaft protection sleeve and replaceable pump body sealing ring, and the design conforms to ATEX；
