Strong power, surging water volume, special anti-rust process treatment
Model :
AJm45Imported caliber (DN) :
25Export caliber (DN) :
25Rated flow (m³/h) :
1.5Rated head (m) :
21Motor power (kw) :
0.45Material :
Cast iron pump casing/copper impellerFOB Price （USD$） :

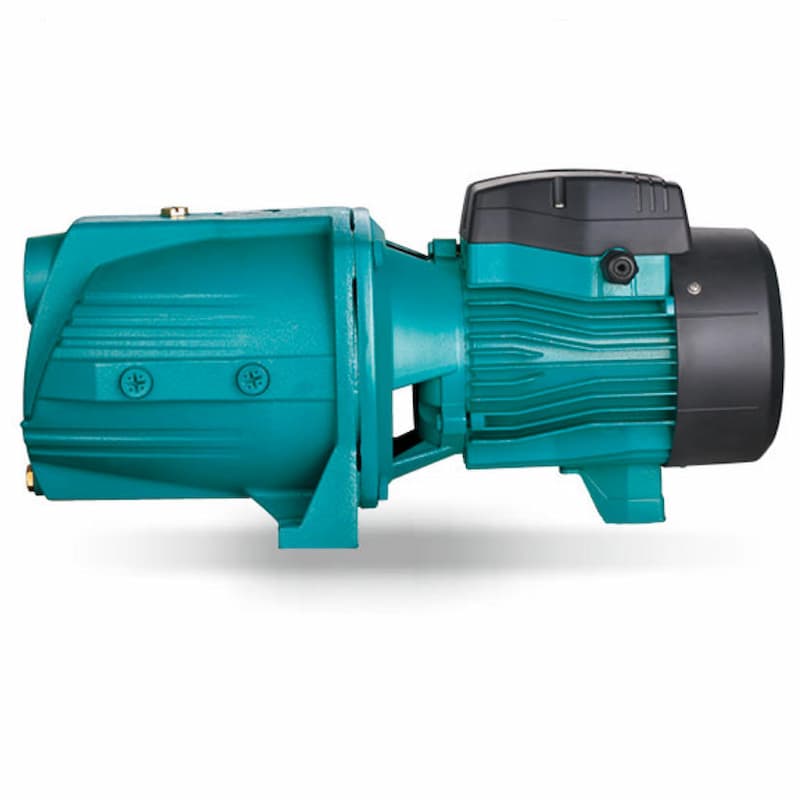

124Jet Pump Household Water Lifting Booster Pump

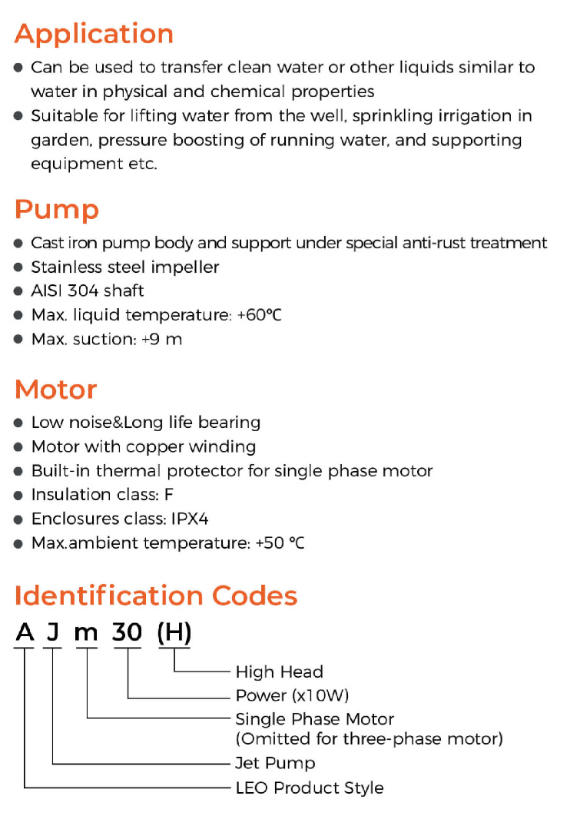

Product features
Small body: reasonable and compact structure, small size, free up more space
Electrophoresis process: waterproof, rust-proof and more durable
Copper wire motor: efficient operation, surging power, low noise
Single-phase motor: built-in thermal protection device
Economic and environmentally friendly: easy maintenance and greatly increased service life
Cast iron pump body, special anti-rust treatment
Stainless steel impeller
AISI304 stainless steel welded shaft
Maximum liquid temperature: +60°C
Maximum suction range +9M
High-efficiency bearings
Insulation level: Protection level: IPX4
Use scenarios
Transport clean water and other liquids with similar properties to water. Suitable for well water extraction, garden irrigation, pipeline pressurization and supporting facilities, etc.
Horizontal type, using extended coupling, single-stage radial split volute (pump size larger than 125 adopts two-stage design) adopts back-pumping design, with replaceable shaft sleeve/shaft protection sleeve and replaceable pump body sealing ring, and the design conforms to ATEX；
