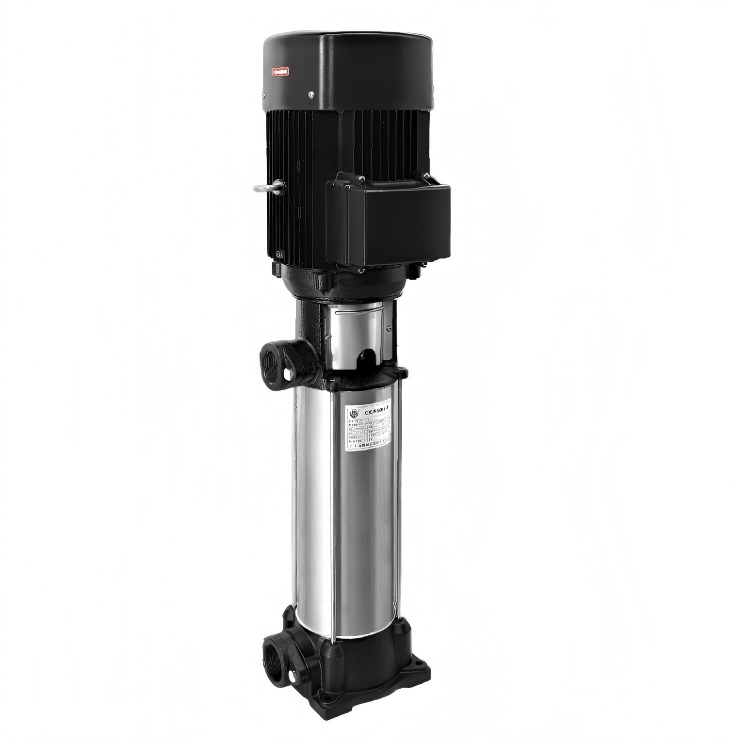

VM Serie vertical multistage centrifugal pump
Model :
VM2-9X2(T)Imported caliber (DN) :
G1Export caliber (DN) :
G1Rated flow (m³/h) :
2Rated head (m) :
18Motor speed (rpm) :
2900Motor power (kw) :
0.37Material :
Plastic impellerVM Serie vertical multistage centrifugal pump
Characteristics：
Thermal protector：Single phase
Insulation：F
Protection：IP55
High efficiency / Energy saving / Sturdy / Durable
Material：
Plastic middle section
Plastic impeller
stainless steel pump casing
Working conditions
Medium temperature: 0~~+50℃
Environmental temperature: ≤50℃Max.
working pressure: 1.0MPa
Applications：

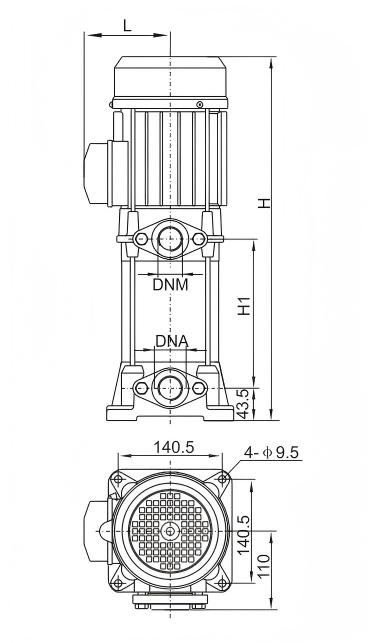

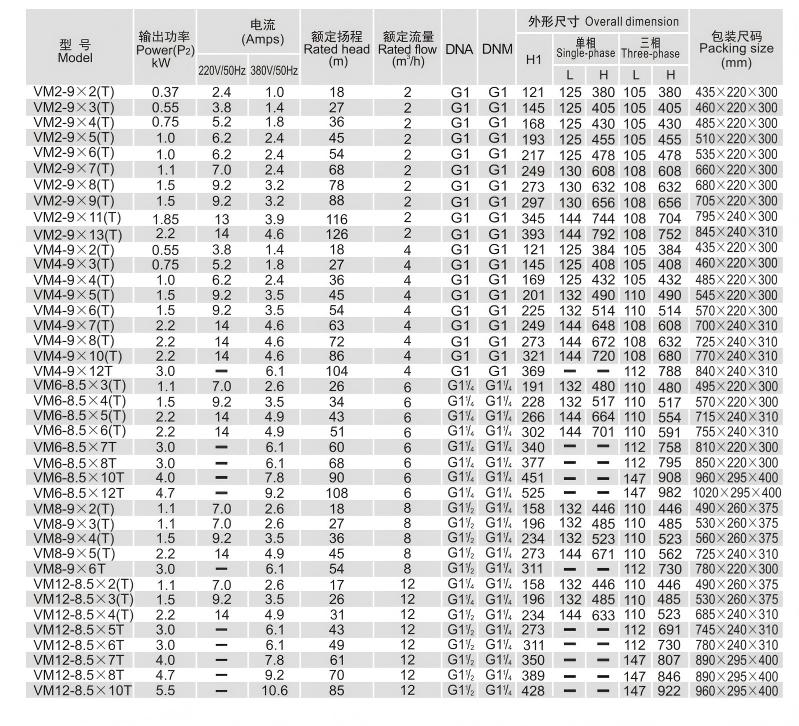

Overall dimension

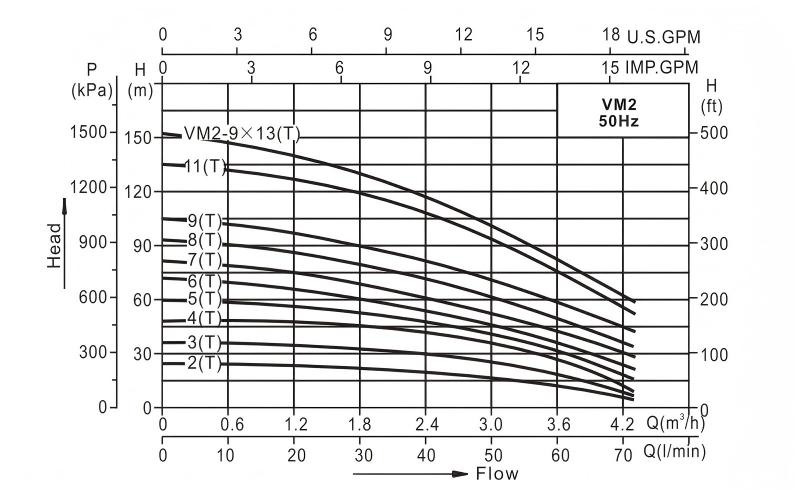

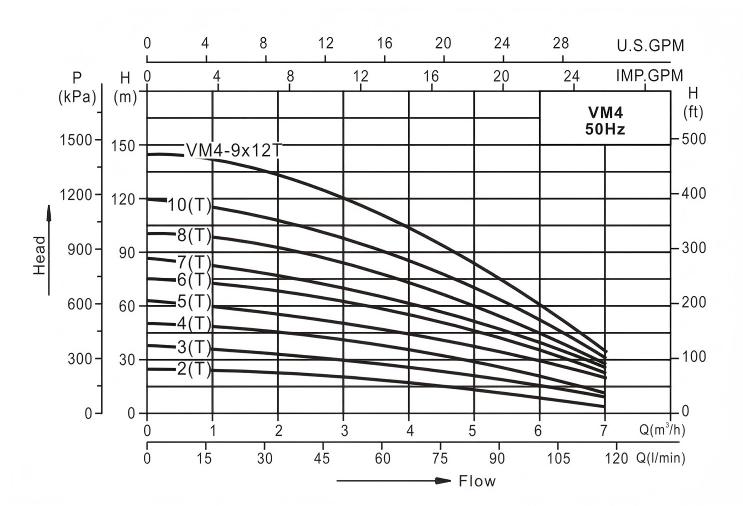

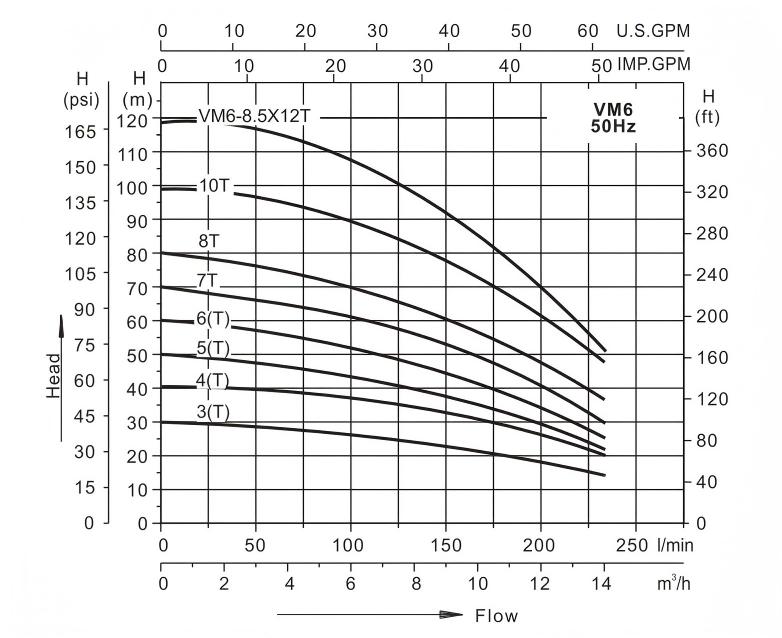

Performance Curve：
Pump Disassembly Drawing：
