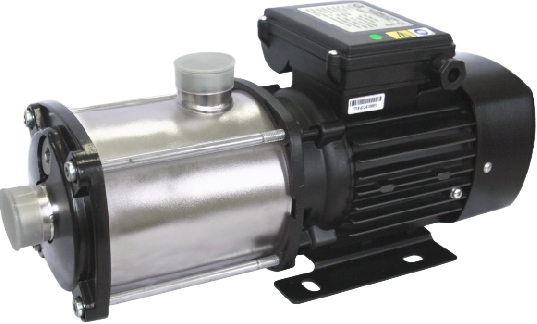

CMI series horizontal multistage centrifugal pump,all stainless steel material,high efficiency , energy saving , sturdy,durable.
Model :
CMI1－2(T)Rated flow (m³/h) :
1Rated head (m) :
18Motor speed (rpm) :
2900Motor power (kw) :
0.25Material :
all stainless steel materialFOB Price （USD$） :
65CMI series horizontal multistage centrifugal pump
Working conditions：
Medium temperature：
Low temperature: -20~+70℃;
standard model: +15~+70℃
high temperature: +70~+104℃;
Environmental temperature: ≤50℃
Max.working pressure: 1.0MPa
Thermal protector：single phase
Insulation：F
Protection：IP55
Material:stainless steel middle section,stainless steel impeller

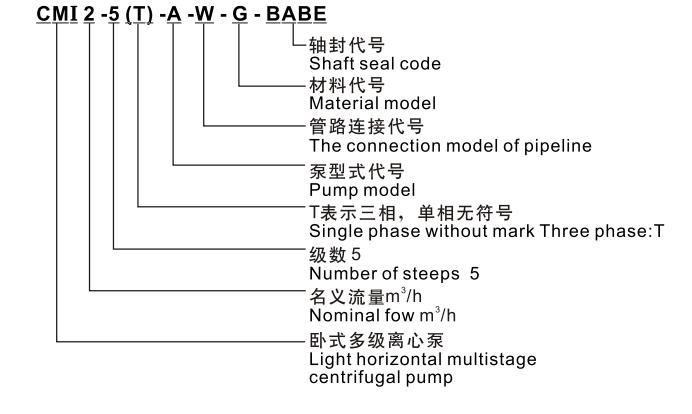

Type Keys
Applications:

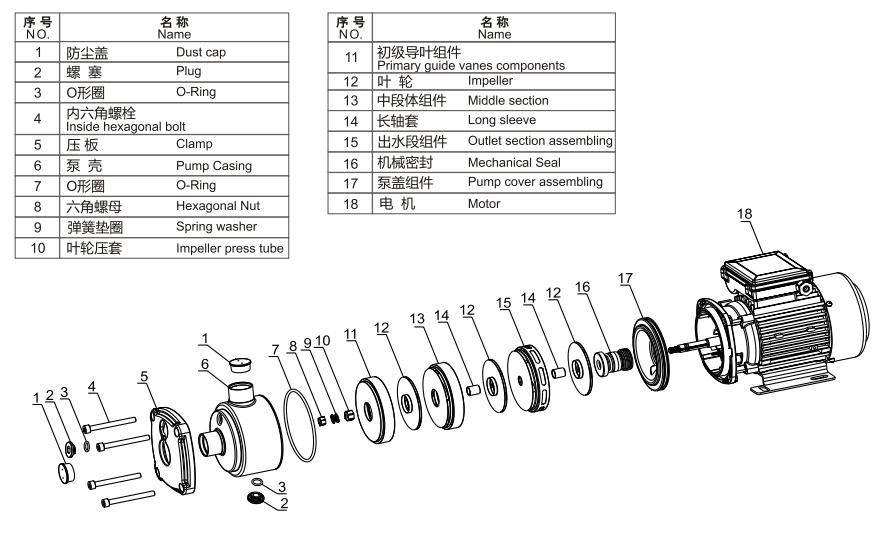

Exploded View:

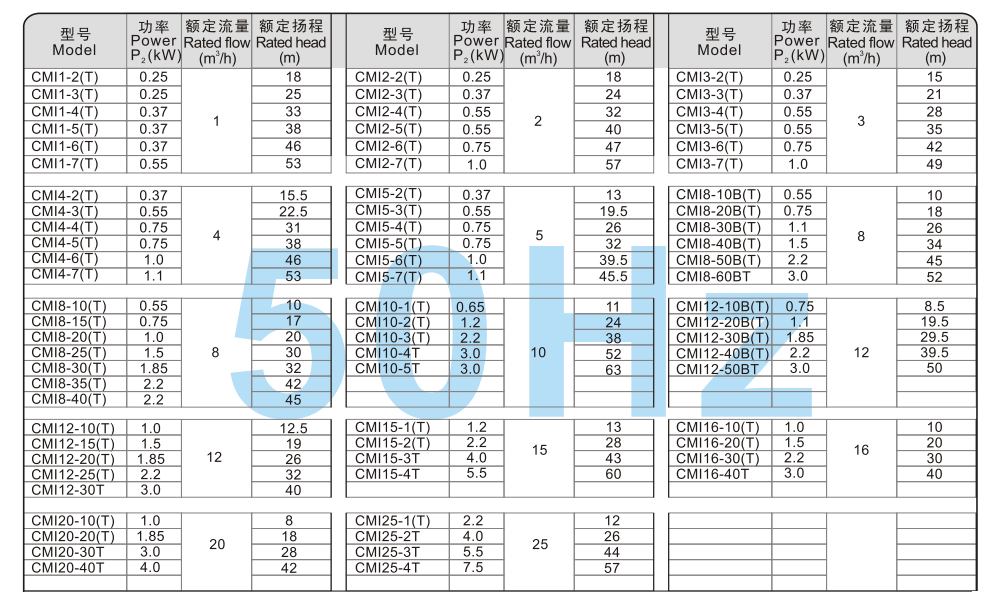

Technical parameter list:
