DFS-SD series are suitable for garden to pump clean water, or pump clean liquid and non-aggressive chemical fluis. Applications include domestic,garden,irrigation and empty tanks.Also can pump dirty water(Max solids of 30mm).
Model :
DFS-SD400Export caliber (DN) :
40Rated flow (m³/h) :
6Rated flow (L/h) :
6000Rated head (m) :
5Motor speed (rpm) :
2850Motor power (kw) :
0.4Material :

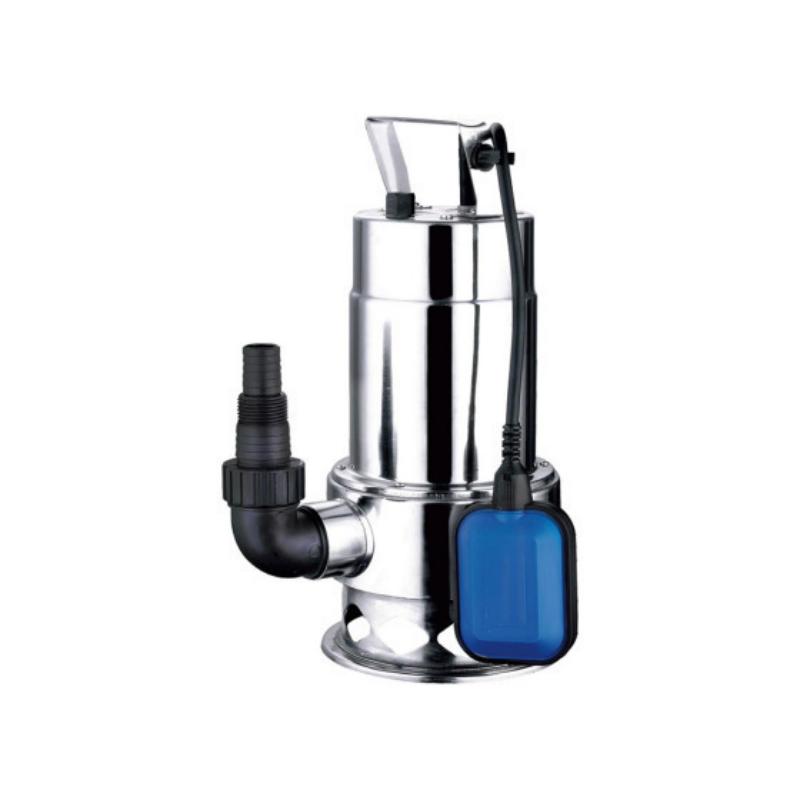

stainless steelDFS－SD series submersible pumps
Application：
DFS-SD series are suitable for garden to pump clean water, or pump clean liquid and non-aggressive chemical fluis. Applications include domestic,garden,irrigation and empty tanks.Also can pump dirty water(Max solids of 30mm).
Technical Data：
| Two-pole induction motor | 2850RPM |
| Insulation | Class B |
| Protection | IP68 |
| Continuous service | S1 |
| Liquid temperature | up to 35℃ |
| Ambient temperature | up to 40℃ |

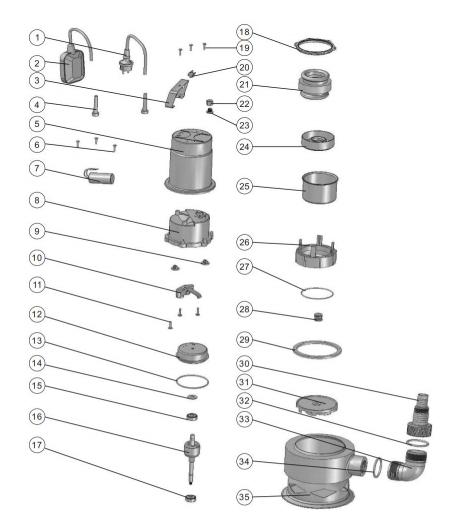

Material Data：
| Item | Description | Specification |
| 1 | Cable | Assemblies |
| 2 | Float switch | Assemblies |
| 3 | Handle | Sus201 |
| 4 | Cable sleeve | NBR |
| 5 | Motor body | Sus201 |
| 6 | Screw | Sus201 |
| 7 | Capacitor | Assemblies |
| 8 | Top cover | PA66 |
| 9 | Cable clip | PA66 |
| 10 | Capacitor clip | ABS |
| 11 | Screw | Sus201 |
| 12 | Upper bearing holder | ADC12 |
| 13 | O ring | NBR |
| 14 | Wave springs | 65Mn |
| 15 | Bearing | Assemblies |
| 16 | Rotor | Assemblies |
| 17 | Bearing | Assemblies |
| 18 | Pressure ring | ABS |
| 19 | Screw | Sus201 |
| 20 | Gear lock ring | PA66 |
| 21 | Stator | Assemblies |
| 22 | Air-out Screw | ABS |
| 23 | Air-out Valve | ABS |
| 24 | Bottom bearing holder | ADC12 |
| 25 | Stator housing | Sus201 |
| 26 | Brackct | PA66 |
| 27 | O ring | NBR |
| 28 | Mechanical seal | Assemblies |
| 29 | Gasket oil seal | NBR |
| 30 | Universal fitting | ABS |
| 31 | Impeller | PA66 |
| 32 | O ring | NBR |
| 33 | Connector | ABS |
| 34 | O ring | NBR |
| 35 | Pump body | Sus201 |

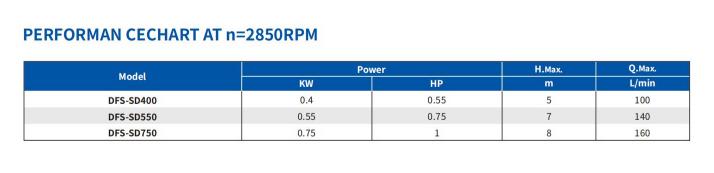

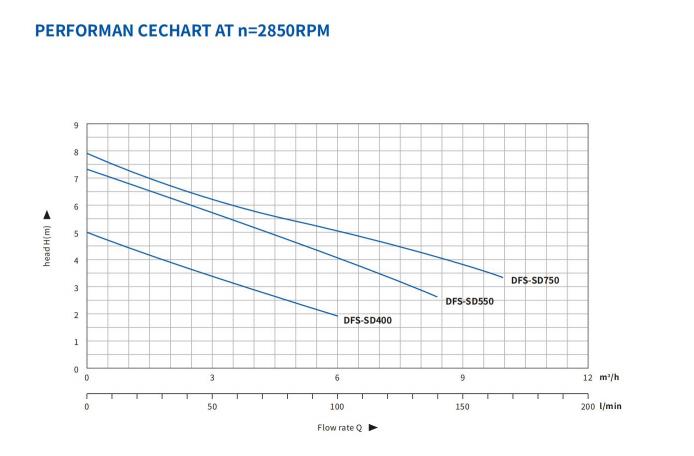

Performan Cechart At:

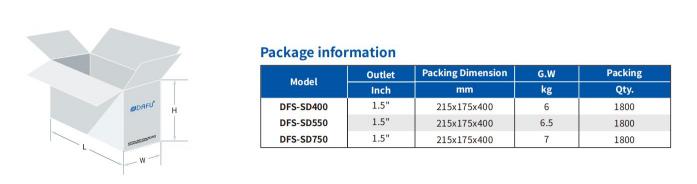

Package Information:
DFS-SD series are suitable for garden to pump clean water, or pump clean liquid and non-aggressive chemical fluis. Applications include domestic,garden,irrigation and empty tanks.Also can pump dirty water(Max solids of 30mm).
