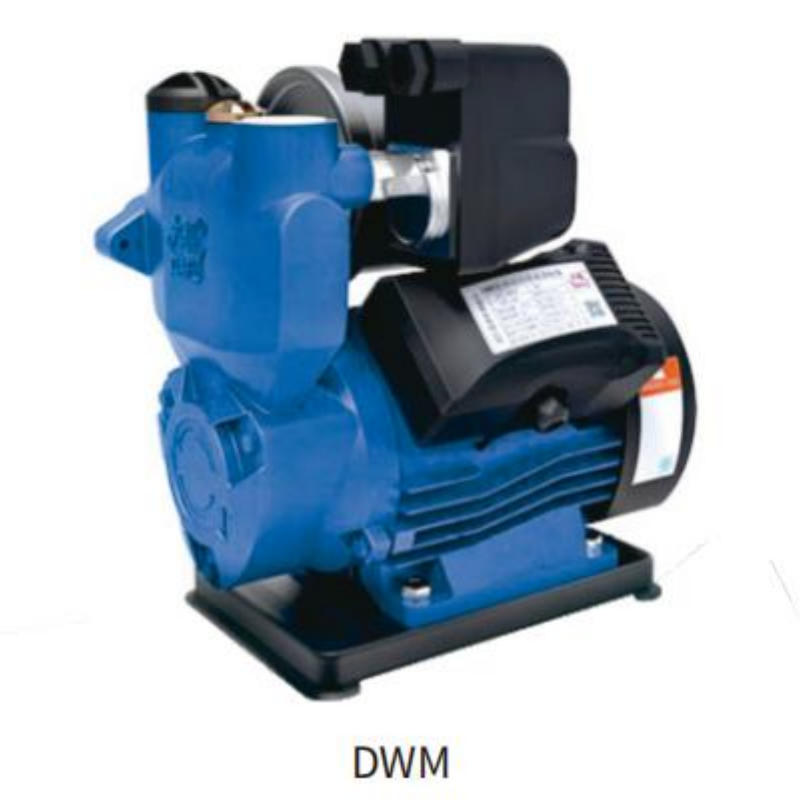

DWM series are suitable to pump clean water,or pump clean liquid and non-aggressive chemical fluis, They are suitable for domestic water,water towersupply,well water lifting and in particular for deliveringwater in combinationwith small automatic pressure sets,The pumps shall be installed in enclosedplaces,orinclement weather at least.
Model :
DWM200-(Z)Imported caliber (DN) :
25Export caliber (DN) :
25Rated flow (m³/h) :
0.3Rated head (m) :
22Motor speed (rpm) :
2850Motor power (kw) :

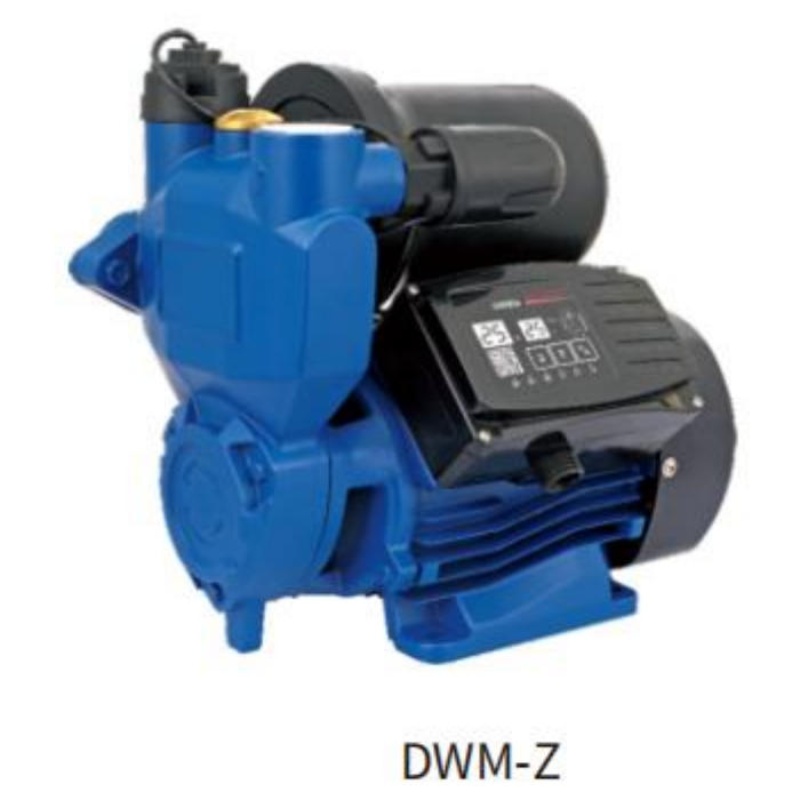

0.2DWM-(Z)Series Peripheral Pumps
Application
DWM series are suitable to pump clean water,or pump clean liquid and non-aggressive chemical fluis, They are suitable for domestic water,water towersupply,well water lifting and in particular for deliveringwater in combinationwith small automatic pressure sets,The pumps shall be installed in enclosedplaces,orinclement weather at least.
Technical Data
| Two-pole induction motor | 2850RPM |
| Insulation | Class B |
| Protection | IP44 |
| Continuous service | S1 |
| Liquid temperature | up to 60°C |
| Ambient temperature | up to 40°C |
| Total suction | 9m |
