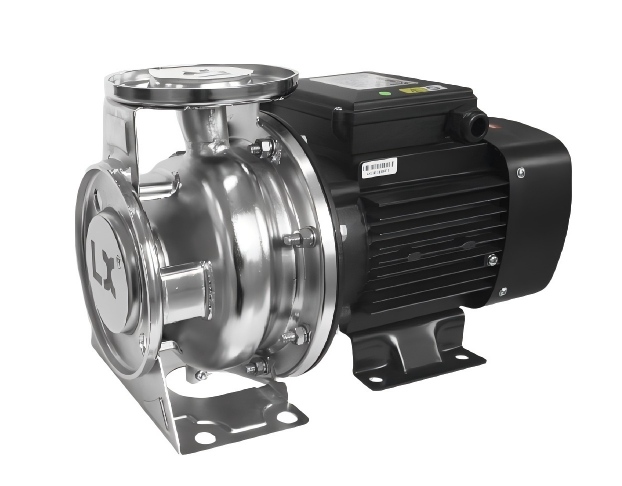

CA series stainless steel centrifugal pump,Pump shell,pump cover, impeller and other flow parts are made of stainless steel, which can replace the traditional casting pump.
Model :
CA50-32-160/1.1(T)Rated flow (m³/h) :
12.5Rated head (m) :
16.5Motor power (kw) :
1.1Material :
stainless steelCA series stainless steel centrifugal pump
Working conditions:
| Medium temperature |
Low temperature: -20 ~ +70℃ Standard model: +15 ~ +70℃ High temperature: +70 ~ +104℃ |
|---|---|
| Environmental temperature | ≤50℃ |
| Max. working pressure | 1.0MPa |
| Thermal protector | Single phase |
| Insulation | F |
| Protection | IP55 |
Features:
*Inlet and outlet flange connection size 1.25",1.5",2",2.5”,3~4”,5°,6” for choice.
*CA(B) complies with international EN733 standard,CAG(B) complies with nationalGB5662 standard.
*Pump shell,pump cover, impeller and other flow parts are made of stainless steel, which can replace the traditional casting pump.
*Closed impeller，CE
*high efficiency ,energy saving , Sturdy , Durable
Applications:

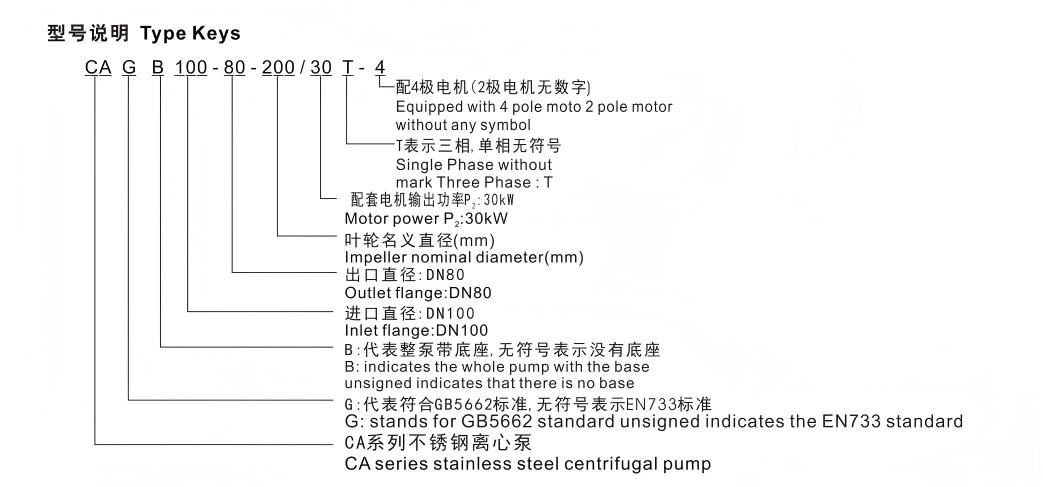

Type keys:

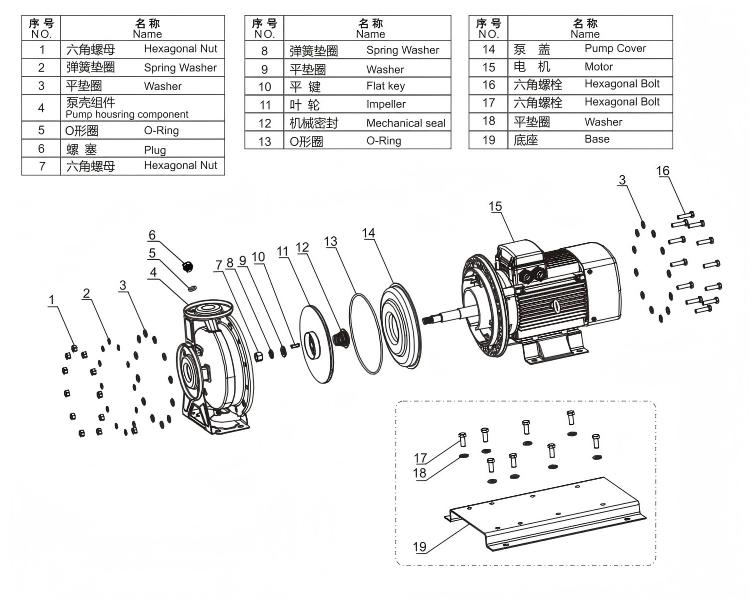

Exploded View:

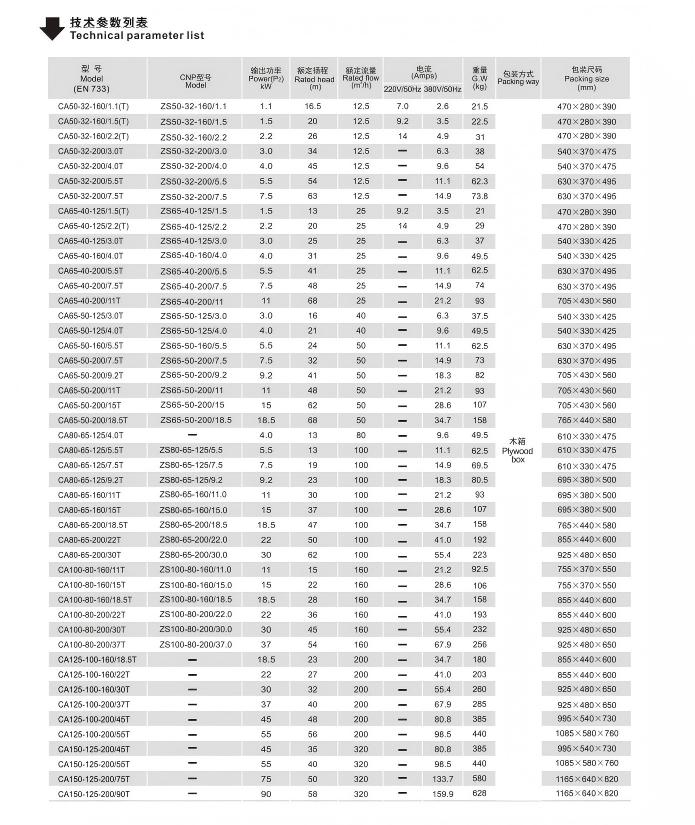

Technical parameter list:
Horizontal type, using extended coupling, single-stage radial split volute (pump size larger than 125 adopts two-stage design) adopts back-pumping design, with replaceable shaft sleeve/shaft protection sleeve and replaceable pump body sealing ring, and the design conforms to ATEX；
