PWM series are suitable to pump clean water,or pump clean liquid and non.aggressive chemical fluis, They are suitable for domestic water,water towersupply,well waterlifting and in particular for deliveringwater in combinationwith small automatic pressure sets.The pumps shall be installed in enclosedplaces,or at least inclement weather.
Model :
PWm200(z)Imported caliber (DN) :
25Export caliber (DN) :
25Rated flow (m³/h) :
0.3Rated head (m) :
24.5Motor speed (rpm) :
2850Motor power (kw) :

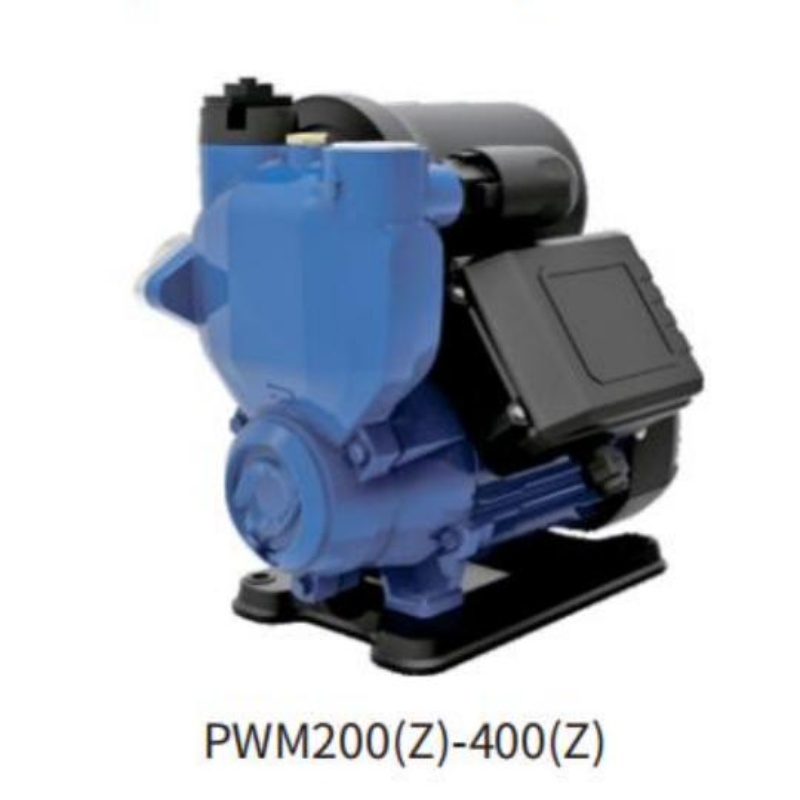

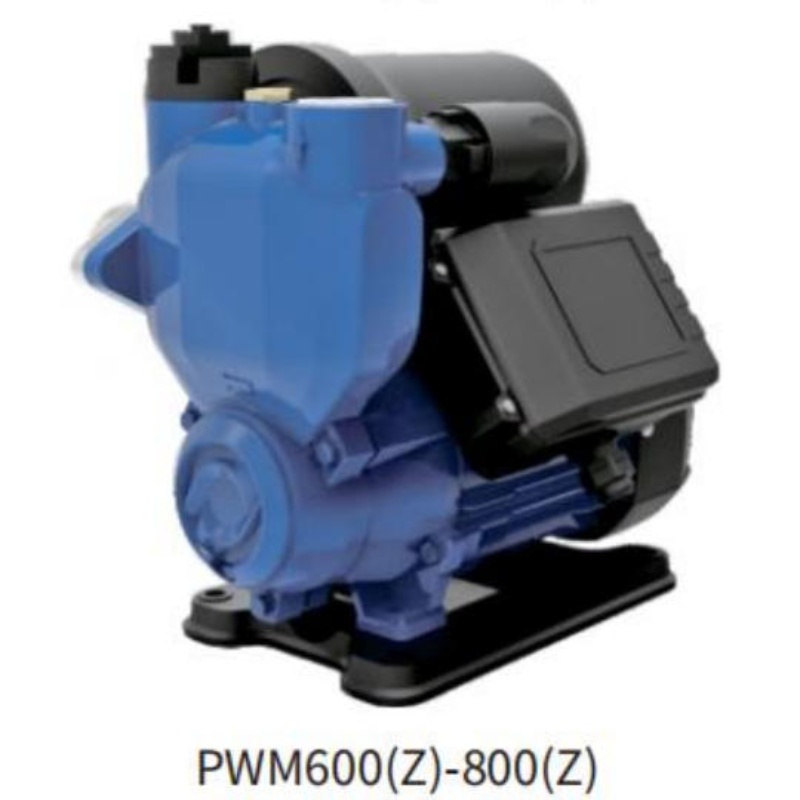

0.2PWM-(Z) Series Peripheral Pumps
Application
PWM series are suitable to pump clean water,or pump clean liquid and non.aggressive chemical fluis, They are suitable for domestic water,water towersupply,well water lifting and in particular for deliveringwater in combinationwith small automatic pressure sets.The pumps shall be installed in enclosedplaces,orat least inclement weather.
Technical Data
| Two-pole induction motor | 2850RPM |
| Insulation | Class F |
| Protection | IP44 |
| Continuous service | S1 |
| Liquid temperature | up to 60°C |
| Ambient temperature | up to 40°C |
| Total suction | 9m |
For conveying water and other liquids similar to water.
