The DP small submersible electric pump is a small-scale electric irrigation and drainage device that integrates an asynchronous motor and a centrifugal water pump.
Model :
DP1.5-12-0.25Imported caliber (DN) :
25Export caliber (DN) :
25Rated flow (m³/h) :
1.5Rated head (m) :
12Motor speed (rpm) :
2900Motor power (kw) :
0.25Material :
Cast ironFOB Price （USD$） :
71Small Submersible Electric Pump

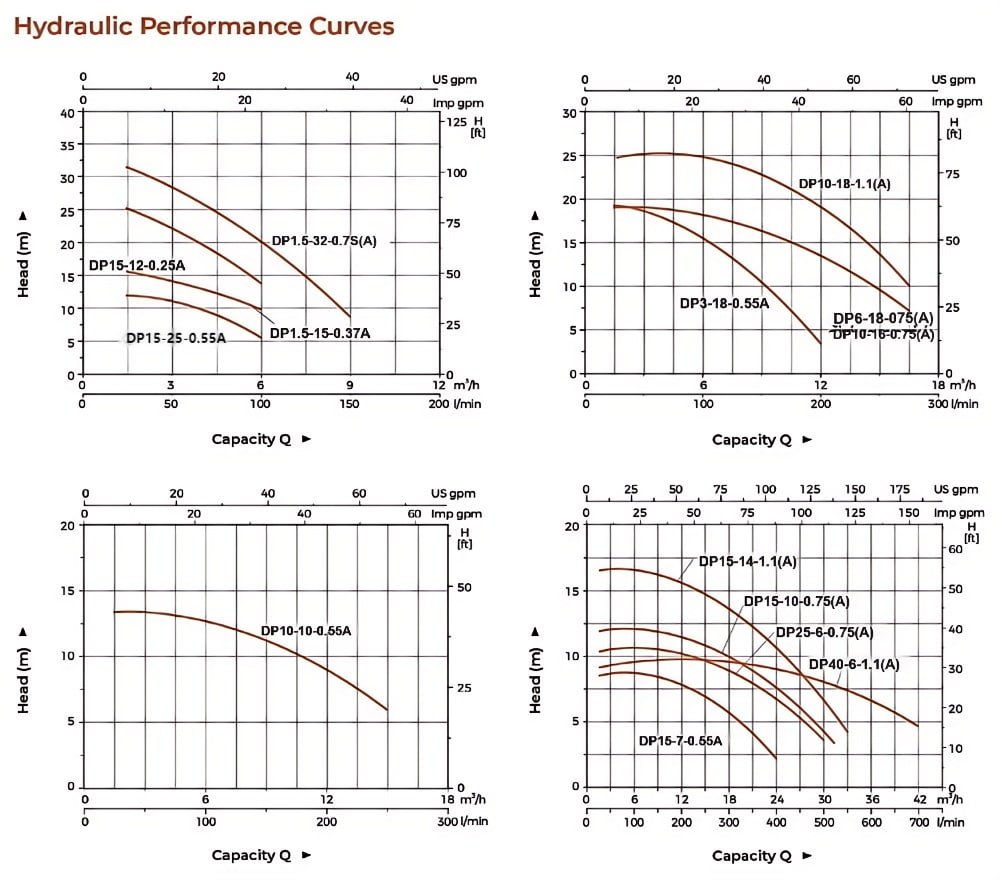

Technical parameter:
Flow rate, Q: Maximum 75 m³/h
Head, H: maximum 25m
Application environment
DP small submersible pump is a small electric row composed of asynchronous motor and centrifugal water pump.Irrigation equipment, especially suitable for the majority of rural underground pumping, farmland irrigation, garden irrigation, family water supply, can also be used to eliminate industrial water, construction water supply and drainage and aquaculture and other occasions.
characteristic
Direct connection of water pump and motor, compact structure; easy to move;
The maximum diving depth is not more than 5m;
Normal temperature and clear water. The PH value of non-corrosive medium (such as well water, river water and lake water) is between 6.5 and 8.5; the volume ratio of solid particles with sediment content or insoluble in water does not exceed 0.1%, and the particle diameter is less than 0.2mm
Electrical Appliances
Copper wire motor
Built-in overflow protector
AISI304 Stainless steel welded shaft
Insulation grade: Grade F/Grade B
Protection level: IPX 8
Horizontal or vertical single-stage submersible pumps can be used as modular pump units. They can be equipped with various types of next-generation impellers, and can be installed in a wet or dry manner. They can be used statically or in combination with energy-saving motors in a mobile way. Explosion-proof models are also provided.
