For conveying water and other liquids similar to water.
Model :
PK37Imported caliber (DN) :
25Export caliber (DN) :
25Rated flow (m³/h) :
1.5Rated head (m) :
15Motor speed (rpm) :
2900Motor power (kw) :
0.37Material :
Cast iron pump casing/copper impellerFOB Price （USD$） :

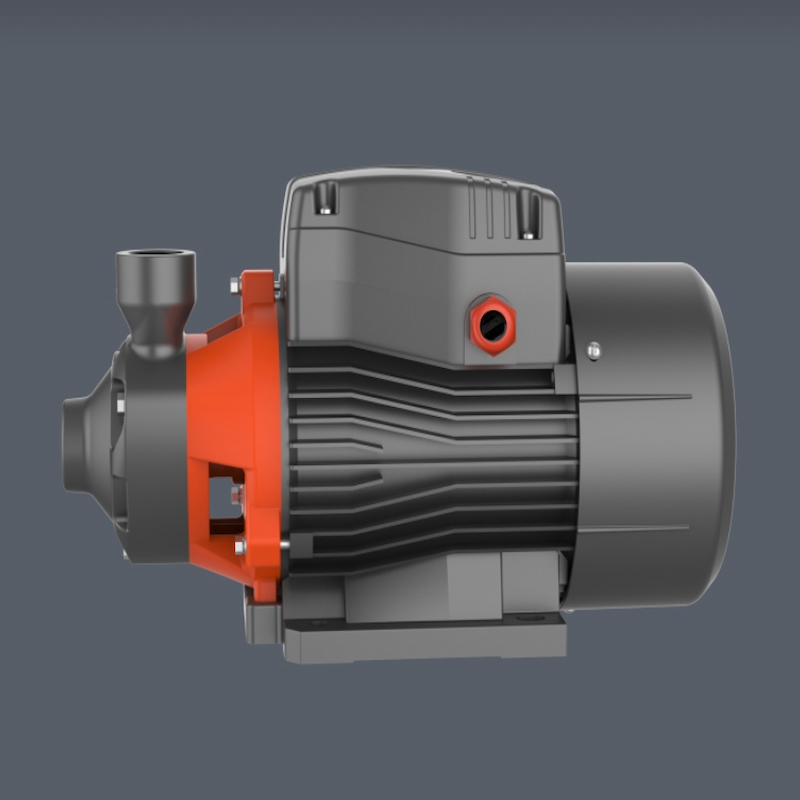

73Miniature Vortex Pump

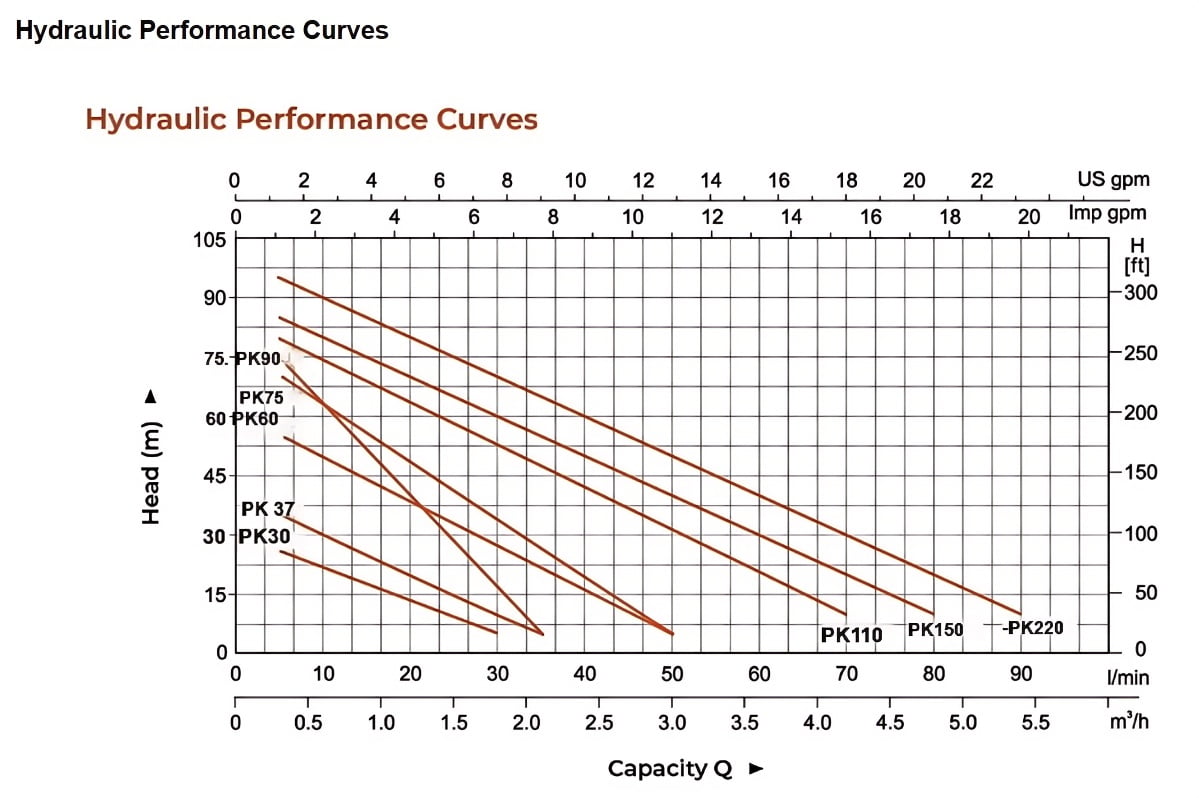

Technical parameter:
Flow rate, Q: maximum 5.4 m³/h
Head, H: maximum 100m

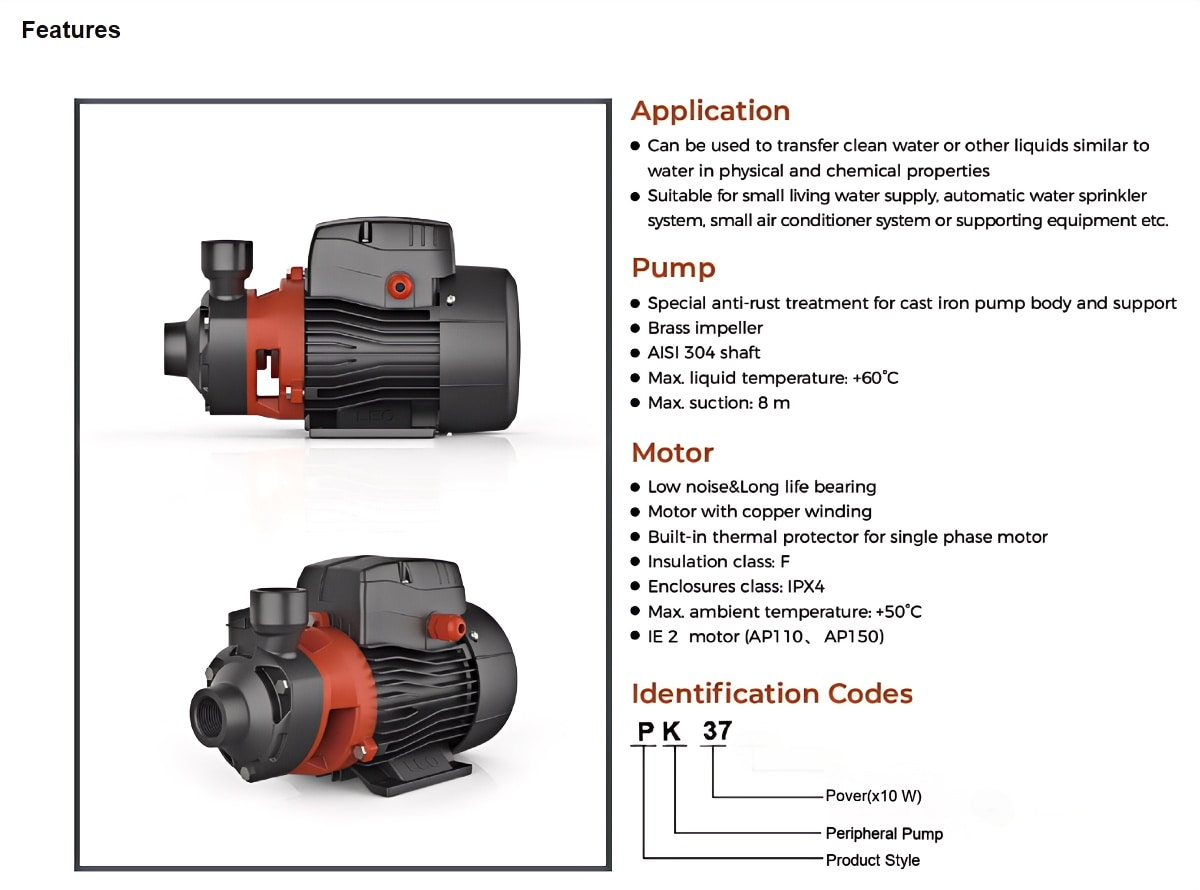

Application environment
For conveying water and other liquids similar to water. Suitable for household water supply, automatic watering system, small air conditioning system or supporting facilities.
Pump
Cast iron pump body, after a special rust prevention process treatment
Copper impeller, copper insert; can effectively solve the impeller when the pump is idle for a long time card stagnation problem
AISI304 Stainless steel welded shaft
Maximum liquid temperature: + 60℃
Maximum suction and upper height: + 8m
Electrical Appliances
High efficiency bearing
Copper wire motor
Single-phase electric generator with built-in thermal protection device
insulation grade:F
Protection level: IPX 4
Maximum ambient temperature: + 40℃
Horizontal type, using extended coupling, single-stage radial split volute (pump size larger than 125 adopts two-stage design) adopts back-pumping design, with replaceable shaft sleeve/shaft protection sleeve and replaceable pump body sealing ring, and the design conforms to ATEX；
