LRP series products are canned circulation pumps featuring high efficiency and low noise. They have the characteristics of high energy efficiency, low noise level, no leakage, convenient installation and long service life.
Model :
LRP15-40/130Imported caliber (DN) :
15Export caliber (DN) :
15Rated flow (m³/h) :
45/42/28Rated head (m) :
4.4/4/3.6Motor power (kw) :
74/54/34Material :
Cast iron pump casing/plastic impellerFOB Price （USD$） :

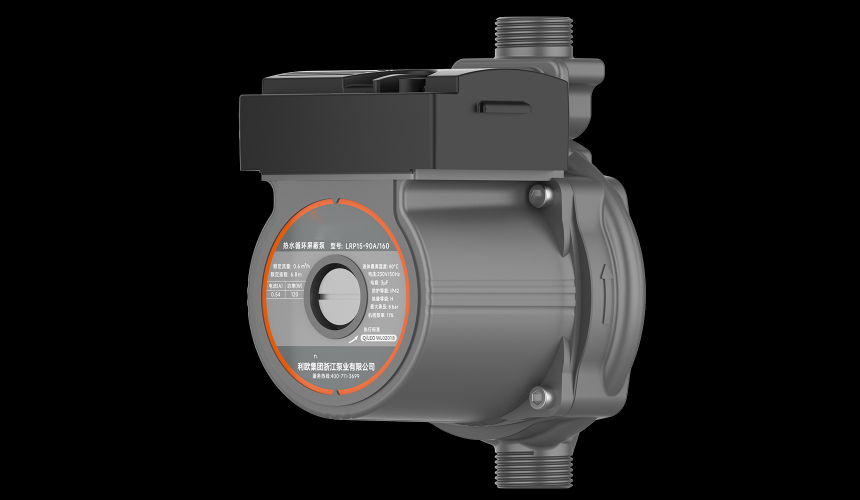

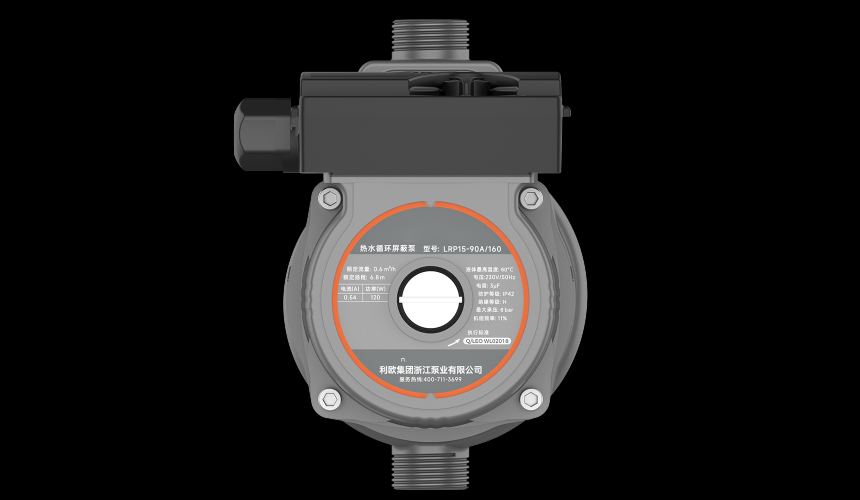

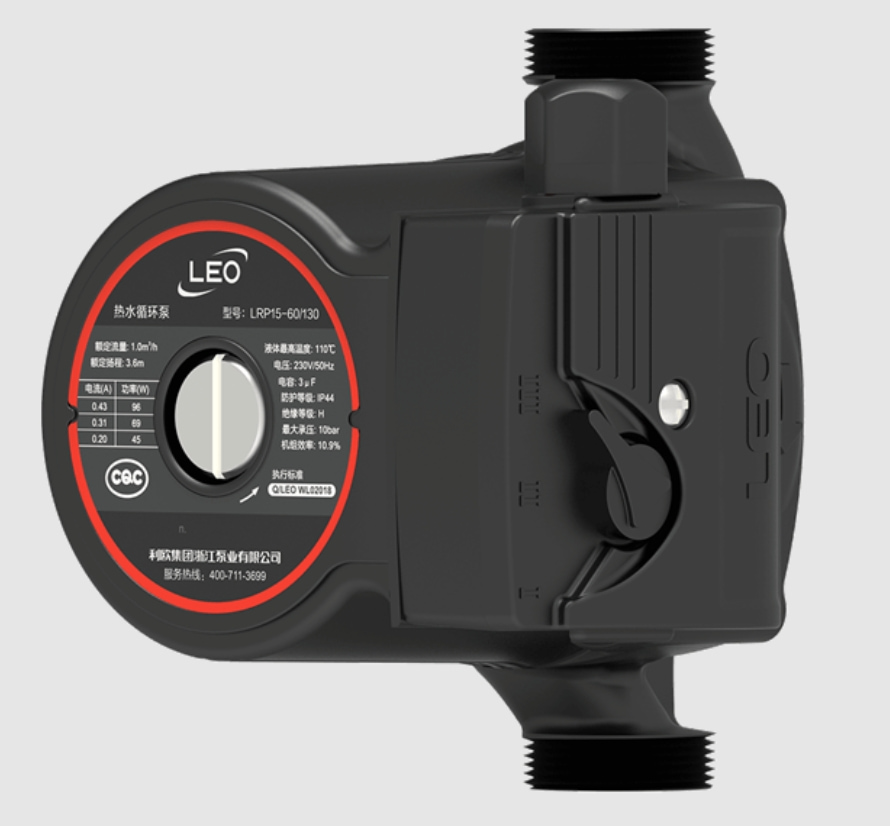

41Hot Water Circulation Canned Motor Pump
Technical parameter:
Flow rate, Q: Maximum 170 m³/h
Head, H: maximum 11m
Application environment
This type of pump is mainly widely used in HVAC circulation, household pressurization, solar pressurization, industrial supporting, household cold and hot water circulation, cooling and air conditioning system; (water temperature 2℃ ~110℃, automatic temperature 60℃)
Pump
It is mainly composed of pump body and impeller, which adopts engineering plastic with high strength, high wear resistance and high temperature resistance
The motor part is mainly made of stator, rotor, shield sleeve, bearing and other components, the bearing system adopts sliding bearing system, and the rotating shaft and bearing are made of ceramic with high strength, high wear resistance and high temperature resistance of alumina.
Electrical Appliances
The stator and rotor are sealed with stainless steel sleeve, and the pump and motor are static seal without leakage;
Using internal circulation mode, bearing by pumping liquid as lubricant and cooling the motor;
Motor insulation level is "Grade H";
The leakage screws are of AISI304 material;
Speed regulating shield pump, there are three gears for users to choose.
Horizontal type, using extended coupling, single-stage radial split volute (pump size larger than 125 adopts two-stage design) adopts back-pumping design, with replaceable shaft sleeve/shaft protection sleeve and replaceable pump body sealing ring, and the design conforms to ATEX；
