It has a wide range of uses in domestic water supply, industry, and construction.
Model :
MS70/0.37Imported caliber (DN) :
32Export caliber (DN) :
25Rated flow (m³/h) :
4Rated head (m) :
13Motor speed (rpm) :
2900Motor power (kw) :
0.37Material :
304FOB Price （USD$） :

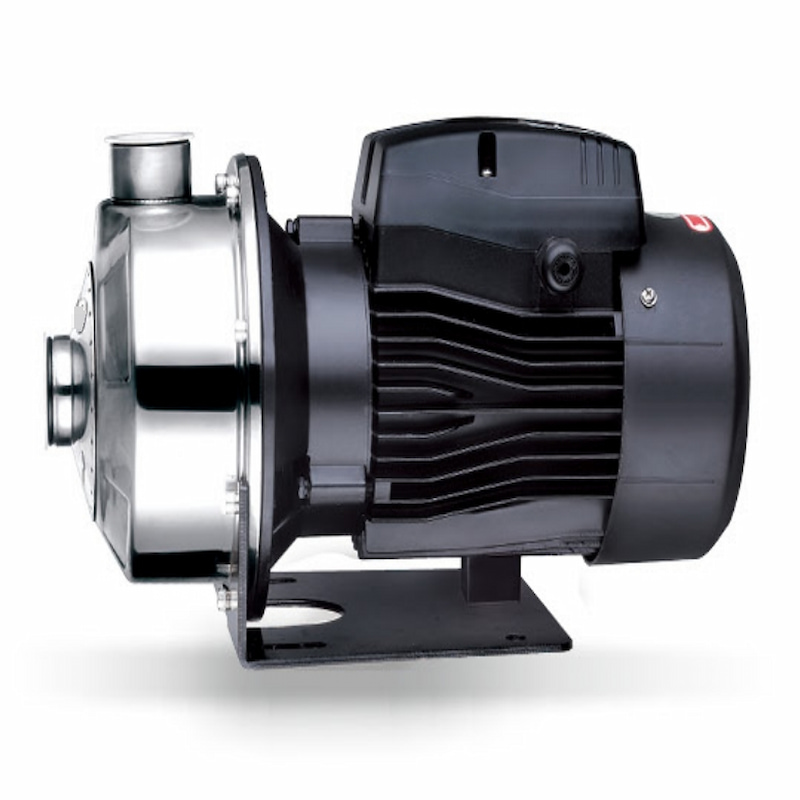

139Horizontal Stainless Steel Single - Stage Centrifugal Pump
Technical parameter:
Flow rate, Q: maximum 9.6 m³/h
Head, H: maximum 30m
Product overview
AMS series is horizontal stainless steel single stage centrifugal pump, with a wide range of uses in domestic water supply, industrial, construction. It can be used in: liquid delivery and circulation in light industry; pressurization and domestic water supply, but also widely used in cooling systems and air conditioning systems.
Working conditions
When the density of the medium transported by thin, clean, non-corrosive, non-flammable and explosive is greater than clear water, high-power motor shall be used
Temperature range of the liquid: 0℃ to 85℃
Maximum ambient temperature: + 40℃
Maximum suction range: related to pump NPSH (steam corrosion margin), medium temperature, sea level height of installation location, and inlet pipeline loss
Maximum work pressure: 8bar
Electrical Appliances
Pump is equipped with fully closed, air-cooled, mouse cage fan;
Protection level: IPX 4
insulation grade:F
Standard voltage：Single phase 220-240V, 50Hz
Three-phase 380-415V, 50Hz
Single-phase generator is equipped with built-in thermal protection device, and the three-phase motor must be connected to the motor starter according to local regulations
Horizontal type, using extended coupling, single-stage radial split volute (pump size larger than 125 adopts two-stage design) adopts back-pumping design, with replaceable shaft sleeve/shaft protection sleeve and replaceable pump body sealing ring, and the design conforms to ATEX；
