Pump introduction

Amid the implementation of China's dual-carbon policy and accelerated energy-saving upgrades of industrial equipment, electric motors— serving as the core power source for pumps, fans, air conditioners, and HVAC systems— have made energy consumption control crucial for enterprises to reduce costs and improve efficiency. Currently, the widespread adoption of IE5 permanent magnet motors faces constraints due to high procurement costs from imported brands, elevated domestic R&D and manufacturing expenses, premium pricing, and challenges in industrial-scale production. Furthermore, enhancing industrial energy efficiency and phasing out high-energy-consuming equipment have become essential industry requirements. In the era of energy conservation and carbon reduction, Lingxiao Pump Industry leverages 49 years of expertise in motor manufacturing to introduce the new-generation IE5 series – an integrated, high-efficiency, permanent-magnet synchronous motor with eight core advantages, driving a new phase of green and energy-efficient industrial transformation.   Ⅰ. Established Brands and New Technologies    For 49 years, Lingxiao Pump Industry has been dedicated to the research, development, and manufacturing of motors and water pumps, establishing specialized production lines for its product series with an annual capacity of 8 million units. The company aims to achieve an annual output of 15 million electric pumps, ensuring superior product consistency and enhanced cost-effectiveness. It operates three modern production bases and maintains a sales network covering 105 countries and regions worldwide. In terms of technology development, the company has established a research and development team led by professor-level senior engineers and senior technical experts, providing core support for continuous product iteration. The laboratory, with a total investment exceeding 40 million yuan, has been accredited by CNAS (China National Accreditation Service for Conformity Assessment), and its testing equipment and technical capabilities meet national standards. Additionally, this laboratory serves as an accredited facility for UL (USA) and TUV (Germany), enabling precise compliance with European and American market standards and significantly reducing international certification timelines. Over five years, Lingxiao Pump Industry's technical team dedicated itself to mastering the core technologies of permanent magnet integrated motors, optimizing magnetic circuit topology, electromagnetic designs, and intelligent control algorithms, while addressing industry challenges such as heat dissipation, noise reduction, and energy efficiency improvement. They ultimately achieved a technological breakthrough and successful industrialization of the MEG series of permanent magnet synchronous integrated motors, which meet diverse motor and pump application requirements across multiple sectors.         Ⅱ. IE5 Permanent Magnet Synchronous Integrated Motor MGE Series: Eight Core Advantages    1. Higher efficiency: IE5 with super-grade 1 energy efficiency, leading industry standards under all operating conditions. The product complies with the GB30253-2024 standard, achieving IE5-level efficiency indicators. With a power rating ranging from 0.37 to 37 kW, it has been registered as Grade 1 in the China Energy Efficiency Network. 2. Enhanced Energy Efficiency: Reduces power loss at the source, resulting in significant long-term savings on electricity bills. The product features built-in high-performance permanent magnets that completely eliminate excitation losses typical of conventional motors, ensuring low energy consumption under both light and full loads – enabling continuous operation 24/7 without power consumption concerns. Using the 22 kW model as an example, compared to a synchronous motor of equivalent power, it saves over 10,000 kWh annually, with the investment cost recovered within just over a year; subsequent electricity savings represent net profit. 3. Enhanced stability: Low temperature rise and reduced failure rate ensure continuous, reliable operation around the clock. Through comprehensive improvements in electromagnetic design, structural optimization, and manufacturing precision—including refinement of magnetic circuit topology, suppression of high-frequency harmonics, enhancement of vibration-damping structures, and precise assembly—the system effectively mitigates high-frequency vibrations and noise, resulting in quieter and more reliable performance. 4. Enhanced Intelligence: Integrated frequency conversion drive with built-in digital control capabilities. Equipped with a dedicated smart controller that employs a zero-drag vector control algorithm to automatically detect pump load variations and precisely regulate speed, torque, and power. Supports intelligent soft start/stop (eliminating water hammer effects) and constant-pressure closed-loop control, featuring integrated energy-saving logic for demand-based frequency conversion to reduce consumption. 5. Reduced weight: Compact size and significant weight reduction save installation space. At the same power level, permanent magnet motors are 25%–40% lighter than asynchronous motors (the exact ratio varies by power rating). 6. Outstanding energy-saving performance: Compliant with the dual-carbon policy. The entire system passes EMC testing and fully meets all technical, regulatory, and delivery requirements specified in the project tender. 7. Mutability during installation: It is fully interchangeable with asynchronous motors. The flange dimensions strictly comply with IEC 60072-1:2022 and GB/T 4772.1-2025 standards. This eliminates the need to modify equipment mounting structures, transmission components, or wiring configurations, enabling immediate deployment for rapid energy savings and efficiency improvements. 8. Superior cost-effectiveness: High efficiency at an affordable price. Controllable initial investment with optimal total lifecycle costs, and premium specifications without excessive pricing. Permanent magnet motors deliver outstanding performance at reasonable prices, significantly reducing overall user costs and offering the best value-for-money among motors of similar class – truly delivering top-tier performance-to-price ratio! Fortunately, the MGE series permanent magnet motors independently developed by Lingxiao Pump Industry have been applied in vertical multi-stage pumps and have obtained national patent certification as an invention patent, titled "A Permanent Magnet Motor for Vertical Multi-Stage Pumps".   III. Empowering a New Era of Green and Energy-Efficient Industrial Development    Intelligent permanent magnet variable-frequency centrifugal pumps fall into two main categories: fully enclosed air-cooled models and water-cooled models, both equipped with IE5 permanent magnet synchronous integrated motors. These pumps find extensive applications in building water supply systems, industrial pressurization, and circulating water replenishment across residential, commercial, and industrial sectors, supporting prolonged continuous operation and making them the ideal choice for energy-efficient equipment upgrades.   1. CRE/CRNE series intelligent permanent magnet variable-frequency vertical multi-stage pumps: featuring integrated pump, motor, and controller. The CRE model is made of cast iron (QT500-7 ductile iron with cathodic electrophoretic corrosion protection), while the CRNE model uses precision-cast stainless steel (SUS304/316). With rated power ranging from 5.5 to 110 kW, flow rates of 95–155 m³/h, and head capacities of 15–261 m, these pumps are suitable for building water supply and industrial pressurization applications.     2. The CRAE/CRNAE/CRLAE series of intelligent permanent magnet variable-frequency vertical multi-stage pumps: The A-series model features an optimized design and is available in three variants—CRAE (cast iron), CRNAE (precision cast stainless steel), and CRLAE (stamped stainless steel)—with power outputs ranging from 0.37 to 110 kW, flow rates of 1–320 m³/h, and head capacities of 11–250 m, delivering both high performance and excellent cost-effectiveness.     3. TDE Series Intelligent Permanent Magnet Variable Frequency Vertical Pipeline Centrifugal Pump: Features an integrated variable frequency controller, a vertically installed pipeline design for easy installation, and a top-accessible design for convenient maintenance. With power ratings of 0.75–30 kW, flow rates of 6–125 m³/h, and head capacities of 9–85 m, it is suitable for applications such as air conditioning circulation and pipeline pressurization.     4. CABE Series Horizontal Intelligent Permanent Magnet Variable Frequency Pump: Its flow components are fabricated by stamping and welding stainless steel plates, resulting in a pump weight 30–40% lighter than traditional cast ISW pumps, with easy installation and uncompromised performance. Operating within a power range of 1.1–90 kW and delivering flow rates from 12.5 to 320 m³/h (up to 450 m³/h), the pump has a head of 13–68 m, fully replacing conventional cast ISW electric pumps for more energy-efficient and environmentally friendly operation.       5. The TDSE/ISWSE series permanent magnet variable-frequency water-cooled vertical and horizontal pipeline centrifugal pumps utilize water cooling for motor cooling, offering significantly superior heat dissipation efficiency compared to air cooling, low operating temperature rise, and the capability for prolonged uninterrupted stable operation. These pumps feature low noise levels, minimal vibration, strong overall sealing performance, and excellent resistance to dust, moisture, and high temperatures. They are designed to operate under harsh conditions with slow motor insulation aging and extended service life. With a compact structure and high protection rating, they range in power from 0.75 kW to 37 kW, deliver flow rates of 6–125 m³/h, and provide head capacities of 9–85 m, making them ideal for high-power water supply and industrial circulation applications.     6. The CRNSE and CABSE series of permanent magnet variable-frequency water-cooled vertical and horizontal stainless steel centrifugal pumps employ the core technology of water-cooled permanent magnet motors, eliminating traditional air-cooling designs for faster heat dissipation, lower temperature rise, and noise-free operation without fan loss. Their high-efficiency permanent magnet drive delivers exceptional energy savings, complemented by a fully stainless steel corrosion-resistant pump body that ensures durability and resistance to corrosion. With a compact structure and high protection rating, their overall performance far surpasses that of conventional pumps.     Basic parameters of the vertical pump:   -Rated power: 0.37 kW to 37 kW   -Matching motor: IE5 intelligent permanent magnet variable-frequency water-cooled motor   -Rated flow rate: 1–320 m³/h   -Rated head: 11–250 m   -Inlet/outlet diameters: DN32–DN150 Basic parameters of horizontal pumps:   -Rated power: 1.1 kW to 37 kW   -Rated flow rate: 12.5–320 m³/h   -Rated head: 13–68 m   -Inlet/outlet diameters: DN50–DN150 As energy conservation and consumption reduction have become essential requirements in the manufacturing sector, Lingxiao Pump Industry's independently developed IE5 permanent magnet synchronous integrated motor delivers eight core advantages that drive a new era of green and energy-efficient industrial solutions. It addresses industry challenges associated with traditional motors—high power consumption, limited intelligence, and elevated operational and maintenance costs—effectively achieving high efficiency at an affordable price. As stated by Lingxiao Pump Industry's leadership: "We avoid producing flashy but impractical products; every technological upgrade is designed to resolve real-world challenges faced by customers." The IE5 permanent magnet variable-frequency motor serves not only as a fundamental product for implementing green production practices but also represents the mainstream direction for evolution and upgrading within the motor industry. ​

Industrial water treatment is not merely about "purifying water."   It directly impacts equipment operation, product quality, energy consumption costs, and production continuity.   From equipment cleaning water to boiler water, ultrafiltration water, reverse osmosis water, and ultimately to ultrapure water required for industries such as pharmaceuticals.   Every type of water requires a reliable and efficient pumping system for stable delivery.   KSB provides more than just pumps for industrial water treatment projects. Even more: solutions tailored to specific operating conditions.   ✅ The stainless steel version of the Multitec multi-stage high-pressure pump is designed for permeation/reverse osmosis processes, featuring corrosion resistance, durability, and reliability. ✅ The vertical and horizontal pump designs are flexibly compatible with various system configurations. ✅ Variable frequency control optimizes pumping efficiency and reduces operating costs ✅ KSB SupremeServ delivers rapid response to minimize downtime risks.   KSB introduces the new high-efficiency high-pressure pump MultiTec Plus     In February 2025, KSB Group launched the first model (Model 150) of its newly developed MultiTec Plus series pumps to the market.   This series of pumps is specifically designed for drinking water delivery, achieving breakthroughs in energy efficiency optimization and low-carbon operation. Equipped with a high-efficiency synchronous reluctance motor and the PumpDrive variable-frequency speed control system, the pump units significantly reduce energy consumption while intelligently adjusting output power according to actual needs to prevent energy waste.   Users may also opt to install the KSB pump Guardian monitoring system, which collects real-time temperature and vibration data and uploads it to the cloud. Using advanced algorithms, the system predicts equipment anomalies, enables precise maintenance planning, and minimizes unplanned downtime.   MultiTec Plus  Core Performance & Technical Advantages   1. High efficiency, energy-saving, and environmentally friendly This pump set operates at a pressure of 25 bar, with a maximum head of nearly 250m and a flow rate of up to 470 m³/h.   All models are standardly equipped with four-pole three-phase motor drives. Compared to small-diameter high-speed pump sets, these products operate at 1,450 rpm (50 Hz) or 1,750 rpm (60 Hz), maintaining the same maximum flow rate while significantly reducing operational noise. The low-speed design effectively minimizes wear, extends service life, and enhances overall system energy efficiency.        2. Modular design with flexible installation The inlet and outlet orientations can be customized according to site requirements, supporting both horizontal and vertical installations with various bearing configuration options. The flow path features an optimized hydraulic system paired with rapidly replaceable wear-resistant components, significantly reducing maintenance costs. Self-adjusting ceramic sliding bearings combined with innovative axial force balancing technology ensure high operational reliability.   3. Durable and reliable, with enhanced safety features The pump's flow-guiding components are equipped with wear-resistant rings for protection and can handle liquid media at temperatures up to 60°C. The robust structural design and use of wear-resistant materials ensure stable performance during prolonged operation.   Application Scenarios and Industry Value   This series is particularly suitable for water supply applications where stringent requirements are imposed on energy efficiency, noise levels, and service life. Its energy-saving and low-carbon characteristics align with global carbon neutrality trends, while its intelligent monitoring capabilities provide technical support for the digital transformation of the water industry. As KSB's flagship solution in the high-pressure pump sector, the MultiTec Plus series redefines energy efficiency standards and operational maintenance paradigms for industrial pump systems through the seamless integration of structural innovation and intelligent control systems.   The stable delivery of a single drop of water relies on the reliable operation of an entire system.   KSB makes industrial water treatment more efficient, reliable, and worry-free.   The solution: achieving a better life.

KSB Additive Manufacturing Technology Pioneers Efficient Upgrade for the Beverage Industry     In an rapidly evolving market and amid changing consumer demands, the beverage industry faces unprecedented challenges. KSB utilizes additive manufacturing (3D printing) technology to provide efficient, flexible, and reliable component solutions for beverage production lines.   Build Layer by Layer Break design constraints   Unlike traditional subtractive manufacturing, additive manufacturing constructs complete parts by depositing materials layer by layer. Without the need for molds or additional tools, it enables cost-effective production of even small-batch or highly customized components.   Key advantages of additive manufacturing   01  High degree of freedom Complex designs are easily implemented.   02 Performance Optimization The components can be lightweightened, parts can be consolidated, and material consumption can be reduced.   03  Rapid Iteration The process is faster from prototype to validation, with lower product development costs.   04 On-demand Production Shorten delivery cycles, reduce inventory and costs     Metal Additive Manufacturing More durable and lighter   Additive manufacturing is applicable not only to plastics but also to metal components. KSB employs Laser Powder Bed Fusion (PBF) technology, which deposits metal powder layer by layer through melting to form high-density, pore-free parts.     In the beverage industry, the advantages of metal additive manufacturing are particularly evident:     High-hardness material Reduce wear and tear, extend service life   No stomatal risk Avoid quality risks caused by shrinkage cavities in traditional castings   Lightweight structure The honeycomb or grid-type impeller offers high stability and reduces driving energy consumption.   Quick response reduces downtime costs The beverage production line can achieve a filling rate of 40,000–80,000 bottles/cans per hour, with extremely high costs associated with downtime or part waiting periods. Additive manufacturing enables rapid on-demand part printing, significantly reducing downtime and allowing for further design optimization.   KSB Full-Process Additive Manufacturing Services       Through additive manufacturing technology, KSB can achieve rapid and efficient production. Manufacture a variety of complex, small-batch, and highly customized products   KSB has long served the beverage industry, providing high-performance sanitary pumps and valves to ensure quality and process reliability. Since 2019, KSB has become the world's first additive manufacturing pressure equipment component manufacturer to obtain TÜV certification.     Sanitary pumps technical data： Component Function: Transportation Entry connection method: external threaded interface, flange Power Solution: Motor Maximum flow rate of the Supreme Series: 340 m³/h Maximum head series: 100 m Power frequency: 50 Hz, 60 Hz Voltage: 400 V, 460 V Paineluokka lähtö：PN 12 Inhalation characteristics: Non-suction type Maximum allowable medium temperature: 110 °C Maximum allowable medium temperature: -30 °C    KSB Peignitz Factory From material testing, reverse engineering, and component optimization to additive manufacturing, we provide one-stop services to meet diverse needs—whether for emergency replacements, custom-designed parts, or new process components.   KSB additive manufacturing services significantly reduce production line downtime, produce lighter and more durable components with greater design flexibility, providing reliable support for industry innovation and efficient production.

  Single-stage axially split volute casing pump for horizontal or vertical installation, with double-entry radial impeller, mating flanges to DIN, EN or ASME.   Omega RDLO       Technical Data -- OMEGA Series   Max. flow rate：4000 m3/h Max. Head：220 m Max. allowed working pressure：25 bar Maximum allowable fluid temperature：140 °C Mains frequency：50 Hz,60 Hz      Omega Type Spectrum         Technical Data - RDLO Series    Max. flow rate:18000 m3/h Max. Head:320 m Max. allowed working pressure:30 bar Maximum allowable fluid temperature:140 °C       RDLO Type Spectrum         Applications：   • Waterworks • Desalination plants • Pressure boosting • Water transport • Service water and cooling water for power stations and industry • Irrigation pumping stations • Drainage pumping stations • Fire-fighting systems • Shipbuilding • District heating systems and district cooling system     Materials Component ：   Volute casing  ：Nodular cast iron / cast duplex steel Impeller： Bronze / stainless steel / duplex steel Shaft： Stainless steel / duplex steel Shaft protecting sleeves： Stainless steel Casing wear rings ：Bronze / stainless steel Impeller wear rings (optional)：Bronze / stainless steel / duplex steel     Benefits：   High operating reliability   • The double-entry impeller balances axial thrust, reducing the loads acting on the rolling element bearings. • The pump casing's double-volute design balances radial forces, ensuring low vibration levels during operation.    Low maintenance costs   • Long service life of the rolling element bearings, sealing elements and coupling thanks to a short, rigid shaft and the spring-loaded bearing arrangement • Corrosion and abrasion-resistant materials make for maximum service lives of shaft protecting sleeves, casing wear rings and impeller wear rings as well as of the impeller.   Service-friendly design   • Fast and easy to assemble thanks to self-centring components such as rotor, mechanical seal, upper casing half, bearing housings and seal housing • The hexagon head bolts used are easy to remove, enabling fast maintenance. The casing split flange provides direct access to the inside of the pump.    Reliable sealing   • The solid casing split flange on the upper casing half and lower casing half ensures reliable and trouble-free sealing of the casing halves.   Energy-efficient operation   • High efficiencies reduce energy costs during operation. • The double-volute casing and the rigid shaft enable a compact, energy-efficient design. • The hydraulic system is optimised for high speeds.

  The KSB Magnochem is a horizontal shaftless magnetic drive chemical pump developed by Germany's KSB. Recognized as the gold standard for chemical magnetic pumps in the industry, it features zero-leakage safety, wide operating condition tolerance, ISO standard compliance, low energy consumption, and easy maintenance. It is suitable for transporting high-risk media such as toxic, explosive, and highly corrosive substances.     Core Technologies and Performance Parameters   Extreme Safety: Zero Leakage Commitment Magnochem is engineered for extreme operating conditions. With its leak-proof technology, it can handle both highly corrosive organic solvents and high-concentration inorganic acid solutions with ease.   Multiple Coverage Optional additional leakage barrier and lossless ceramic shielding cover are available. Optionally equipped with silicon carbide-coated sliding bearings for optimized dry-running performance. Magnochem boasts exceptional operational reliability and complies with various environmental protection requirements. The products strictly adhere to the European ATEX directive for explosion-proof applications, meeting ultra-high safety standards.     Excellence in Energy Efficiency: The Smart Choice Under the dual carbon goals framework, Magnochem has demonstrated exceptional energy efficiency performance   Hydraulic optimization An advanced hydraulic model that balances efficiency enhancement with cavitation protection.   Parameter Overview   Flow Rate (Q) 50 Hz Up to 1,160 m³/h 60 Hz Up to 1,400 m³/h Head (H) 50 Hz Max. 162 m 60 Hz Max. 236 m Operating Pressure Max. 40 bar Temperature Range -90°C to +400°C   stock option Cast steel, stainless steel, duplex steel, and custom special alloys.   Main Applications   chemical industry cooling circuit Hot water heating system district heating Petrochemical industry Sugar industry Industrial Circulation System Pipelines and Oil Storage Tanks Heat Carrier/Hot Oil Equipment air conditioning unit refining equipment technology Condensate transportation process engineering   Superiority   High operational reliability: Only static sealing is required Optional leak prevention device Protect the shielding cover through the starting installation devices on the outer rotor and inner rotor. Self-draining shield cover The pump does not need to be emptied when installing or removing the drive unit. Wide range of applications: Silicon carbide sliding bearing lubricated by the transported medium (optionally with DLC coating) Hydraulic systems and magnetic couplings adopt modular design principles Multiple operating modes are available The pump casing and pump cover can be used for temperature control and heating. Low maintenance cost: Silicon carbide sliding bearing lubricated by the transported medium (no wear) Lubricated rolling bearings with lifetime lubrication (operating for 30,000 hours at temperatures below 80 °C) or lubricated rolling bearings (35,000 hours) Highly suitable for high medium temperatures: The insulation device can achieve very low surface temperatures. The heat sink can reduce the temperature of rolling bearings. The optional fan impeller can extend the temperature range to 400°C. Special measures can be implemented to ensure operation within the ATEX temperature class range below the medium temperature. High safety is ensured through optional additional secondary and tertiary seals connected in series. Targeted leakage discharge between barriers can be performed via optional interfaces.   Parts Drawing       Project Cases   ➤ A world-class integrated refining and petrochemical base in South China   In the high-standard chemical engineering project at this facility, the client has set exceptionally stringent requirements for equipment safety and stability. KSB has supplied dozens of Magnochem pump sets, which have earned high acclaim for their exceptional corrosion resistance and zero-leakage performance, effectively supporting the base's safe and stable production operations.     ➤ A globally leading organic silicon production base in East China   As one of the world's largest silicone producers, this client faces complex dielectric material transportation challenges. After the KSB Magnochem pump unit was deployed at the site, it not only eliminated potential medium leakage risks but also significantly reduced maintenance frequency and operational costs, becoming a core transportation solution for the production line.       KSB Magnochem is not only a technologically advanced leader in zero-leakage fluid transportation but also a trusted partner for your needs. KSB offers a comprehensive range of solutions, from traditional sealed pumps and magnetic drive pumps to shielded electric pumps, tailored to meet every requirement.

Industry serves as the backbone of the national economy, where production processes rely on pressurized fluid handling, transportation, and circulation. As the "heart" of industrial systems, centrifugal pumps play a pivotal role in ensuring stable production lines, product quality, and energy efficiency. While traditional horizontal centrifugal pumps deliver reliable performance, they suffer from drawbacks like excessive space requirements, high energy consumption, and complex maintenance procedures. Furthermore, horizontal centrifugal pumps from different manufacturers often have incompatible models and specifications, making spare parts incompatible and driving up repair costs. The CDL/CDLF multi-stage vertical centrifugal pump, also known as the stamping-welded multi-stage centrifugal pump, has gained rapid traction in both industrial and consumer markets due to its corrosion-resistant, high-temperature-resistant, and smooth-surface design. With low maintenance costs and energy efficiency, this pump type has been widely adopted in micro and mini water pump production, thanks to its advanced manufacturing technology and ease of automated mass production.   graph ：CDL/CDLF       The CDL/CDLF multi-stage vertical centrifugal pump features a motor mounted above the pump body, connected to the shaft via a vertical coupling. This design significantly reduces installation space requirements, enabling the pump to be installed in narrow pipelines or confined environments such as deep wells or specialized equipment bases.   Figure: Light Vertical Multistage Pump       Multi-stage design: The pump body contains multiple identical impellers and guide vanes. Each time the medium passes through a stage of impellers and guide vanes, its pressure is increased. The total head is calculated by multiplying the head of a single stage by the number of stages, enabling this pump model to achieve a head far exceeding that of a single-stage pump with relatively small size and power consumption.   Figure: Inner core     High-efficiency hydraulic models and flow components: The impeller and guide vanes are designed using precision hydraulic models, typically optimized through computational fluid dynamics (CFD) to ensure smooth flow channels and uniform flow velocity, thereby minimizing hydraulic losses and enhancing pump efficiency.   The impeller typically features backward-curved blades, a design that delivers stable performance and excellent cavitation resistance. Flow components (including the impeller, guide vanes, and pump body) are generally constructed from corrosion-resistant and wear-resistant materials like stainless steel (304,316), ensuring the pump's longevity and reliability when handling clear water or mildly corrosive liquids.   Figure: Impeller     Reliable shaft sealing and balancing systems: Shaft sealing system: Standard CDL/CDLF pumps utilize mechanical seals, which offer advantages such as minimal leakage, extended service life, and low power consumption. Depending on the temperature, pressure, and properties of the conveyed medium, mechanical seals can be selected from various materials (e.g., silicon carbide, alumina, cemented carbide) and configurations. For more demanding operating conditions, dual-face mechanical seals or integrated seals can be configured.   Axial Force Balance: Multi-stage pumps generate substantial axial forces during operation. CDL/CDLF pumps typically employ either a "balance drum" or a "balance drum + balance disc" configuration to neutralize most axial forces, with the residual portion being absorbed by the thrust bearing at the motor end. This design significantly reduces bearing loads, thereby enhancing the operational stability and service life of rotor components.   Rotor dynamics design: The pump shaft is typically fabricated from high-strength stainless steel and undergoes precision dynamic balancing (typically achieving G6.3 or higher standards) to ensure smooth operation at high speeds, minimizing vibration and noise.   The reasonable bearing arrangement (upper and lower guide bearings) provides stable support for the pump shaft, ensures uniform clearance between the impeller and stationary components such as the sealing ring, and maintains the high-efficiency operation of the pump.   Figure: Support guide vane

      Design practice   Fluid system design is typically developed to meet the requirements of other systems. For instance, in cooling applications, heat transfer demands determine the required number of heat exchangers, their dimensions, and the necessary flow rates. Subsequently, pump performance parameters are calculated based on system layout and equipment characteristics. In other applications like municipal wastewater discharge, pump capacity depends on the required water volume, as well as the necessary head and pressure. Pump selection and configuration must be determined according to the flow and pressure requirements of the system or service.   After determining the service requirements of the pumping system, the pump/motor combination, layout, and valve specifications must be designed. Selecting the appropriate pump type, along with its speed and power characteristics, requires an understanding of its working principles.   The most challenging aspect of the design process is achieving cost-effective alignment between pump and motor characteristics and system requirements. Given the significant variations in flow rate and pressure demands, this alignment often becomes complex. To ensure equipment meets system requirements under extreme operating conditions, designers typically employ redundant designs. Moreover, pumps exceeding required specifications increase material, installation, and operational costs. However, adopting larger-diameter piping systems may reduce pumping energy costs.   Fluid energy   In practical pump applications, fluid energy is typically measured by head (Head). Measured in feet or meters, head refers to the height of a fluid column in a system with equivalent potential energy. This term is convenient as it combines density and pressure factors, allowing centrifugal pumps to be evaluated across various fluid systems. For example, at a given flow rate, a centrifugal pump may produce different outlet pressures for fluids with different densities, yet the head values for these two conditions remain identical.   The total head of a fluid system consists of three components or measurements: static head (gauge pressure), height head (or potential energy), and velocity head (or kinetic energy).   Static pressure: As the name implies, it refers to the pressure of fluid in a system, measured by conventional pressure gauges. While liquid level height significantly affects static pressure, it also serves as an independent measure of fluid energy. For example, a pressure gauge on a ventilation tank may display atmospheric pressure readings. However, if the tank is positioned 15 meters above the pump, the pump must generate at least 15 meters of head to pressurize the water into the tank.   Height head (or potential energy): The gravitational potential energy of the fluid, defined as the vertical height difference between the inlet and outlet, measured in meters (m). It represents the vertical distance the fluid is lifted.   Velocity head (also known as "dynamic head") measures fluid kinetic energy. In most systems, it is generally smaller than static head. When installing pressure gauges, designing systems, or interpreting gauge readings, account for the velocity head—especially in pipelines with varying diameters. The downstream gauge reading may be lower than the upstream one, even when the distance between them is only 0.2 meters.   Fluid properties   In addition to the type of system served, the demand for pumps is also influenced by fluid properties such as viscosity, density, particle content, and vapor pressure.   Viscosity is a property that measures the shear resistance of fluids. High-viscosity liquids require more energy during flow because their shear resistance generates heat. Certain fluids (such as cold lubricating oils below 15°C) have such high viscosity that centrifugal pumps cannot effectively transport them. Therefore, variations in fluid viscosity within the system's operating temperature range are critical factors in system design. A pump/motor combination properly sized for 26°C oil temperature may appear underpowered when operating at 15°C.   The quantity and characteristics of particulate matter in fluid systems significantly influence pump design and selection. Certain pumps cannot tolerate excessive impurities. Moreover, if inter-stage seals in multi-stage centrifugal pumps experience erosion, their performance will noticeably degrade. Other pumps are specifically engineered for handling fluids with high particulate content. Due to their operational principles, centrifugal pumps are commonly used to transport fluids containing high particulate loads, such as coal slurry.   The difference between fluid vapor pressure and system pressure constitutes another fundamental factor in pump design and selection. Accelerating fluid to high speeds (a characteristic of centrifugal pumps) causes a drop in static pressure. This pressure reduction may lower fluid pressure to its vapor pressure or below. At this point, the fluid "boils" and transitions from liquid to gas. This phenomenon, known as cavitation, severely impacts pump performance. During cavitation, microbubbles form as the fluid undergoes phase change. Since vapor occupies significantly more volume than liquid, these bubbles reduce flow through the pump.   The destructive aspect of cavitation occurs when these bubbles violently collapse and re-enter the liquid phase. During the collapse process, high-speed water flow impacts surrounding surfaces. This impact force often exceeds the mechanical strength of the impacted surface, resulting in material loss. Over time, cavitation can cause severe erosion problems in pumps, valves, and pipelines.   Other causes of similar damage include suction backflow and discharge backflow. Suction backflow refers to the formation of destructive flow patterns in the impeller's suction zone, leading to cavitation-like damage. Similarly, discharge backflow occurs when destructive flow patterns develop in the impeller's external region. These backflow effects are typically caused by pumps operating at excessively low flow rates. To prevent such damage, many pumps are labeled with minimum flow rate ratings.   System type   Like the pump, the characteristics and requirements of the pump system are varied, but generally can be divided into closed circulation system and open circulation system.   Closed-loop systems: Fluids circulate along a path with a common starting and ending point. Pumps serving closed-loop systems (e.g., cooling water systems) typically do not require overcoming static head loads unless there are vented storage tanks at different elevations within the system. In closed-loop systems, friction losses from system piping and equipment constitute the primary load on the pump.   Open-loop systems: These systems feature input and output ports, where fluid is transported from one point to another. Unlike closed-loop systems, they typically require pumps to overcome static head demands caused by height differences and tank pressurization needs. A prime example is mine drainage systems, which use pumps to lift water from underground to the surface. In such cases, the static head often constitutes the primary load on the pump.   Principle of flow control   Flow control is critical to system performance. Adequate flow ensures proper equipment cooling and enables rapid tank emptying or refilling. Maintaining sufficient pressure and flow to meet system requirements often leads to oversized pump and drive motor selections. Since system designs incorporate flow control devices to regulate temperature and prevent equipment overpressure, oversized pump selection imposes high energy consumption on these flow control mechanisms.   There are four main methods for flow control of the control system or its branch: throttle valve, bypass valve, pump speed control and multi-pump combination. The appropriate flow control method depends on the system size and layout, fluid characteristics, shape of pump power curve, system load and sensitivity of system to flow rate change.   A throttle valve restricts fluid flow, allowing less fluid to pass through the valve and thereby creating a pressure drop across it. Throttle valves are generally more efficient than bypass valves because they maintain upstream pressure when closed, facilitating fluid flow through parallel system branches.   The bypass line allows fluid to flow around system components. A major drawback of bypass valves is their adverse impact on system efficiency: the power used to pump bypass fluid is wasted. However, in systems primarily operating at static head, bypass valves may be more efficient than throttle valves or systems equipped with adjustable speed drives (ASDs).   Pump speed control employs both mechanical and electrical methods to match the pump's speed with the system's flow/pressure requirements. ASD (Automatic Speed Detection), multi-speed pumps, and multi-pump configurations are typically the most efficient flow control solutions, especially in systems where friction head predominates. This is because the fluid energy added by the pump is directly determined by the system's demands. Pump speed control is particularly suitable for systems where friction head plays a dominant role.   Both ASD and multi-speed motors can operate at varying speeds through drive pumps to meet different system requirements. During periods of lower system demand, the pump operates at reduced speed. The key functional difference between ASD and variable-speed motors lies in the degree of speed control available. ASD typically adjusts the speed of single-speed motors through mechanical means (e.g., gearboxes) or electrical methods (e.g., frequency converters), while multi-speed motors are equipped with separate winding sets for each speed. ASD is particularly suitable for applications with continuously changing flow requirements.   Multi-speed motors are ideal for systems requiring variable flow rates across distinct operational ranges, where each speed level demands extended runtime. A key drawback is their higher equipment cost, as each speed level requires separate motor windings, making them more expensive than single-speed motors.   A multi-pump system typically consists of pumps installed in parallel, with two primary configurations: a large-small pump setup, or a series of pumps of identical size connected in parallel.   In the large-small pump configuration, the small pump (commonly called the "auxiliary pump") operates under normal conditions, while the large pump is deployed during peak demand periods. Since the auxiliary pump is sized for standard system operation, this setup outperforms systems that rely on the large pump to handle loads far below its optimal capacity.   In parallel configurations of pumps of identical size, the number of operational pumps can be adjusted according to system requirements. When pumps share the same dimensions, they can work in concert to serve the same discharge manifold. However, if the pumps differ in size, the larger pump tends to dominate the smaller one, resulting in reduced efficiency of the smaller pump. With proper selection, each pump can operate closer to its peak efficiency point. Another advantage of parallel pump configuration in flow control is that the system curve remains unchanged whether one or multiple pumps are operating; only the operating point along this curve varies.   Parallel multi-pump configurations are ideal for systems with significant flow variations and relatively stable head. Another key advantage is system redundancy: when one pump fails or requires maintenance, the remaining pumps can still sustain system operation. When using identical parallel pumps, it's essential to maintain consistent performance curves across all units. Therefore, each pump should operate for the same duration, and all pumps should undergo synchronized maintenance.   System operating cost   The fluid power consumed by the system is the product of the head and the flow rate.   Due to efficiency losses in motors and pumps, the motor power required to achieve these head and flow conditions is slightly higher. Pump efficiency is measured by dividing fluid power by pump shaft power; for direct-connected pump/motor combinations, this corresponds to the motor's brake horsepower.   Pumps vary in efficiency levels. The operating point with the highest efficiency for centrifugal pumps is called the Best Efficiency Point (BEP). The efficiency range spans from 35% to over 90%, depending on various design characteristics. Operating pumps at or near the BEP not only minimizes energy costs but also reduces pump load and maintenance requirements.   For systems with prolonged annual operational time, the operational and maintenance costs are significantly higher compared to the initial equipment procurement costs. In oversized systems with extended operational periods, inefficiency can substantially increase annual operating costs; however, these costly inefficiencies are often overlooked when ensuring system reliability.   The costs of oversized pump selection extend beyond electricity bills. Excess fluid power must be dissipated through valves, pressure regulators, or system pipelines themselves, increasing wear and maintenance expenses. Valve seat wear (caused by excessive flow and cavitation) poses a significant maintenance challenge, potentially shortening the interval between major valve overhauls. Similarly, noise and vibration from excessive flow generate alternating stresses on pipeline welds and supports, which in severe cases may even erode the pipe walls.   It should be noted that when designers attempt to enhance the reliability of pump systems by selecting oversized equipment, the unintended consequence is often a reduction in system reliability. This is attributed to the combined effects of excessive wear and inefficient operation of the equipment.

The Structure and Application of Magnetic Drive Centrifugal Pump   1.Structure of Metal Magnetic Drive Centrifugal Pump The magnetic drive centrifugal pump consists of four main components: the housing, rotor, connecting parts, and transmission system. It is available in two configurations: direct-coupled and non-direct-coupled. The direct-coupled design features a magnetic coupling (external magnet) directly connected to the motor shaft, eliminating the need for external shafts, rolling bearings, or coupling components, as illustrated in Figure 1-12.     Figure 1-12  Schematic Diagram of Direct-Coupled Magnetic Drive Centrifugal Pump   1—Pump body; 2—Impeller; 3—Pump shaft; 4—Shaft sleeve; 5—Sliding bearing; 6—Pump cover;7—Inner magnetic rotor; 8—Isolation sleeve; 9—Outer magnetic rotor; 10—Electric motor   The non-direct-connected magnetic drive centrifugal pump, also known as the standard magnetic drive centrifugal pump, features an external shaft with a magnetic coupling (external magnet) connected to the motor via a bearing housing and coupling. The schematic structure of this pump is illustrated in Figure 1-21.     Figure 1-21 Schematic Diagram of Non-Direct-Coupled (Standard Type) Magnetic Drive Centrifugal Pump 1—Pump body (pump casing); 2—Impeller; 3—Sliding bearing; 4—Inner pump shaft; 5—Isolation sleeve; 6—Inner magnetic steel; 7—Outer magnetic steel; 8—Rolling bearing; 9—Outer pump shaft; 10—Coupling; 11—Electric motor; 12—Base     (1) Shell section The shell part is composed of the pump body (pump shell), pump cover, isolation sleeve, etc. It bears all the working pressure of the pump. (2) Rotor section The rotor assembly consists of two main components: the rotating parts mounted on the pump shaft and those installed on the drive shaft. The pump shaft's rotating components include the impeller, bearings, thrust ring assembly, inner magnetic rotor, and the shaft itself, forming the rotor section that interfaces with the medium. The drive shaft's rotating parts comprise the outer magnetic rotor, rolling bearings, drive shaft sleeve, and the shaft itself, constituting the rotor section that contacts the air. (3) Connection section It is composed of connecting frame, bearing box and other parts, which play the role of connecting and supporting. (4) Transmission section The connection section refers to the coupling between the pump and the drive unit. Magnetic drive centrifugal pumps employ two connection methods: (1) connecting the pump's internal magnetic coupling to the drive unit's magnetic coupling (external magnetic coupling); (2) using a diaphragm-type extended coupling component to connect the pump's external shaft magnetic coupling to the drive unit. This design allows pump maintenance by simply removing the coupling's intermediate section bolts and diaphragm, eliminating the need to disassemble the drive unit for servicing, thus ensuring convenient maintenance.   2. Main Components and Their Functions of Metal Magnetic Drive Centrifugal Pump   (1) Main Components of Metal Magnetic Drive Centrifugal Pump The key components of a metal magnetic drive centrifugal pump include: impeller, shaft, suction chamber, pump body (housing), isolation sleeve, bearing housing, and port ring. Some models may also incorporate guide vanes, induction wheel, and balance disc. The flow passages consist of the suction chamber, pump body (housing), and impeller, each serving the following functions. ① Inlet chamber The inlet chamber is located at the front end of the impeller inlet, where the liquid is drawn into the impeller through the suction port. It is required that the flow loss of the liquid passing through the inlet chamber be minimal, and the velocity of the liquid entering the impeller should be uniformly distributed. ②Impeller The rotating impeller converts energy by drawing in liquid, imparting pressure energy and kinetic energy to the liquid. The impeller is required to maximize energy transfer to the liquid while minimizing flow loss. (2) Functions of Key Components in Metal-Magnetic Drive Centrifugal Pumps ① Pump body (pump housing) The pump body, also known as the pump casing, comes in two types: axially split and radially split, serving as a component that withstands liquid pressure. Most single-stage pumps feature a volute casing, while multi-stage pumps typically use annular or circular casings. Its primary function is to contain the liquid within a defined space, channel the liquid ejected from the impeller's flow passages into discharge pipes, and convert part of the liquid's kinetic energy into pressure energy, thereby increasing its pressure.   The pump body generally has the following three types: a. The volute pump body (shell) resembles a snail shell in appearance (Figure 1-22). Inside the volute, there are flow channels with gradually expanding cross-sections. The shape and dimensions of these channels significantly influence the pump's performance.      Figure 1-22 Volute Pump Body (The arrow points to the volute passage with unequal cross-sections)   b. Pump body (housing) with guide vane assembly. The pump body (housing) is a rotating structure, housing the impeller's outer component. The flow channel is surrounded by several guide vane structures. c. Double-layer pump body (shell) A pump body (shell) with an additional cylindrical outer casing is called a double-layer pump body (shell). ② impeller The impeller, a key component of a pump, drives liquid transfer through high-speed rotation. Typically consisting of three parts—the hub, blades, and cover plate—the impeller has two types of cover plates: the front cover plate on the inlet side and the rear cover plate on the opposite side. Magnetic drive centrifugal pumps convey liquids primarily through the action of the impeller installed within the pump body. The size, shape, and manufacturing precision of the impeller significantly influence the pump's performance. Based on structural configuration, impellers can be classified into three types: closed, open, and semi-open (Figure 1-23). a. enclosed impeller A disc impeller typically consists of a cover plate, blades, and a hub. The front cover plate is located on the suction side, while the rear cover plate is on the opposite side, with the blades positioned between them. There are 4 to 6 blades between the two cover plates, and these blades are generally backward-curved, as shown in Figure 1-23(a). Closed impellers are highly efficient and widely used, particularly for conveying clean liquids without solid particles or fibers. They come in two types: single-suction and double-suction. The double-suction impeller, as illustrated in Figure 1-24, is suitable for high-flow pumps and offers better cavitation resistance. b. open impeller The impeller has no cover plates on either side, with blades connected to the hub via stiffeners, as shown in Figure 1-23(b). This impeller design is simple and easy to manufacture, but has low efficiency, making it suitable for conveying liquids with high solid suspended matter or fibrous content. c. semiclosed-type impeller This impeller features only a rear cover plate, as shown in Figure 1-23(c). It is designed for transporting liquids prone to sedimentation or containing solid suspended matter, with an efficiency that falls between open and closed impellers.       Figure 1-23 Impellers of Magnetic Drive Centrifugal Pump     Figure 1-24 Double-suction Impeller   There are two types of impeller blades for centrifugal pumps: straight blades and twisted blades. Straight blades are those whose entire width aligns parallel to the impeller shaft, as illustrated in Figure 1-23. The twisted blades feature a section that deviates from the impeller axis, as illustrated in Figure 1-25. For low specific speed impellers, the blades are circular with narrow flow channels, facilitating manufacturing. In contrast, high specific speed impellers employ wider flow channels, enabling easier twisting. Such blades enhance the pump's cavitation resistance, reduce impact losses, and ultimately improve overall efficiency. When the blade bending direction is opposite to the impeller rotation direction, it is called a backward-curved blade; otherwise, it is called a forward-curved blade. Due to the higher efficiency of backward-curved blades, they are generally used for impellers. ③ choma The sealing ring, also known as the gland, is typically mounted on the pump body and forms a minimal clearance with the impeller suction inlet's outer circumference (Figure 1-26). Since the liquid pressure inside the pump body exceeds the suction inlet pressure, the fluid tends to flow toward the impeller suction inlet. The primary function of the sealing ring is to prevent liquid leakage between the impeller and pump body. Additionally, it serves as a friction-bearing component. When excessive wear occurs in the clearance, replacing the sealing ring prevents the impeller and pump body from being scrapped, thereby extending their service life. Consequently, the sealing ring is classified as a pump's wear-prone component. The clearance dimension between the sealing ring and the impeller suction inlet's outer circumference is generally determined by the diameter of the impeller gland.   Figure 1-25 Impeller with Twisted BladesFigure                       Figure 1-26 Schematic Diagram of  Wear Ring (Seal Ring)                                                                         ④ Isolation sleeve In a magnetically driven centrifugal pump, the isolation sleeve primarily functions as a shaft seal, serving as the sole component that ensures leak-proof operation. Unlike conventional centrifugal pumps, the rotating shaft is not externally protruding from the stationary pump housing. Instead, the isolation sleeve replaces the traditional shaft seal, effectively preventing both high-pressure fluid leakage and air ingress into the pump chamber (as illustrated in Figure 1-27). This design rationale explains the inclusion of a sealing mechanism in such pumps. The shaft and pump housing are physically separated by the isolation sleeve, which replaces the conventional shaft seal assembly. ⑤ Magnetic Coupling A magnetic coupling consists of an inner magnet (featuring a magnet holder and a magnet sleeve) and an outer magnet (with a magnet holder). The isolation sleeve, positioned between the inner and outer magnets (Figure 1-28), is a key distinguishing feature of magnetic pumps and serves as their core component. The magnetic coupling's structure, magnetic circuit design, and material selection of its components directly impact the pump's reliability, magnetic drive efficiency, and service life.       Figure 1-28 Schematic Diagram of Magnetic Coupling Structure 1—Outer magnetic base；2—Outer magnetic steel block；3—Isolation sleeve；4—Inner magnetic steel enclosure；5—Inner magnetic steel block；6—Inner magnetic base L — Length of magnetic steel block；a — Coating thickness；b — Thickness of isolation sleeve；c — Air gap   a.Internal magnetic steel The inner magnetic steel is bonded to its base with adhesive. To isolate the inner magnetic steel from the medium, a protective sleeve must be applied to its exterior. The sleeve is available in two types: metal and plastic. Metal sleeves are welded, while plastic sleeves are injection-molded (when the material is metal, non-magnetic austenitic stainless steel must be used). b.External magnet The outer magnet and the outer magnet seat are connected by adhesive. c.Isolation sleeve The isolation sleeve, also known as the sealing sleeve, is positioned between the inner and outer magnets to completely isolate them, with the medium enclosed within the sleeve (Figure 1-29).     Figure 1-29 Schematic Diagram of Cylindrical Magnetic Drive Structure 1—Outer rotor；2—Outer magnetic steel；3—Inner magnetic steel；4—Inner rotor；5—Isolation sleeve   The thickness of the isolation sleeve is related to the working pressure and operating temperature. If it is too thick, the gap between the inner and outer magnets will increase, which will affect the efficiency of magnetic drive. If it is too thin, the strength will be affected. There are two kinds of isolation sleeves: metal and non-metal. The metal isolation sleeve has eddy current loss, while the non-metal isolation sleeve has no eddy current loss. ⑥ sleeve bearing The pump shaft of a magnetically driven centrifugal pump is supported by a sliding bearing. Since the sliding bearing relies on the transported medium for lubrication, it should be fabricated from materials with excellent wear resistance and self-lubricating properties. Commonly used bearing materials include silicon carbide, ceramics, graphite-based materials, and polytetrafluoroethylene (PTFE) filled composites. The lubrication of sliding bearings relies on their own fluid flow, which requires the bearings, bushings, and thrust discs to possess excellent self-lubrication, wear resistance, and corrosion resistance. For instance, both SSiC and YWN8 exhibit outstanding wear resistance, corrosion resistance, and self-lubrication properties, with SSiC having higher relative hardness than YWN8. When paired with thrust bearings, the combination of soft and hard materials forms an optimal friction pair, significantly extending bearing service life. Practical tests have shown that the service life of paired bearings made from these materials (SSiC and YWN8) can be up to 10 times longer than that of graphite bearings or SiC bearings paired with the same material. As critical components in magnetic pumps, extending the service life of sliding bearings directly enhances the overall lifespan of the magnetic pump. Therefore, material selection is crucial for ensuring stable and long-term operation of magnetic pumps. ⑦ equalizer In a magnetically driven pump, the forces acting on both sides of the impeller are unequal, as shown in Figure 1-30. When the pump is momentarily started by the drive mechanism, an axial force is exerted on the impeller toward the suction side. If this axial force is not eliminated, axial movement of the rotating parts will occur, leading to wear, vibration, and overheating, which prevents the pump from operating normally. Therefore, a balancing device must be used to prevent axial movement. The most common types of axial balancing devices include balancing holes, balancing pipes, and balancing discs.     Figure 1-30 Schematic Diagram of Pump Axial Force   a. balance hole The same sealing ring is added to the rear cover of impeller, and several holes are opened on the rear cover (balance holes) to make the pressure at the rear cover equal to the suction inlet pressure, so as to balance the axial force. b. balance pipe A pipe is connected to the pump body and leads to the suction inlet, ensuring pressure balance on both sides of the impeller. These two devices have simple structures but may cause liquid backflow, reducing efficiency. Additionally, 10%-25% of the axial force remains unbalanced, typically requiring a thrust disk to absorb the residual axial force. c. balance disk Figure 1-31 illustrates a schematic of a balance disc assembly, primarily used in multi-stage pumps where it is fixed to the final-stage impeller on the same shaft. An axial clearance exists between the balance disc and the pump body. During operation, high-pressure liquid flows through this clearance into the balance chamber on the right side of the balance disc. The balance chamber is connected to the suction inlet, maintaining equal pressure. This creates a pressure differential across the balance disc, with the opposing thrust and axial forces counterbalancing each other. The pump's rotating components can move laterally, and the balance disc automatically maintains equilibrium during operation. Additionally, methods such as using double-suction impellers or symmetrically arranged impellers can also help balance partial axial forces.       Figure 1-31 Schematic Diagram of Balance Disc Device 1—Final-stage impeller；2—Balance chamber；3—Axial clearance；4—Balance disc；5—Pump shaft

What are the common misconceptions about water pump usage?   A water pump is a mechanical device designed to convey liquids or pressurize them. It transfers mechanical energy from the prime mover or other external energy sources to the liquid, thereby increasing its energy. It is primarily used for transporting liquids including water, oil, acidic/alkaline solutions, emulsions, suspensions, and liquid metals. Here are some common misconceptions about water pump usage.       ● High-head Pump Used for Low-head Pumping   Many people believe that the lower the pumping head, the less the motor load. Under the misleading of this wrong understanding, the pump is often selected with a high head.       For centrifugal pumps, once the model is determined, the power consumption is directly proportional to the actual flow rate. As the head increases, the flow rate decreases, meaning higher head results in lower flow and reduced power consumption. Conversely, lower head corresponds to higher flow and greater power demand. To prevent motor overload, the actual pumping head must not fall below 60% of the rated head. Using high head for low head applications risks motor overheating and potential burnout. For emergency use, install a flow control valve on the discharge pipe (or block the outlet with wooden blocks) to reduce flow and prevent overload. Monitor motor temperature – if overheating occurs, immediately reduce discharge flow or shut down the pump. A common misconception is that blocking the outlet increases motor load. In fact, high-power centrifugal pump units standardly feature discharge valves. To minimize startup load, close the valve first and gradually open it after motor startup – this is the principle behind proper operation.     ●Pumping water with large-diameter pumps using small-diameter pipes   Many users believe this can increase the actual head, but the actual head of a pump is calculated as total head minus head loss. When the pump model is determined, the total head is fixed. The loss head mainly comes from the resistance of the pipeline. The smaller the diameter of the pipeline, the greater the resistance, and the larger the loss head. Therefore, after reducing the diameter of the pipeline, the actual head of the pump will not increase, but decrease, resulting in a decrease in the efficiency of the pump. Similarly, when the small-diameter pump is used to pump water through a large-diameter pipe, the actual head of the pump will not decrease. Instead, the loss head will be reduced due to the decreased pipeline resistance, thereby increasing the actual head. Some users argue that using larger pipes for small-diameter pumps inevitably increases motor load. They believe that a larger pipe diameter would exert greater pressure on the pump impeller, thereby significantly increasing motor load. However, it is important to note that liquid pressure is solely determined by the head height and not by the pipe's cross-sectional area. When the head is constant and the pump impeller dimensions remain unchanged, the pressure acting on the impeller remains consistent regardless of the pipe diameter. While a larger pipe diameter reduces flow resistance and increases flow rate, it also moderately raises power consumption. Nevertheless, as long as the pump operates within its rated head range, it can function normally with any pipe diameter. Moreover, this approach helps minimize pipeline losses and improve pump efficiency. ● When installing the water inlet pipe, the horizontal section should be level or slightly upward.   Error! This will cause air accumulation in the water inlet pipe, reducing the vacuum level of the water pipe and pump, which lowers the pump's suction head and decreases water output. The correct approach is to ensure the horizontal section slopes slightly toward the water source, avoiding flatness or upward curvature.   ●  The water intake pipeline uses many elbows.   Excessive use of elbows in the water supply pipeline increases local water flow resistance. Elbows must be installed in a vertical direction, and horizontal bends are prohibited to prevent air accumulation. ● The water inlet of the pump is directly connected to the elbow.   Error! This will cause uneven water distribution when the flow passes through the elbow into the impeller. When the inlet pipe diameter exceeds the pump's intake, install an eccentric reducer. The planar section of the eccentric reducer should be installed on top, while the inclined section should be installed below. Otherwise, air may accumulate, leading to reduced water discharge or failure to draw water, accompanied by impact noises. If the diameter of the water inlet pipe is equal to that of the water inlet of the pump, a straight pipe should be added between the water inlet of the pump and the elbow, and the length of the straight pipe should not be less than 2-3 times the diameter of the water pipe.     ● The bottom section of the inlet pipe with a bottom valve is not vertical.   Error! If installed this way, the valve cannot close automatically, causing a leak. The correct installation method is: the bottom valve-equipped inlet pipe should ideally be installed vertically at the lowest section. If vertical installation is not feasible due to topographical constraints, the pipe axis should form an angle of at least 60° with the horizontal plane. ● The inlet position of the water pipe is incorrect.   (1) The distance between the inlet of the water intake pipe and the bottom or wall of the intake pool is less than the diameter of the inlet. If there are silt or other contaminants on the pool bottom, and the distance between the inlet and the pool bottom is less than 1.5 times the diameter, it may result in poor water intake during pumping or the suction of silt and debris, leading to blockage of the inlet. (2) When the water intake depth of the inlet pipe is insufficient, it may cause vortex formation around the water surface of the inlet pipe, thereby affecting water intake and reducing water discharge. The correct installation method is: for small and medium-sized pumps, the water intake depth shall not be less than 300–600 mm; for large pumps, it shall not be less than 600–1000 mm. ● The outlet pipe is above the normal water level in the discharge tank.   If the outlet is above the normal water level of the discharge pool, the pump head may increase but the flow rate will decrease. If the outlet must be higher than the water level due to terrain constraints, a elbow and a short pipe should be installed at the pipe opening to form a siphon, thereby reducing the outlet height.

Analysis of the Reason for the Pressure Fluctuation of the Balance Pipe of the Feed Water Pump of the Multi-stage Boiler   Function of the balancing pipe for boiler feed pump: The balancing pipe is a connecting pipe from the pump's outlet seal ring to its inlet end. Its primary function is to balance the axial thrust of the pump, reduce the axial movement of the rotor, and prevent friction between the impeller and the casing.       During operation, the boiler feed pump discharges high-pressure liquid from the impeller outlet. A portion of this liquid flows behind the impeller, equalizing the pressure there with the outlet. Meanwhile, the front cover plate acts as the suction end, maintaining low pressure. This creates a significant pressure differential across the impeller, generating an axial thrust parallel to the shaft that directs the rotor toward the suction side. In severe cases, this may cause friction or impact between the impeller and pump casing, jeopardizing safe operation. Therefore, balancing measures must be implemented to mitigate these effects.        Diagram of the structure of the balance pipe of boiler feed pump   Multiple methods exist to balance axial thrust, including dual-suction impellers, symmetrically arranged impellers (for multi-stage pumps), and components like balance holes, balance discs, or balance drums. The balance pipe serves as a primary method to equalize axial thrust by diverting the pressure fluid behind the impeller to the inlet side, thereby achieving pressure equilibrium. While structurally simple, this approach cannot fully balance axial thrust. The residual axial thrust must be absorbed by dedicated thrust bearings and balance devices.   The principle of balance disc is similar to that of thrust bearing in steam turbine, and the balance pipe is similar to the return oil pipe of thrust bearing.   Analysis of the Pressure Fluctuation of the Balance Pipe of Boiler Feed Water Pump 1. As a balance pipe, its pressure should remain relatively stable unless it becomes clogged or leaks. 2. The balance pipe is used to eliminate axial thrust. When the pump outlet valve is closed or the downstream line is blocked, the pressure in the balance pipe becomes high; during pump siphoning, the pressure in the balance pipe is low. Under normal conditions, the pressure remains constant. 3. The balancing tube pressure of the high-pressure feed pump is slightly higher than the inlet pressure. If the pressure increases, it indicates that the gap between the balancing drum and its sleeve has widened. If the pressure reaches 2-3 times the inlet pressure, it is advisable to disassemble and inspect the system. 4. The pressure of the balance pipe is changed greatly because of the wear of the sealing ring, the balance disc and other wear parts. 5. The pressure difference of the balancing tube changes due to inter-stage leakage and the motor's frequency conversion (compared with the original speed). 6. When the external import pressure changes, the pressure difference of the balance pipe fluctuates accordingly.

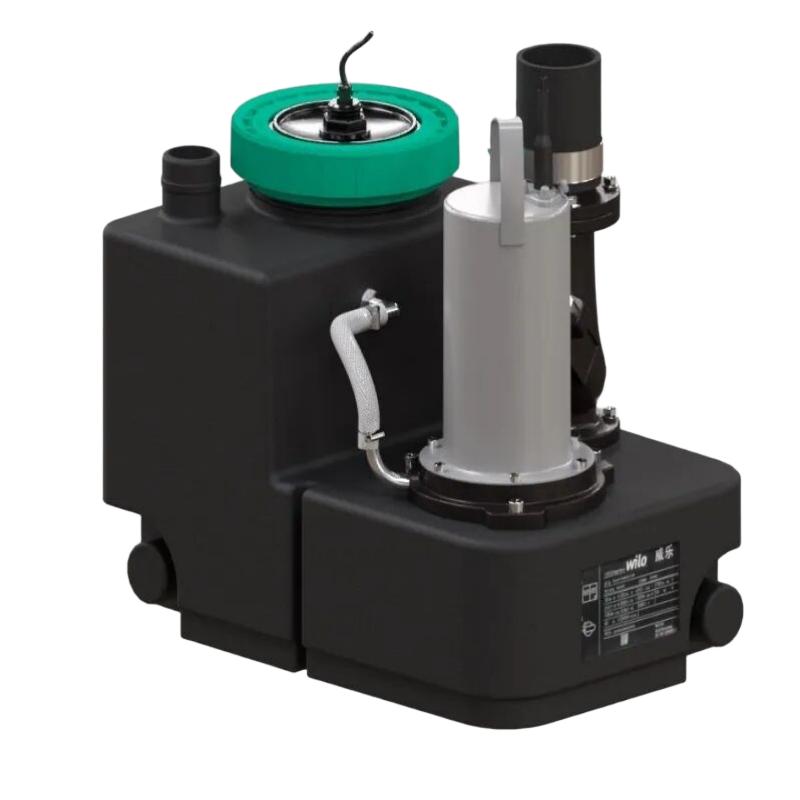

The Wilo-Drainlift SANI family of sewage lift systems welcomes a new addition!   In the field of modern building drainage, the space utilization, operation reliability and intelligence level become the core criteria to measure the quality of equipment.   Whether renovating a villa's basement bathroom, multi-bathroom apartments, or spaces like kitchens, laundry rooms, and tea rooms, the sewage lift system efficiently collects and drains domestic wastewater, preventing common issues such as odors, backflow, and clogging. For urban residential renovations, building refurbishments, or new civil projects, this system offers a complete solution—from individual bathrooms to centralized drainage systems—ensuring every living space is cleaner, more comfortable, and more secure.   For years, Wilo has been dedicated to advancing sewage lift technology. The Wilo-Drainlift SANI series sewage lift systems have earned the trust of numerous users for their high reliability and flexible installation. Whether in urban villas, apartment residences, or small commercial spaces, the SANI series ensures the stable and efficient operation of every drainage system.   With the growing diversity of drainage needs, we're thrilled to introduce two new additions to our star product family ⬇     ✅Wilo-Drainlift SANI CUT series Master of Double Shear Cutting for High Impurity Sewage   ✅ Wilo-Drainlift SANI XS A Dexterous Solution for Stable Drainage with Minimal Volume   Wilo-Drainlift SANI-XS/CUT series compact sewage pumping station Compact, lightweight, and single-pump/cut-off unit Application of Sewage Lift System in Independent/semi-independent Residential House and Apartment             Wilo-Drainlift SANI-CUT series Complex sewage can also be discharged smoothly with a single pump     In renovation projects of basement toilets, commercial restrooms, or sewage pipelines with limited diameters, toilet paper, solid waste, and fibrous debris often cause blockages and maintenance issues.   The Wilo-Drainlift SANI-CUT series simplifies sewage management with its patented suction port design, dual shearing blades, and ultra-compact tank volume – all combined in a powerful system that makes drainage a breeze.       ✅ Don't worry about the blockage. Even when sewage contains large amounts of toilet paper and debris, the powerful cutting function of Wilo-Drainlift SANI-CUT can efficiently shred and discharge them.   ✅ Install as you please Multi-inlet design enables flexible connection to both walls and floors   ✅ The diameter of the tubules is also not affected. Even with DN32 diameter drainage pipes, it still maintains high head capacity, making it ideal for long-distance discharge or spaces with significant vertical elevation differences.   ✅ 24-hour security protection Automatic thermal protection and independent alarm system provide instant alerts for anomalies, ensuring worry-free operation   Product Details   Double-shear cutting impeller with strong solid crushing capability The maximum head can reach 42 meters. Supports up to 5 water inlets Built-in thermal protection and fault alarm Complies with EN 12050 standard     Flow Head Curve         Wilo-Drainlift SANI-XS Stable drainage in confined spaces   If you're struggling with drainage design for renovation projects or limited space, the Wilo-Drainlift SANI-XS is your ideal solution.   In basement apartments, villa kitchens, and office breakrooms, limited equipment space often results in restricted installation and maintenance challenges. The SANI XS delivers a truly worry-free drainage experience with its compact size and smart design.       ✅ maximize space utilization The compact structure, measuring just 0.5 meters in length, can be easily installed even in extremely narrow equipment rooms.   ✅ Simple installation and maintenance Multiple optional water inlets and transparent inspection windows eliminate the need for cumbersome disassembly, allowing real-time status checks.   ✅ High solid content wastewater is also safe Optimized suction port and anti-clogging design significantly reduce maintenance frequency   ✅ Smart adjustment for greater comfort The two optional multi-functional control cabinets feature delayed shutdown and remote monitoring, flexibly accommodating diverse drainage requirements.   Product Details Compact dimensions: 500×320×458mm³ Large channel impeller with 40mm diameter Corrosion-resistant high-strength integral injection-molded hydraulic component Two Control Cabinets: Basic and Support Advanced WiFi/Modbus models EN 12050 certification   Flow Head Curve       From residential to commercial The SANI family with full coverage     With the addition of SANI CUT and SANI XS, the SANI family has become one of the few full product lines in the industry, offering one-stop solutions for diverse scenarios.   ✅ Drainage from the basement bathroom in the villa ✅ Apartment with centralized drainage for multiple bathrooms ✅ Commercial building catering sewage ✅ Drainage of small volume modified space       No matter what sewage challenges you face, Weile offers tailored solutions to make your drainage system more reliable, smarter, and hassle-free.   Wilo-Drainlift SANI series sewage lift system: Smart and hassle-free drainage for every household .

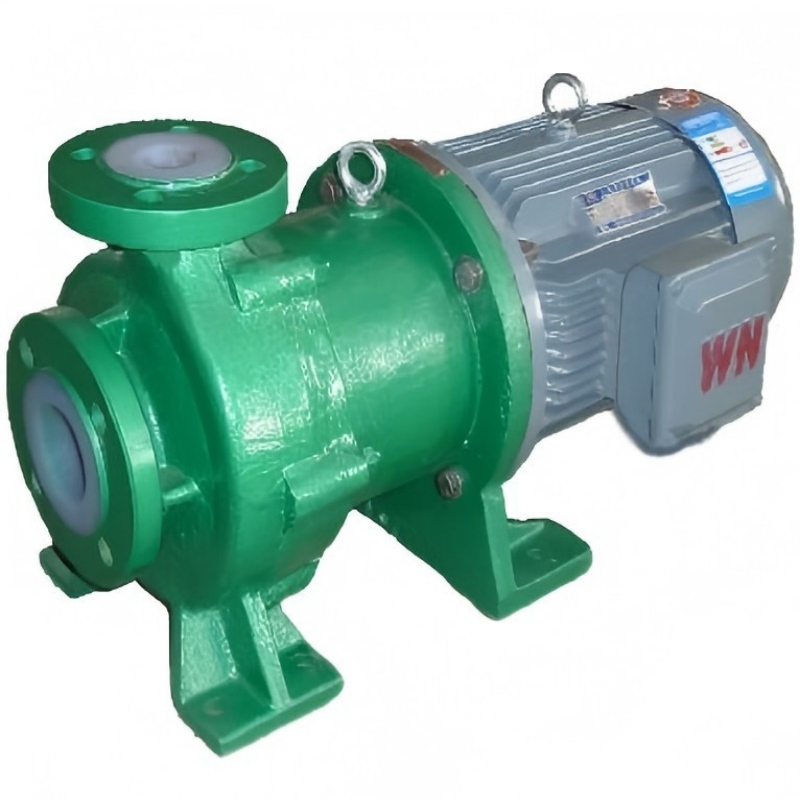

CQB catena of fluorine plastic magnetic force pumps       Using: The product is widely used for industry of chem. Industry、making acid、making alkali、smelting、thulium 、agrochemical 、dyestuff、medicament、paper making、plating、washing with acid、wireless、industry of national defence etc. to transport acid、lye、oil、rare and valuable liquor、poisonous liquid、volatile liquid , especially used to ransport combustible、explosive liquid. More ideally to use in printing circuitry-board of electron industry and produce craftwork flow of cpd. Foil. The temperature in point ：-20℃～100℃.   Parameter: ★ Operating temperature：-20℃ ~ 120 ℃ ★ Flow rate：3m3/h ~ 400 m3/h ★ Head：3.2m ~ 80m   Design for preventing leak: Cancel axis-envelop, use of magnetic force coincidence to drive, eliminate trouble of dripping and leak completely, pollute usingplace in no case. Because throughpart of pump adopt " the fluorine plastics alloy" to make .It can continuously transport acid、alkali、strong oxidant etc. correlative corrosive medium of discretionary chroma but nowise damaged. It possesses excellence like overall airproof、no leak、resist causticity vigoroso etc.   The principle of operation: With static seal to replace dynamic seal. Driveequipment use active magnet connected-implement to firsthand fix at the axletree of electrical engine, pumproom close completely, via magnetic force coincidence to drive impeller on rotor-assembled to circumgyrate indirectly, it own the trait like tightly structure、handsome exterior、small bulk、laigh noise、unfailingly move、expediently service using、safety and economize etc.   Pumpbody structure: Pump touch with the liquid part is the fluorine plastics, but crust is metal stuff, so the pumpbody is enough to support the weight of pipepad and repel mechanically concussion.   Structure and stuff: CQB Catena Look into detailed introduction     Pumpbody The fluorine plastics alloy   Airproof-ring Fl-latex/F4   Axletree F4   Impeller The fluorine plastics alloy/Permanent magnet   Principal axis SiC or Al2O3   Stop-bunt ring SiC or Al2O3   Seclusion sheath The fluorine plastics alloy/F46   0utside magnetism HT200/Permanent magnet         Look into detailed introduction     Pumpbody The fluorine plastics alloy   Impeller The fluorine plastics alloy/Permanent magnet   Ora-ring SiC or Al2O3   Airproof-ring Fl-latex   Seclusion sheath F46/1Cr18Ni9Ti   Axletree Full of F4   0utside magnetism HT200/Permanent magnet         Look into detailed introduction     Pumpbody The fluorine plastics alloy   副叶轮 The fluorine plastics alloy   Airproof-ring Fl-latex   Impeller The fluorine plastics alloy/Permanent magnet   Principal axis CS+F4   Ora-ring SiC or Al2O3   Axletree SiC or Al2O3   Airproof-ring Fl-latex+F4   Seclusion sheath F46+1Cr18Ni9Ti   0utside magnetism HT200/Thulium permanent magnet         Look into detailed introduction     Pumpbody F46 pad inside   Impeller The fluorine plastics alloy   Ora-ring SiC or Al2O3   Axletree Full of F4   Principal axis SiC or Al2O3   Airproof-ring Fl-latex/F4   Middle- axis base The fluorine plastics alloy   Seclusion sheath The fluorine plastics alloy   Rotor-assembled F46/High-powered thulium permanent magnet   Stainless steel sheath 1Cr18Ni9Ti   Nog HT200   0utside magnetism HT200/Thulium permanent magnet       CQB-L Catena Look into detailed introduction     Pumpbody F46 pad inside   Impeller The fluorine plastics alloy   Impeller-nut Full of F4   Ora-ring SiC or Al2O3   Airproof-ring Fl-latex   Pump-cover F46 pad inside   Seclusion sheath F46/Reinforce sheath   Rotor-assembled F46/High-powered thulium permanent magnet   Principal axis SiC or Al2O3   0utside magnetism HT200/High-powered thulium permanent magnet   Nog HT200       Meaning of model number: CQB50-32-125FL (A) CQB Mean the magnetic force drive of leave a heart pump F Mean the material is a fluorine plastics metal alloy 50 Mean the pump's importing diameter is 50 mm L Mean the long support takes scaleboard 32 Mean the pump export diameter is 32 mm A Mean to remodel or renew to change a product 125 Meaning a leaf a round name diameter is 125 mm         Model number and parameter:           Model number        Flux Raisep-itch NPSH Rev Inlet-dia Exit-dia Using temperature Power of electrical engine (m3/h) (m) (m) (r/min) (mm) (mm) (℃) (kw) CQB16-12-50F 0.6 2 9 2900 Φ16 Φ12 ＜80 25 w CQB15-15-65F 0.8 3.2 6 2900 Φ15 Φ15 ＜80 180 w CQB20-15-75F 1.6 7 6 2900 Φ20 Φ15 ＜80 180 w CQB25-20-100F 2.5 10.5 6 2900 Φ25 Φ20 ＜80 370 w CQB32-20-110F 5.5 13 6 2900 Φ32 Φ20 ＜80 550 w CQB40-25-120F 6.3 15 5 2900 Φ40 Φ25 ＜80 750 w CQB40-40-100F 6 11 5 2900 Φ40 Φ40 ＜80 550 w CQB40-40-125F 6.5 17.5 3.7 2900 Φ40 Φ40 ＜80 1.1 CQB50-32-125F 12 20 3.5 2900 Φ50 Φ32 ＜100 1.5 CQB50-32-125FA 12.5 20 3.5 2900 Φ50 Φ32 ＜100 2.2 CQB50-32-160FA 12.5 32 3.5 2900 Φ50 Φ32 ＜100 4 CQB50-32-200FA 12.5 50 3.5 2900 Φ50 Φ32 ＜100 7.5 CQB65-50-150F 20 25 4 2900 Φ65 Φ50 ＜100 4 CQB65-50-160F 17.5 32 4 2900 Φ65 Φ50 ＜100 4 CQB65-50-180F 8 38 4 2900 Φ65 Φ50 ＜100 5.5 CQB65-50-160FL 25 32 4 2900 Φ65 Φ50 ＜100 7.5 CQB65-40-200FA 25 50 4 2900 Φ65 Φ40 ＜100 11 CQB80-65-160FA 50 32 4 2900 Φ80 Φ65 ＜100 11 CQB80-50-200FA 50 50 4 2900 Φ80 Φ50 ＜100 18.5 CQB100-80-160FL 100 32 4 2900 Φ100 Φ80 ＜100 18.5 If the capability parameter you need go beyond the bound of this tabulation, our company can give the adjustment according to your request. Your demand is our hanker!     performance curve：
