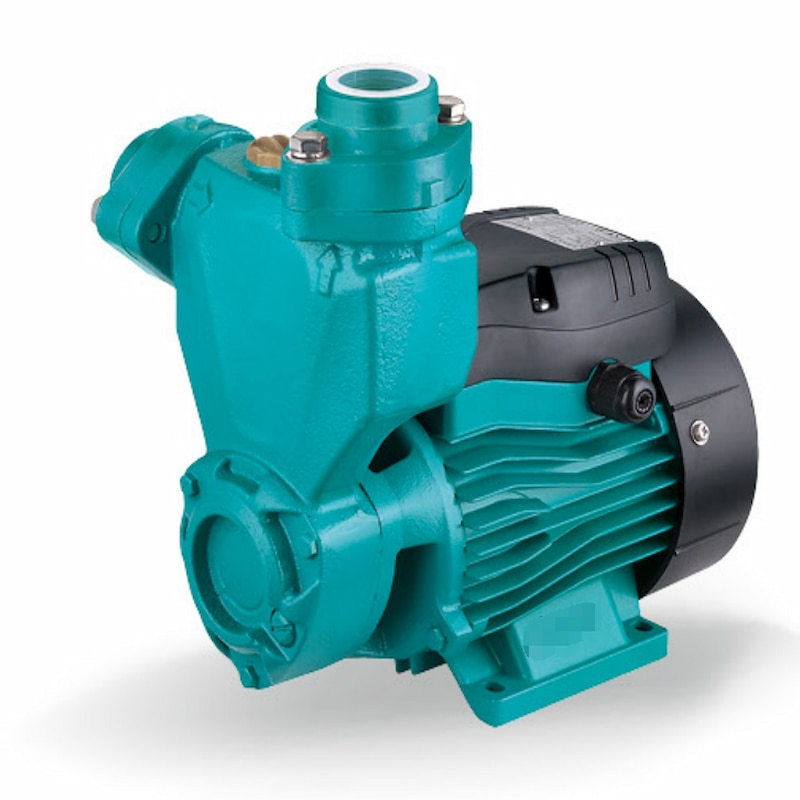

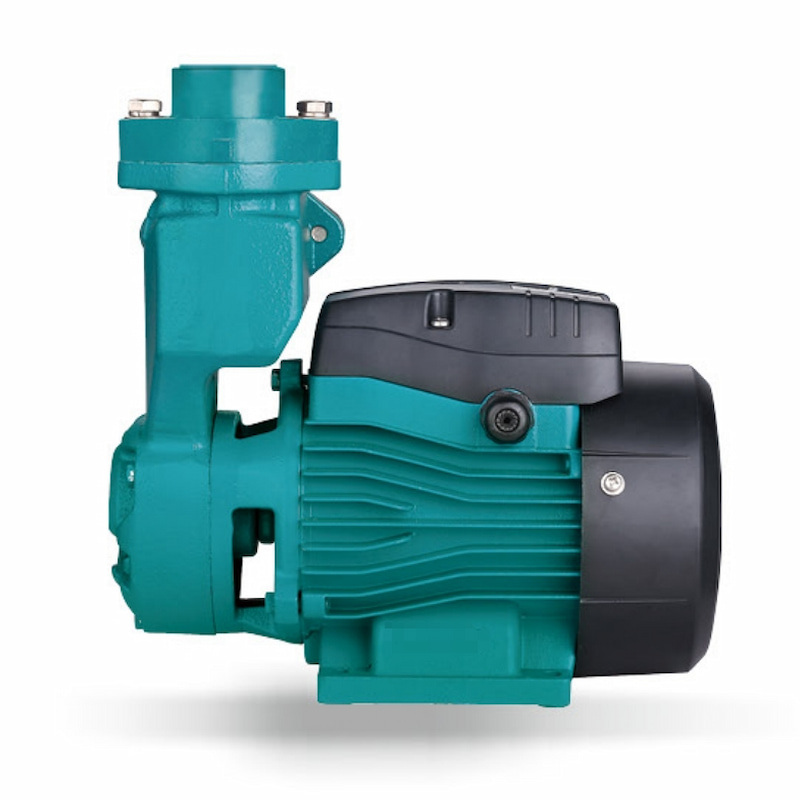

The fully automatic intelligent self-priming pump is controlled by a PLC microcomputer chip, enables cloud data interaction, has a large-screen display, and can achieve unattended operation and remote monitoring.
Model :
APSm37Imported caliber (DN) :
25Export caliber (DN) :
25Rated flow (m³/h) :
1.2Rated head (m) :
15Motor speed (rpm) :
2900Motor power (kw) :
0.37Material :
Cast ironFOB Price （USD$） :
83Intelligent Self - priming Pump
Technical parameter:
Flow rate, Q: maximum 4.2 m3/h
Head, H: maximum 65 m
Application environment
For conveying water and other liquids similar to water. Suitable for household water supply, automatic watering system, small air conditioning system or supporting facilities.
Pump
Cast iron pump body, after a special rust prevention process treatment
Copper impeller, copper insert; can effectively solve the impeller card problem when the pump is idle for a long time
AISI304 Stainless steel welded shaft
Maximum liquid temperature: + 60℃
Maximum suction range: + 9m
With the function of self-priming function brief description
The automatic intelligent self-priming pump is controlled by the PLC microcomputer chip, with cloud data interaction and large screen display, which can realize unattended and remote monitoring. At the same time, it has the functions of startup delay protection, power failure data protection, no water power failure protection, rust prevention protection, card machine protection, underpressure protection, anti-freezing protection, failure alarm and so on.
Electrical Appliances
High efficiency bearing
Copper wire motor
Single-phase electric generator with built-in thermal protection device
insulation grade:F
The protection grades: IPX 4
Maximum ambient temperature: + 40℃
Horizontal type, using extended coupling, single-stage radial split volute (pump size larger than 125 adopts two-stage design) adopts back-pumping design, with replaceable shaft sleeve/shaft protection sleeve and replaceable pump body sealing ring, and the design conforms to ATEX；
