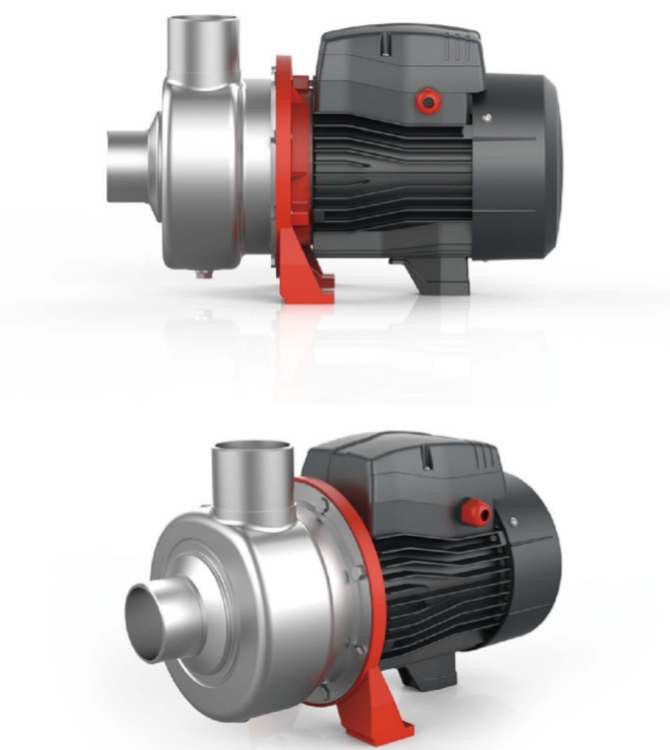

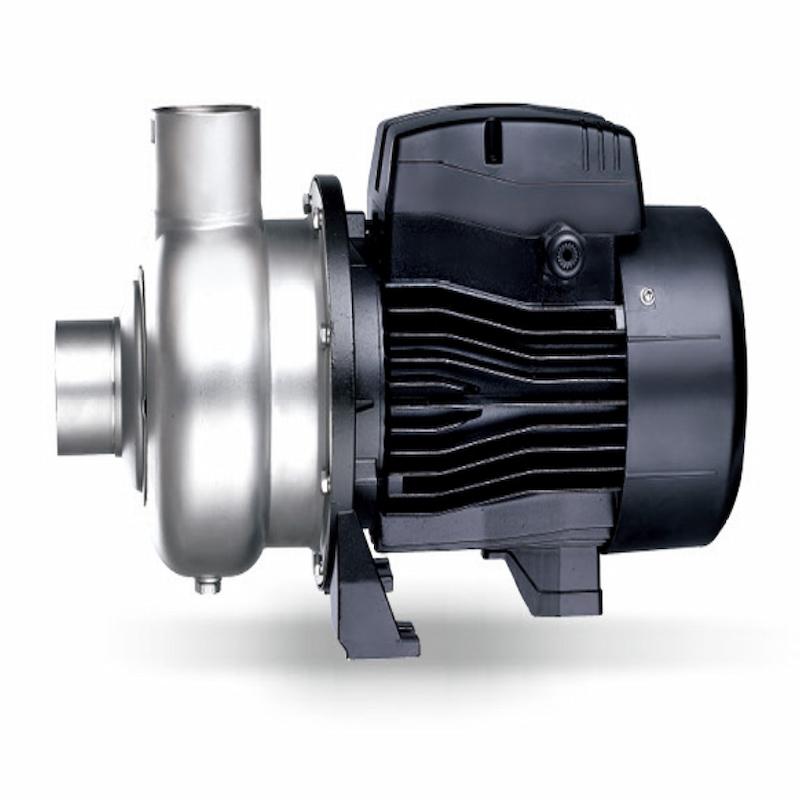

Semi-open stainless steel centrifugal pump flow parts are made of stainless steel plate stamping, strong corrosion resistance, beautiful appearance, light structure, durable and other characteristics, suitable for the circulation cleaning system of various production lines and the conveying medium containing impurities. The pump is not lift.
Model :
BK50Imported caliber (DN) :
32Export caliber (DN) :
25Rated flow (m³/h) :
3.6Rated head (m) :
9.5Motor power (kw) :
0.37Material :
304FOB Price （USD$） :
141semi - open stainless steel centrifugal pump

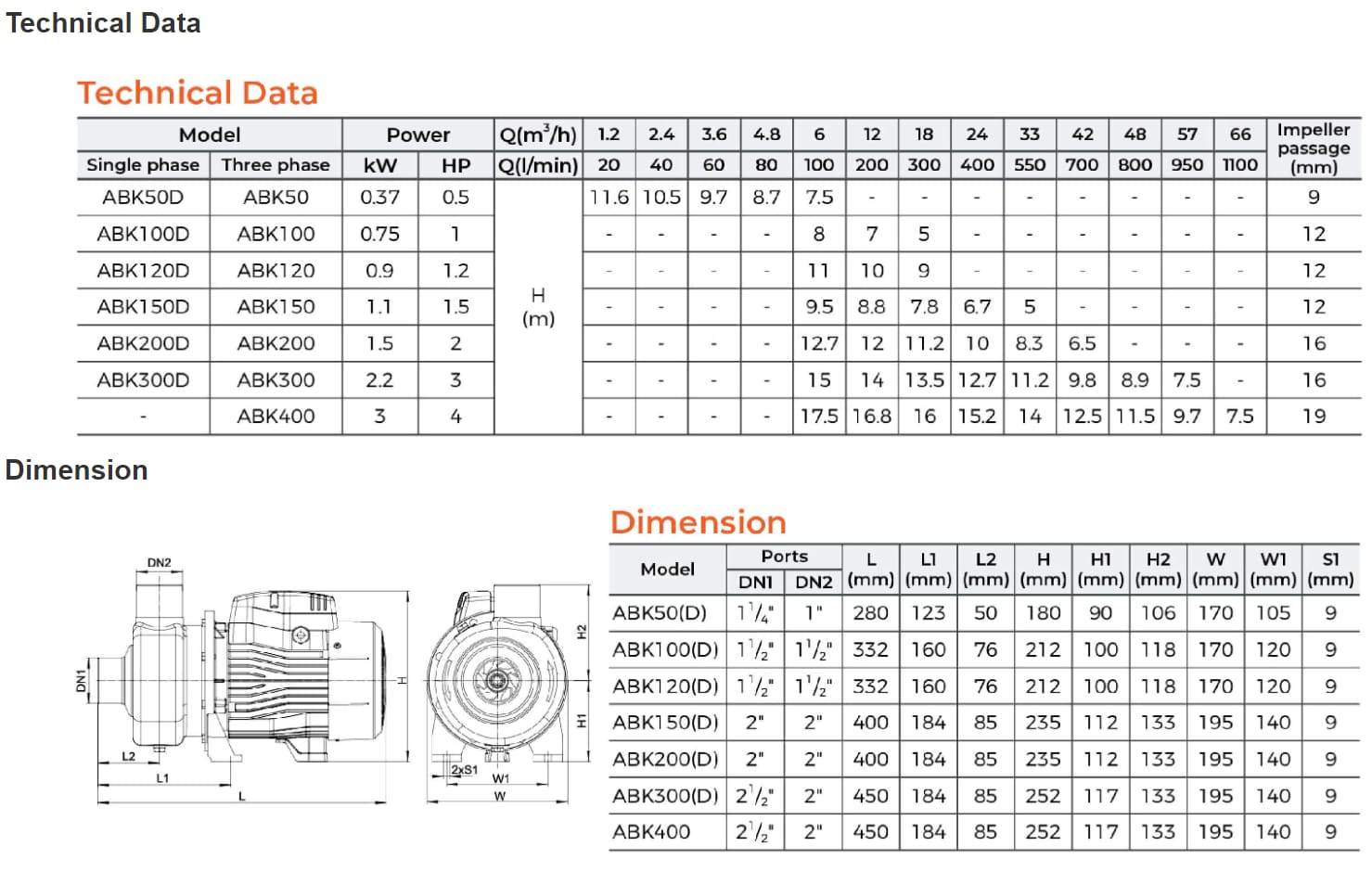

Technical parameter:

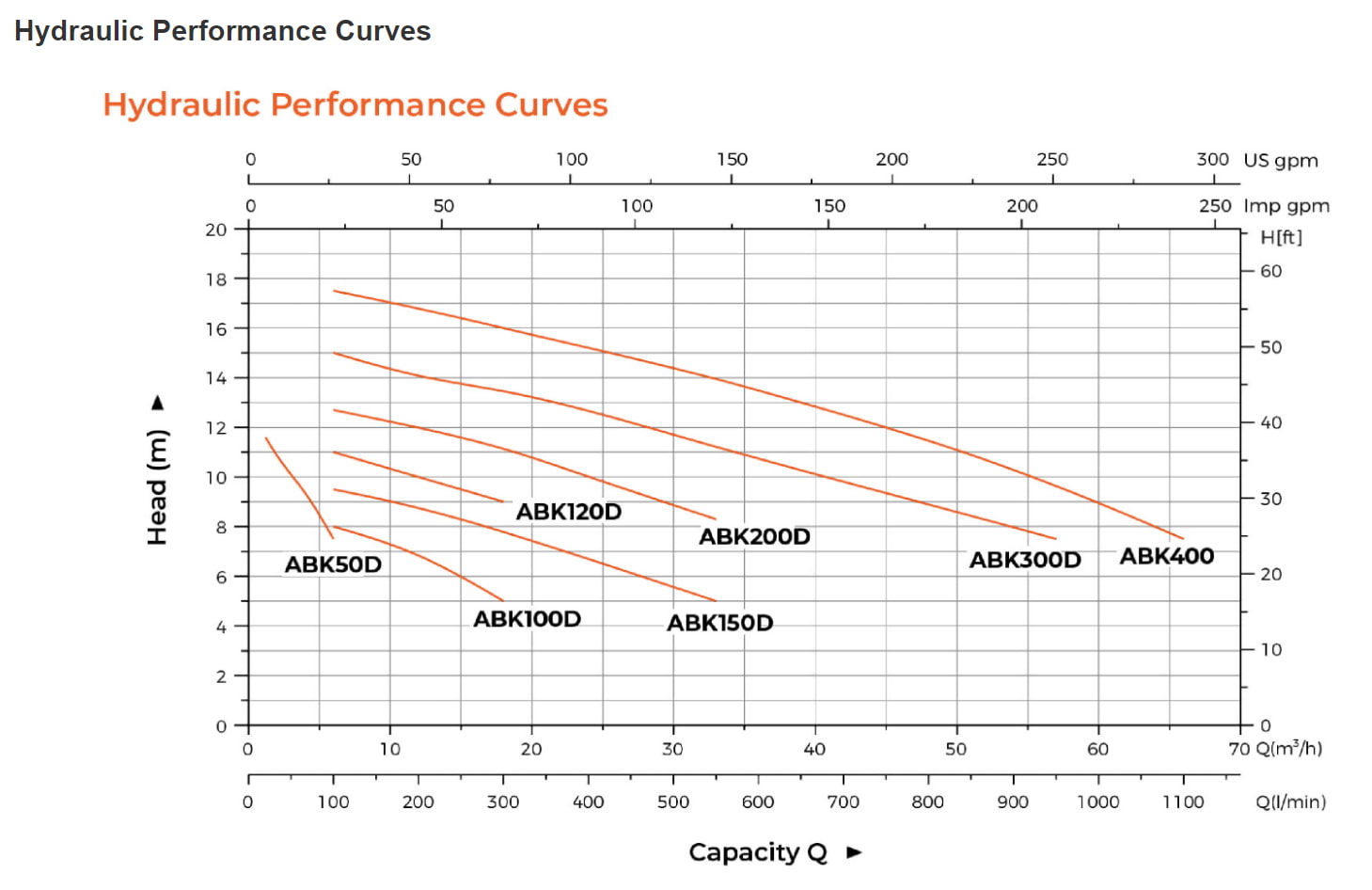

Flow rate, Q: maximum 66 m3/h
Head, H: maximum 17.5m
Product application
Circulating cleaning systems for various production lines
Transport media containing impurities
Application conditions
The medium to be transported must be low viscosity, non flammable, explosive, easily gasified, and fiber free. The medium must not have any chemical reaction with the pump material and can pass through particles with a maximum diameter of 19mm
Medium temperature: -15 ℃ -+80 ° C
Maximum ambient temperature:+40 ℃
Medium pH value: 4-10
Maximum working pressure: 8 bar
electrical machinery
Pump equipped with fully enclosed, air-cooled, squirrel cage fan
Insulation level: F
Protection level: IPX4
Single phase motor with built-in thermal protector a

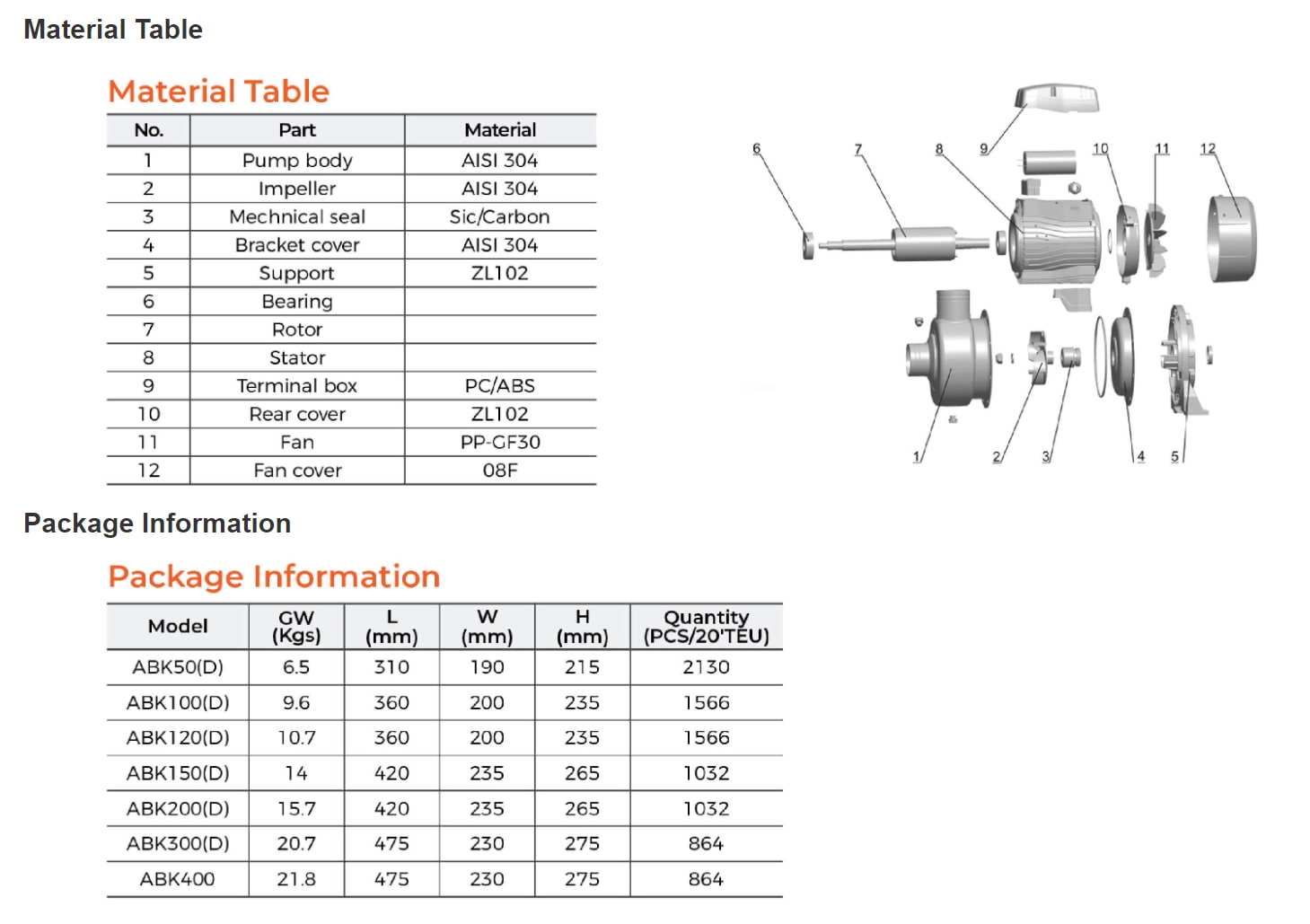

Product features
Novel and beautiful appearance, with nationally recognized appearance patents
The material of the overcurrent components is all stainless steel, with strong rust and corrosion resistance
Adopting rubber bellows mechanical seal (dynamic ring: graphite, static ring: silicon carbide) for better sealing performance and durability
Half open impeller, not easily stuck, can pump small particle impurities and sewage, and the product series can pass through particles with a maximum diameter of 19mm
Copper wire motor with built-in thermal protection device (single-phase motor)
AISI304 stainless steel welded shaft, with strong corrosion resistance and rust prevention ability
Cover box flame retardant, UV resistant, wind hood UV resistant
Efficient bearings with a service life of 6000 hours or more
Horizontal type, using extended coupling, single-stage radial split volute (pump size larger than 125 adopts two-stage design) adopts back-pumping design, with replaceable shaft sleeve/shaft protection sleeve and replaceable pump body sealing ring, and the design conforms to ATEX；
