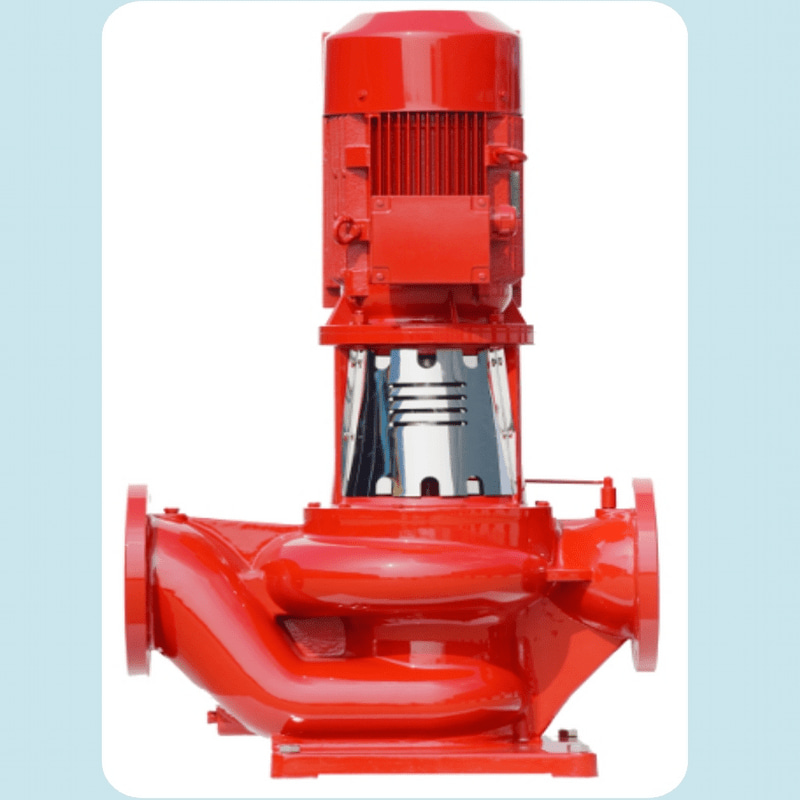

Single-stage vertical centrifugal pipeline pump
Model :
GLC 50-160Imported caliber (DN) :
50Export caliber (DN) :
50Rated flow (m³/h) :
30Rated head (m) :
30Motor speed (rpm) :
2900Motor power (kw) :
4Material :
grey iron/304Single-Stage Vertical Pipeline Pump
Technical parameters:

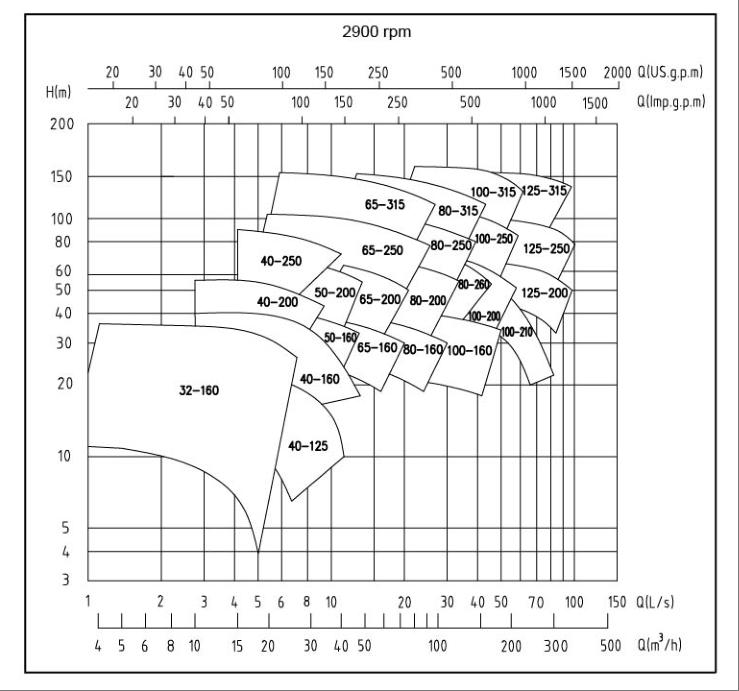

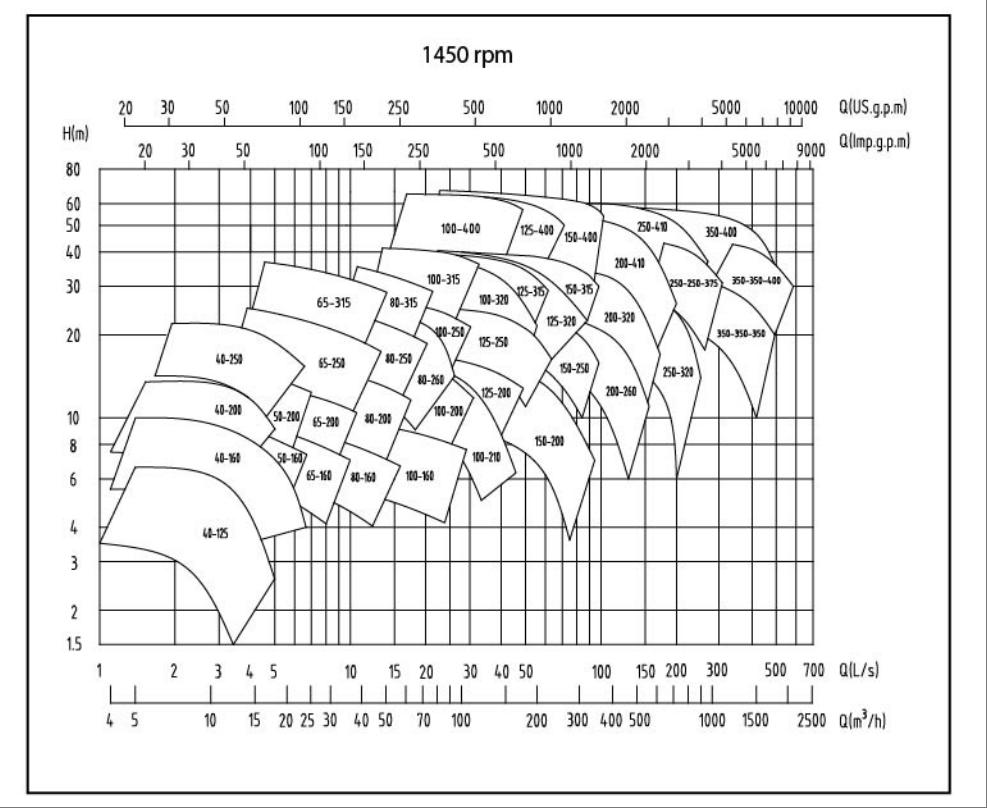

Maximum flow: 400m3/h
Maximum lift: 160m
Maximum power: 90kW
Medium temperature: -15℃~+120℃
Working pressure: 16Bar,25Bar (shell is made of high-strength material).
Suction pressure: ≤10Bar

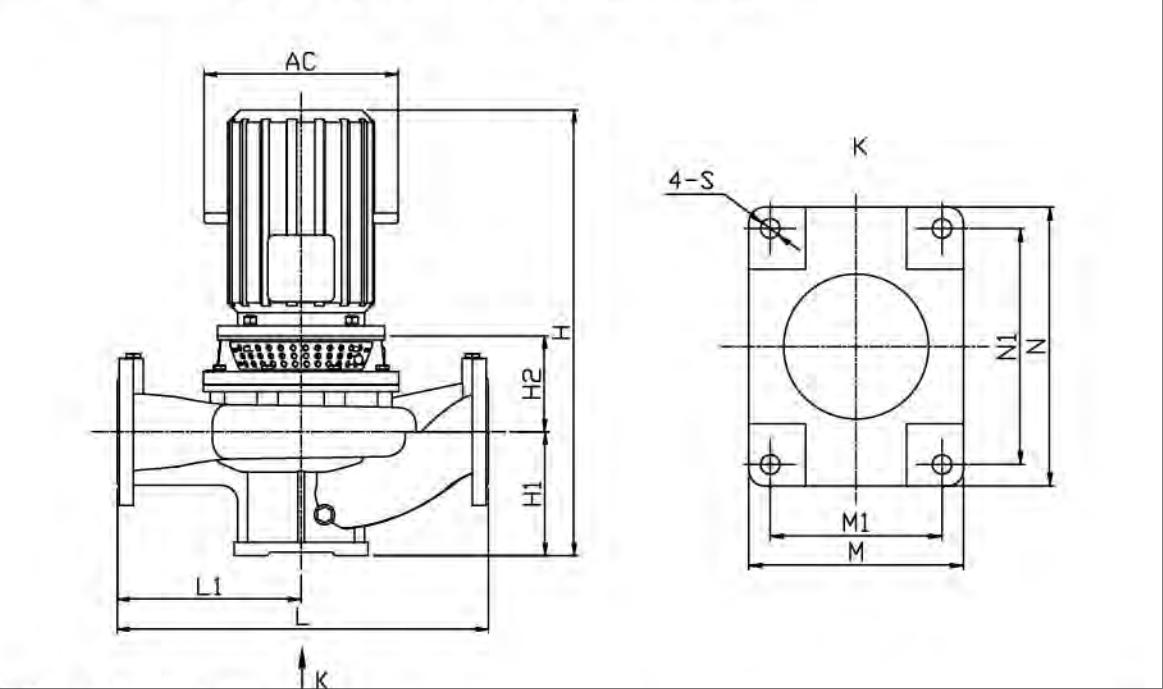

Diameter of inlet and outlet: DN50-DN150
Inlet and outlet flanges: GB/T 17241.6
Mechanical seal: bellows container seal.
Product overview

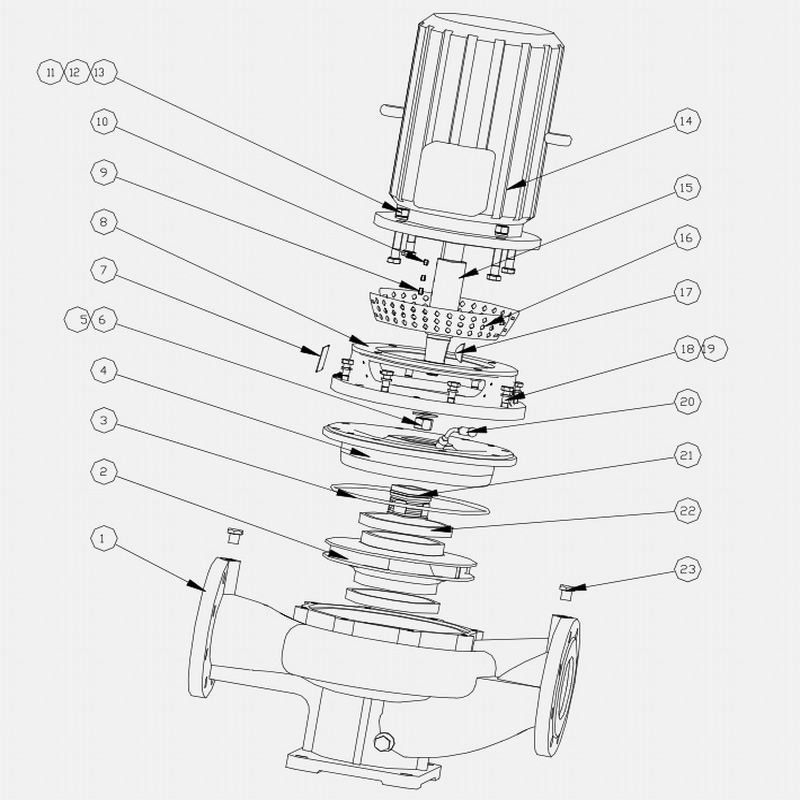

GLC pipeline pump adopts the most advanced CFD technology to develop hydraulic model, which is simple to maintain, adopts extended shaft structure and has no bearing body parts, which makes the overall size of the pump shorter and effectively saves installation space.
Product features
high-efficiency
Small installation size
Simple structure and easy maintenance
Stable structure, small vibration and high reliability.
High interchangeability of parts, few wearing parts and low maintenance cost.
Application area
Heating system, air conditioning system, refrigeration system, water supply and other industrial systems.
