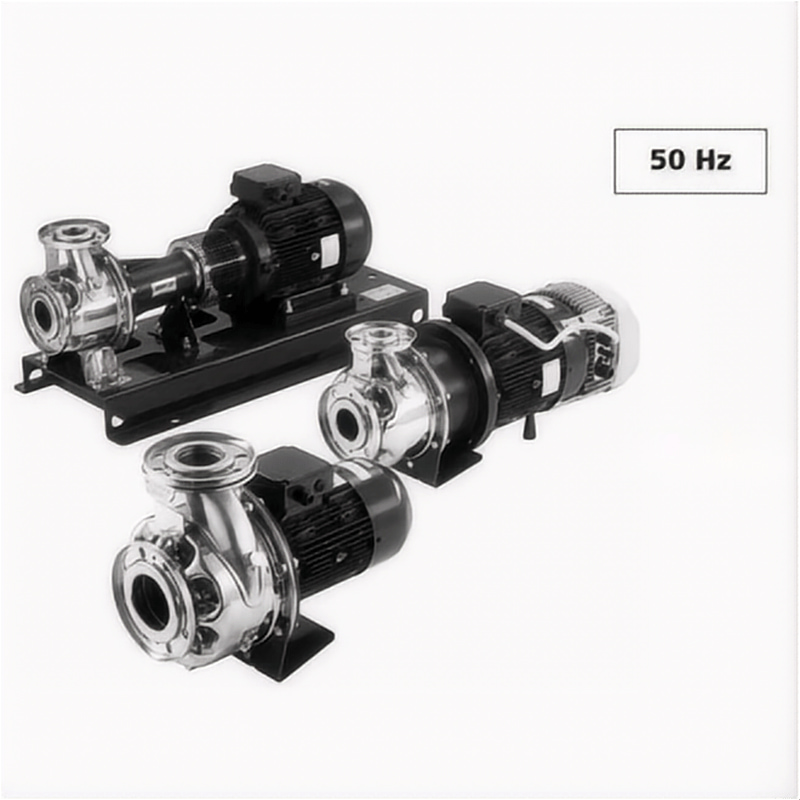

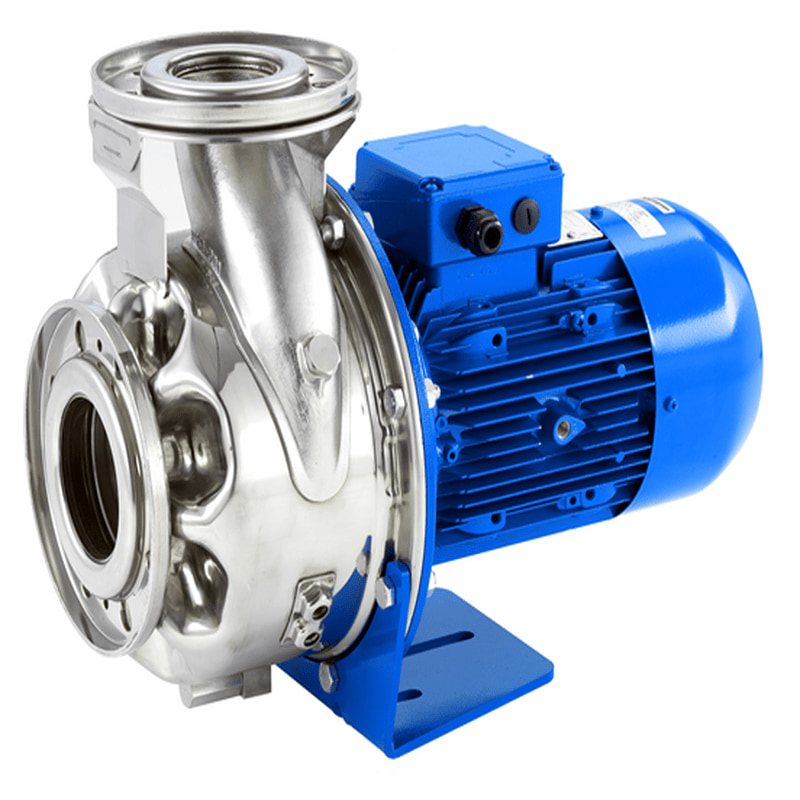

Xylem Lowara SHS Series Horizontal End-Suction Stainless Steel Pump
SHS is made entirely of AISI316 stainless steel and is suitable for treating water and non-aggressive or moderately aggressive liquids.
Model :
SHS 25-160Imported caliber (DN) :
50Export caliber (DN) :
25Rated flow (m³/h) :
20Rated head (m) :
18Motor speed (rpm) :
2900Motor power (kw) :
2.2Material :
316LHorizontal End-Suction Stainless Steel Pump
Technical parameter

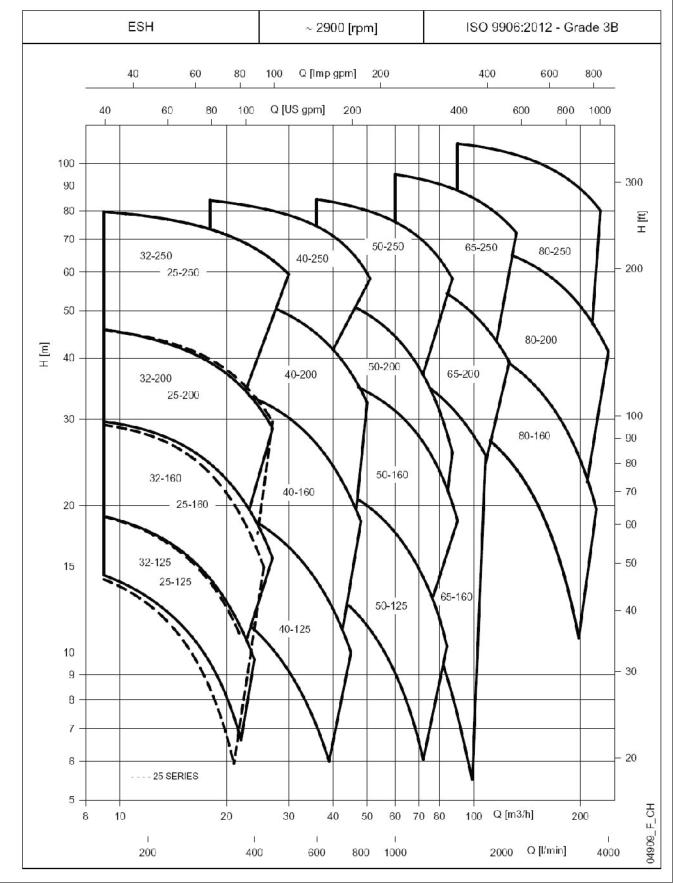

Maximum displacement: 2-pole range up to 240m3/h.
4-pole range up to 144m3/h
Maximum lift: 2-pole range up to 110m.
Maximum 4-pole range is 27m.

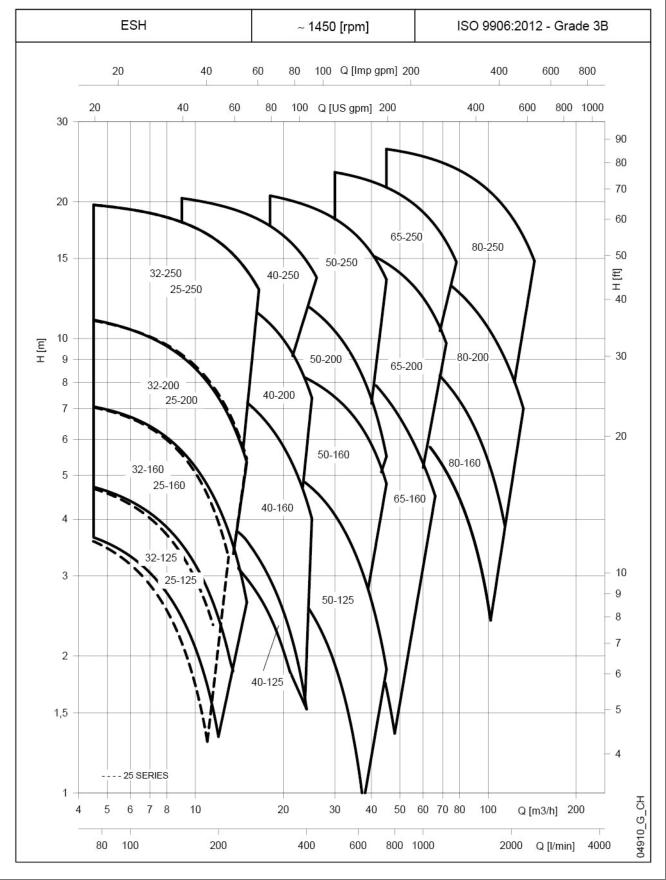

The hydraulic performance conforms to ISO 9906: 2012 Class 3B.
Liquid temperature range:
Standard type (with FKM* washer)
-10℃ to +120C
Model provided upon request (with EPDM gasket)
-30 C to+120 C.
Maximum working pressure:
12 bar at 50℃ and 10 bar at 120℃

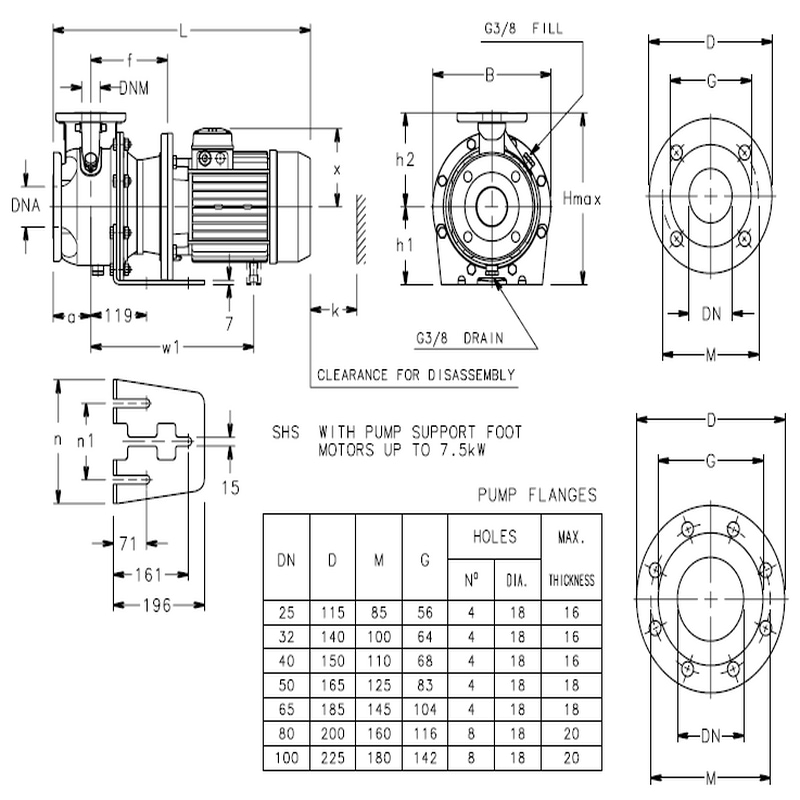

Connection dimensions are in accordance with EN 733 (except ESH 25 model).
Elastomer: FPM (original ISO), FKM(ASTM and new ISO)
Product overview
SHS is made entirely of AISI316 stainless steel and is suitable for treating water and non-aggressive or moderately aggressive liquids.
This pump is equipped with interchangeable mechanical seal and IE3-class efficiency motor. Pull-back design (impeller, bracket and motor can be pulled out without cutting off the pump body and pipeline).

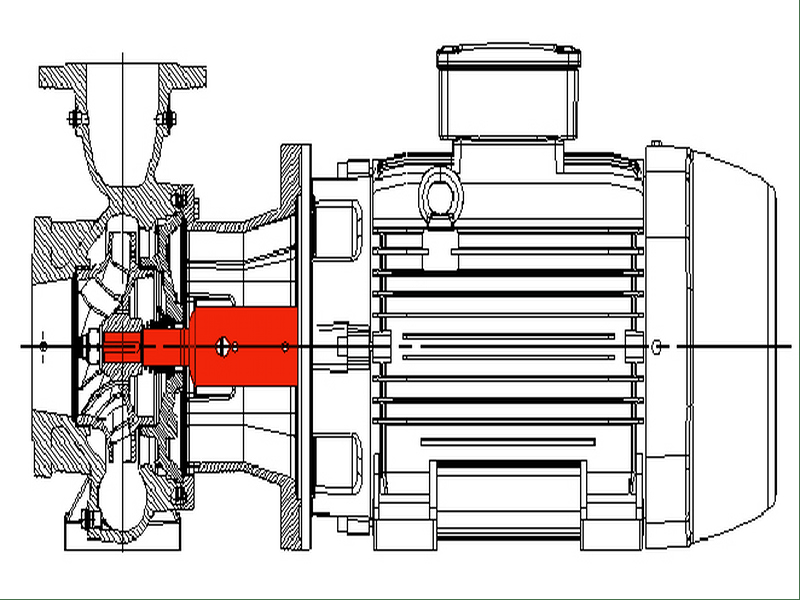

SHS series pumps have the following structures:
brachyaxis
Rigid coupling, with a bracket, an adapter and a
The rigid coupling is keyed to the standard motor extension shaft.
Technical parameters of motor
Squirrel cage, fully enclosed structure fan cooling (TEFC)
2-pole and 4-pole range
The protection level of the motor is IP55 (EN 60034-5).
The protection grade of electric pump is IPX5 (EN 60529).
The performance conforms to EN 60034-1.
IE3 Efficiency Class (3-phase 0.75 to 37kW)
Insulation class 155(F)
Standard voltage:
3x220/380V 50 Hz when the power is less than or equal to 3kW.
3× 380/660 V 50 Hz when the power is greater than 3kW.
Maximum ambient temperature: 40℃
annotate
Turn counterclockwise when looking at the suction side of the pump.
Pump does not include butt flange.
characteristic
Discharge ports DN25 to DN80.
The performance range is wide, with the highest lift of 110m and the maximum flow of 240m/h..
The rated pressure is 12 bar.
The temperature range of pumped liquid is wide: -30℃ to +120℃
There are many materials to choose from for many different kinds of pumped liquids.
Wide voltage range.
High performance IE3 motor.
Optional HYDROVAR driver can run at variable speed.
Use
Hvac
Liquid transportation in heating and air conditioning system.
Liquid transportation in ventilation system.
Slightly corrosive liquid or environmental liquid transportation.
supply water
Supercharging of commercial buildings.
Irrigation system.
Greenhouse water delivery.
Various OEM applications
Horizontal type, using extended coupling, single-stage radial split volute (pump size larger than 125 adopts two-stage design) adopts back-pumping design, with replaceable shaft sleeve/shaft protection sleeve and replaceable pump body sealing ring, and the design conforms to ATEX；
Read More
Product overview Horizontal, single-machine direct-connected single-stage radial split volute, rated power conforms to EN 733 standard, with replaceable shaft sleeve and pump body sealing ring, and the design conforms to ATEX
Read More

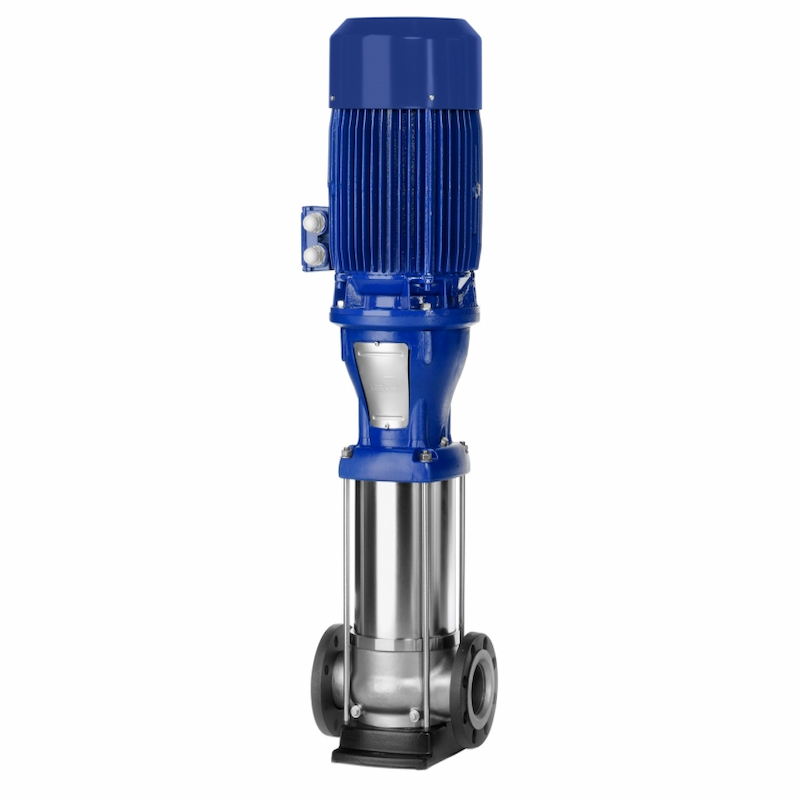

A vertically installed multistage high-pressure centrifugal pump with annular cross-section design is equipped with suction nozzles and nozzles (pipeline design) with the same nominal diameter and relatively designed positions, which are directly connected and designed according to ATEX；
Read More

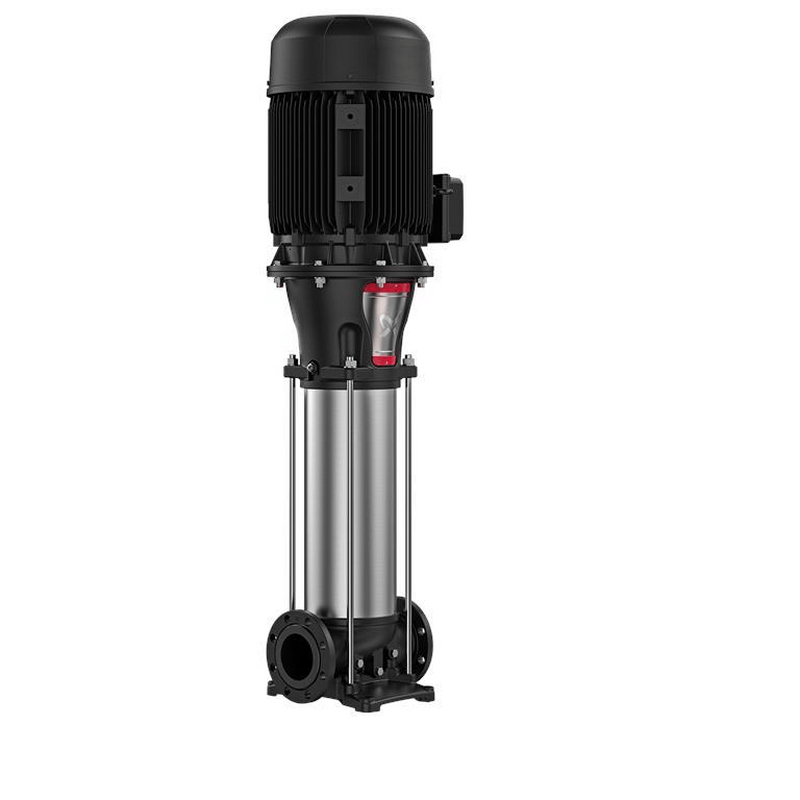

CR and CRE pumps are non-self-priming, vertical multistage centrifugal pumps.
Read More

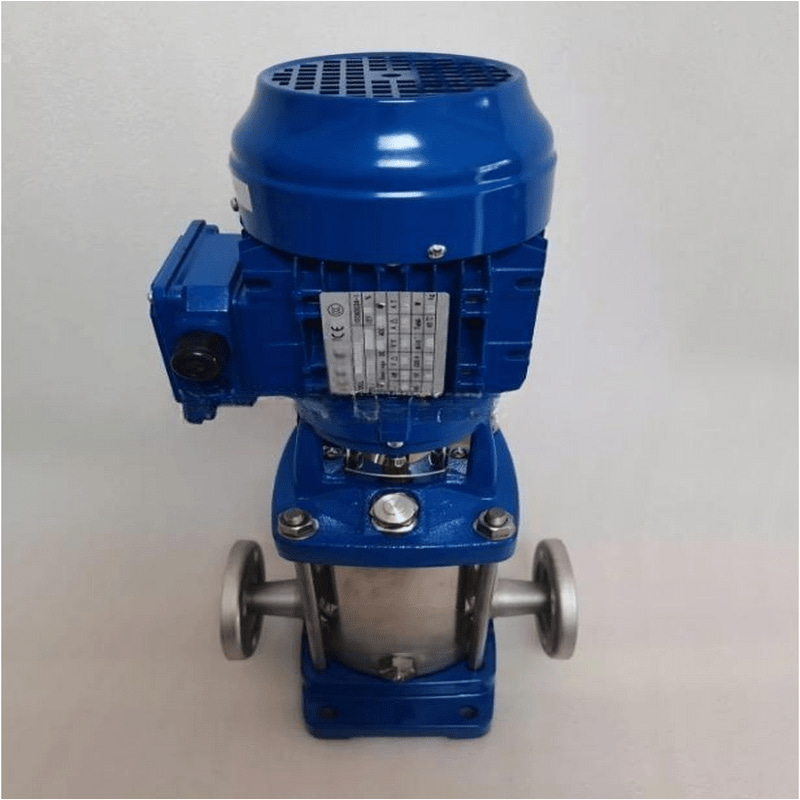

STANDARD MECHANICAL SEAL CAN BE REPLACED WITHOUT REMOVING THE MOTOR FROM THE PUMP (FOR 10, 15, 22, 33, 46,66, 92, 125SV)
Read More
SHS is made entirely of AISI316 stainless steel and is suitable for treating water and non-aggressive or moderately aggressive liquids.
Read More

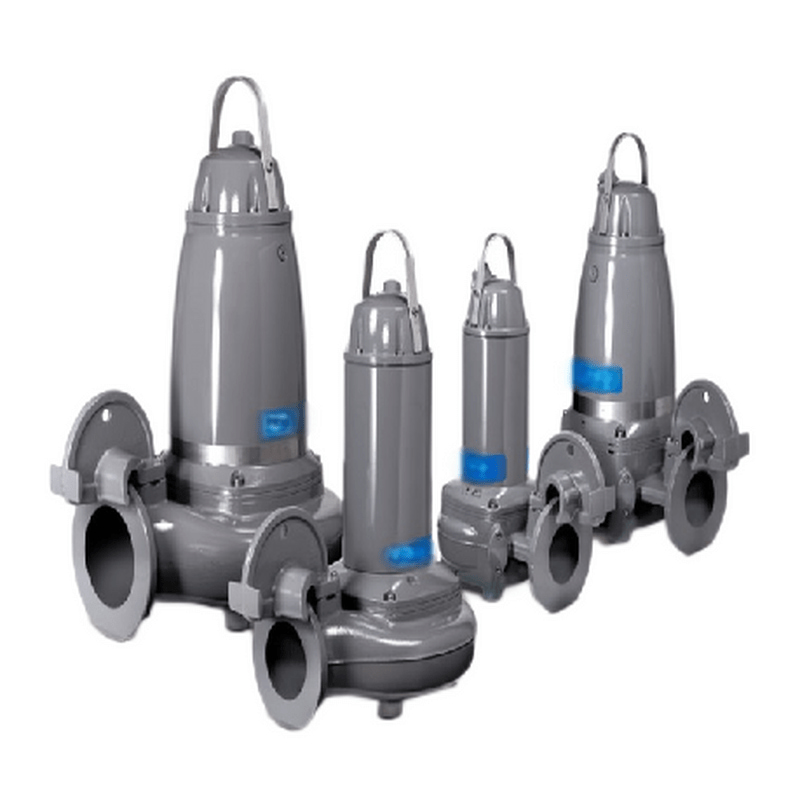

The product portfolio of the Steady Flygt 1300 series offers great cost-effectiveness and ensures smooth and efficient operation in any application scenarios.
