The product portfolio of the Steady Flygt 1300 series offers great cost-effectiveness and ensures smooth and efficient operation in any application scenarios.
Model :
Flygt 3171Imported caliber (DN) :
250Export caliber (DN) :
250Rated flow (m³/h) :
540Rated head (m) :
7.5Motor speed (rpm) :
965Motor power (kw) :
15Material :
cast ironSubmersible Sewage Pump
Technical parameters:
Flow: ~ 11500m3/h
Lift: ~ 130m
Shaft power: 0.75 kw ~ 680 kw
Outlet diameter: DN50～DN800

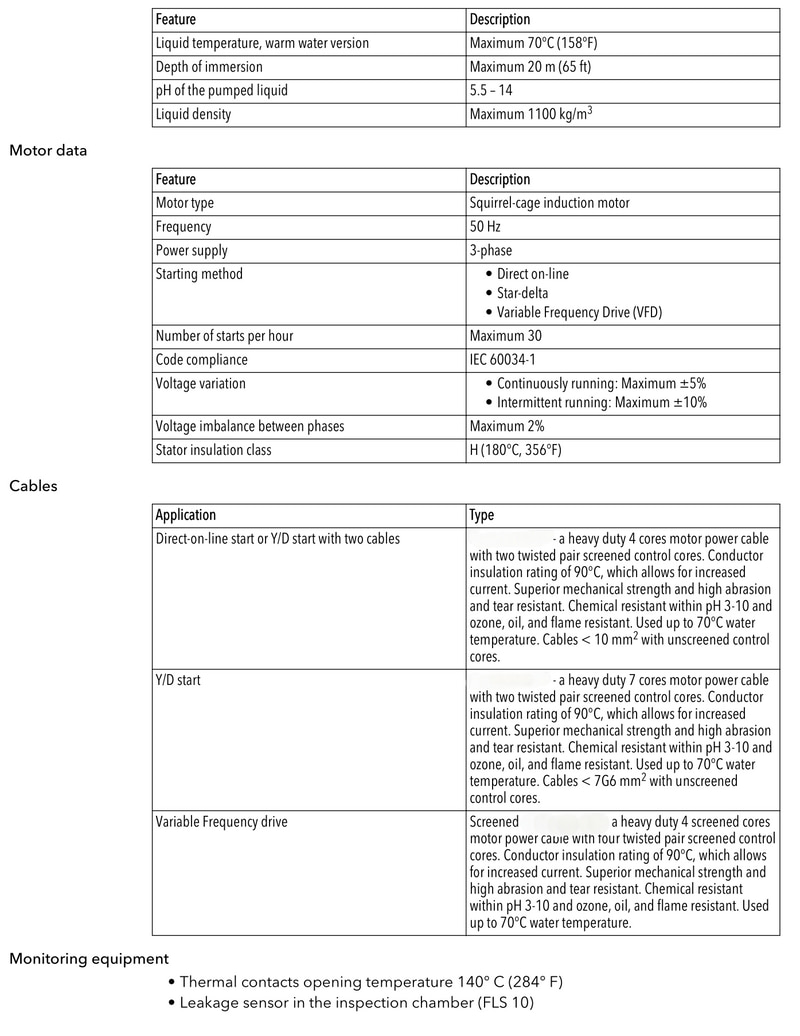

Application limits
Liquid temperature：Maximum 40℃(104℉)
Liquid temperature,warm water version：Maximum 70℃(158℉)
Depth ofimmersion：Maximum 20 m (65 ft)
pH of the pumped liquid：5.5-14
Liquid density：Maximum 1100 kg/m3
Product description

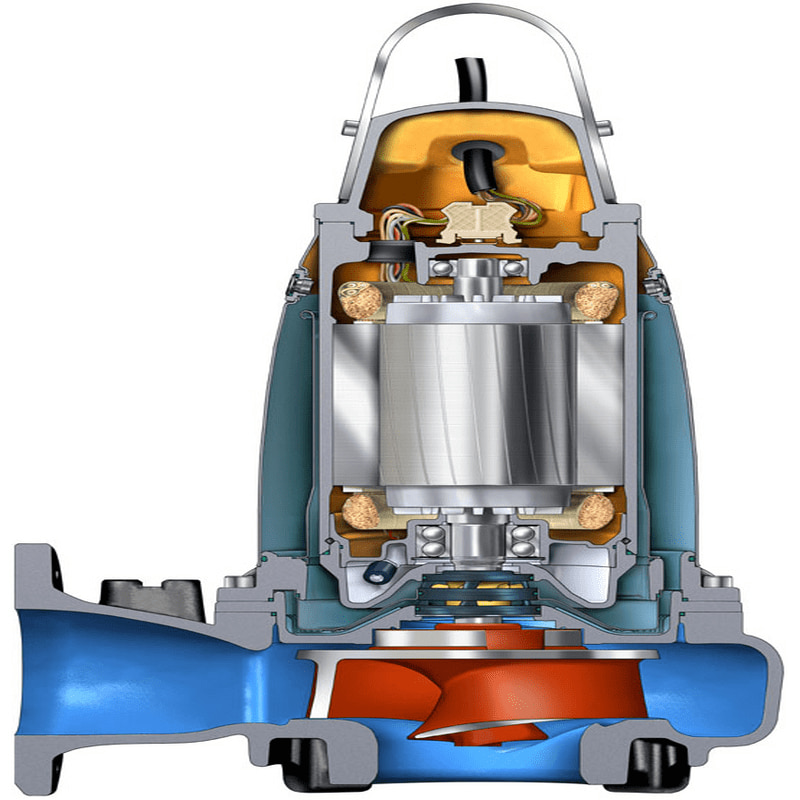

A submersible pump for efficient pumping of clean water, surface water, and wastewater containing solids or long-fibered material. The pump is designed for sustained hig efficiency. For abrasive media, Hard-Iron"" is required. Stainless steel N-impeller is available as an option.
Horizontal or vertical single-stage submersible pumps can be used as modular pump units. They can be equipped with various types of next-generation impellers, and can be installed in a wet or dry manner. They can be used statically or in combination with energy-saving motors in a mobile way. Explosion-proof models are also provided.
Read More
Vertical single-stage submersible pump is used for wet installation, which can be fixed installation or mobile installation. Amarex N water pump can operate in submerged state, with single-stage single suction, direct connection between motor and pump, non-self-priming pump, and the design of water pump conforms to ATEX standard; Amarex CN is suitable for conveying all kinds of wastewater, such as wastewater, sewage, building water supply, etc.
Read More
STANDARD MECHANICAL SEAL CAN BE REPLACED WITHOUT REMOVING THE MOTOR FROM THE PUMP (FOR 10, 15, 22, 33, 46,66, 92, 125SV)
Read More
SHS is made entirely of AISI316 stainless steel and is suitable for treating water and non-aggressive or moderately aggressive liquids.
Read More
The product portfolio of the Steady Flygt 1300 series offers great cost-effectiveness and ensures smooth and efficient operation in any application scenarios.
Read More
The product portfolio of the Steady Flygt 1300 series offers great cost-effectiveness and ensures smooth and efficient operation in any application scenarios.
Read More

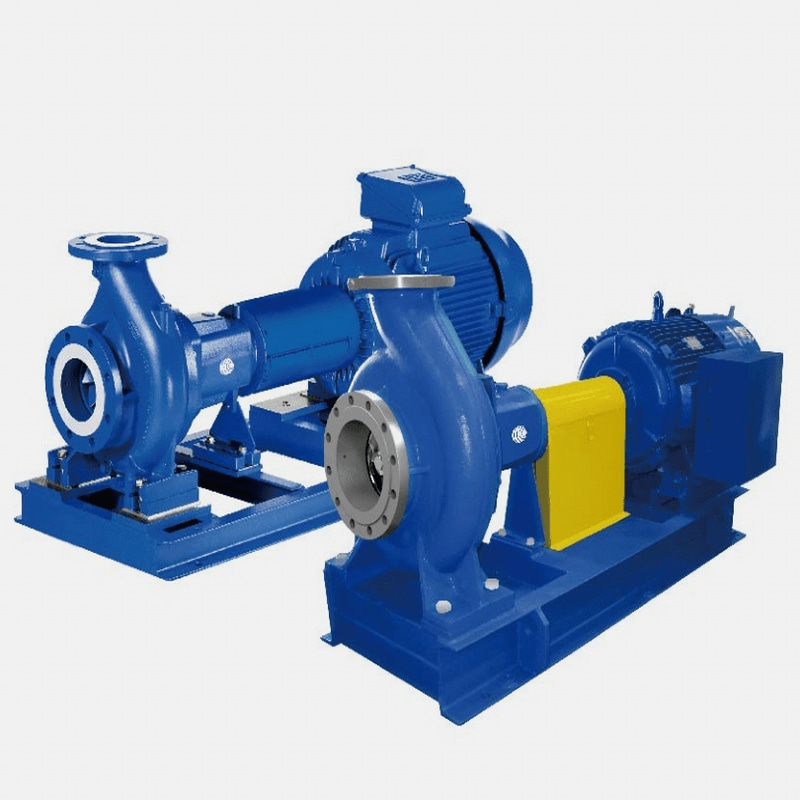

Single-stage centrifugal end-suction pump
Read More
Single-stage centrifugal end-suction pump
Read More
