The design features high efficient cutting dirt, fast discharge, and high efficiency and energy conservation. Cut and crush the debris in general sewage such as plastic bags and cloth strips, making it difficult to block the sewage discharge. The impeller is made of 3Cr13 material and has undergone heat treatment to increase wear resistance, prevent damage, rust, and prolong the lifespan of the water pump, resulting in higher efficiency.
Model :
50ASWQ10-10-0.75Export caliber (DN) :
50mmRated flow (m³/h) :
10Rated head (m) :
10Motor speed (rpm) :
2980Rated input power（KW） :
0.75Material :
cast IronFOB Price （USD$） :
110Cutting device sewage submersible pumps
Technical Parameters：
Rated flow:10～400 m³/h
Rated head:10～30 m
Power:0.75 ～ 22 kw
Pipe diameter： 50 ～ 200
Uses and characteristics ：
This series of electric pumps are used in sewage treatment equipment, pressurized drainage systems, floor garage sewage discharge, sewage discharge with sediment in public places such as restaurants, septic tanks, biogas digesters, industrial and agricultural drainage systems, and municipal engineering drainage systems.
Cutting impeller：

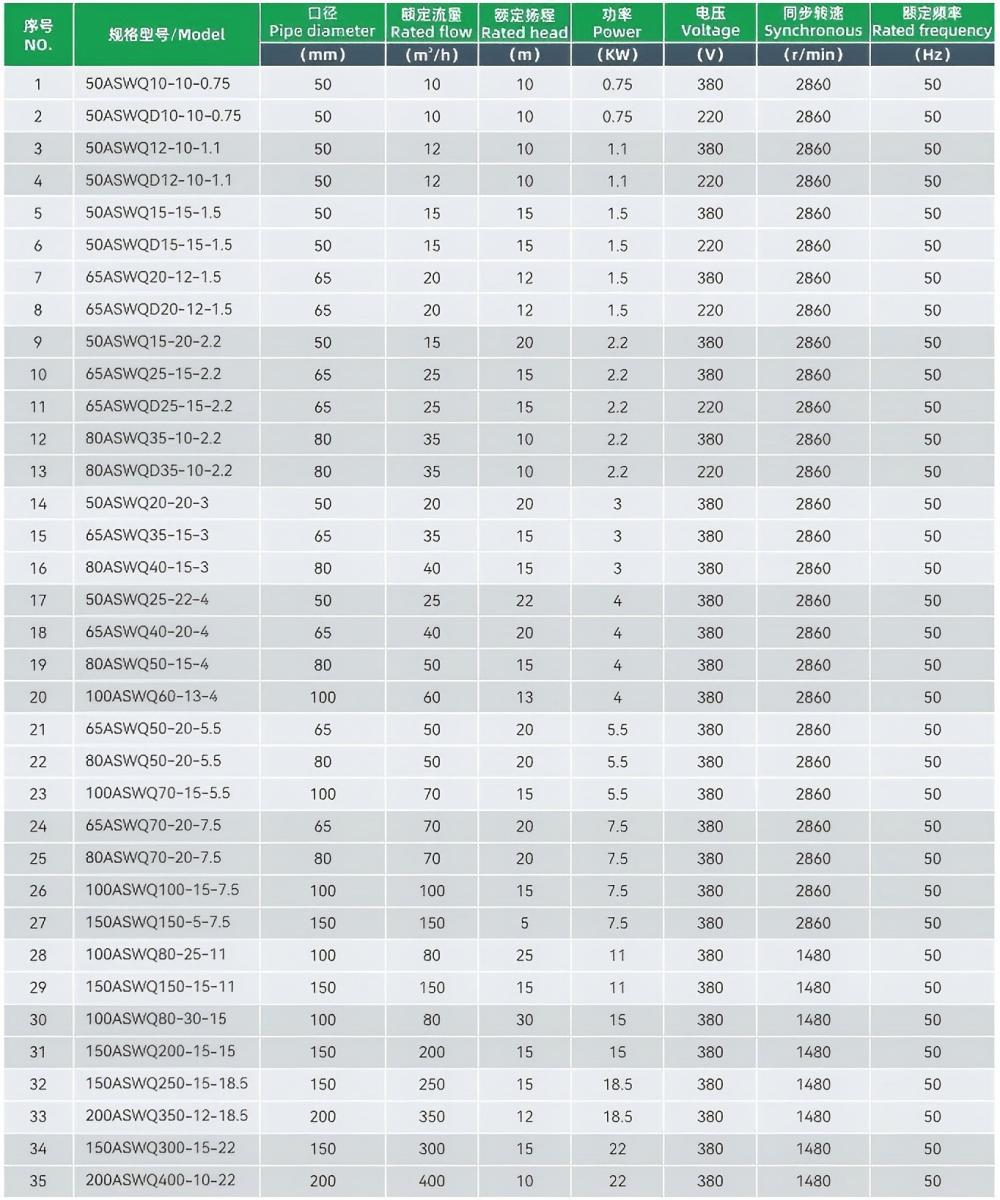

Technical Parameter ：

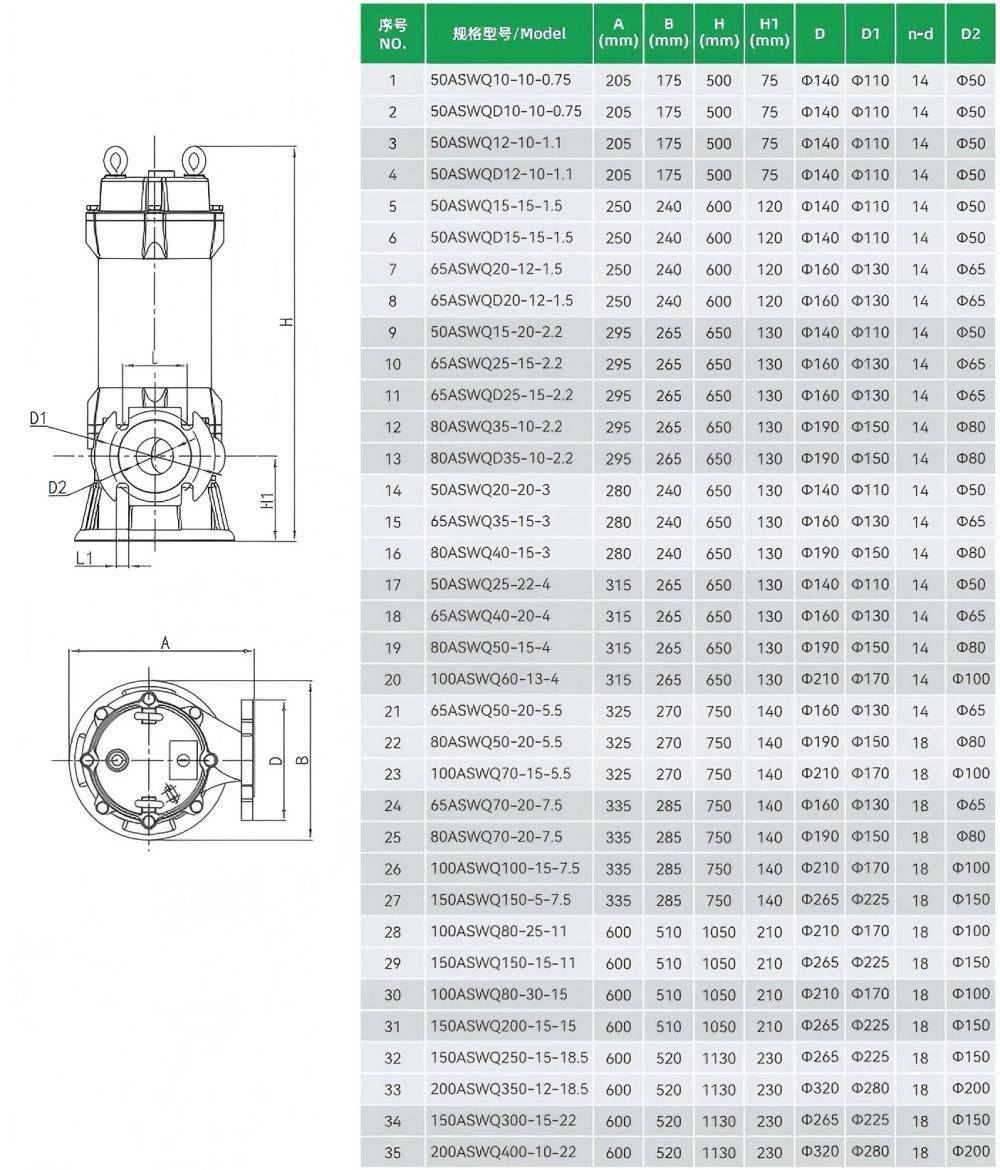

Overall dimension：
S Series Products、High efficiency、Stable performance、Compact structure、Low vibration、Easy installation and maintenance
