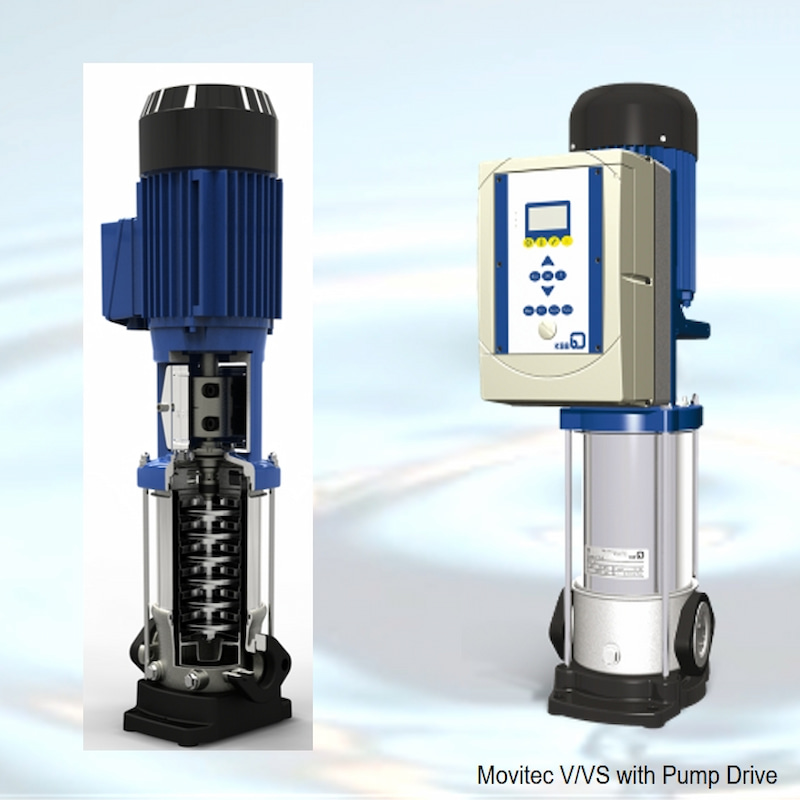

KSB Movitec Vertical Multi-Stage Stainless Steel In-Line Pump
A vertically installed multistage high-pressure centrifugal pump with annular cross-section design is equipped with suction nozzles and nozzles (pipeline design) with the same nominal diameter and relatively designed positions, which are directly connected and designed according to ATEX；
Model :
Movitec VF 15/13BImported caliber (DN) :
50Export caliber (DN) :
50Rated flow (m³/h) :
15Rated head (m) :
150Motor speed (rpm) :
2900Motor power (kw) :
15Material :
Stainless steelFOB Price （USD$） :
3760Vertical Multi - Stage Stainless Steel In - Line Pump
Advantages
Reliability: the self-lubricating sliding bearing of the pump is made of tungsten carbide, cast iron pump foot, anti-torque pump cover and integral O-ring.
The service life is long, and the stainless steel overcurrent parts have good corrosion resistance.

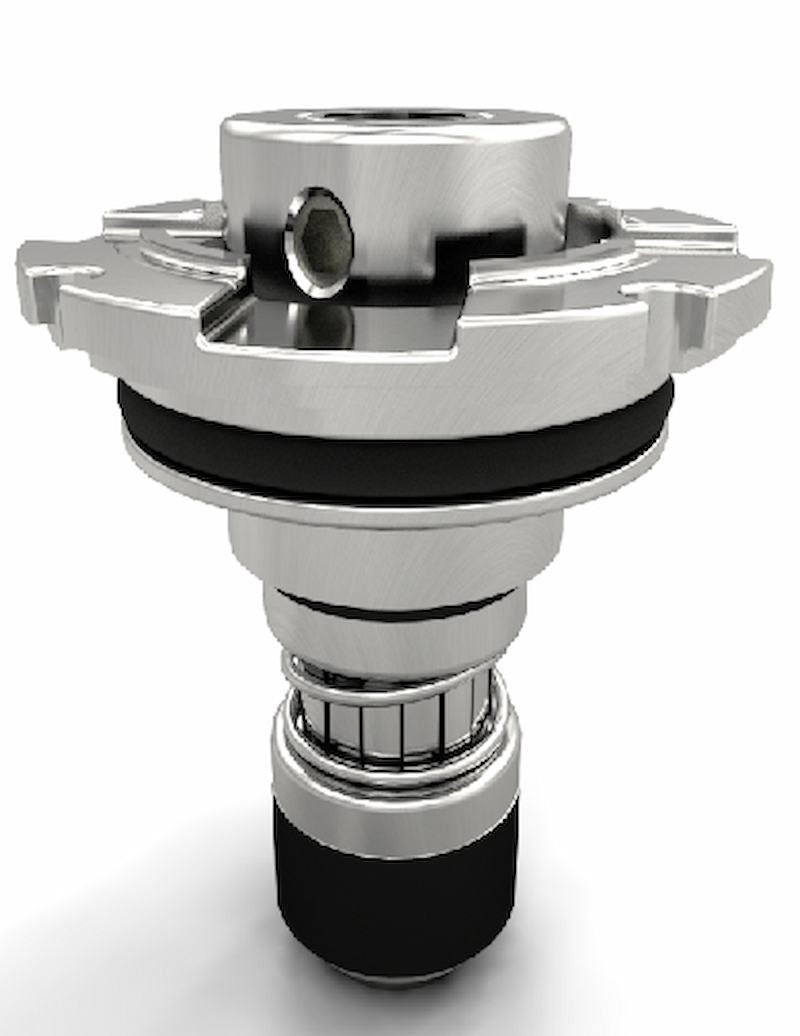

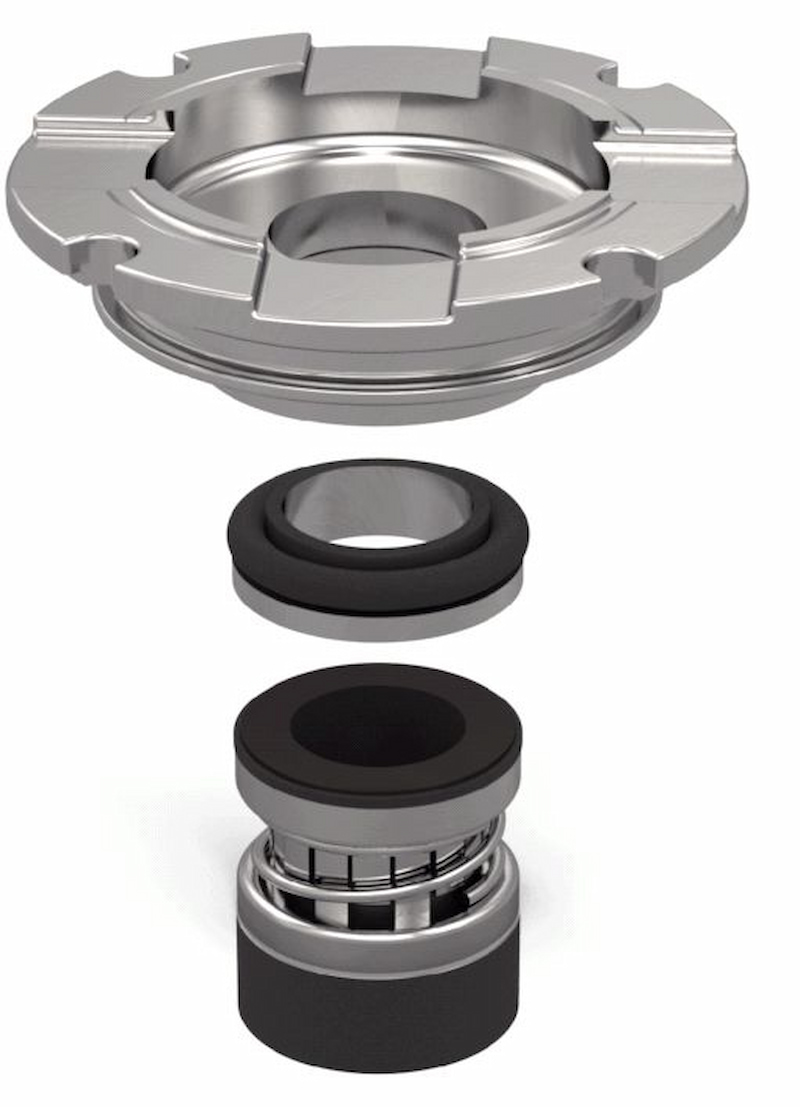

Easy maintenance: any standard mechanical seal (designed according to EN 12756) can be installed.
Variable material combination and interface options, extended temperature and pressure range.
Main application
Spray irrigation, irrigation, washing, water treatment, fire fighting and pressurization system, hot water and cooling water recirculation, boiler water supply system, etc.
Pumped medium
High-temperature hot water, clean water, condensed water, cooling water, fire water, oil and cleaning agent.
