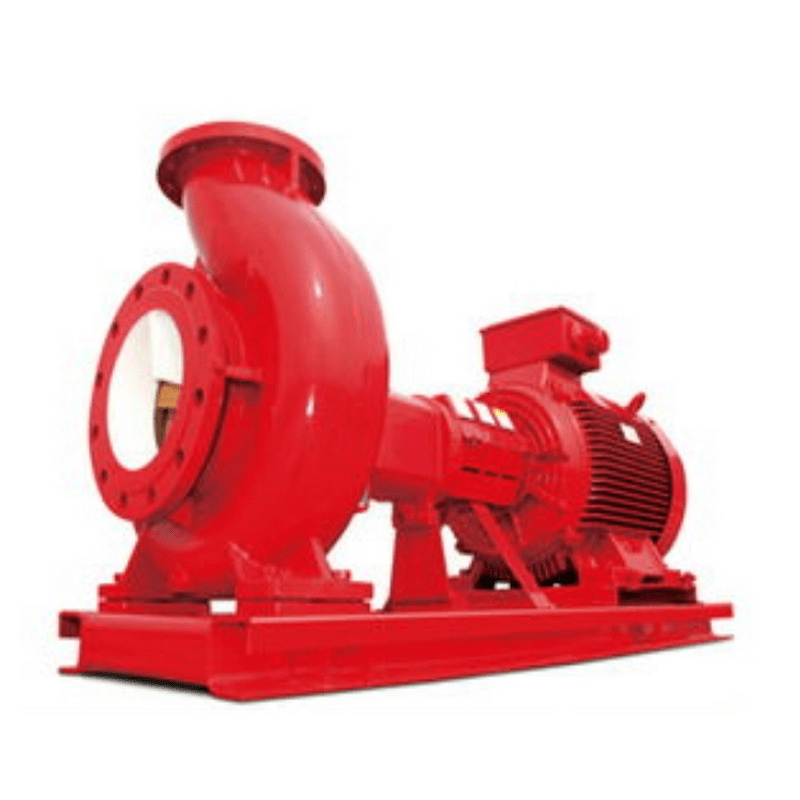

Single-stage centrifugal end-suction pump
Model :
e1610 1.5A 7.5KW 2P/C3FAAACS4Imported caliber (DN) :
65Export caliber (DN) :
40Rated flow (m³/h) :
40Rated head (m) :
30Motor speed (rpm) :
2900Motor power (kw) :
7.5Material :
grey iron/304Horizontal Single-Stage End-Suction Pump
Technical parameters:
Flow rate, q: 1800 m3/h max.
Head, h: up to 160m.
Pressure, p: 16bar/25bar max.
Temperature, t:-20℃-+140℃
Rated speed: 2900rpm, 1450rpm, 975rpm.
Overcurrent material: AISI304/316/316L/ dual-phase steel.
Product overview

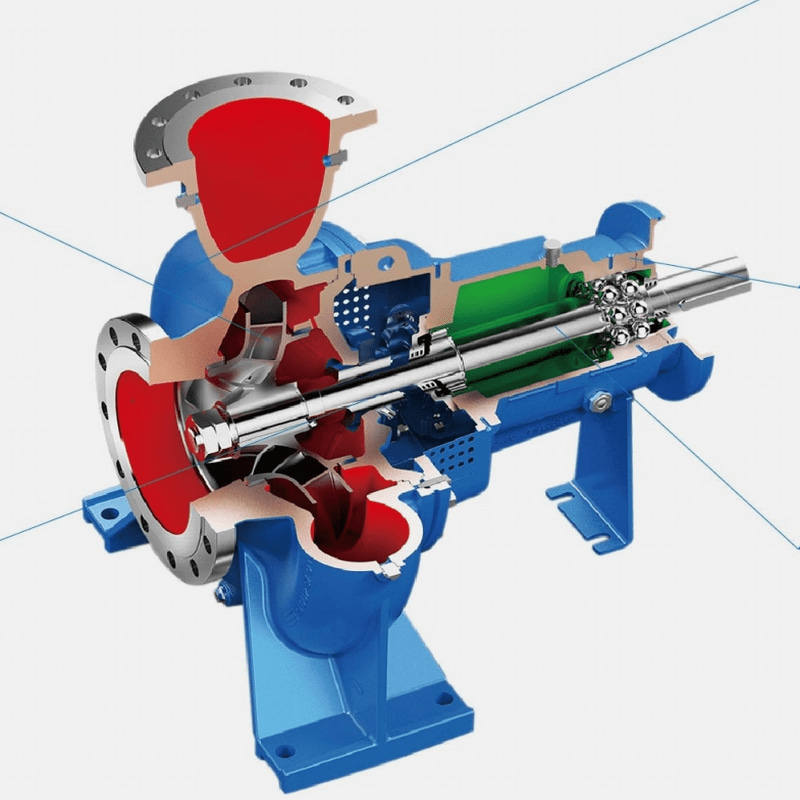

Single-stage centrifugal end-suction pump, the standard pressure is 16Bar, e1610 uses elastic coupling to connect the pump shaft and motor shaft, and is fixed on the base, with mature post-pull design.
Application
Horizontal centrifugal pump is suitable for water supply, heating, air conditioning system, pressurized water supply, fire sprinkler system, spraying, irrigation, swimming pool, fountain water supply and so on.
Horizontal type, using extended coupling, single-stage radial split volute (pump size larger than 125 adopts two-stage design) adopts back-pumping design, with replaceable shaft sleeve/shaft protection sleeve and replaceable pump body sealing ring, and the design conforms to ATEX；
