The product portfolio of the Steady Flygt 1300 series offers great cost-effectiveness and ensures smooth and efficient operation in any application scenarios.
Model :
Steady1310Imported caliber (DN) :
50Export caliber (DN) :
50Rated flow (m³/h) :
24Rated head (m) :
15Motor speed (rpm) :
2900Motor power (kw) :
2.4Material :

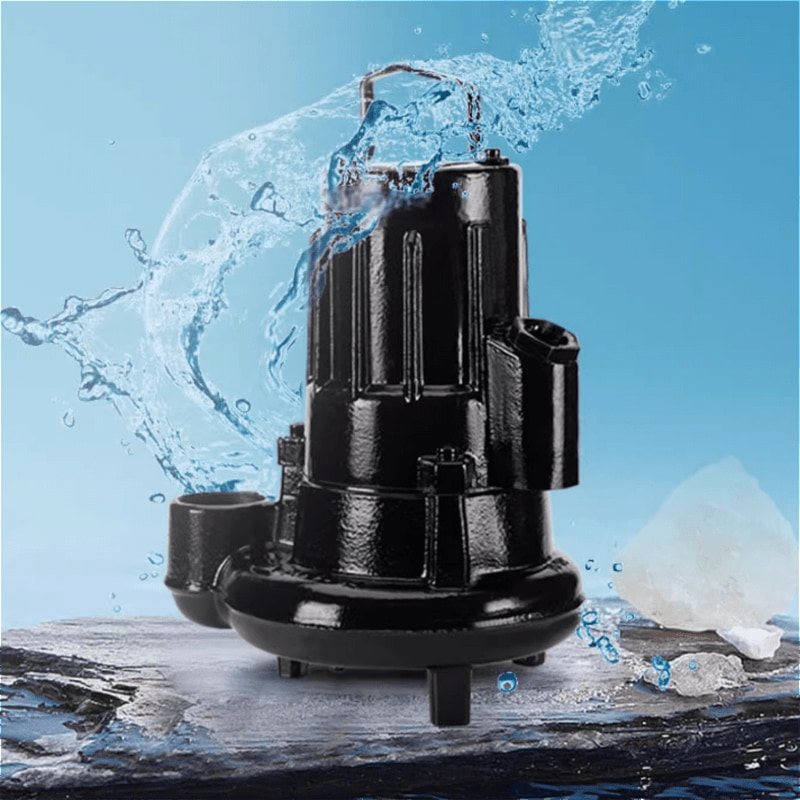

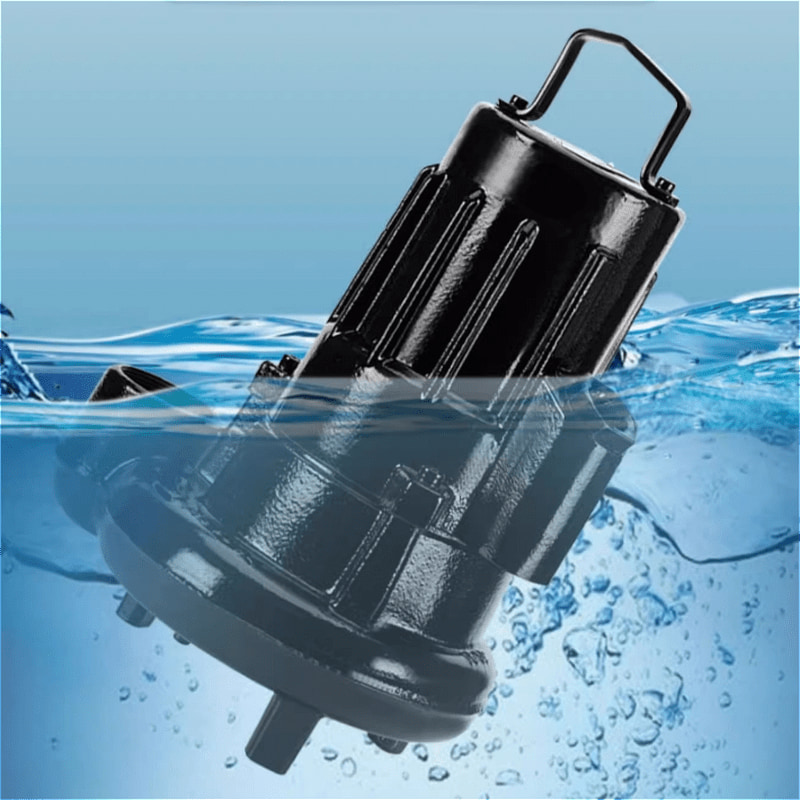

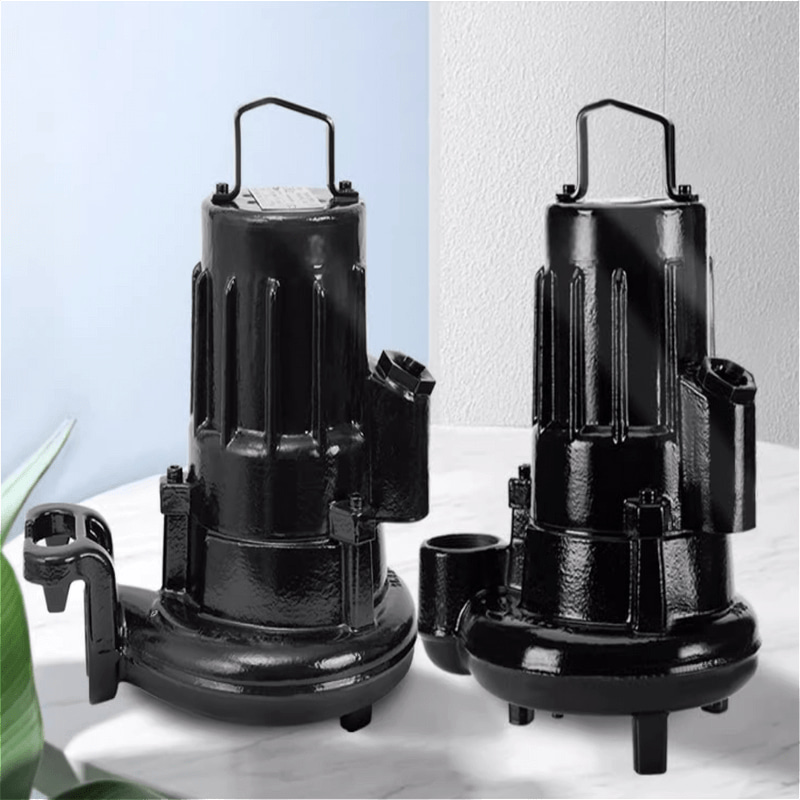

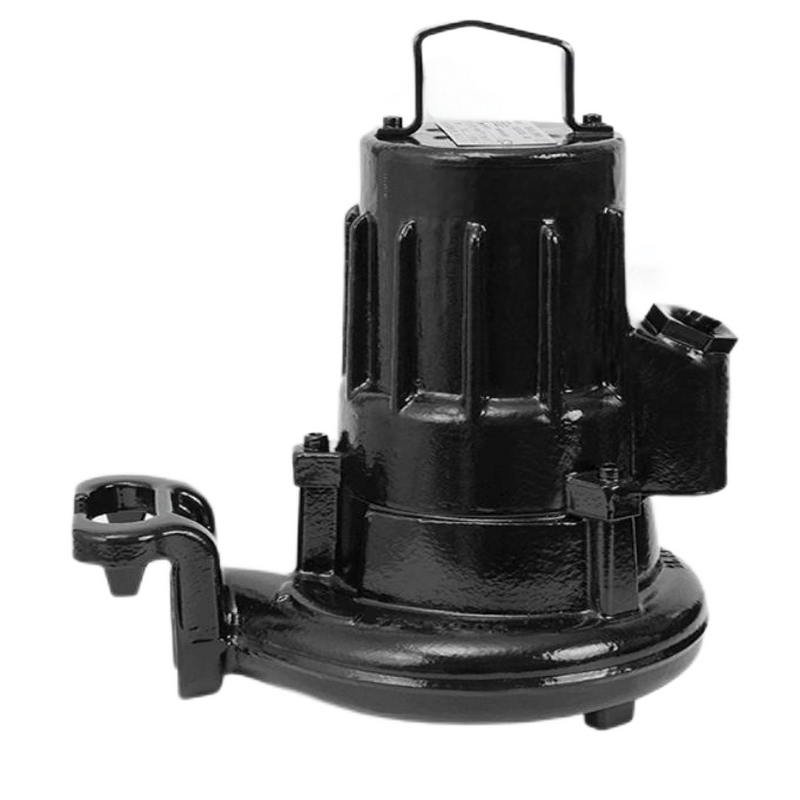

cast ironSteady Series Submersible Sewage Pump
Technical parameters:
Flow rate, q: 15-500 l/s max.
Head, h: up to 10-55m.
Pressure, p: 16bar/25bar max.
Temperature, t: 40℃
Superiority
Full-model high applicability
Excellent cost performance
The pumping capacity is 10-55m, and the flow rate is 15~500 I/s
Reinforced cast iron structure
Non-clogging impeller
Design of ultra-long life impeller
Independent examination room can realize rapid on-site inspection check
Patented Spin-Out™ design can be used to grind
Damaged particles are discharged from the sealed chamber.
Save maintenance and energy consumption costs.
Long-life motor
Use
Domestic wastewater pumping station
drainage
sewage pumping station
Domestic wastewater pumping station
regulating reservoir
underground water
Rainwater pumping station
Horizontal or vertical single-stage submersible pumps can be used as modular pump units. They can be equipped with various types of next-generation impellers, and can be installed in a wet or dry manner. They can be used statically or in combination with energy-saving motors in a mobile way. Explosion-proof models are also provided.
