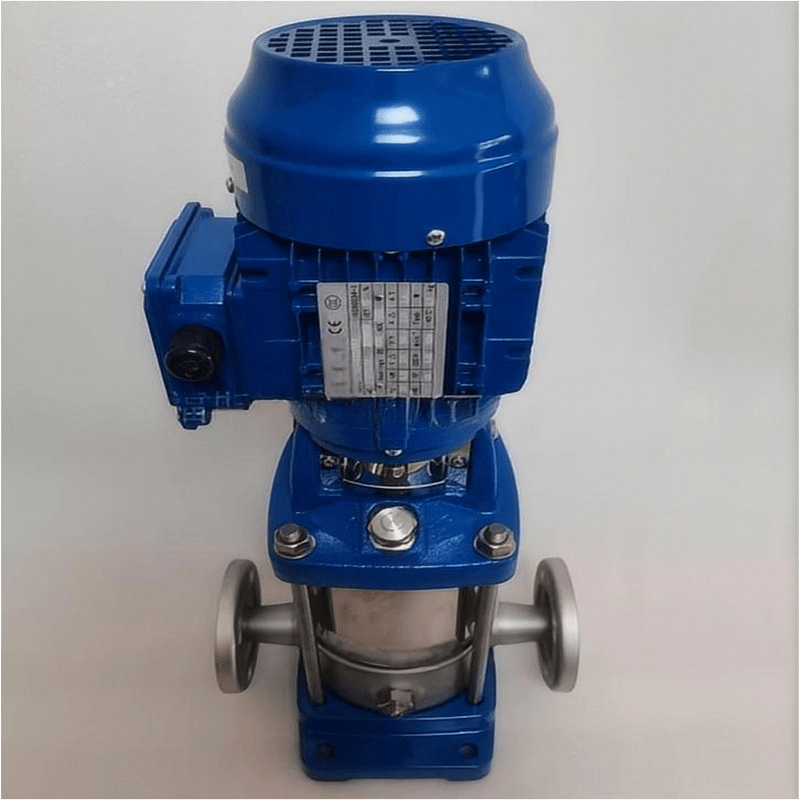

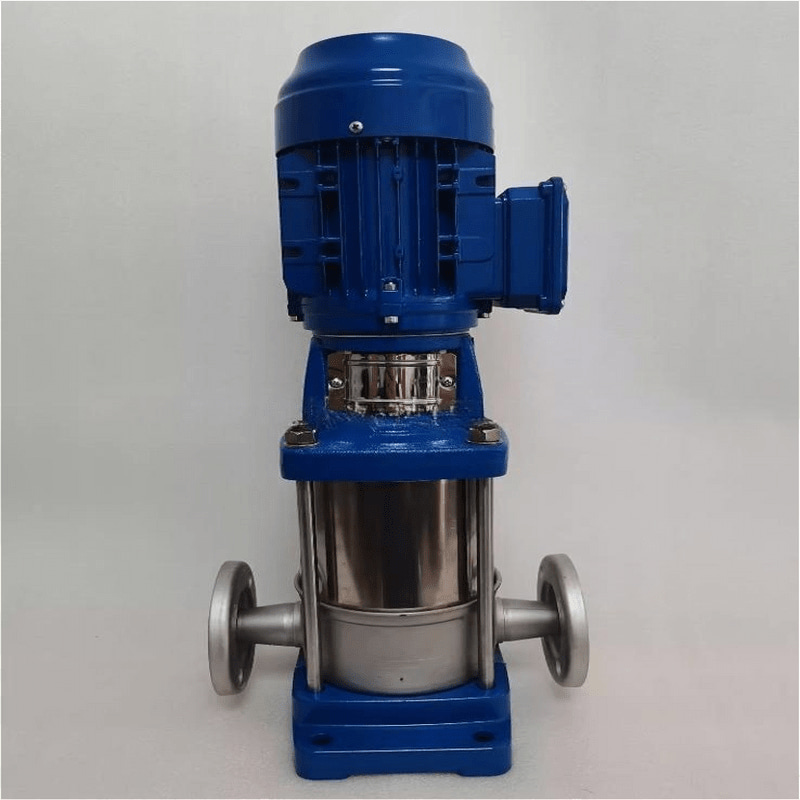

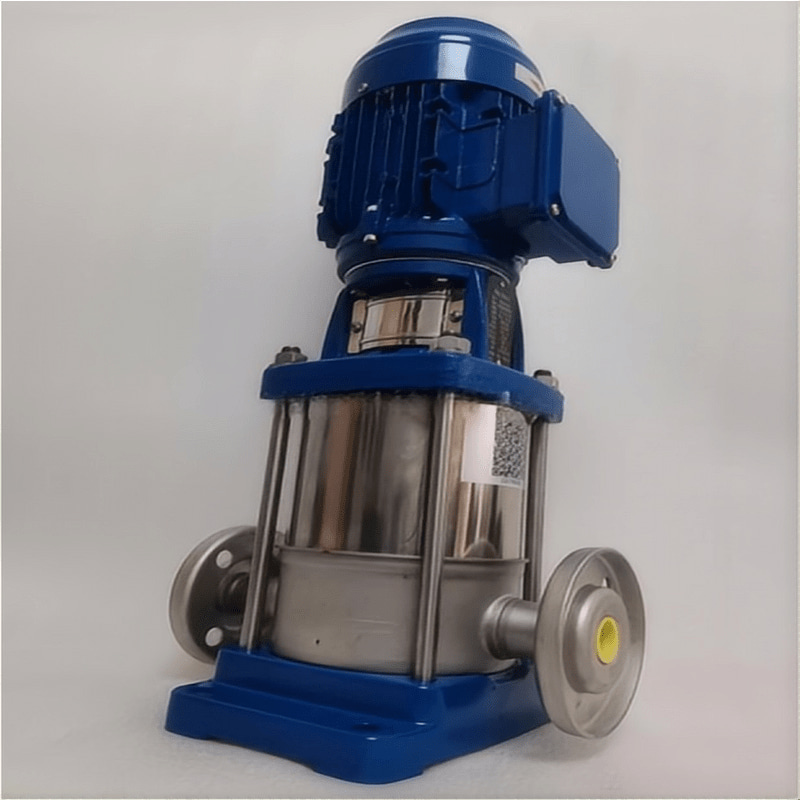

Xylem Lowara eSV Series Vertical Multi-Stage Stainless Steel Pipeline Pump
STANDARD MECHANICAL SEAL CAN BE REPLACED WITHOUT REMOVING THE MOTOR FROM THE PUMP (FOR 10, 15, 22, 33, 46,66, 92, 125SV)
Model :
1SV07F003TImported caliber (DN) :
32Export caliber (DN) :
32Rated flow (m³/h) :
1Rated head (m) :
35Motor speed (rpm) :
2900Motor power (kw) :
0.37Material :
304Vertical Multi-Stage Stainless Steel Pipeline Pump
SPECIFICATIONS
Delivery: up to 160m3/h
Head: up to 330m.
Temperature of pumped liquid:from -30°C to +120°C for standard version.
Maximum operating pressure:- 1,3,5,10,15, 22SV with oval flanges:16 bar (PN16) at 50C.
1，3,5,10,15,22SV with round flanges or Victaulic", Clamp or DIN 11851 connections:25 bar (PN 25) at 50C.
- 33,46SV: 16,25,40 bar (PN 16,PN 25 or PN 40) at 50°C.
66,92,125SV: 16 or 25 bar (PN 16 or PN 25) at 50°℃.
MARKET SECTORS
CIVIL, AGRICULTURAL, LIGHT INDUSTRY, WATER TREATMENT, HEATING AND AIR CONDITIONING，
APPLICATIONS
Handling of water, free of suspended solids, in the civil, industrial and agricultural sectors.
Pressure boosting and water supply systems.
Irrigation systems.
Wash systems.
Water treatment plants.
Handling of moderately aggressive liquids,demineralised water, water and glycol, etc.
Circulation of hot and cold water for heating,cooling and conditioning systems.
Boiler feed.
Pharmaceutical food & beverage industries.
