ISW series horizontal centrifugal pumps are optimally designed with domestic advanced hydraulic models,which are based upon the performance parameters of IS and IRcentrifugal pumps, and ISO2858 standard. They are a new-generation of highly effective and energy-saving horizontal pumps.

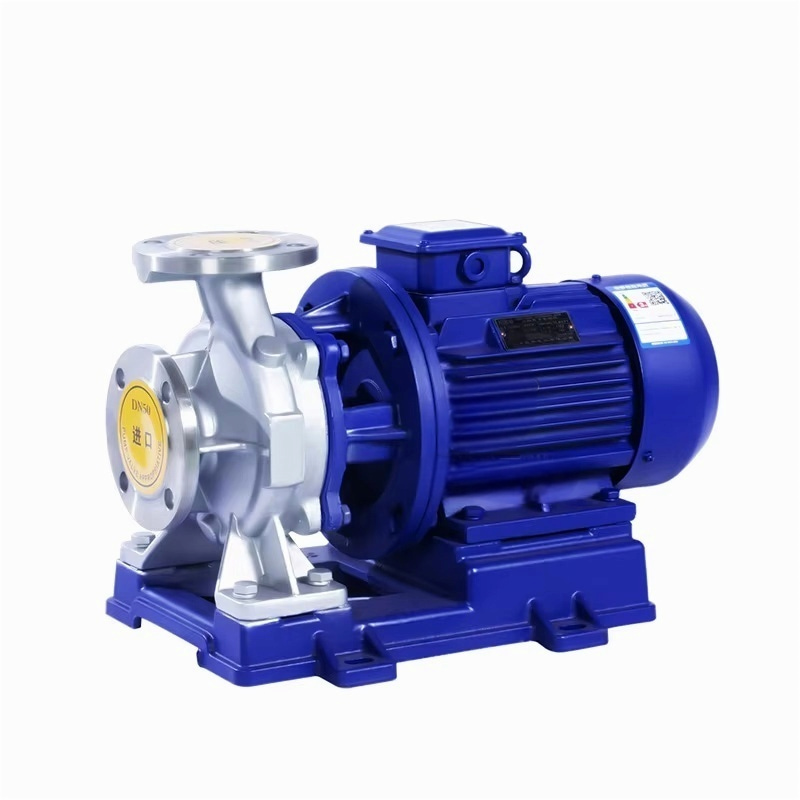

Model :
ISW32-125Rated flow (m³/h) :
5Rated head (m) :
20Motor speed (rpm) :
1900Motor power (kw) :
0.75Material :
cast ironFOB Price （USD$） :
149Horizontal centrifugal pumps
Usage
ISW horizontal centrifugal pumps are used to handle cleanwater and liquids similar to water in physical and chemical properties. They are applicable to industrial and city water supply and drainage, pressurized water supply in high-rise constructions,ships, garden irrigation, fire-fighting pressurization,distant transportation,heating,ventilating,refrigeration circulation, and bathrooms for cyclic pressurization of cold and hot water, and other equipments. Temperature of service medium not exceeding 85℃.
Features
1. Compact structure. Horizontal structure, integration of motor and pump. appealing appearance and less occupation space.Compared with ordinary horizontal pumps, it saves occupation space by 30%. If IP54 outdoor motor is used, it can be used outdoors with no need of a pump room.
2.Smooth operation, little noise and high concentricity of components. Close coupled motor and pump to have simplified intermediate structure and increased running stability. Impeller is provided with excellent dynamic and static balance to obtain no vibration and low noise in operation, which has lengthened the service life of bearings and improved the service conditions.
3. Use of quality mechanical seal for shaft seal, rotating and stationary seal rings made of hard alloy to effect abrasion resistance, leak tightness and long service life.
4. Use of advanced hydraulic model to feature high efficiency and sound pcrformancc.
5. Distinctive structure. Pump body fitted with water drain hole at the underside, inlet and outlet flanges fitted with pressure tapping, thus to ensure normal operation and maintenance.
6. This series of pumps have horizontal inlets and vertically upward outlets for the convenience of pipeline arrangement.
Working Conditions

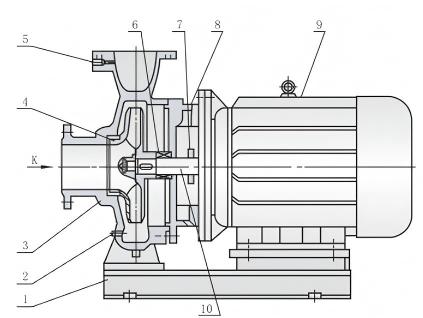

stuetural Speetftations
 |
1、底座Base 3、泵体Pump Body 7、挡水圈Water Defector |

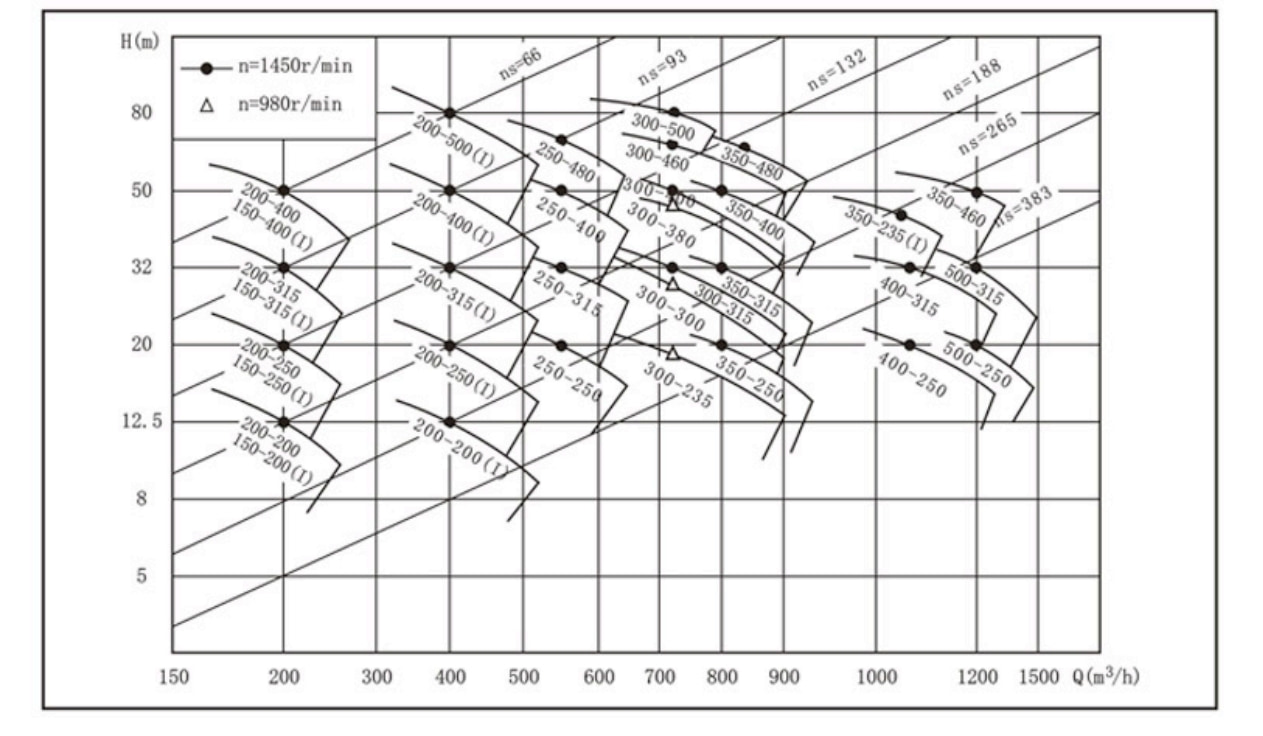

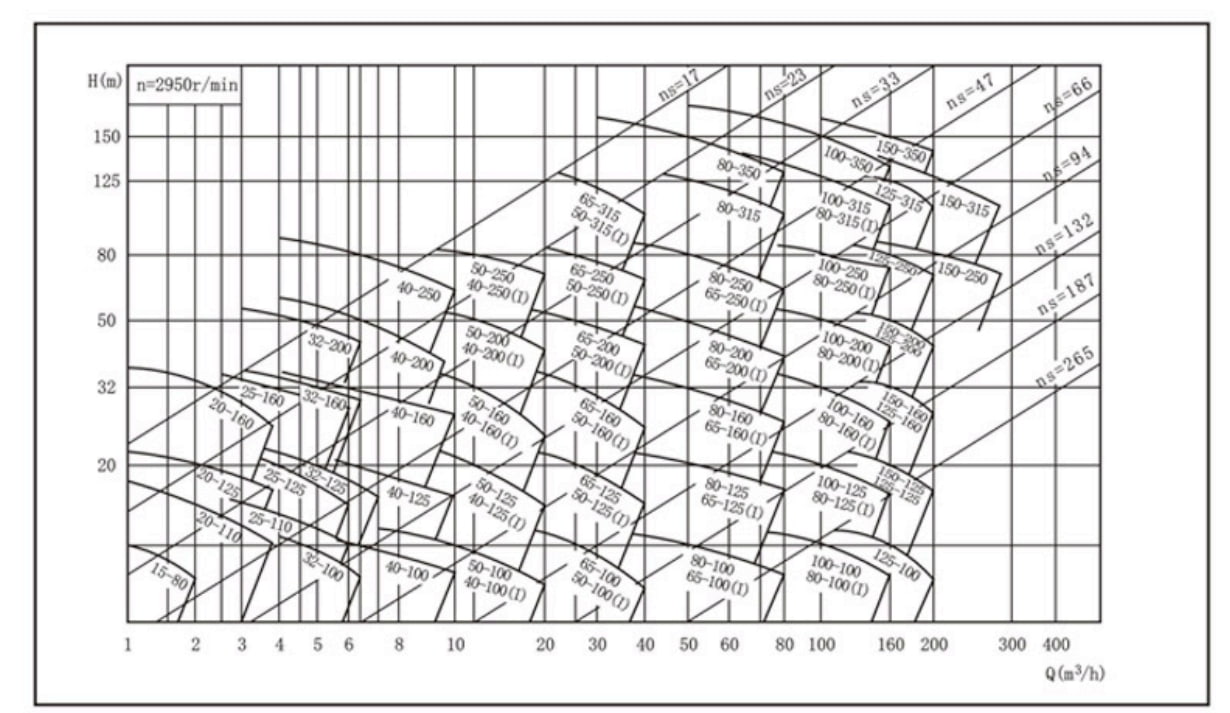

Performance Spectrum
1.Upon installation,the weight of pipeline shouldn't be borme by pump, and it shouldhave ts own supporter, otherwise,It an cause pump detormed, which wil owe the operatng pertomance and sarvice lte of the pump.
2. lntegated stueture of pump and motot,with no need oft corectionupon instalaton.making nstalaton farty easy.
3.Upon nstalaton anchor bolts should be tastered to void pump suftored trom starting vbration
4.Beforeinstaltion check carefuly to see whether there isany hard substancas nte stones or hon gains ete) inthe fow pasage of pump. as they maycause trouble to the running of pump,and damageimpaler andpumpbody.
5.For the sate of easy maintenance and afe operation,an atusting vaveis fted on both pump imnlet and oulet pipes, and a pressure gauge is ftted near pump outlet to ensure pump worting wthin therated dalvery head and ftow ange thus to obtain normal oparation andtolengthen thesarvice ite of pump.
6.When pump is to be used in sutton head condtions, a foot valve should be mounted,and there shouldn't be too many bends in nlet plpelne.And no leatage of water and air allowed.
7.Dsctwrge ppeire, ihte ron-etun vae shal be mounted at the outsdn ot gate valve.
8.Ater instalaton, tun pump shattandhere stouldn't be any sound of atrasion orseizure inimpeler.If any, disassemblethe pumpto probeintothecauses
9.Pump may be nstaled by riaid connecton andftexblecomection

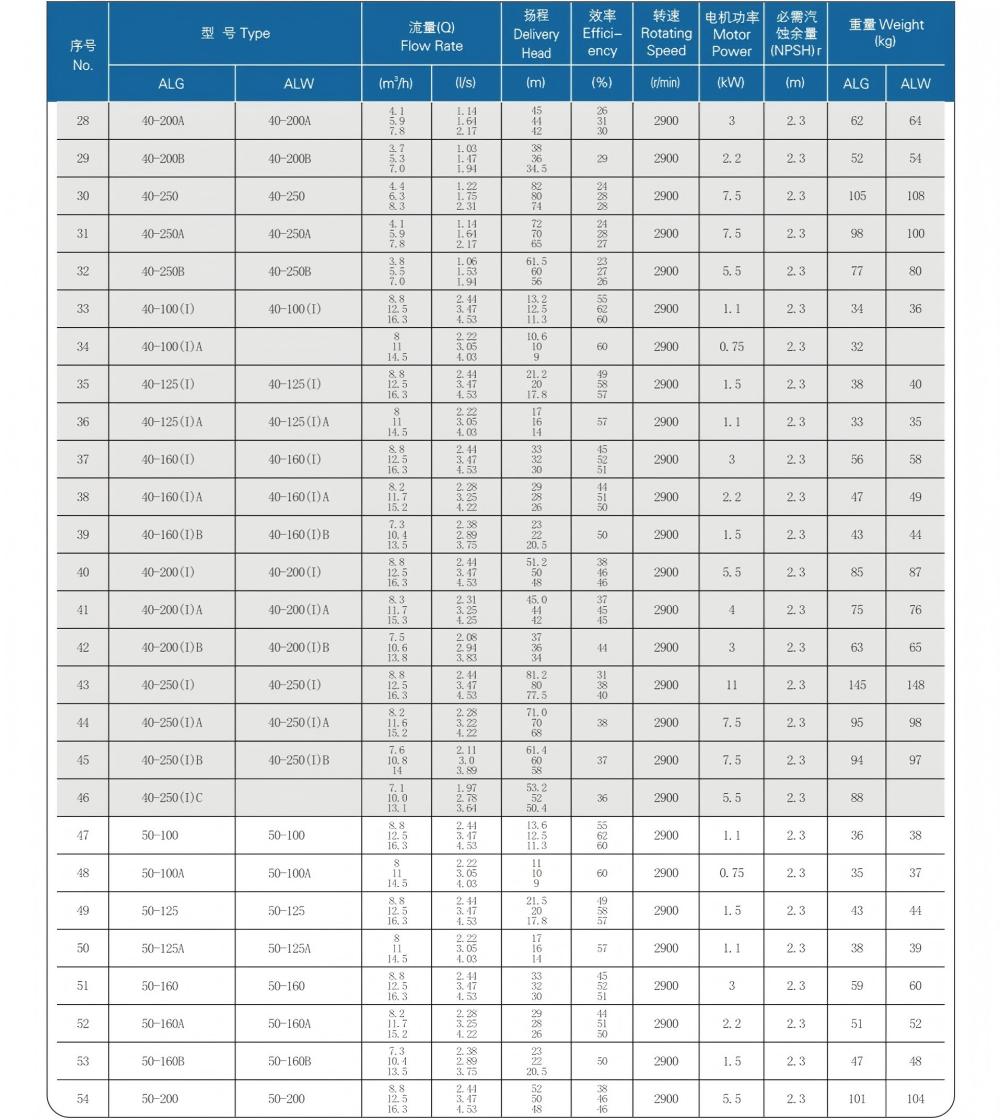

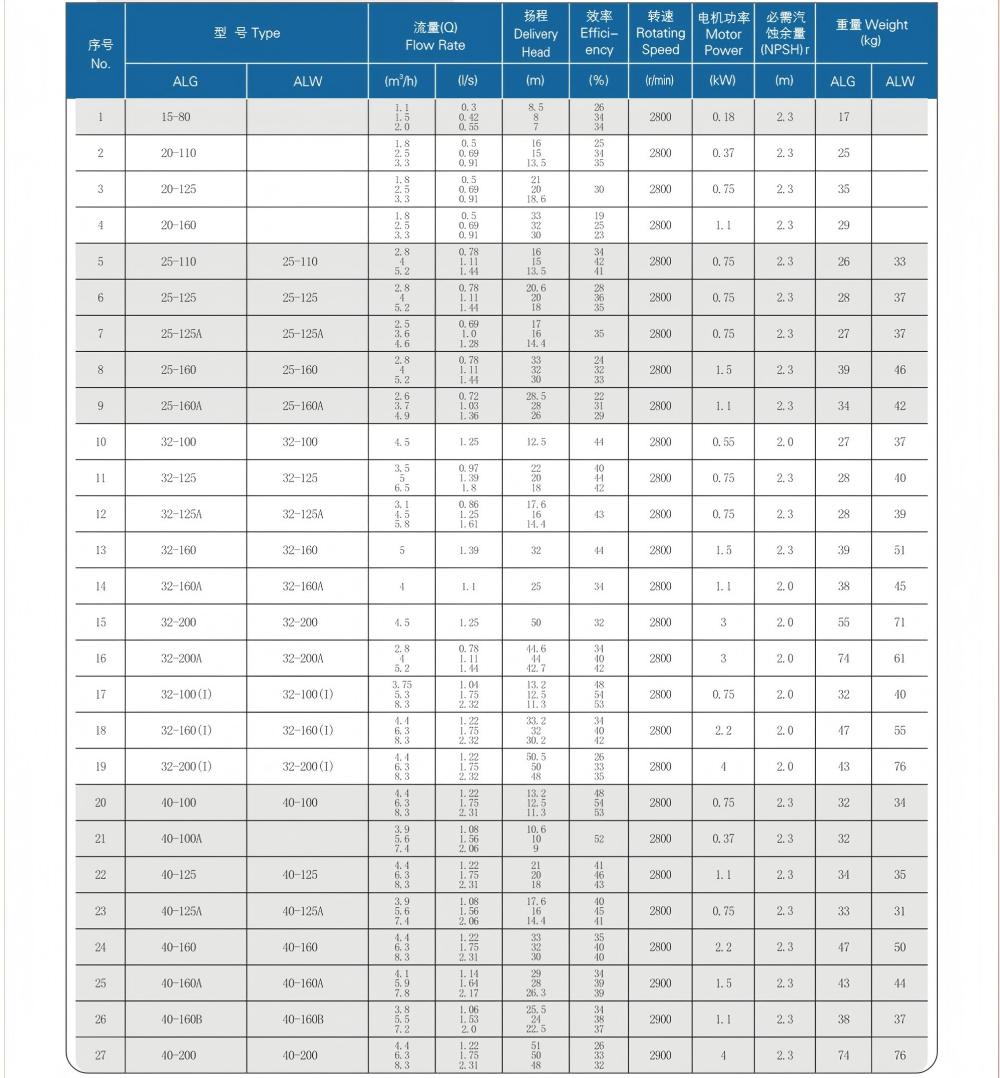

Performance Parameters Table
ISW series horizontal centrifugal pumps are optimally designed with domestic advanced hydraulic models,which are based upon the performance parameters of IS and IRcentrifugal pumps, and ISO2858 standard. They are a new-generation of highly effective and energy-saving horizontal pumps.
