GRUNDFOS CR series vertical multi-stage stainless steel pipeline pumps
CR and CRE pumps are non-self-priming, vertical multistage centrifugal pumps.
Model :
CR45-10Imported caliber (DN) :
32Export caliber (DN) :
25Rated flow (m³/h) :
40Rated head (m) :
220Motor speed (rpm) :
2900Motor power (kw) :
37Material :
All cast ironVertical Multi-Stage Stainless Steel Pipeline Pump

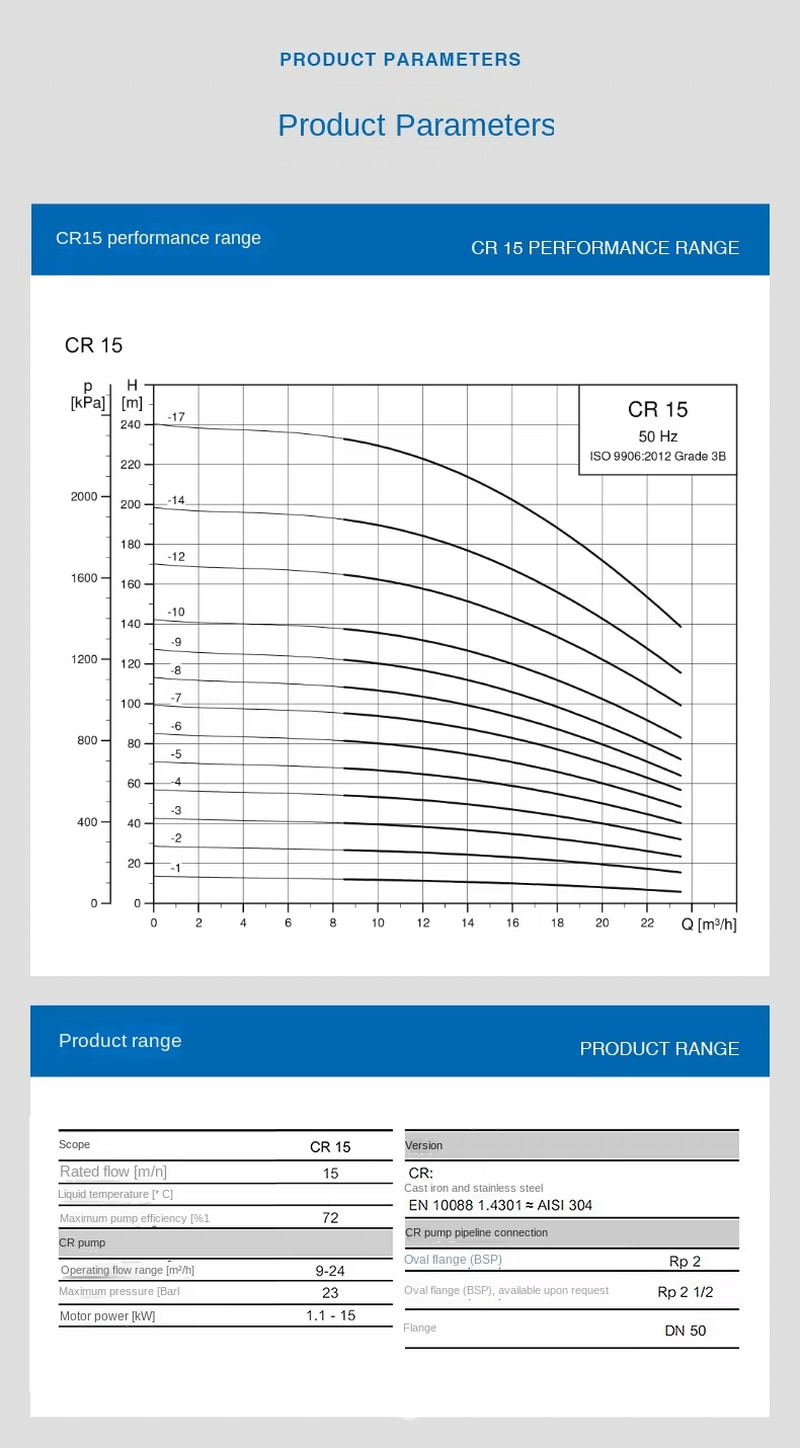

Technical parameters:
Flow rate, q: max. 336 m³/h
Head, h: up to 362 m.
Pressure, p: max. 40bar
Temperature, t:-30℃-+120℃
Product overview
CR and CRE pumps are non-self-priming, vertical multistage centrifugal pumps.
The pump is equipped with Gryffindor standard motor (CR pump) or variable frequency motor (CRE pump).

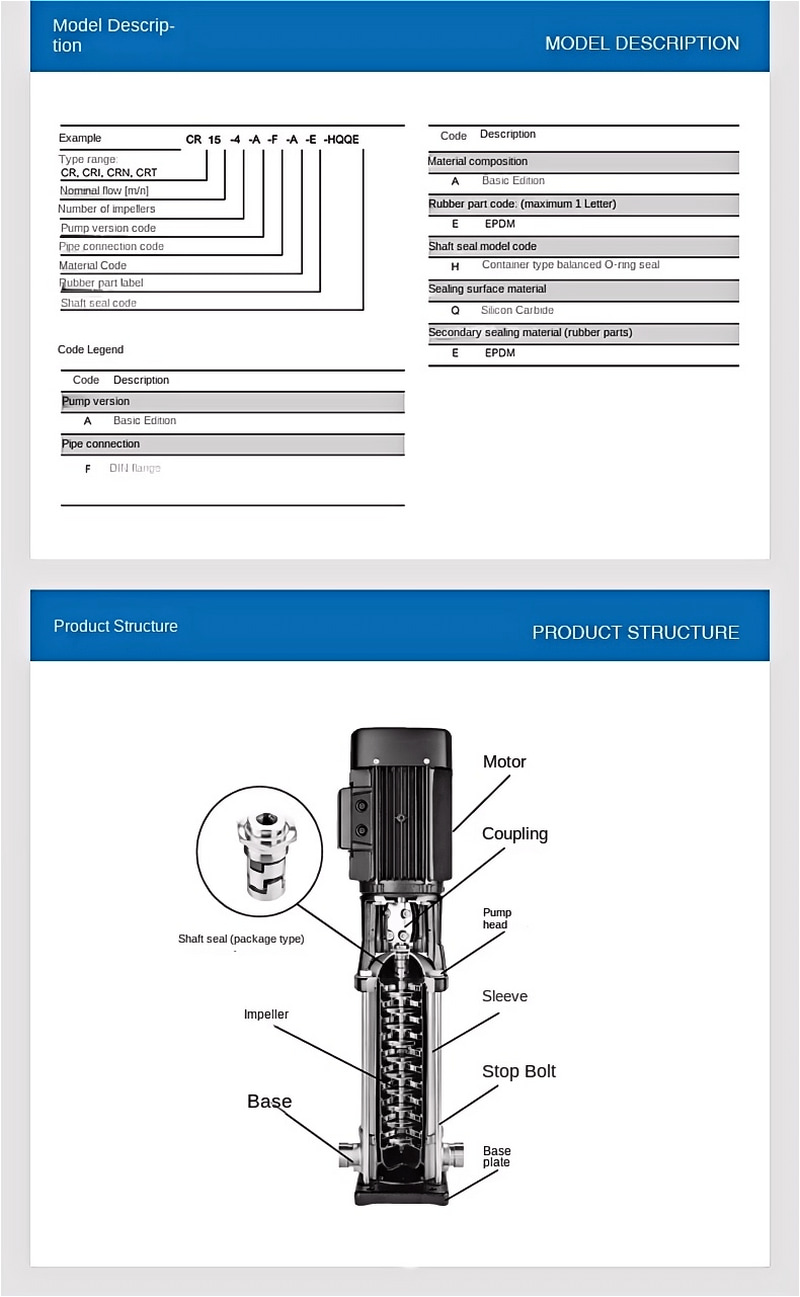

The pump consists of a pump base and a pump head, and the runner cavity assembly and the outer cylinder are located between the base and the pump head and fastened by fastening bolts. The inlet and outlet of the pump are located on the base and on the same axis (pipeline type).
All pumps are equipped with a packaged maintenance-free mechanical shaft seal.
Application
supply water
Flushing and cleaning system
Water rationing in waterworks
Humidifying system
water treatment system
Process supercharging system
Air conditioning system in the factory
Industrial cooling system
Industrial refrigeration system
Casting and casting equipment
Steam boiler system
condenser system
sprinkling irrigation system
chemical industry
