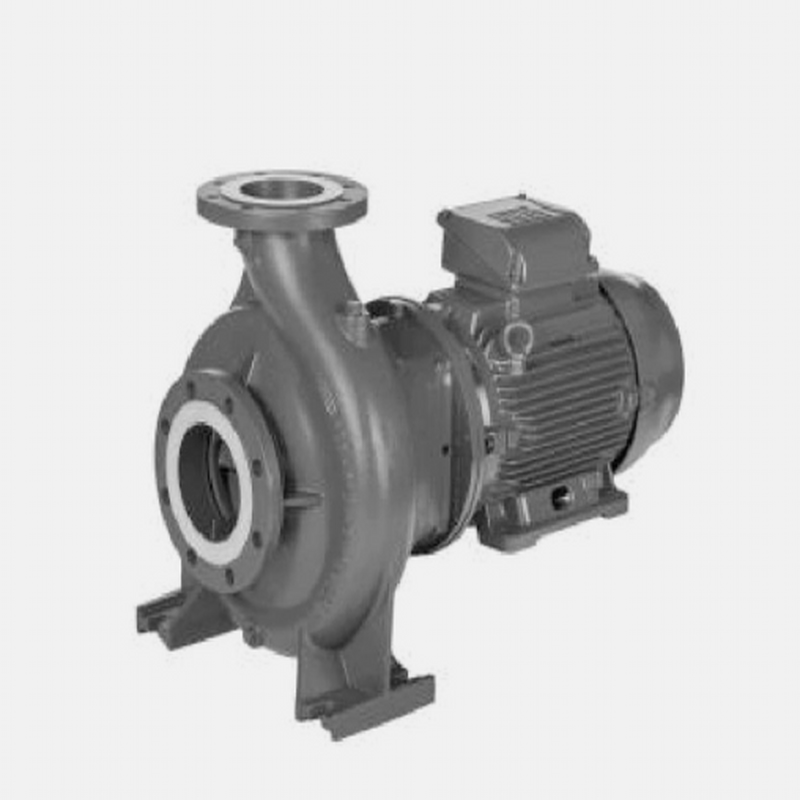

Xylem Lowara E1631 Series Horizontal Single-Stage End-Suction Pump
Single-stage centrifugal end-suction pump
Model :
e1631 1.5A 7.5KW 2P/C3FAAACS4Imported caliber (DN) :
65Export caliber (DN) :
40Rated flow (m³/h) :
40Rated head (m) :
30Motor speed (rpm) :
2900Motor power (kw) :
7.5Material :
grey iron/304Horizontal Single-Stage End-Suction Pump
Technical parameters:
Flow rate, q: 1800 m3/h max.
Head, h: up to 160m.
Pressure, p: 16bar/25bar max.
Temperature, t:-20℃-+140℃
Rated speed: 2900rpm, 1450rpm, 975rpm.
Overcurrent material: AISI304/316/316L/ dual-phase steel.
Product overview
Single-stage centrifugal end-suction pump, the standard pressure is 16Bar, e1631 adopts a rigid short shaft connected with the standard motor shaft through a key, and both motors can be selected. Cast iron is the standard material configuration, which has a wide range of material options.
Application
Horizontal centrifugal pump is suitable for water supply, heating, air conditioning system, pressurized water supply, fire sprinkler system, spraying, irrigation, swimming pool, fountain water supply and so on.
Horizontal type, using extended coupling, single-stage radial split volute (pump size larger than 125 adopts two-stage design) adopts back-pumping design, with replaceable shaft sleeve/shaft protection sleeve and replaceable pump body sealing ring, and the design conforms to ATEX；
