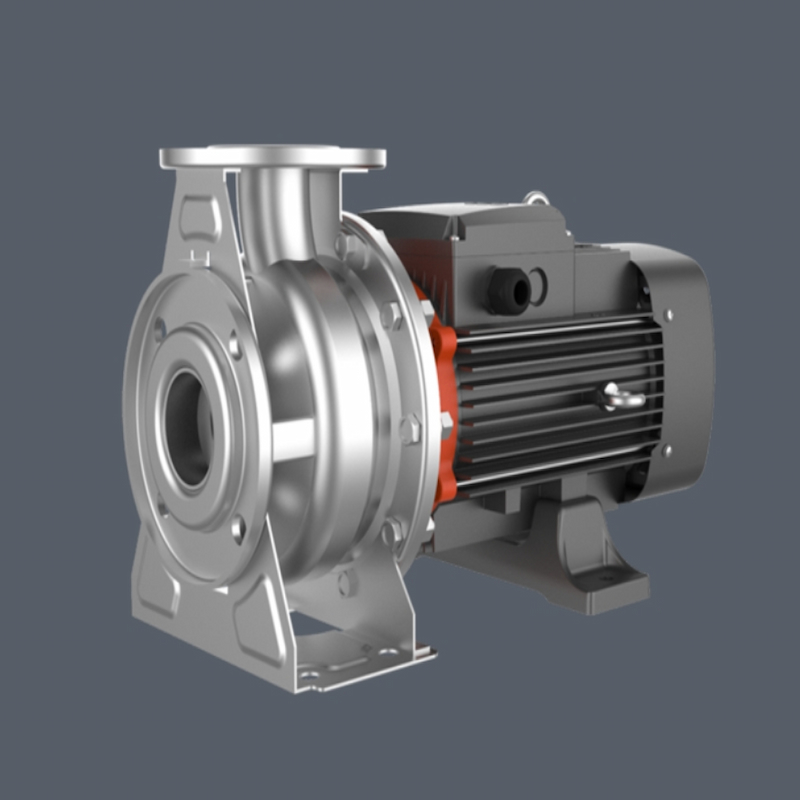

ZS series water pump is a kind of stainless steel end suction single stage centrifugal pump
Model :
ZS50-32- 125/11Imported caliber (DN) :
50Export caliber (DN) :
32Rated flow (m³/h) :
12.5Rated head (m) :
20Motor speed (rpm) :
2900Motor power (kw) :
1.1Material :
304FOB Price （USD$） :
448Stainless Steel End-Suction Single-Stage Centrifugal Pump

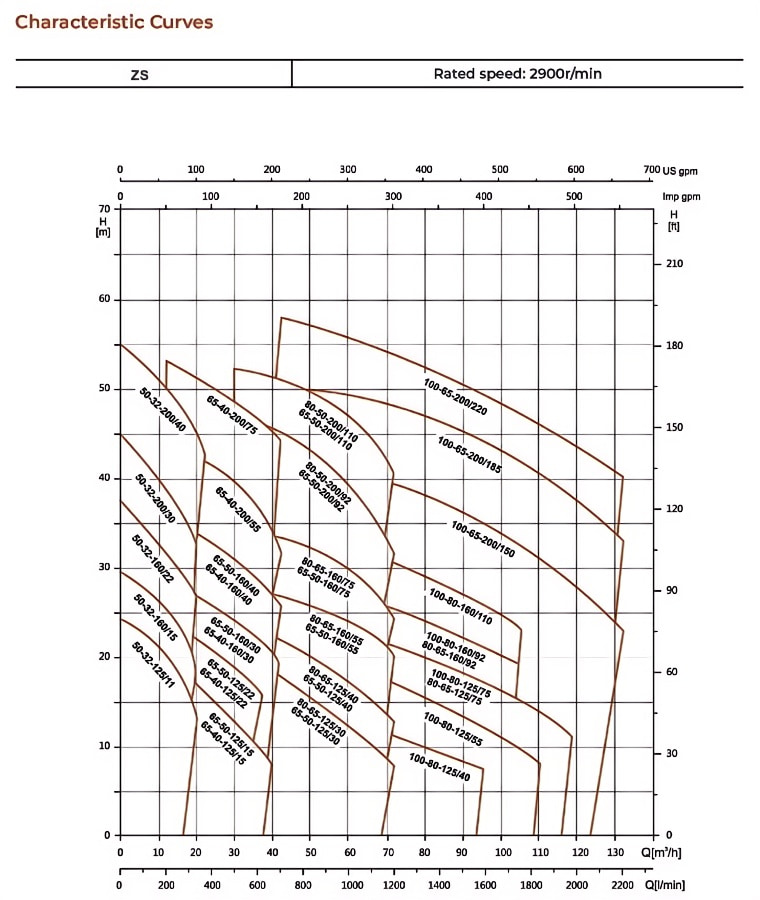

Technical parameter:
Flow rate, Q: maximum 132 m³/h
Head, H: maximum 58m
Product overview
ZS series water pump is a kind of stainless steel end suction single stage centrifugal pump, using stamping (stretching, expansion, cold extrusion) welding and other advanced technology production, high component interchangeability, suitable for small flow, high head, with beautiful appearance, light structure, high efficiency and energy saving, durable and light corrosion resistance, low noise and other characteristics.
Product application
Water supply: water plant filtration, transmission and zoning water supply and main pressurization
Industrial pressurization: process water system, cleaning system
Industrial water: boiler feed water, condensation system, cooling and air conditioning system, machine tool supporting, acid and alkali transmission
Water treatment: distillation system or separator, swimming pool, etc
Others: farmland irrigation, petrochemical industry, medicine and health care, etc
Application conditions
Flow rate range: 0-132 m³/ h
Lift range: 7-58m
Power range: 1.1-22 kW
Liquid temperature: -15C- + 80℃
Maximum working pressure: 10bar
Maximum elevation: 1,000 m
Electrical Appliances
Fully enclosed air-cooled motor
Class F insulation protection class IP55

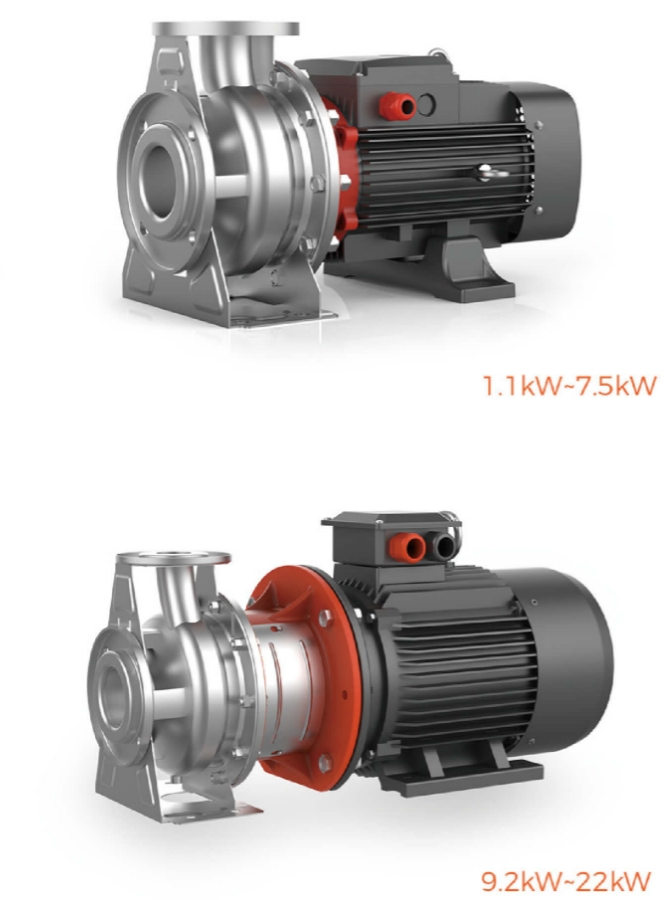

The standard configuration is level 3 energy efficiency motor in GB18613-2012,> 7.5kW model is optional; 7.5kW and below are coaxial, above 7.5kW is standard motor + sleeve shaft
Product characteristics
Horizontal single-stage single-suction centrifugal pump, with axial water absorption and radial drainage
The inlet and outlet meet the GB / T5662 and EN733

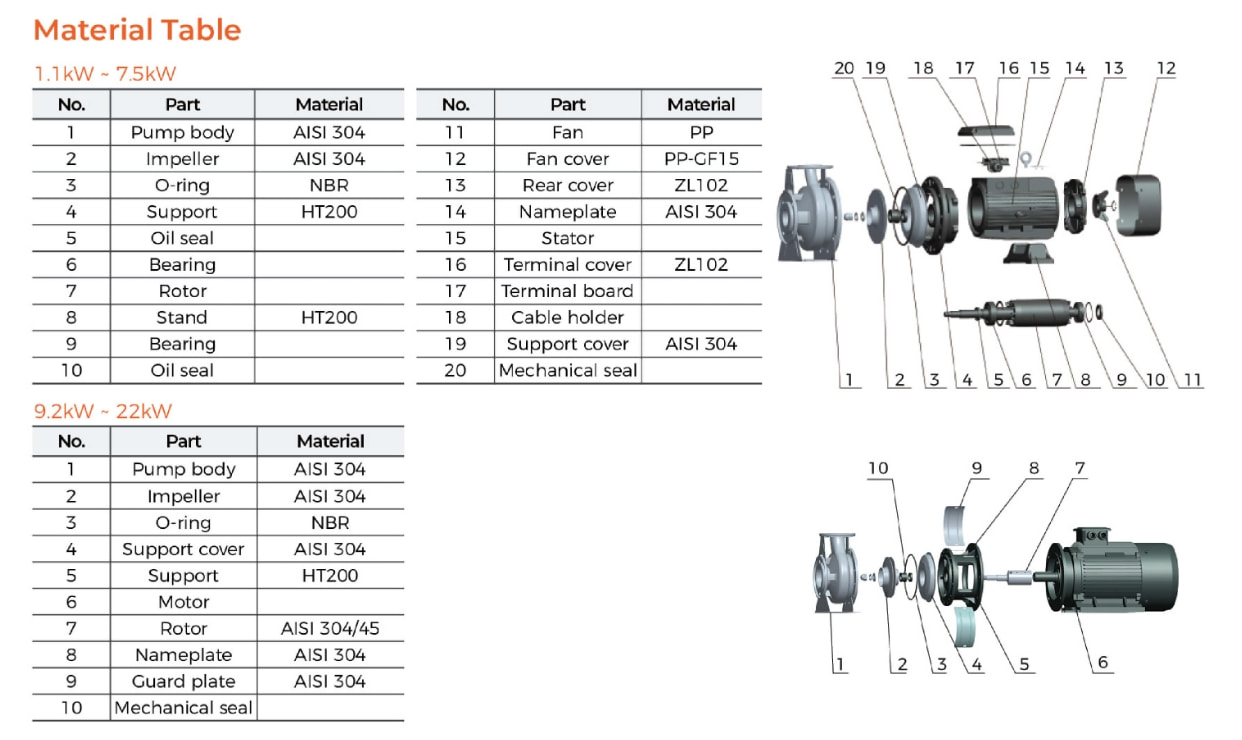

Hydraulic components are all stainless steel plate stamping (stretch, expansion, cold extrusion) welding
Horizontal type, using extended coupling, single-stage radial split volute (pump size larger than 125 adopts two-stage design) adopts back-pumping design, with replaceable shaft sleeve/shaft protection sleeve and replaceable pump body sealing ring, and the design conforms to ATEX；
