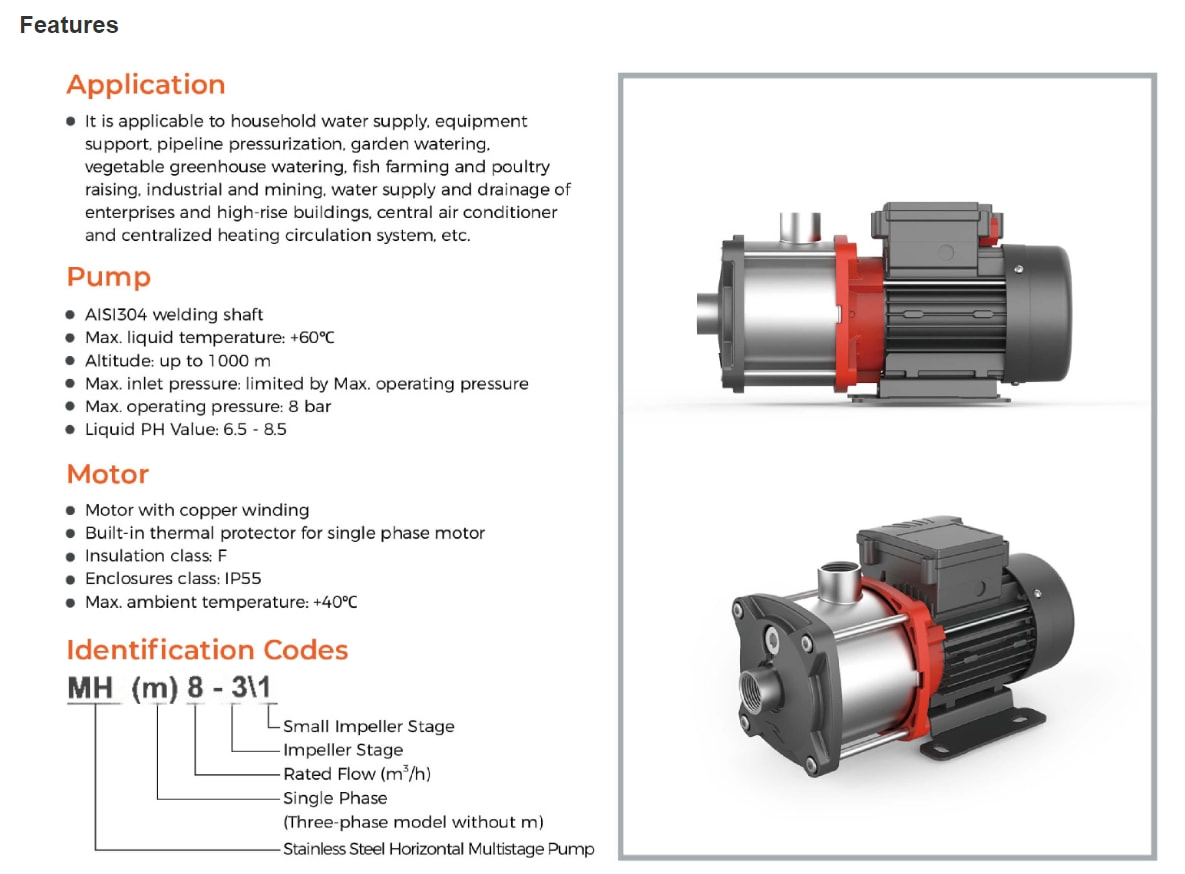

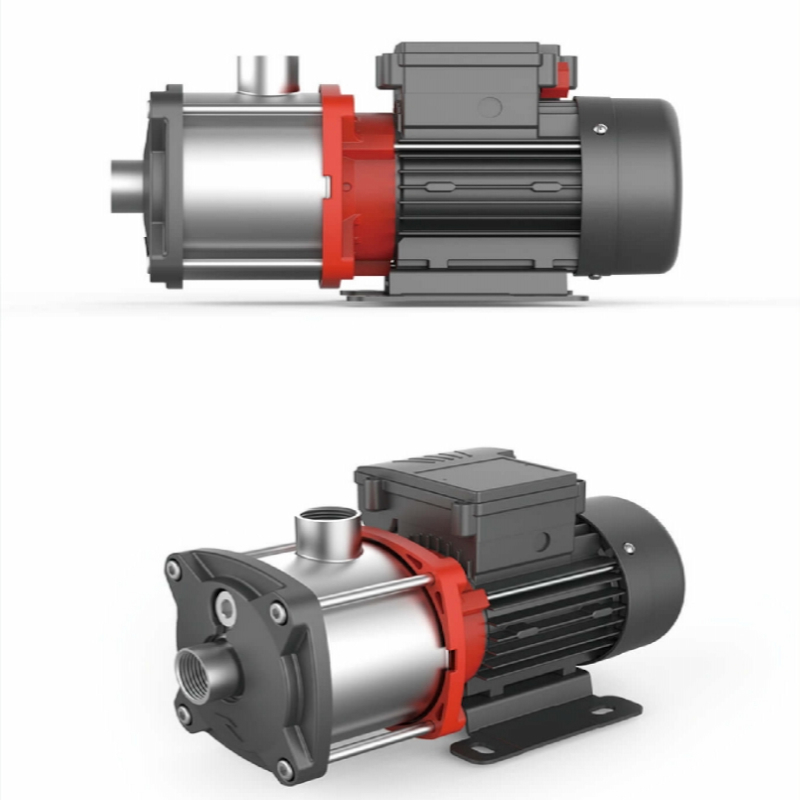

MH series is coaxial horizontal multi-stage centrifugal pump, stainless steel pump body and aluminum pump cover shape, water parts are made of stainless steel, various sizes and series to meet the needs of different flow and pressure.
Model :
MH2-2Imported caliber (DN) :
25Export caliber (DN) :
25Rated flow (m³/h) :
2Rated head (m) :
13.5Motor speed (rpm) :
2900Motor power (kw) :
0.25Material :
Aluminum pump casing/ss304 impellerFOB Price （USD$） :
104Coaxial Horizontal Multi-Stage Centrifugal Pump
Technical parameter:
Flow rate, Q: maximum 20 m3 / h
Head, H: maximum 28m
Application conditions
Of low viscosity, non-flammable and explosive vaporization, liquid without solid particles and fibers,
The liquid cannot chemically react to the pump material
Liquid temperature: 0℃ - + 60 °℃
Liquid PH value: 6.5-8.5
Maximum ambient temperature: + 40℃
Maximum working pressure: 10bar
Product application
It is mainly used in homes, schools, shopping malls and other water supply pressurization, cooling system, HVAC and other equipment, as well as industrial washing and cleaning system, process water system and other fields.
Electrical Appliances
Fully enclosed air-cooled motor
Protection level: IP55
insulation grade:F
Standard voltage: single-phase 220V / 50Hz three-phase 380V / 50Hz
Single-phase generator is equipped with built-in thermal overload protection, and the three-phase motor must be connected to the motor starter according to local regulations
Product characteristics
Integrated shaft design, compact structure
The water-passing parts are made of stainless steel to protect the water quality
Stainless steel stamping welding impeller, fluid guide, product light weight
High efficiency hydraulic model, product energy saving, low noise
Casting parts electrophoretic coating process, rust prevention and corrosion resistance
Mechanical seals and bearings provide customized services
Horizontal type, using extended coupling, single-stage radial split volute (pump size larger than 125 adopts two-stage design) adopts back-pumping design, with replaceable shaft sleeve/shaft protection sleeve and replaceable pump body sealing ring, and the design conforms to ATEX；
