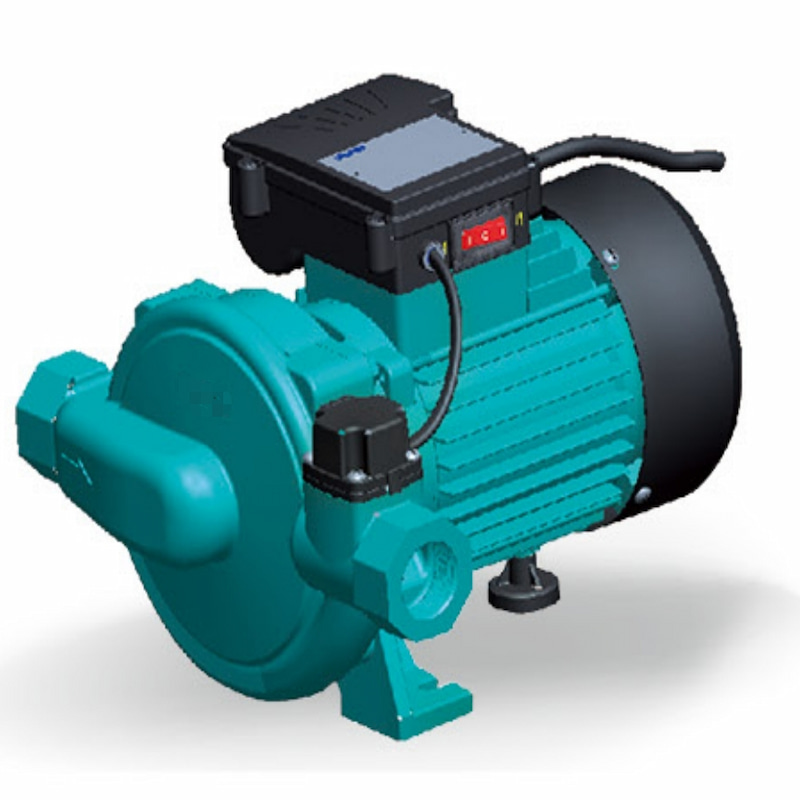

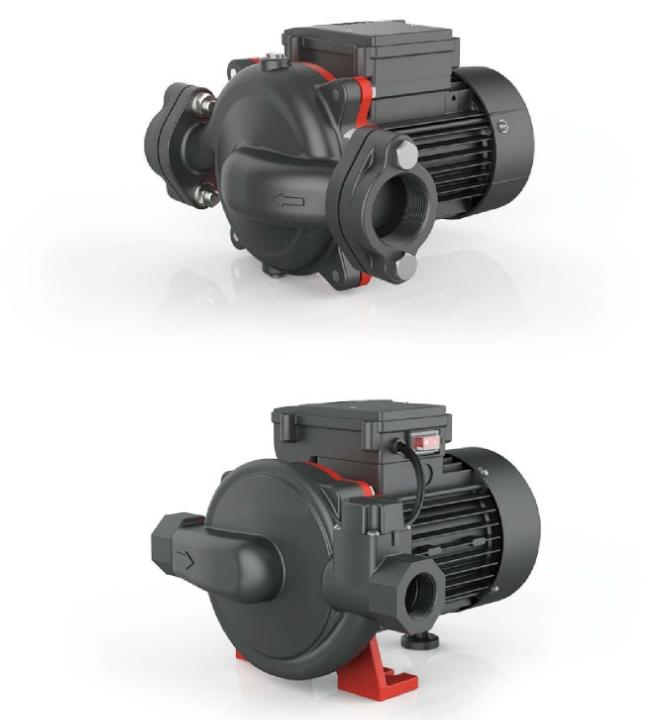

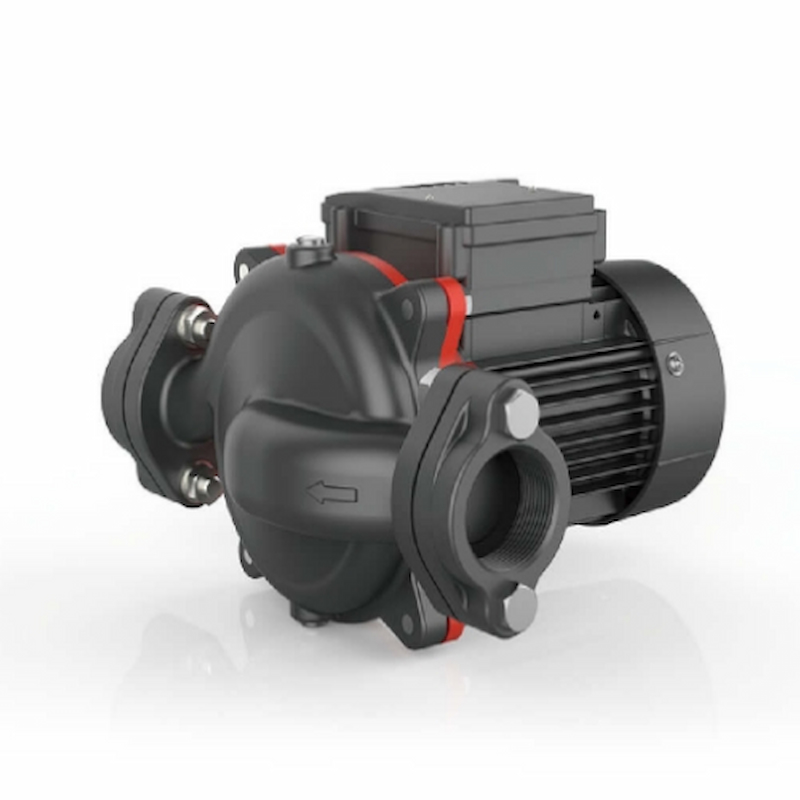

The LP(m) air - to - water heat pump circulating pump is used in water circulation systems such as air - to - water heat pump hot water circulation.
Model :
LP32-31-3/2Imported caliber (DN) :
32Export caliber (DN) :
32Rated flow (m³/h) :
20Rated head (m) :
31Motor speed (rpm) :
2900Motor power (kw) :
3Material :
Cast iron pump casing/stainless steel impellerFOB Price （USD$） :
344Water Heat Pump Circulating Pump
Technical parameter:

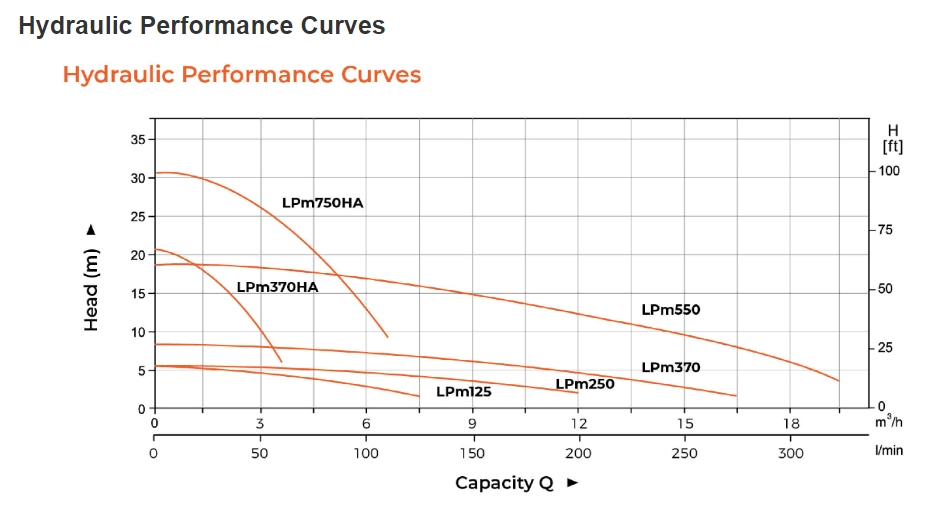

Flow rate, Q: Maximum 32 m3/h
Head, H: maximum 34m
Product overview
LP (m) air energy circulation pump is used in air energy hot water circulation and other water circulation systems, which has the characteristics of preventing jamming, standing and lying, and convenient maintenance.
Application conditions
Medium temperature: 0℃ - + 70℃
Maximum withstand pressure: 1.2MPa
Protection level: IPX 4 (optional IPX 5)
Product characteristics
Standard flange interface for easy installation and maintenance
Special optimization structure, prevent jamming ability is stronger
Special electrophoresis and antirust treatment of overcurrent parts
Standing bedroom, applicable to a wide range of application environment
Suitable for solar energy, bath center and other hot water pipe pressurization, to solve the low pressure problem of high-rise water, suitable for hot water below 100℃.
Product application
Air can circulate in hot water
Solar energy hot water cycle
Boiler hot water circulation
Hot water circulation for buildings and apartments
Room heating cycle
aquarium, aquarium water circulation
