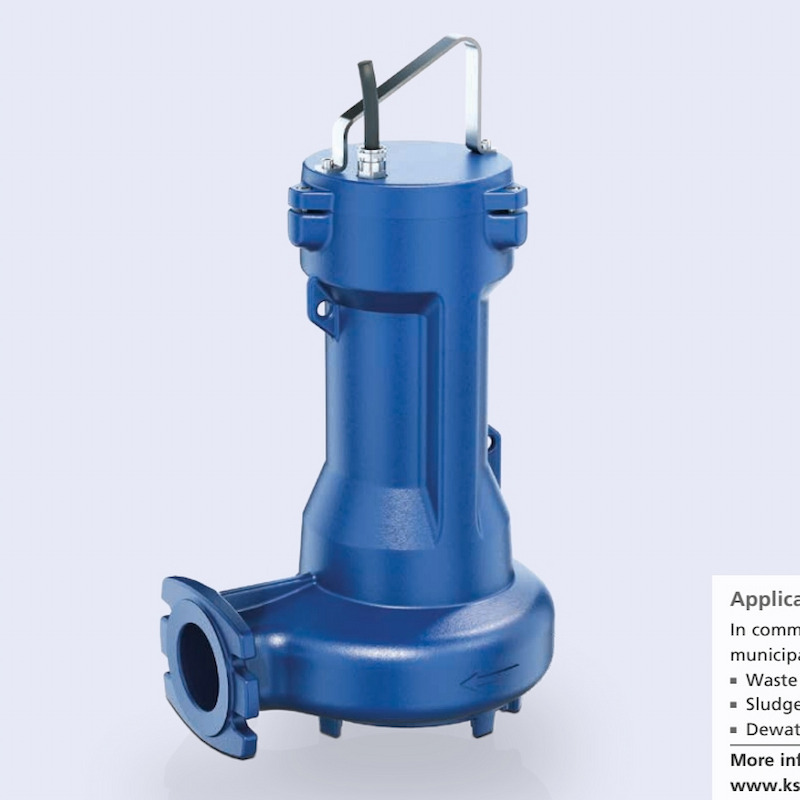

Vertical single-stage submersible pump is used for wet installation, which can be fixed installation or mobile installation. Amarex N water pump can operate in submerged state, with single-stage single suction, direct connection between motor and pump, non-self-priming pump, and the design of water pump conforms to ATEX standard; Amarex CN is suitable for conveying all kinds of wastewater, such as wastewater, sewage, building water supply, etc.
Model :
Amarex CN 065-131 G 10Imported caliber (DN) :
65Export caliber (DN) :
65Rated flow (m³/h) :
25Rated head (m) :
11Motor speed (rpm) :
2900Motor power (kw) :
2.2Material :
All cast ironFOB Price （USD$） :
1026submersible sewage pump
Technical parameters:
Flow rate, q: 100m3/h max.
Head, h: up to 49m.
Caliber, DN: 32-100
Temperature, t: 55℃
Product overview

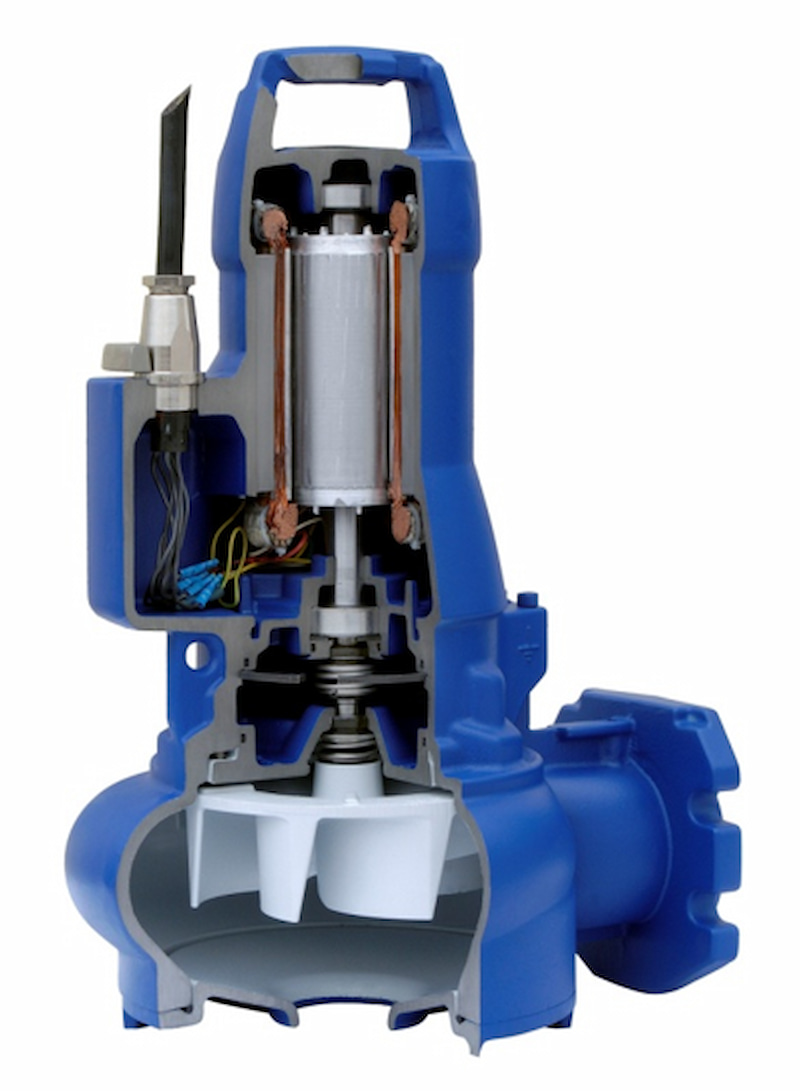

Vertical single-stage submersible pump is used for wet installation, which can be fixed installation or mobile installation. Amarex N water pump can operate in submerged state, with single-stage single suction, direct connection between motor and pump, non-self-priming pump, and the design of water pump conforms to ATEX standard; Amarex CN is suitable for conveying all kinds of wastewater, such as wastewater, sewage, building water supply, etc.
Three-phase asynchronous motor.

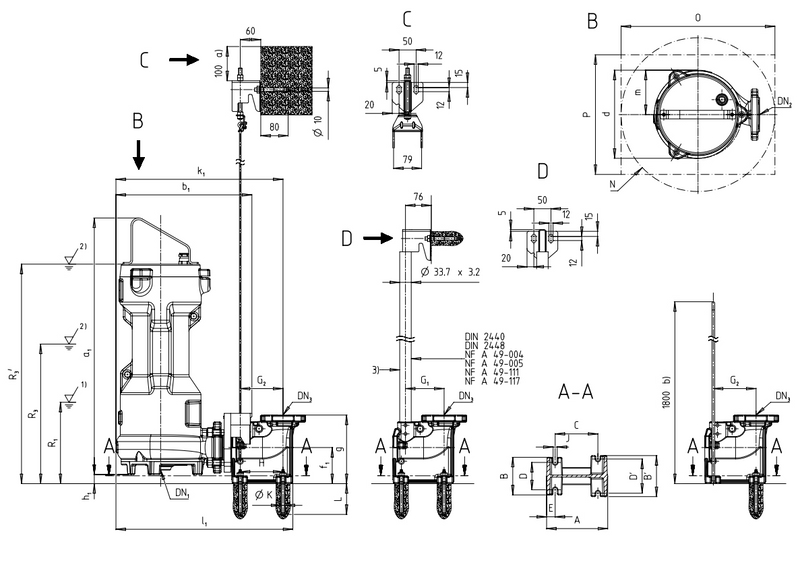

Wet fixed (guide rod) or mobile installation.
Single-stage end suction direct connection design.
Two impeller configurations (semi-open/semi-open with cutter).
Double mechanical seal (back-to-back installation).
Maintenance-free grease lubricated deep groove ball bearings.
10M cable is standard.
Optional mechanical seal leakage and motor thermal protection functions.
Main application
It can transport all kinds of sewage, especially untreated sewage containing long fibers and solid particles, aerated sewage, raw water and activated sludge, and can be used in dehydration/water extraction systems, indoor drainage and surface anti-overflow systems.
