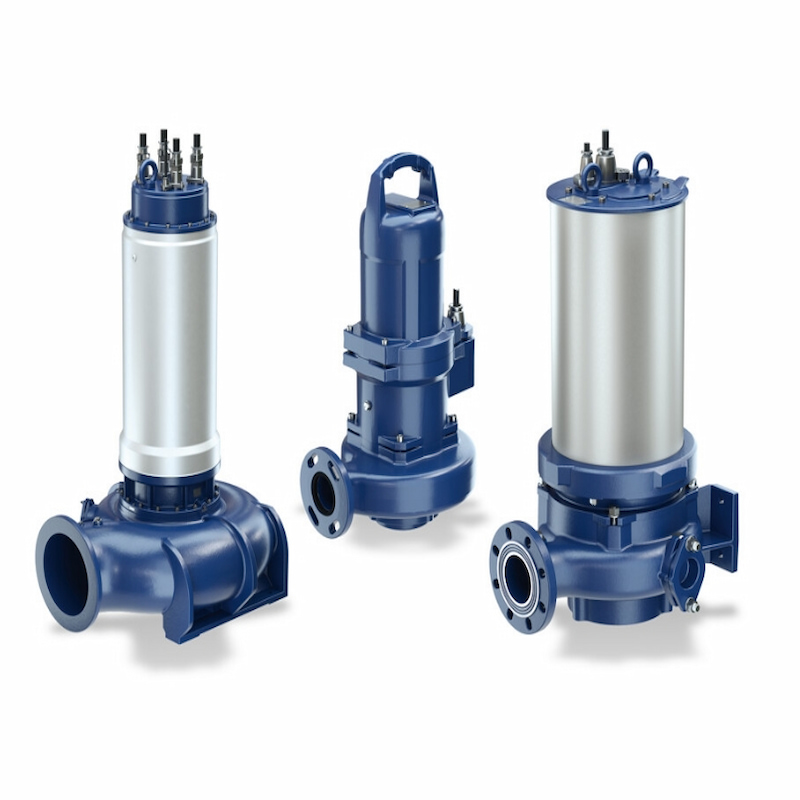

Horizontal or vertical single-stage submersible pumps can be used as modular pump units. They can be equipped with various types of next-generation impellers, and can be installed in a wet or dry manner. They can be used statically or in combination with energy-saving motors in a mobile way. Explosion-proof models are also provided.
Model :
KRTK 100-254/74UEG-SImported caliber (DN) :
100Export caliber (DN) :
100Rated flow (m³/h) :
190Rated head (m) :
10Motor speed (rpm) :
1450Motor power (kw) :
7.5Material :
All cast ironFOB Price （USD$） :
4477submersible sewage pump

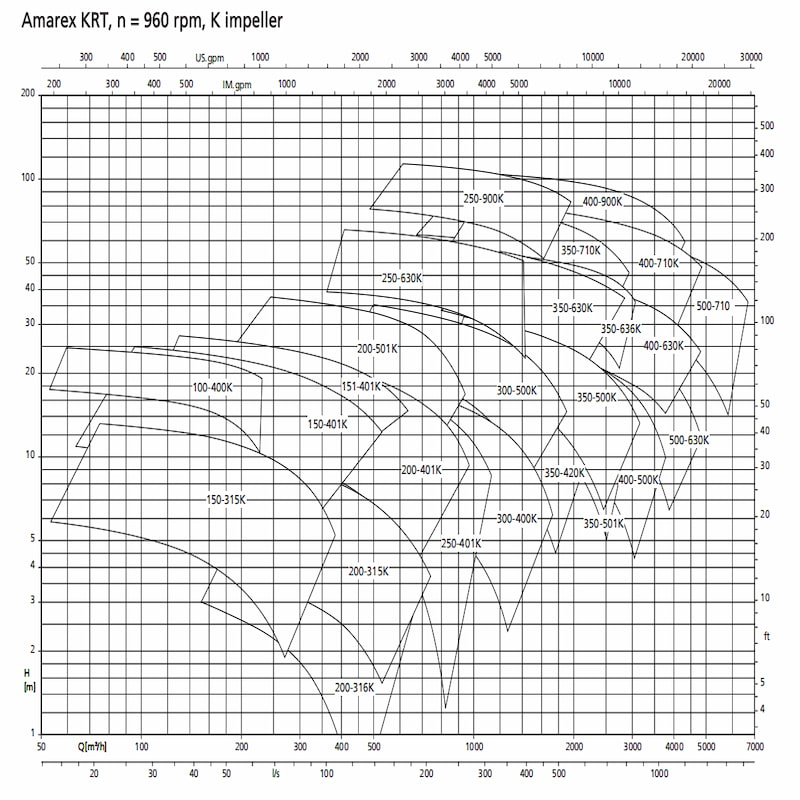

Technical parameters:
Flow rate, q: max. 10080m3/h
Head, h: up to 120m
Pressure, p: max. 12bar
Caliber, DN: 40-700
Temperature, t:+60℃
Product overview

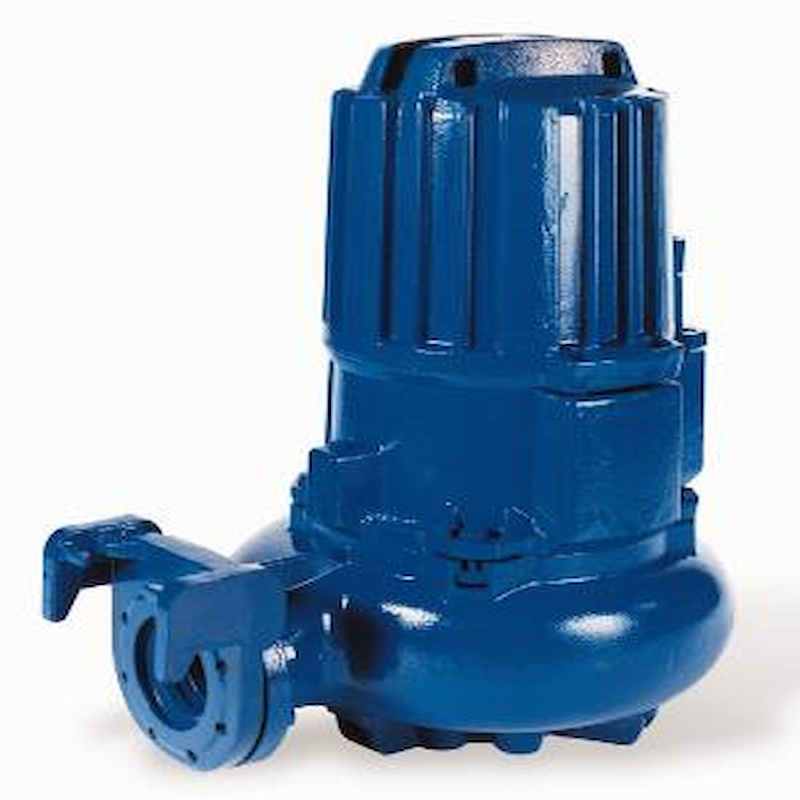

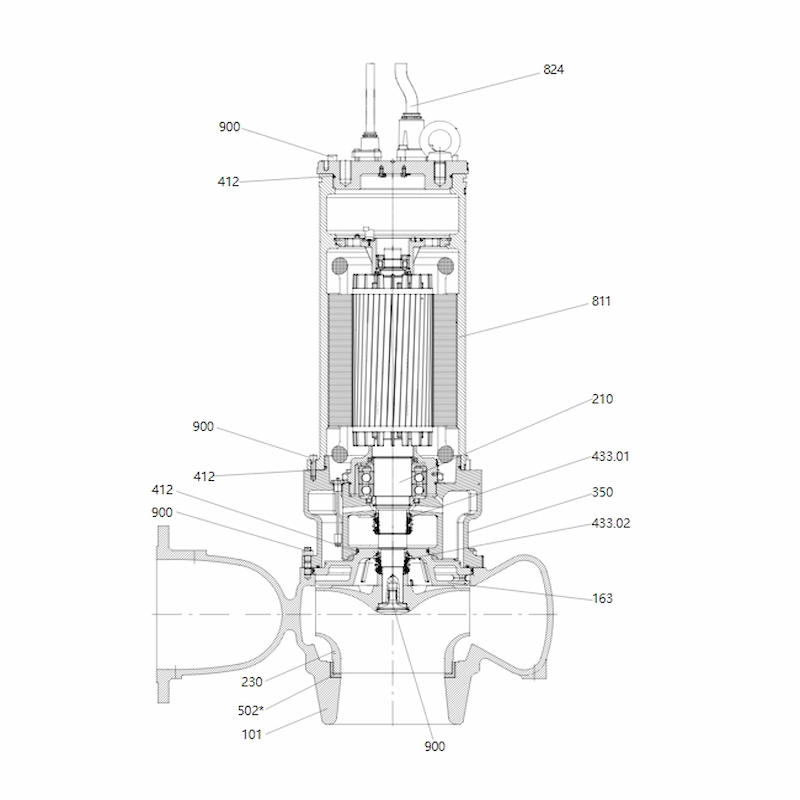

Vertical single-stage submersible pump, the motor is directly connected with the pump, and various impeller designs can be used for wet or dry installation, which can be fixed or mobile installation. The design of the pump conforms to ATEX standard. Amarex KRT is suitable for conveying all kinds of untreated wastewater, sewage and building water supply containing long fibers and solid particles.
Three-phase asynchronous motor.

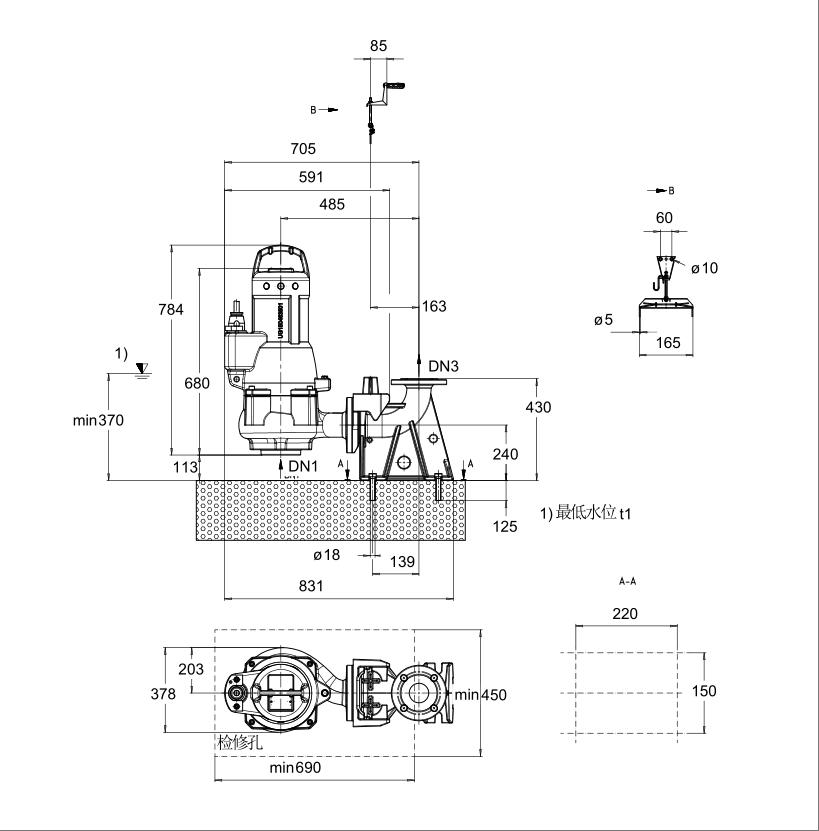

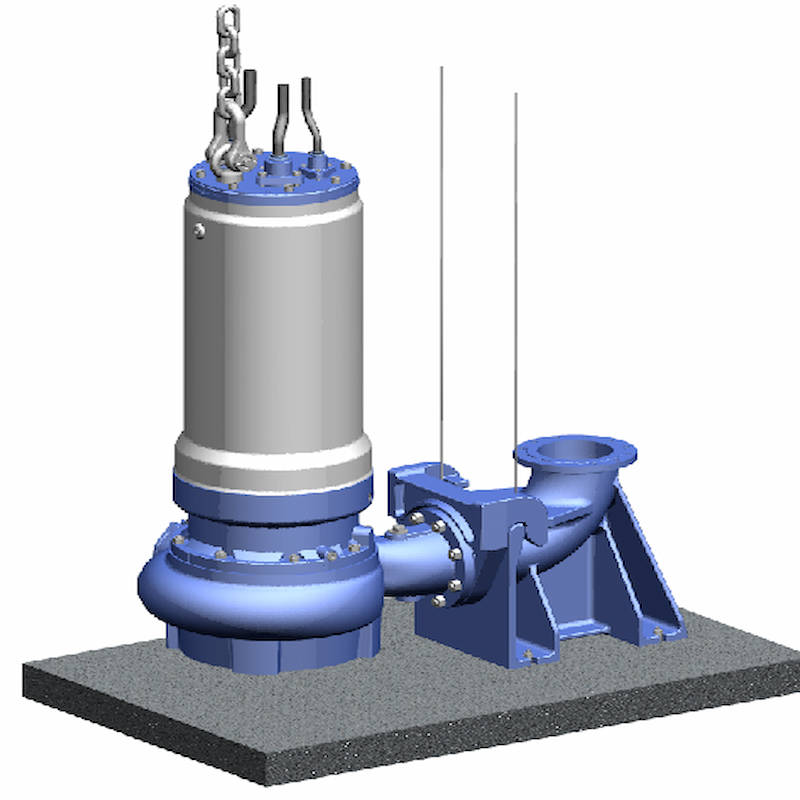

Wet fixing (standard guide cable) or mobile installation.
Single-stage end suction direct connection design.
Five impeller configurations.
Double mechanical seals (installed in series).
Maintenance-free grease lubricated deep groove ball bearings.
Main application
It can transport all sewage with abrasion resistance and corrosiveness in water and sewage treatment and industry, especially untreated sewage containing long fibers and solid particles, aerated sewage, raw water and activated sludge, and can be used in seawater desalination system.
