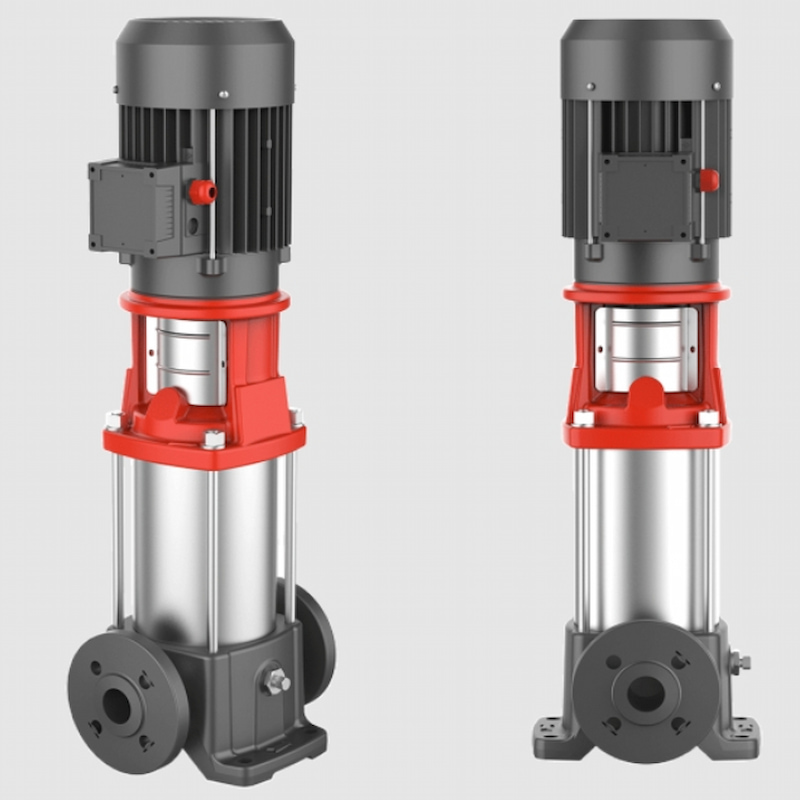

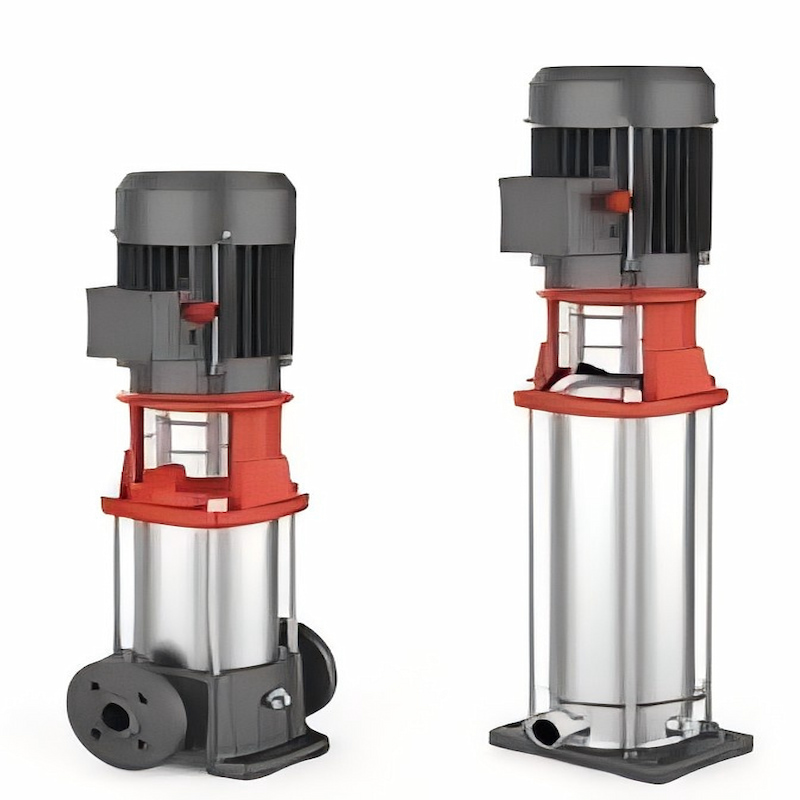

LR (LS) series is a new generation of water treatment pump developed based on MV (F),with independent design motor, the product is light weight, cost-effective.
Model :
LR2-2Imported caliber (DN) :
25Export caliber (DN) :
25Rated flow (m³/h) :
2Rated head (m) :
15.5Motor speed (rpm) :
2900Motor power (kw) :
0.37Material :
SS304FOB Price （USD$） :
214New-Generation Special Pumps For Water Treatment

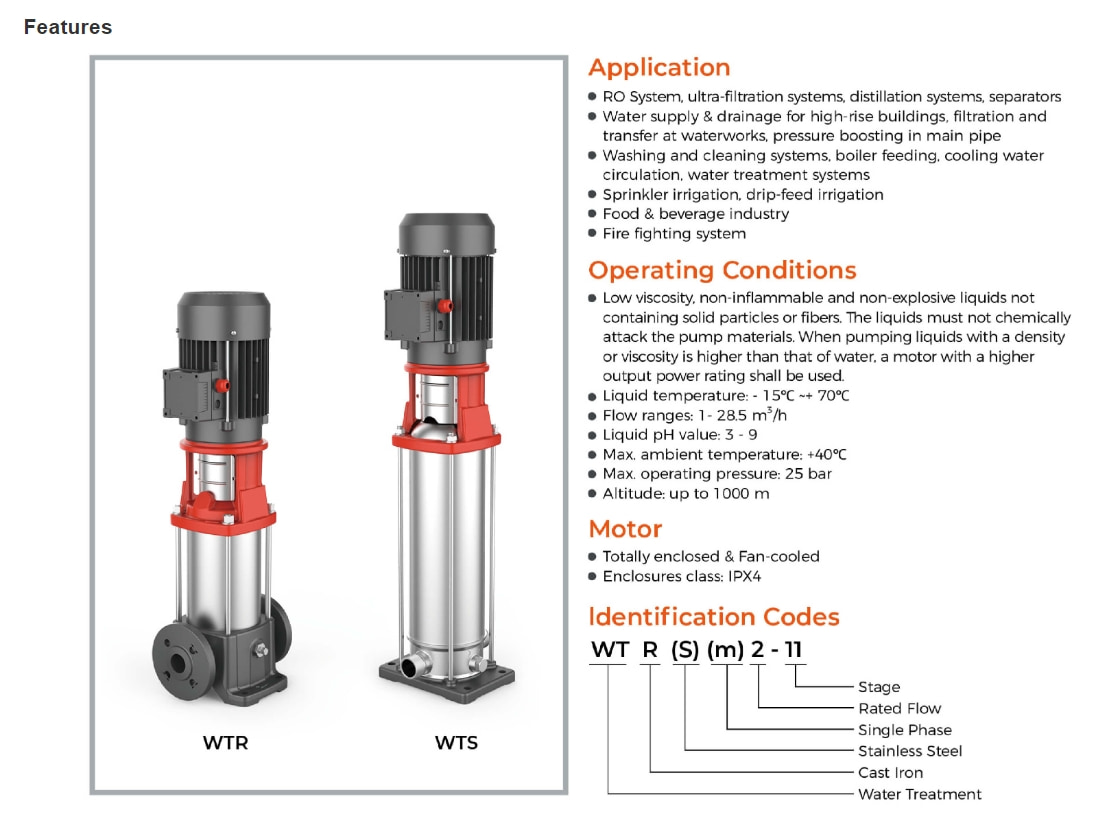

Technical parameter:
Flow rate, Q: a maximum 28.5m3/h
Head, H: maximum 220m
Product overview
LR (LS) series is a new generation of water treatment pump developed based on MV (F),with independent design motor, the product is light weight, cost-effective.
Product application
Mainly used in water treatment, ultrafiltration, reverse osmosis system and other equipment supporting system, boiler feed water and industrial washing and cleaning systems, process water systems and other fields.
Application conditions
Low viscosity, non-flammable and explosive vaporization, no solid particles and fibers, liquid do not react react to the pump material.
Liquid temperature: -15℃ - + 70℃
Liquid PH value: 4~10
Maximum ambient temperature: + 40℃
Maximum working pressure: 25bar
Maximum elevation: 1,000 m
Electrical Appliances
Fully enclosed air-cooled motor
Protection level: IPX 4
insulation grade:F
Standard voltage: 380V / 50Hz
Product characteristics
Split modular design, the motor and mechanical seal can be removed separately for maintenance
The base and pump cover are available in cast iron and stainless steel, and the rest of the water parts are made of stainless steel
Stainless steel stamping welding impeller, fluid guide, product light weight
Multiple connection options (standard flange, thread)
High efficiency hydraulic model, product energy saving, low noise
Casting parts electrophoretic coating process, rust prevention and corrosion resistance
Horizontal type, using extended coupling, single-stage radial split volute (pump size larger than 125 adopts two-stage design) adopts back-pumping design, with replaceable shaft sleeve/shaft protection sleeve and replaceable pump body sealing ring, and the design conforms to ATEX；
