MH series multistage centrifugal pumps are ideal solutions for high-performance fluid transportation in modern industrial and civil fields.

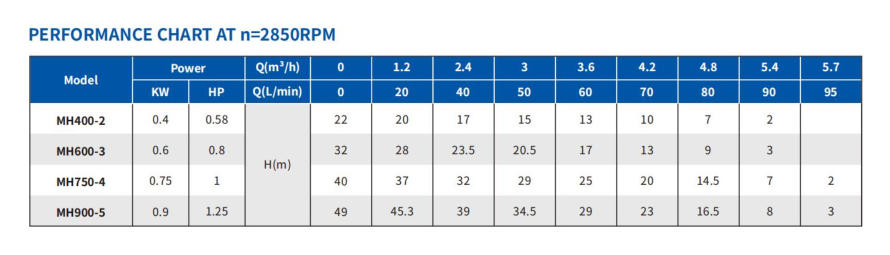

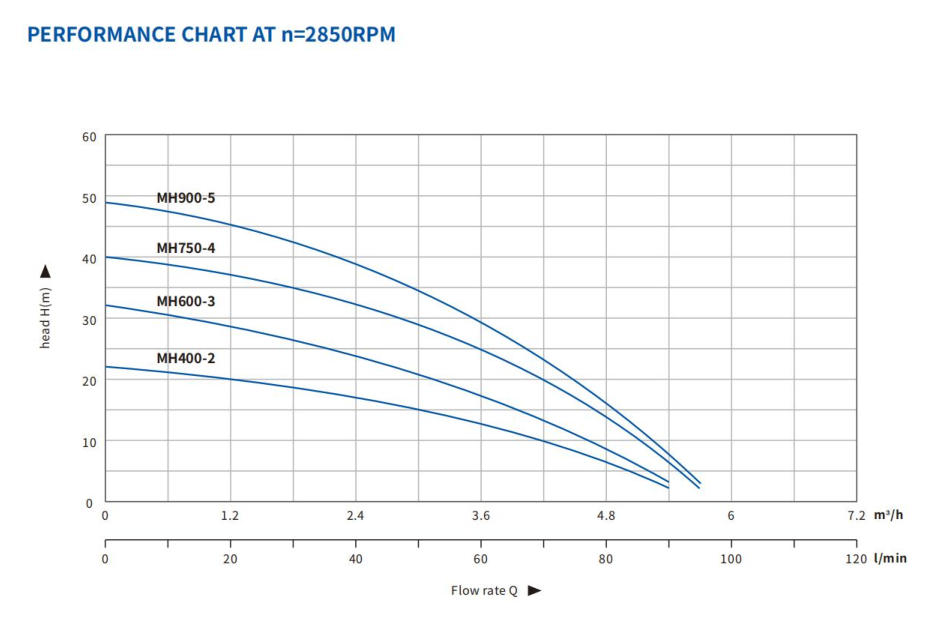

Model :
MH400-2Imported caliber (DN) :
25Export caliber (DN) :
25Rated flow (m³/h) :
1.2Rated head (m) :
20Motor power (kw) :
0.4MH Series centrifugal pumps
Application
Muti-stages Centrifugal Pumps are suitable for both domestic and industrial applications to connvey clean liquids and non-aggressive chemical fluis. This characteristic is with high head and suitable capacity.
Technical Data
| Two-pole induction motor | 2850RPM |
| Insulation | Class B |
| Protection | IP44 |
| Continuous service | S1 |
| Liquid temperature | up to 60°C |
| Ambient temperature | up to 40°C |
| Total suction | 8m |
