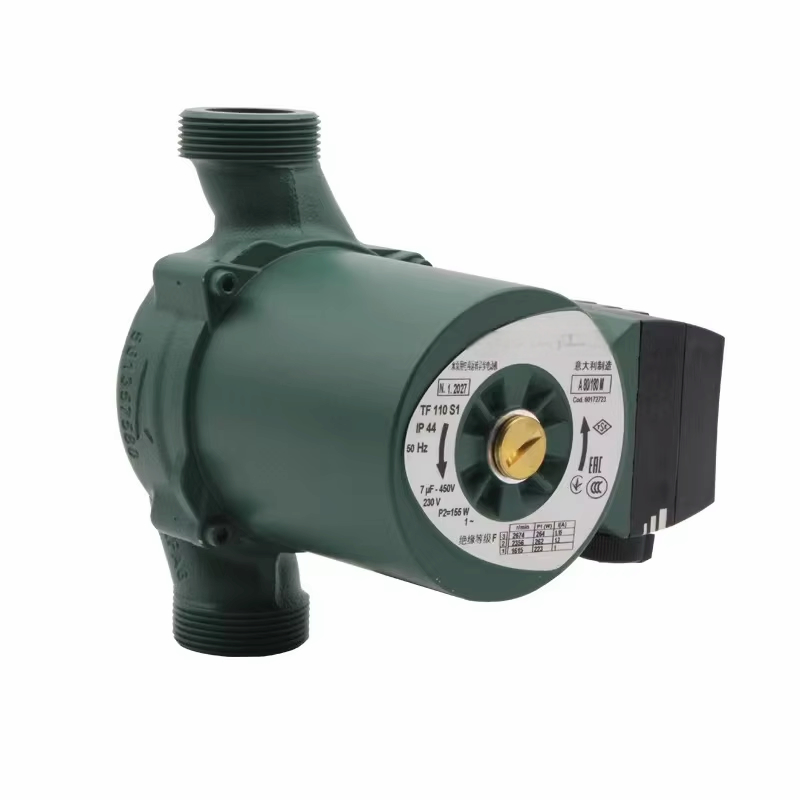

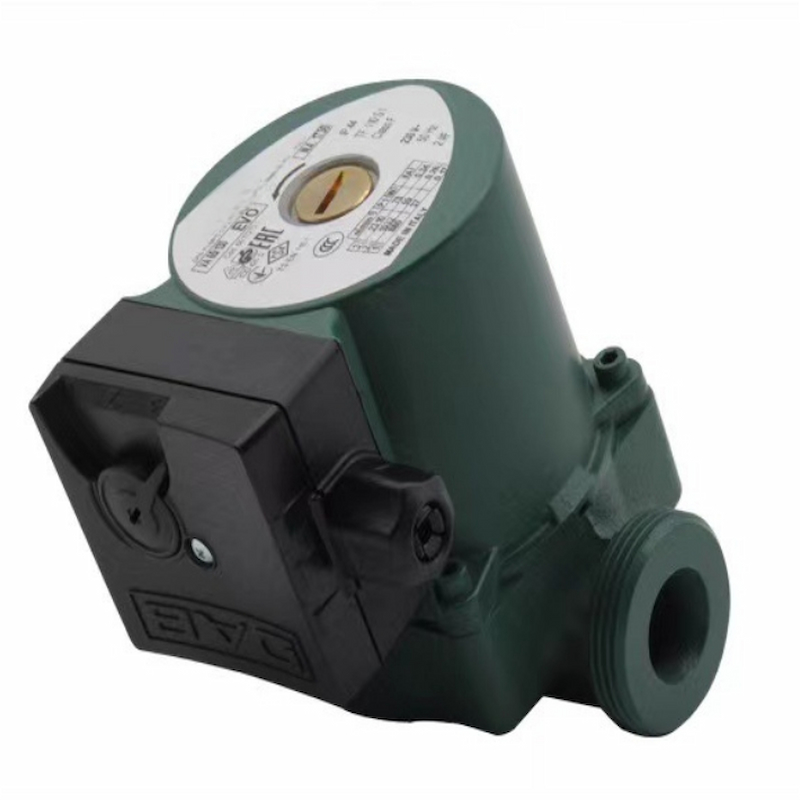

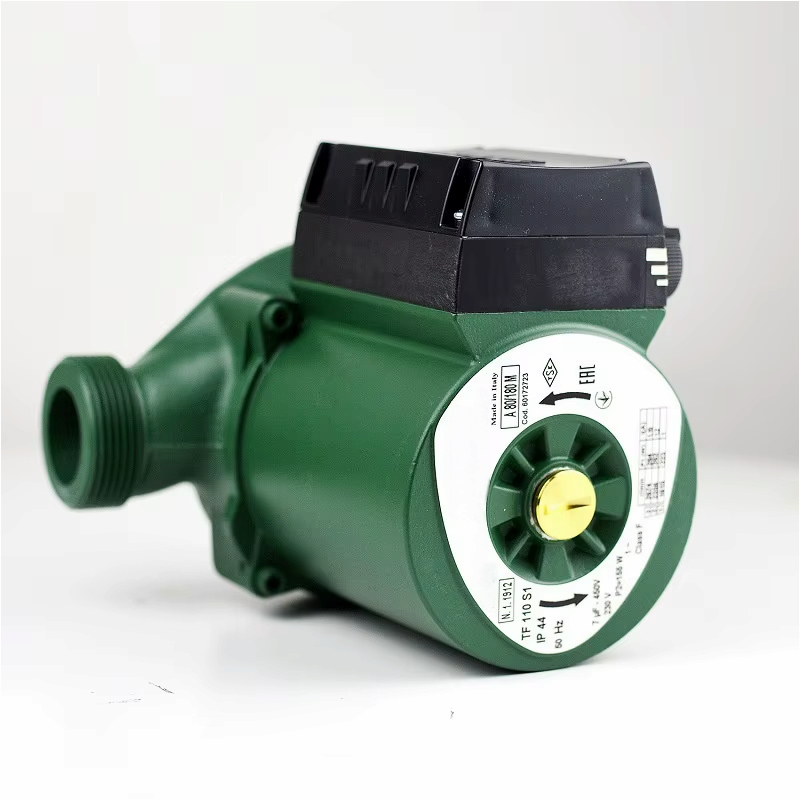

Pump for hot water circulation in domestic central heating and air conditioning systems of the closed circuit pressurized type or open circuit type
Model :
VA 65/130 1/2”Imported caliber (DN) :
15Export caliber (DN) :
15Rated flow (m³/h) :
2.4Rated head (m) :
5.5Motor power (kw) :
0.059Material :

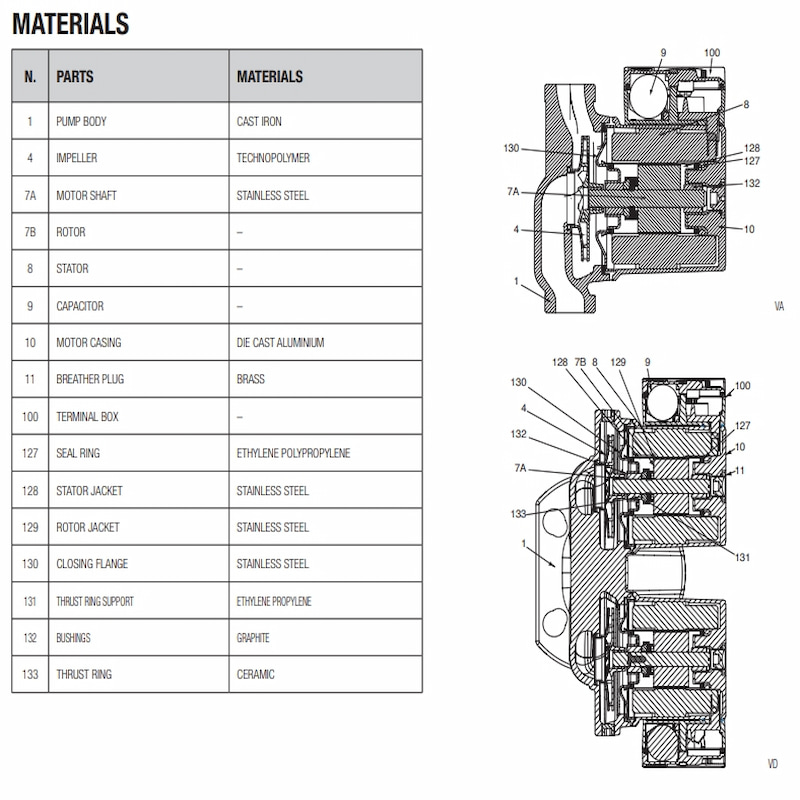

Cast ironShielded Pump
Technical parameters:
Working scope: flow range: 0.5-3.6m3/h,
Maximum lift: 6m
Working pressure: 10bar
Protection grade: IP44
Liquid temperature range: -10℃-+110℃
Product introduction:
Shielded pump series, 100% imported from Italy, conforms to the European energy efficiency C-class high-efficiency motor, and has low running noise.
Applied range
Water circulation in domestic central air conditioning system
Water cycle of solar energy system
Booster cycle of wall-hung boiler
Hot water heating cycle
Equipment cooling cycle
Horizontal type, using extended coupling, single-stage radial split volute (pump size larger than 125 adopts two-stage design) adopts back-pumping design, with replaceable shaft sleeve/shaft protection sleeve and replaceable pump body sealing ring, and the design conforms to ATEX；
