The JET-S series self-priming pumps have an advanced built-in Venturi injection system and excellent self-priming capabilities. They can quickly extract and deliver clean water, non-corrosive chemical liquids and even gas-containing mixed liquids.
Model :
JET80SImported caliber (DN) :
25Export caliber (DN) :
25Rated flow (m³/h) :
1.2Rated head (m) :
36.5Motor power (kw) :
0.55JET-S Series Self-priming Pumps
Application
Self-priming JET series pumps equipped with same Venturi system each. They are sutiable to pump clean water and non-aggressive chemical fluids. even with liquid mixed with gas, from well in continuous duty; they are also indicated to increase water pressure in centralized water systems, for small irrigation systems, for watering gardens, for washing systems with water jets, for fountains, etc. lt is normally advisable to install a foot valve on the suction branch.

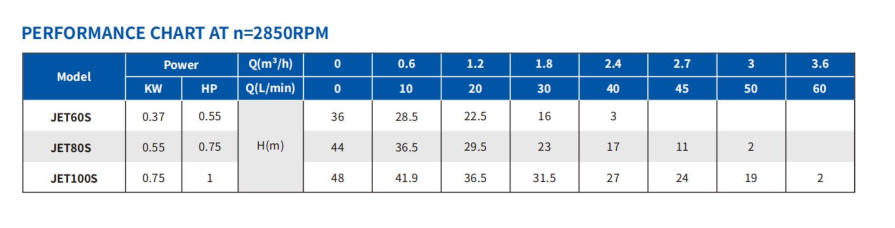

Technical Data
| Two-pole induction motor | 2850RPM |
| Insulation | Class B |
| Protection | IP44 |
| Continuous service | S1 |
| Liquid temperature | up to 60°C |
| Ambient temperature | up to 40°C |
| Total suction | 9m |
