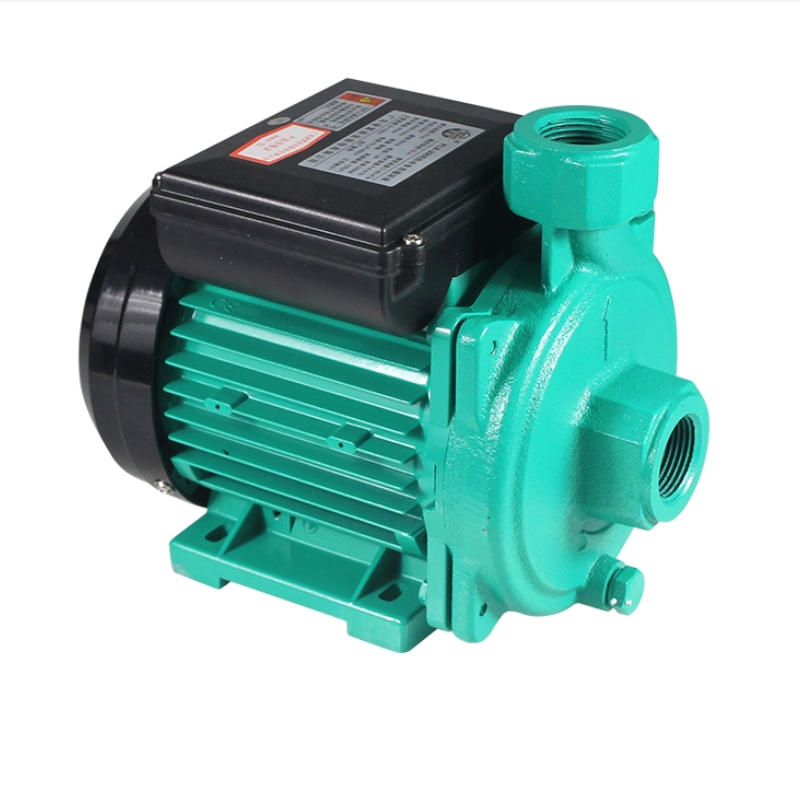

PLX 220v household hot water pump stainless steel impeller small size high efficiency energy saving strong and durable
Model :
PLX-200EImported caliber (DN) :
G1Export caliber (DN) :
G1Rated flow (m³/h) :
2.4Rated head (m) :
10Motor speed (rpm) :
2900Motor power (kw) :
0.2Material :
Cast iron pump housing. Stainless steel impellerFOB Price （USD$） :
55PLX 220v Household Hot Water Pump
PLX-E Hot Water Pump
Features
Impeller and shaft (wet area) are made of stainless steel for corrosion resistance;
Casts in the wet area are electrophoretically coated;
Compact size;
Operating Conditions
Media Temperature: 0~+100°C
Ambient Temperature: <+50°C
Maximum Operating Pressure: 0.5 MPa
Insulation Class: B
Protection Rating: IP44

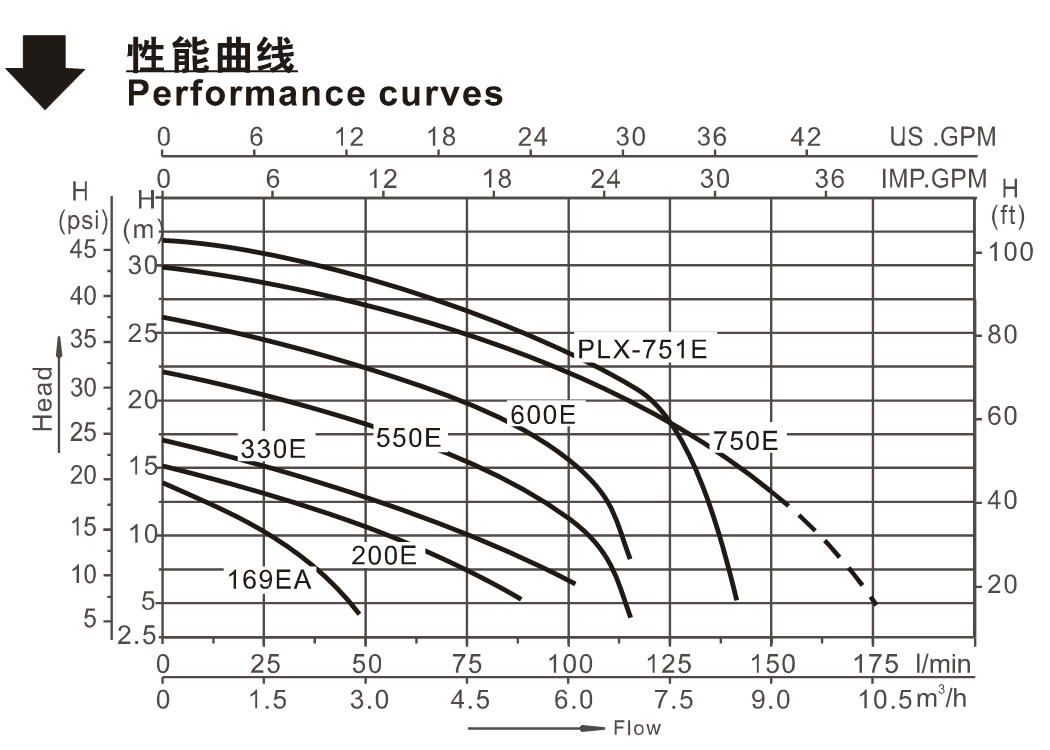

Performance curves

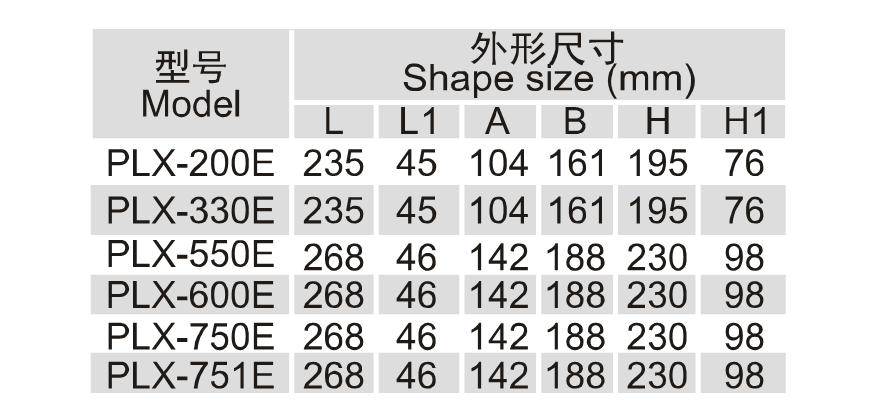

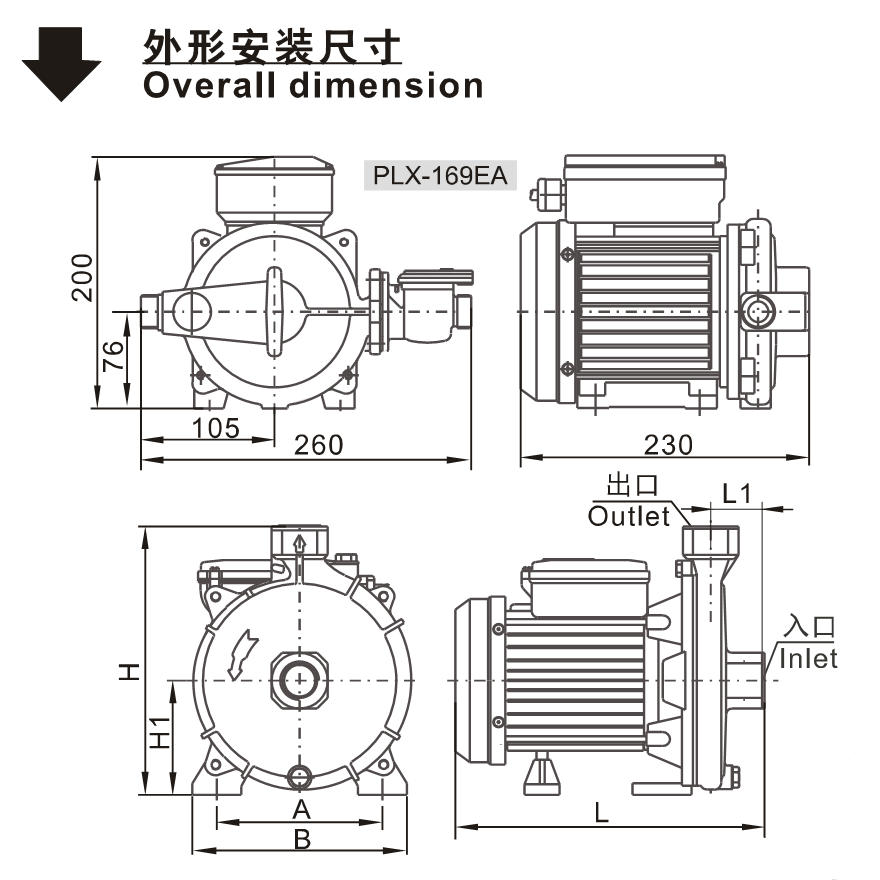

Overall dimension

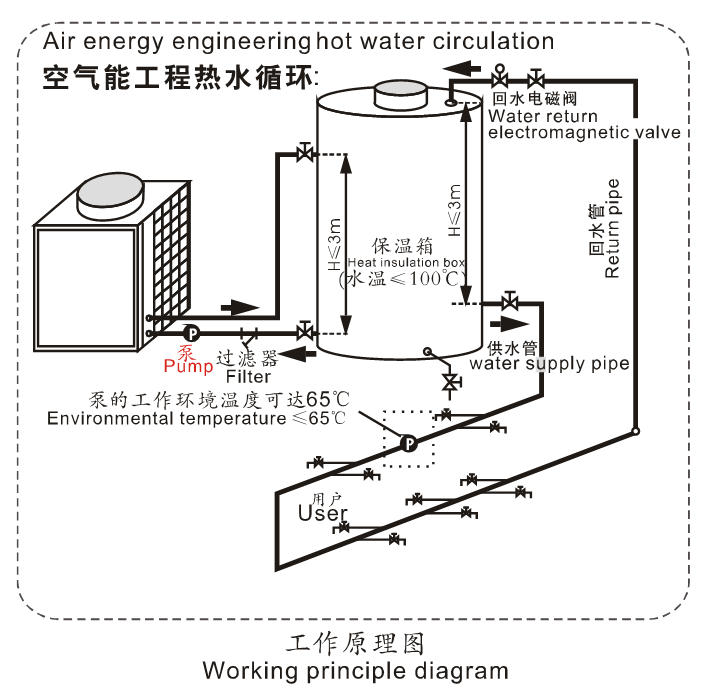

Working principle diagram

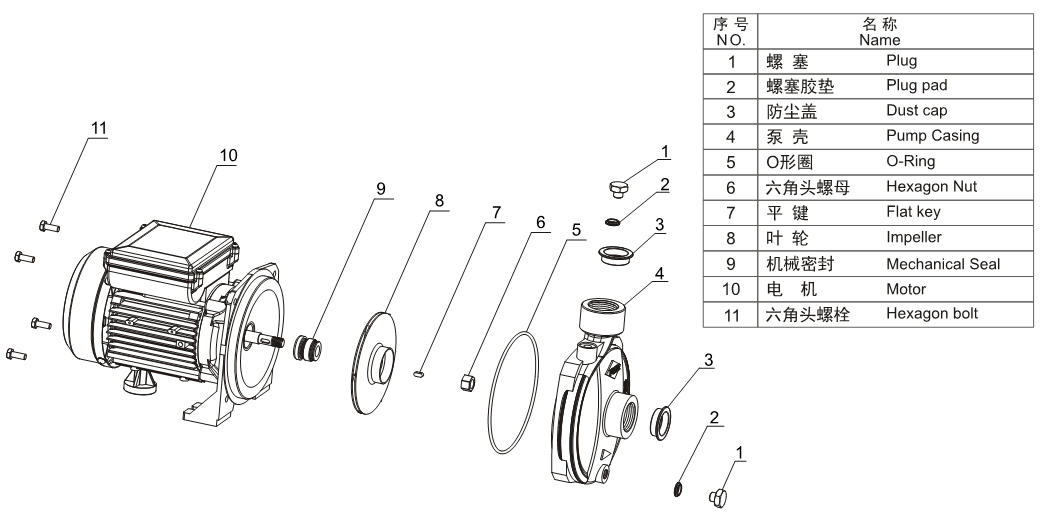

Component drawing

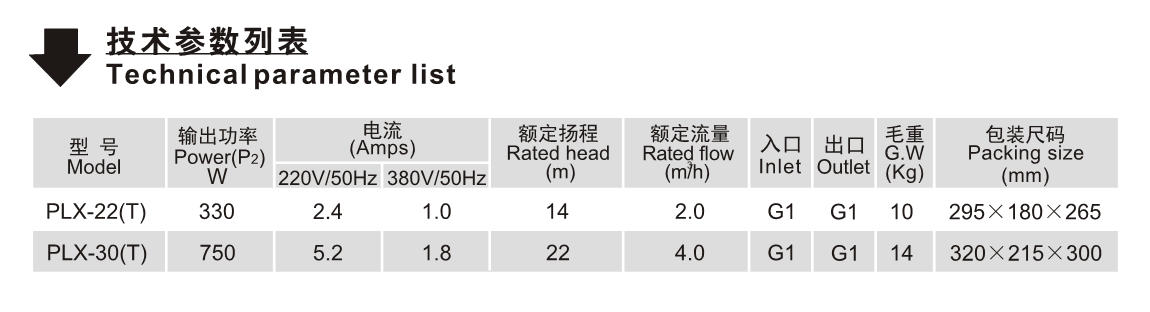

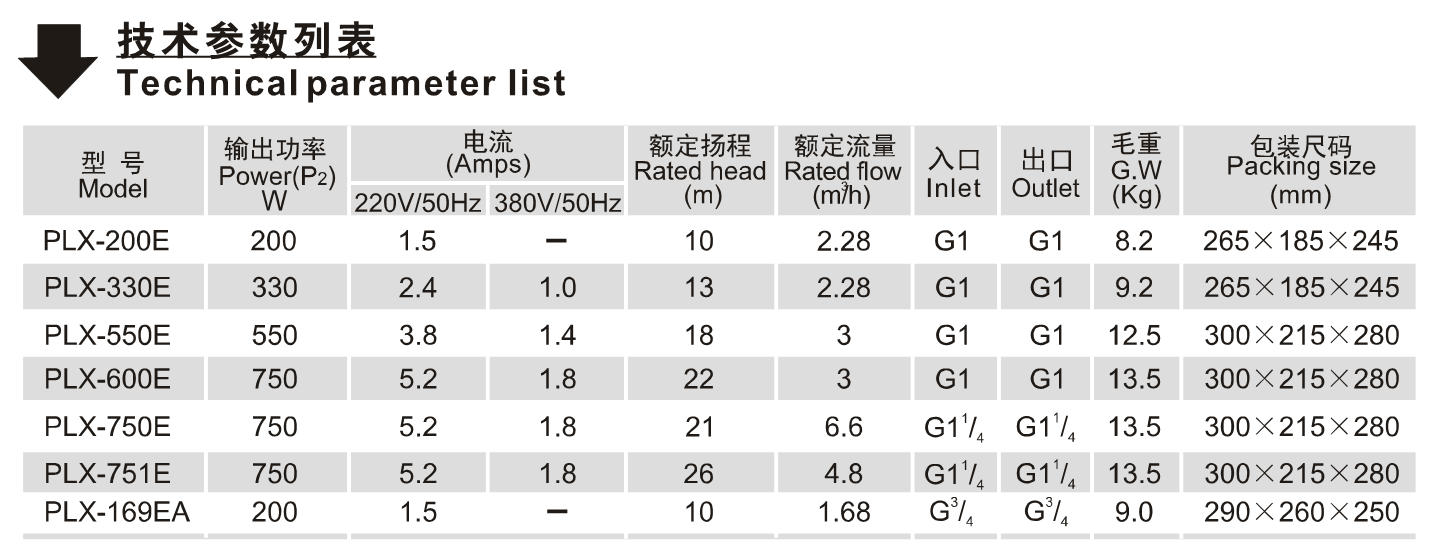

Technical parameter list
PLX-(T) Hot Water Pump
Features
Impeller and shaft (wet area) are made of stainless steel for corrosion resistance;
Casts in the wet area are electrophoretically coated;
Compact size;
Operating Conditions
Media Temperature: Normal Temperature (-20°C~+70°C)
High Temperature (-20°C~+104°C)
Ambient Temperature: <+50°C
Maximum Operating Pressure: 0.8 MPa
Insulation Class: B
Protection Rating: IP55

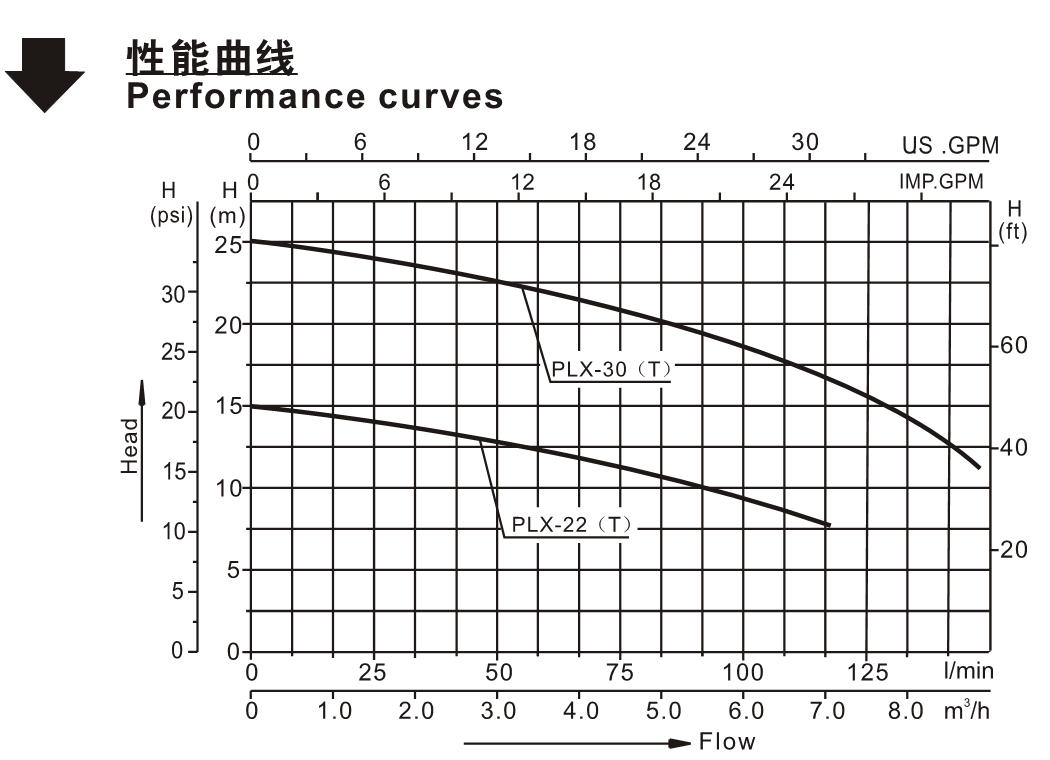

Performance curves

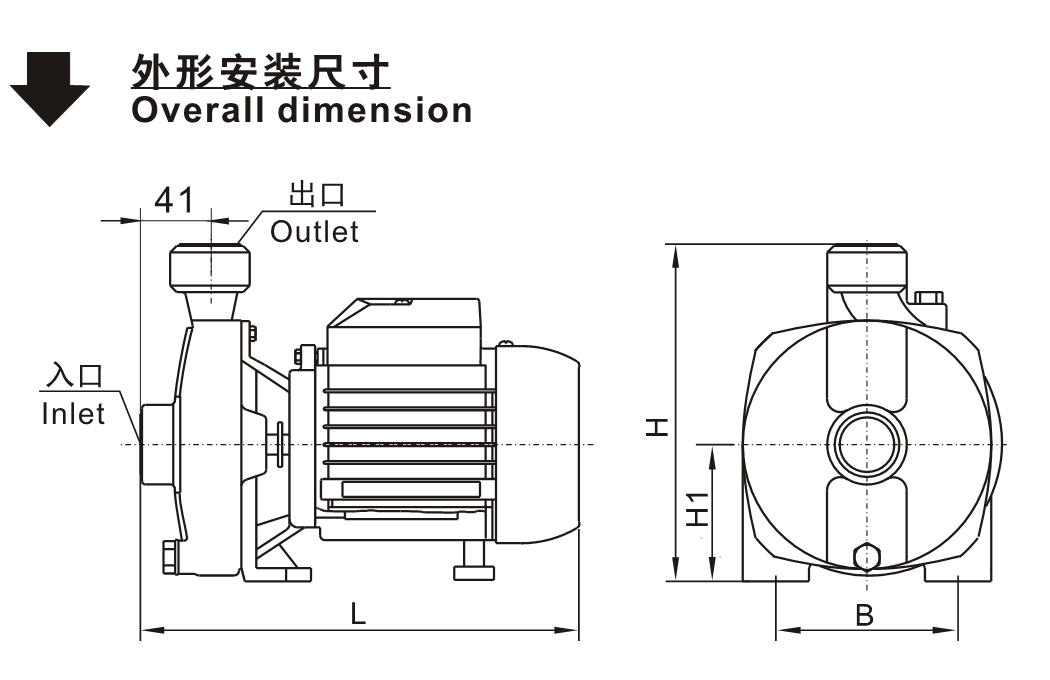

Overall dimension

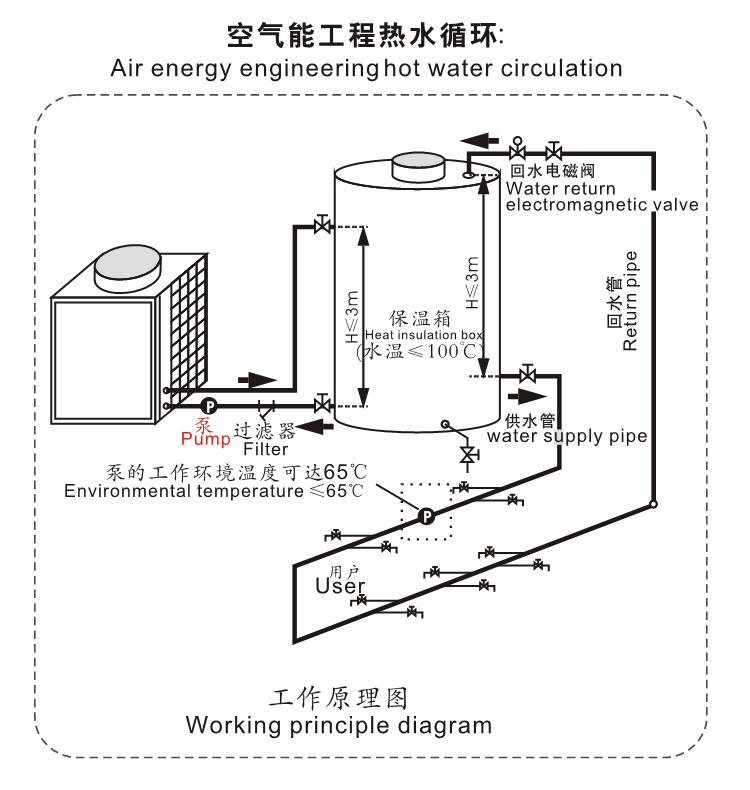

Working principle diagram

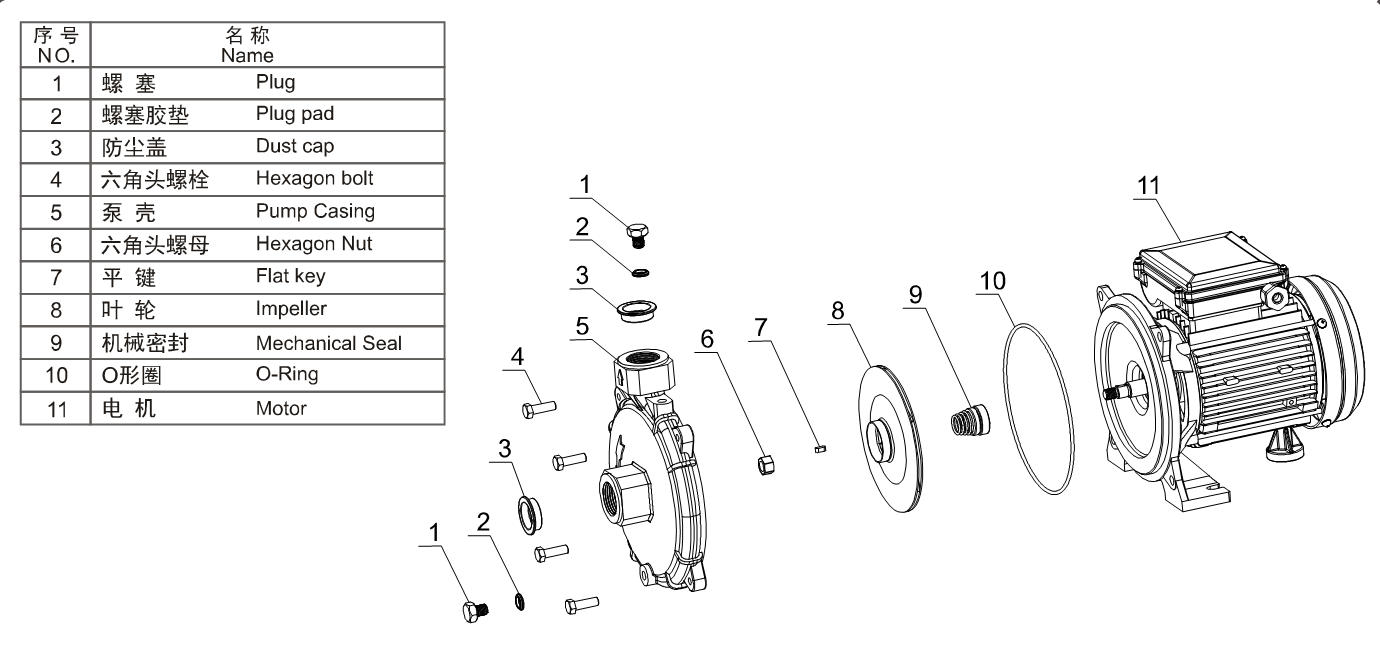

Component drawing
