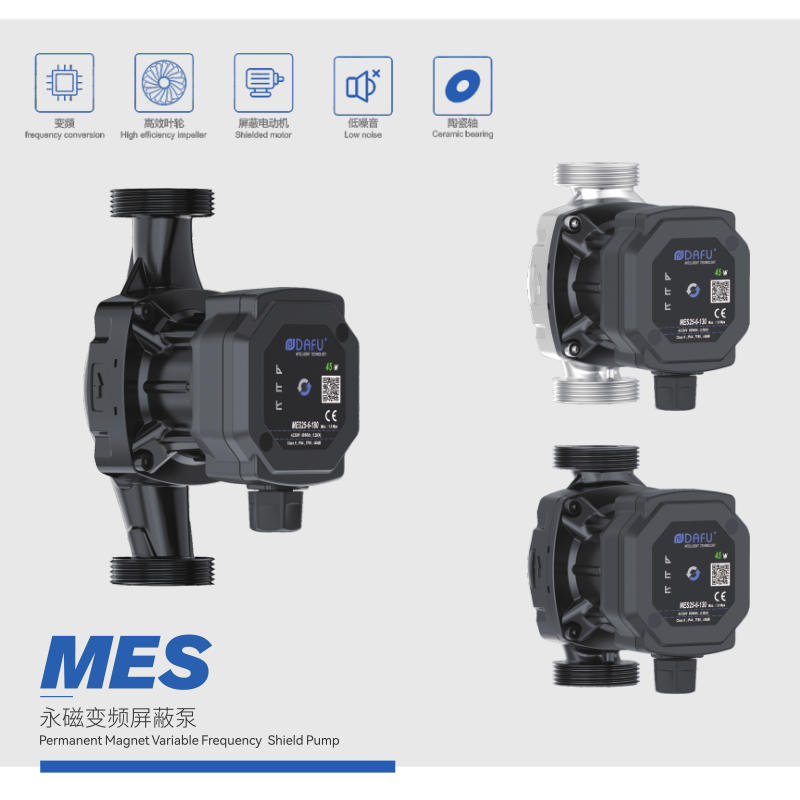

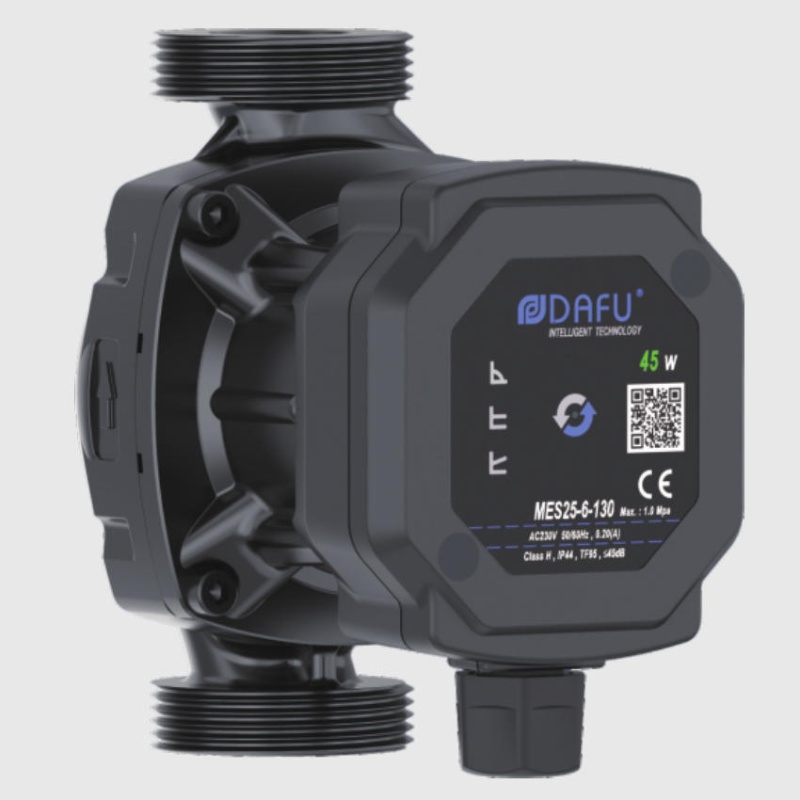

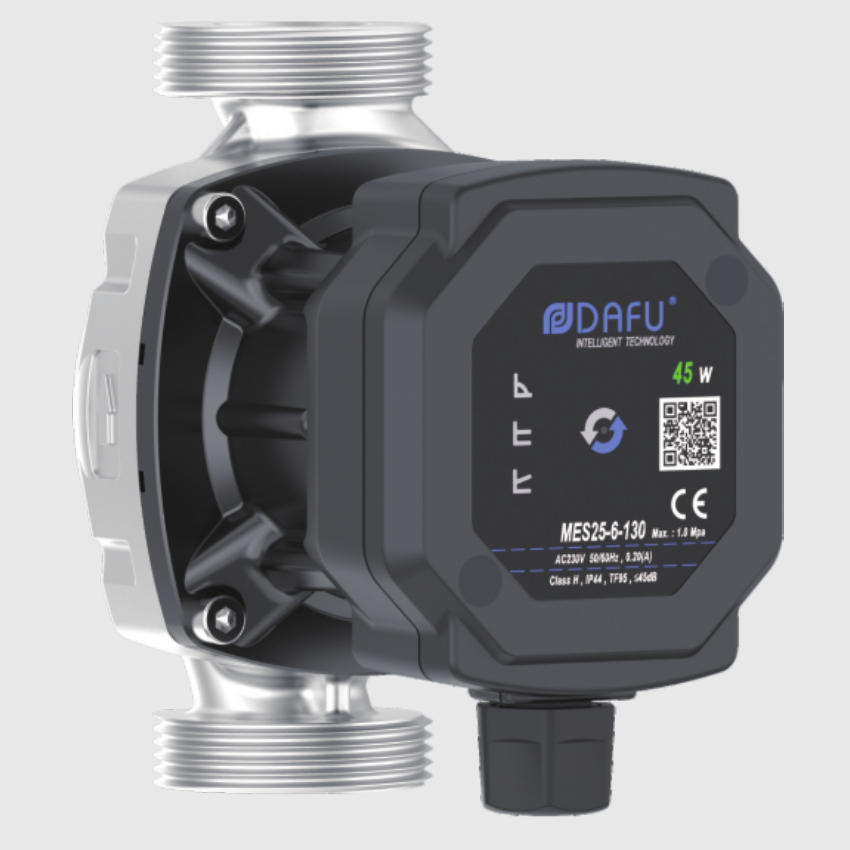

MES permanent magnet variable frequency canned motor pump, 230V, 50/60Hz, 6m head, 4.2m³/h flow rate | Suitable for high temperatures up to 110°C, low noise, energy-saving design
Model :
MES25-4-130Imported caliber (DN) :
G1"Export caliber (DN) :
G1"Rated flow (m³/h) :
2.2Rated head (m) :
4Rated input power（KW） :
0.028FOB Price （USD$） :
71
Product overview
Supply voltage: 1x230V-50V60HZ
Head rate,Hmax: 4-6m
Flow rate,Qmax: 2.2-4.2m3/h
Liquid temperature: +2°C to +110°C
Power Range:28-80W
Ambient temperature: 0°C to +40”C
Enclosure protection class: lP44
Insulation class: H
Technical Parameter
| Product Model | Maximum Flow （m³/h） |
Maximum Head (m) |
Inlet/Outlet Diameter (in) |
Power (w) |
| MES25-4-130 | 2.2 | 4 | G1" | 28 |
| MES40-4-130 | 2.6 | 4 | G1 1/2" | 28 |
| MES40-4-180 | 2.6 | 4 | G1 1/2" | 28 |
| MES50-4-180 | 2.8 | 4 | G2" | 28 |
| MES25-6-130 | 2.8 | 6 | G1" | 45 |
| MES40-6-130 | 3.2 | 6 | G1 1/2" | 45 |
| MES40-6-180 | 3.2 | 6 | G1 1/2" | 45 |
| MES50-6-180 | 3.4 | 6 | G2" | 45 |
Pump for hot water circulation in domestic central heating and air conditioning systems of the closed circuit pressurized type or open circuit type
