HC HOT WATER PUMP Suitable for clean water or water-like chemical liquids
Model :
HC(D)110B3Rated flow (m³/h) :
50Rated head (m) :
12Motor power (kw) :
1.1HC HOT WATER PUMP
Features
Casing, Front cover with electrophoresis process.
AlSl 304 shaft copper impeller.
Single phase motor with USA Tl thermal protector.
High temperature bearing
Working conditions
Medium：Clean water or chemical liquid similar to water
Medium temperature：0~+70℃
Environmental temperature：<+50℃
Max.Working pressure:0.8MPa

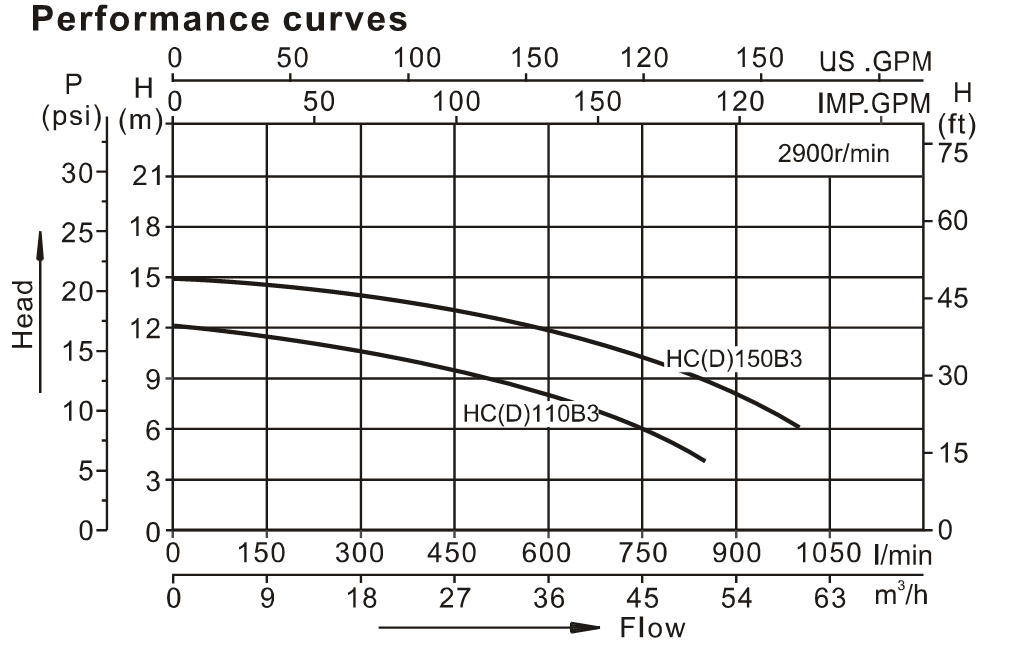

Technical parameter list
| Model | Power（P2） KW |
Amps | Hmax （m） |
Qmax （m³/h） |
Packing size（mm） | |
| 220V/50Hz | 380V150Hz | |||||
| HC(D)110B3 | 1.1 | 7.0 | 2.6 | 12 | 50 | 445x250x350 |
| HC(D)150B3 | 1.5 | 9.2 | 3.5 | 15 | 60 | 445x250x350 |
