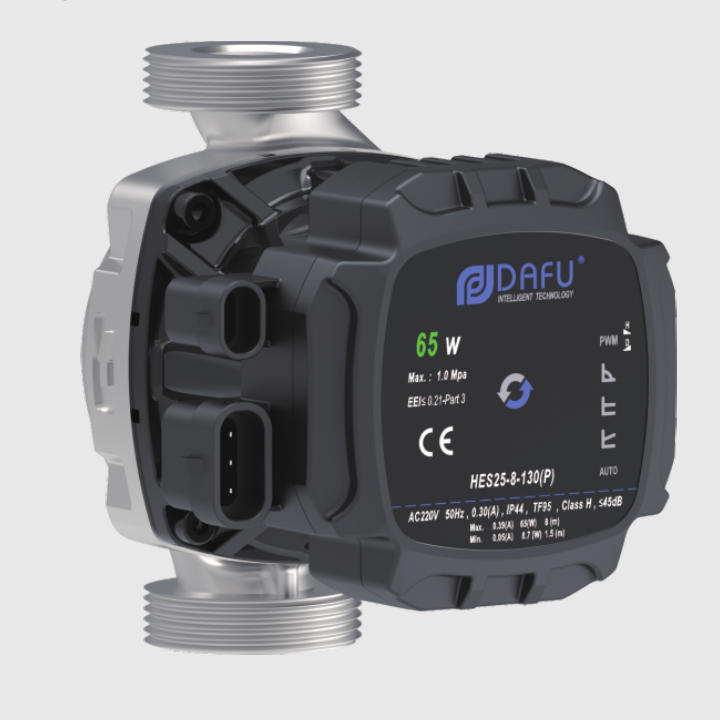

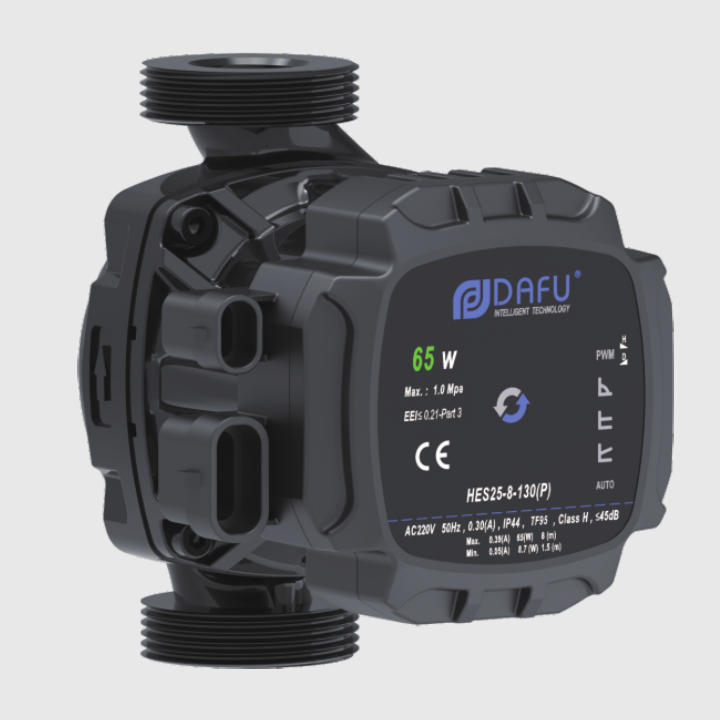

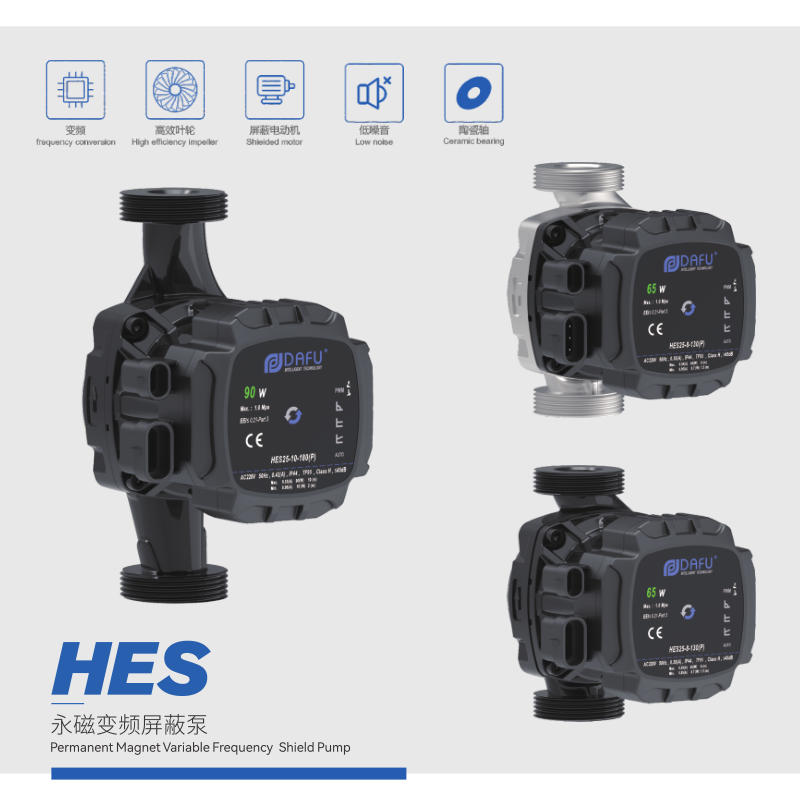

Permanent magnet variable frequency shielded pump, high-efficiency impeller, ceramic shaft, 230V, 50/60Hz, 10m head, 4.6m³/h flow rate, low noise, IP44 protection, PWM frequency conversion support
Model :
HES40-4-130Imported caliber (DN) :
G1 1/2"Export caliber (DN) :
G1 1/2"Rated flow (m³/h) :
2.7Rated head (m) :
4Rated input power（KW） :
0.025FOB Price （USD$） :
105
Product overview
Supply voltage: 1x230V-50V60HZ
Head rate,Hmax: 4-7-8-10m
Flow rate,Qmax:2.5-4.6m/h
Liquid temperature: +2°Cto +95°C (TF95)
Power Range:25-45-65-90W
Ambient temperature: 0°C to +40”C
Enclosure protection class: lP44

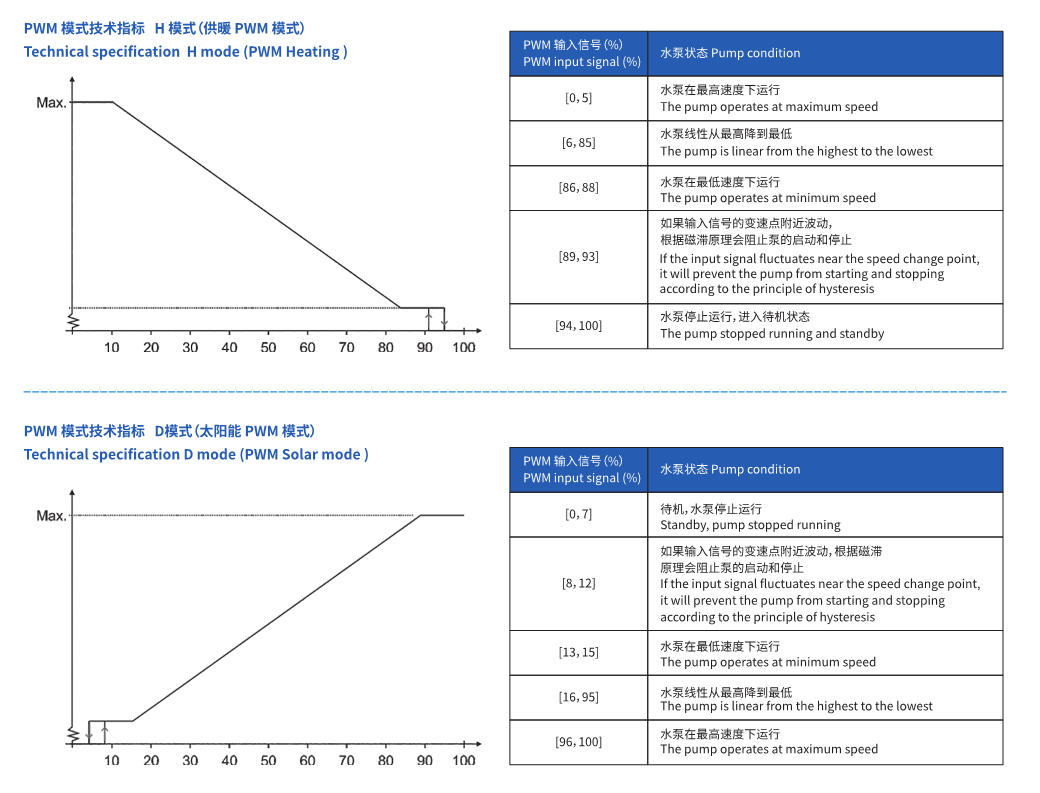

With PWM function: PWM-H & PWM-D
Insulation class: H
Technical Parameter
| Product Model | Maximum Flow （m³/h） |
Maximum Head (m) |
Inlet/Outlet Diameter (in) |
Power (w) |
| HES40-4-130 | 2.7 | 4 | G1 1/2" | 25 |
| HES40-4-180 | 2.7 | 4 | G1 1/2" | 25 |
| HES50-4-180 | 2.8 | 4 | G2" | 25 |
| HES40-7-130 | 3.2 | 7 | G1 1/2" | 45 |
| HES40-7-180 | 3.2 | 7 | G1 1/2" | 45 |
| HES50-7-180 | 3.4 | 7 | G2" | 45 |
| HES40-8-130 | 4.1 | 8 | G1 1/2" | 65 |
| HES40-8-180 | 4.1 | 8 | G1 1/2" | 65 |
| HES50-8-180 | 4.3 | 10 | G2" | 65 |
| HES40-10-130 | 4.4 | 10 | G1 1/2" | 90 |
| HES40-10-180 | 4.4 | 10 | G1 1/2" | 90 |
| HES50-10-180 | 4.4 | 10 | G2" | 90 |
For conveying water and other liquids similar to water.
