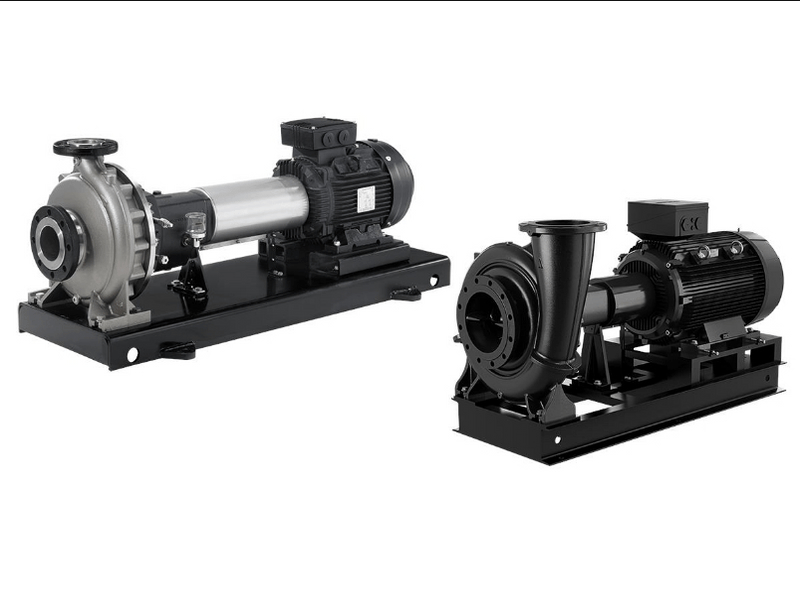

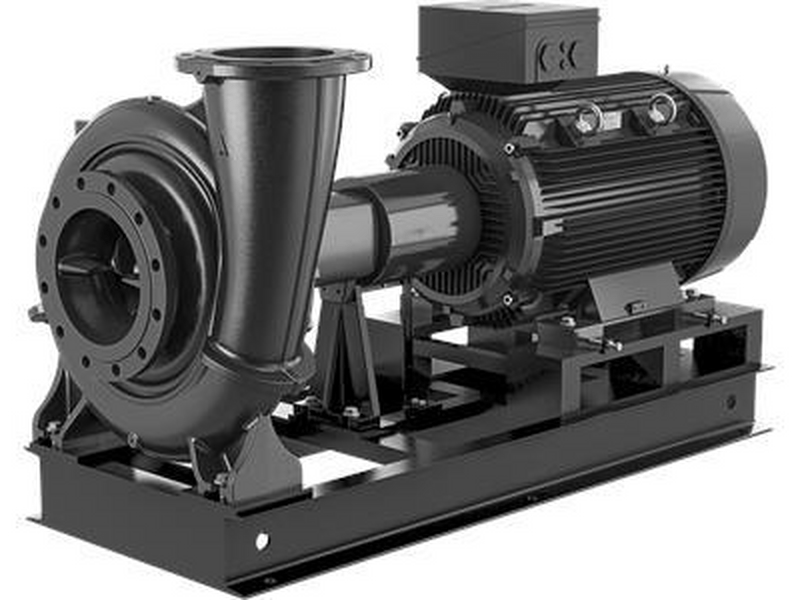

GRUNDFOS NKG Horizontal Direct-coupled Single-stage End-suction Centrifugal Pump
NKG pump is a long shaft structure, equipped with a fully enclosed fan-cooled standard motor. Its main dimensions meet IEC and DIN standards, and its installation method is B3(IM1001).
Model :
NKG 50-32-125 AImported caliber (DN) :
50Export caliber (DN) :
32Rated flow (m³/h) :
20Rated head (m) :
20Motor speed (rpm) :
2900Motor power (kw) :
2.2Material :
Cast ironHorizontal Direct-coupled Single-stage End-suction Centrifugal Pump
Technical parameters:
Flow rate, q: 1400 m3/h max.
Head, h: up to 176m
Pressure, p: max. 25bar
Temperature, t:-25℃-+170℃
Product overview
These pumps are non-self-priming, single-stage centrifugal pumps with axial inlet, radial outlet and horizontal shaft.
The inlet flange and outlet flange of NKG are PN 16.
Size and rated performance meet ISO 2858(16 bar) standard.

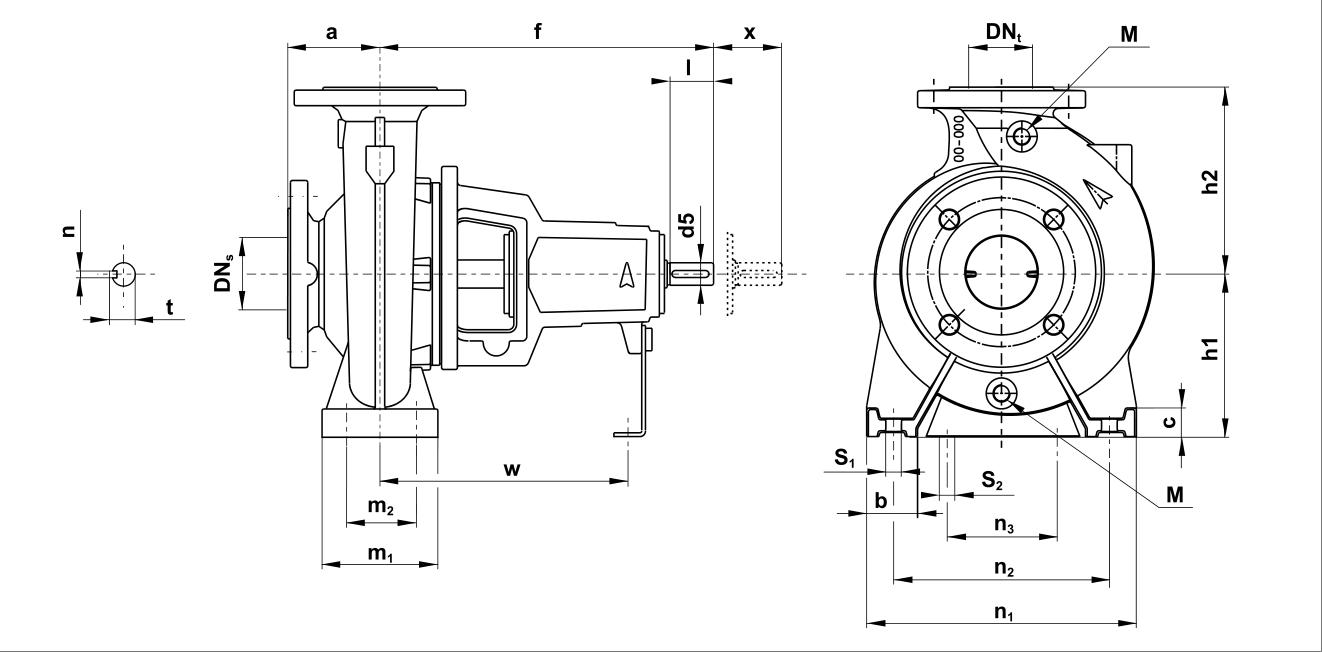

NKG pump is a long shaft structure, equipped with a fully enclosed fan-cooled standard motor. Its main dimensions meet IEC and DIN standards, and its installation method is B3(IM1001).
The size of mechanical seal meets the standard of EN 12756.

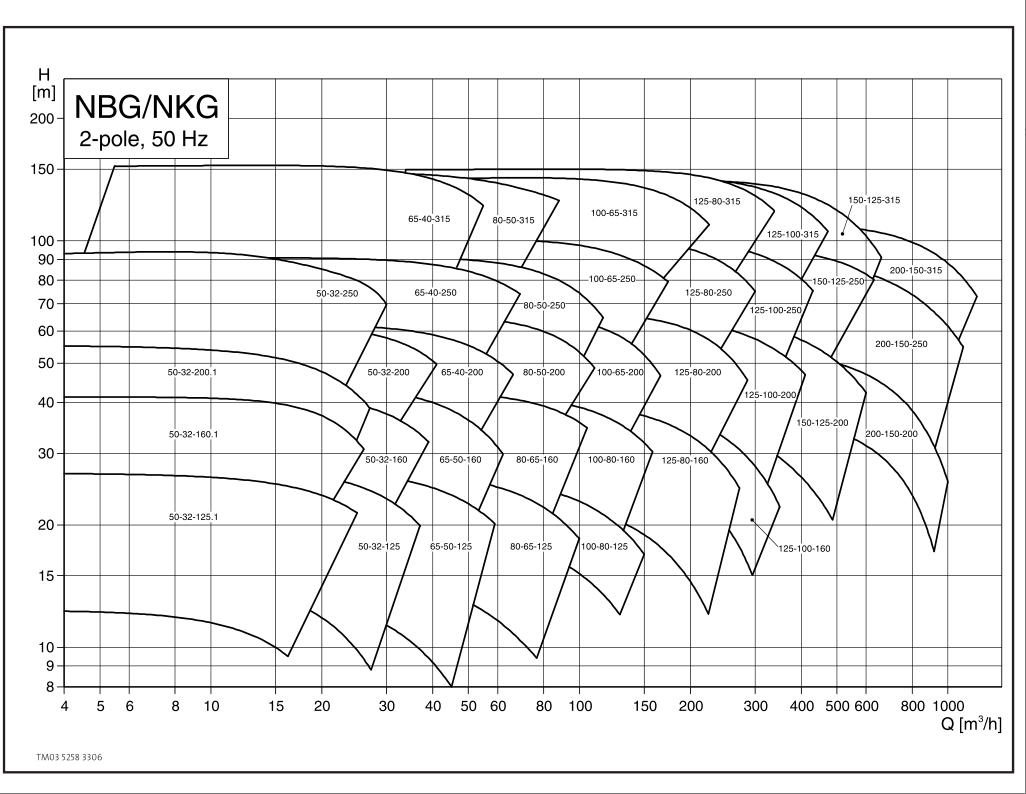

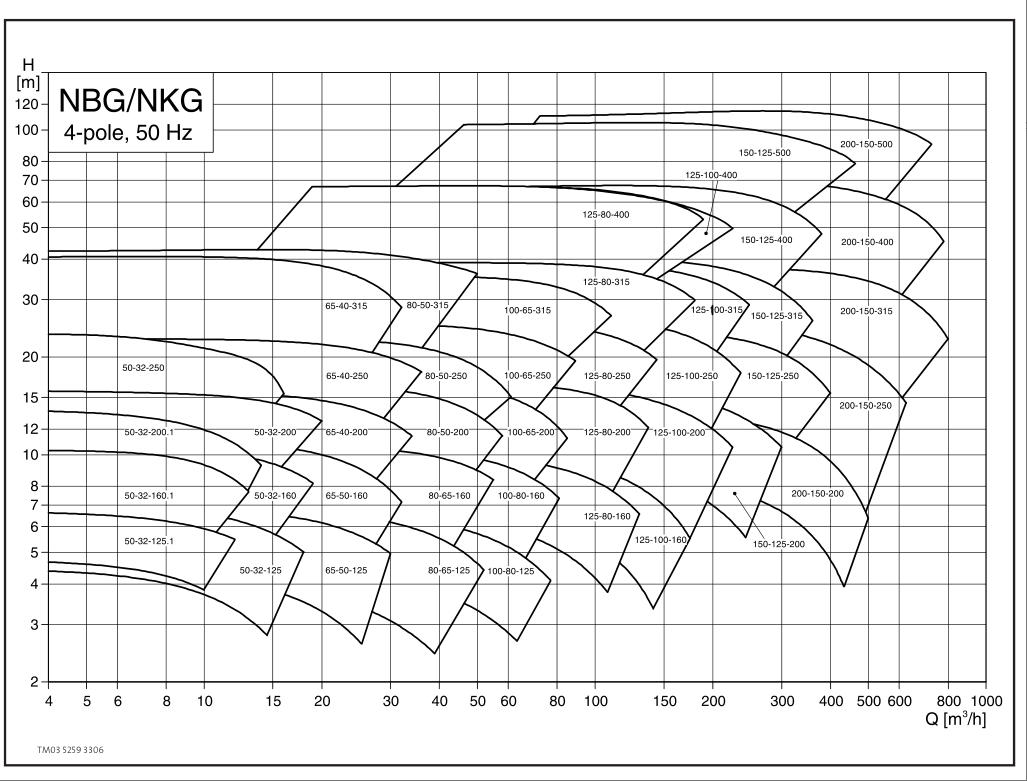

The flow provided by NKG pumps ranges from 2 to 1200m3/h, the lift ranges from 2 to 160m, and the power range of motors ranges from 0.25 to 355kW. NK has a flow range of 200 to 2000m3/h and a lift of 12 to 100m.
Pumps with power requirements ranging from 1.1 kW to 22kW can choose motors with built-in frequency converters. We call these pumps NKGE.
All pumps are dynamically balanced according to ISO 1940 class 6.3. The impeller is hydraulically balanced.
The product range of NKG includes two product ranges: "standard range" and "high efficiency range". EFF1 motor is used for high-efficiency products; The standard range of products adopts EFF 2 motor.
The pump is designed with a pull-back structure, and the motor, coupling, bearing seat and impeller can be disassembled without disassembling the pump shell or pipeline. Even for the largest pump, a single person can use a lifting device to maintain it.
Application
supply water
Industrial supercharging
Industrial liquid transport
Heating, ventilation and air conditioning
irrigate
