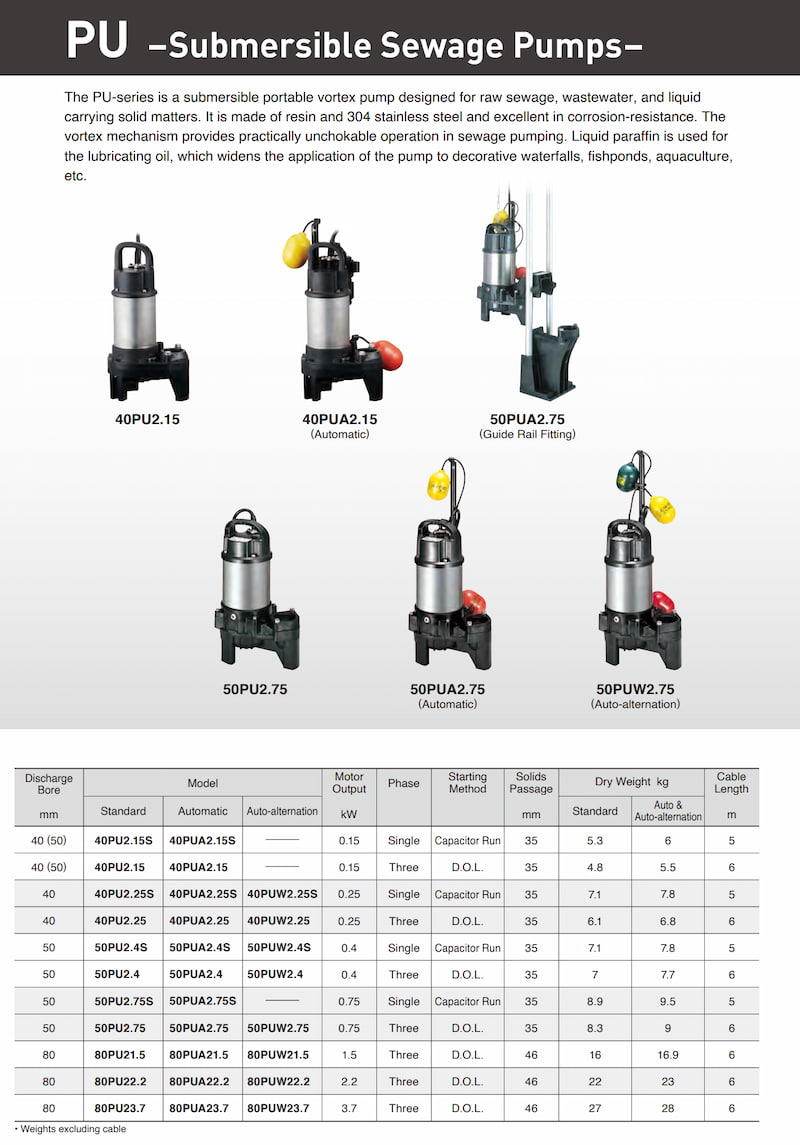

The PU series turbine submersible pumps are specially designed for handling wastewater, sewage, and liquids containing solids. Made of resin and 304 stainless steel, they feature excellent corrosion resistance. The turbine structure hardly causes blockages. Using liquid paraffin as lubricating oil, these pumps expand the application scope, such as artificial waterfalls, fish ponds, aquaculture, etc.
Model :
40PU2.15SDischarge Bore（mm） :
40(50)Rated flow (m³/min) :
0.1Rated head (m) :
4Motor power (kw) :
0.15Weight (KG) :
5.3Material :
Cast ironWastewater Drainage Pump
Technical Parameters
Flow：0.8m³/min
Head：23m
Discharge Bore(mm)：40 - 80
Motor Output(kW)：0.15 - 3.7
Adopts a vortex impeller, allowing for a larger particle size of foreign matter to pass through, making it suitable for various liquids containing impurities.
The base is designed in a shape that is less prone to tangling with long objects.
Applications:
• Draining sewage from factory, residence, hotel, restaurant, etc.
• Pumping rainwater and springwater at a place where solid matters are likely to run into the water
• Transferring wastewater between the tanks at small-scale treatment facility
• Circulating water in waterscape garden(e.g. waterfall, fountain, koi pond, etc.)
Horizontal or vertical single-stage submersible pumps can be used as modular pump units. They can be equipped with various types of next-generation impellers, and can be installed in a wet or dry manner. They can be used statically or in combination with energy-saving motors in a mobile way. Explosion-proof models are also provided.
