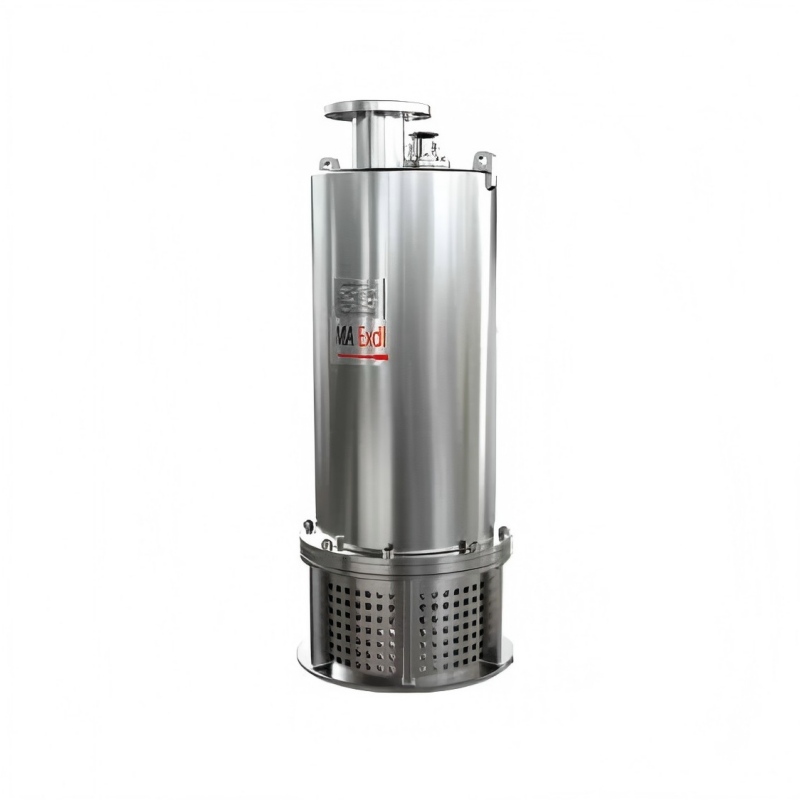

The fluid‑passing section adopts a lower‑support structure combined with multi‑stage impeller assembly, enabling the water pump to meet the requirements of high head and large flow under various installation conditions.
Application
Non-explosion-proof scenarios in the chemical, petroleum, pharmaceutical, mining, papermaking, cement, steelmaking, power generation, coal processing industries, etc.
Urban sewage treatment plant drainage systems, municipal engineering, etc.
Suitable for the construction industry and others requiring the conveyance of sewage containing particulates, as well as for pumping clear water or liquids with corrosive properties.
Ponds, fish ponds, or scenes where corrosive liquids such as seawater and chemical wastewater need to be pumped.
Structural advantage
The flow parts adopts a lower support structure, combined with a multi-stage impeller arrangement, ensuring that the pump meets the requirements for high head and large flow under various installation conditions.
Made of hard cast‑iron. Wetted parts are surface‑treated with special technology to ensure long‑term durability.
The mechanical seals have high-pressure resistance,which enables pumps to submerged deeper. the pump equipped with cooling jacket,could not
fully submerged in the medium.the flow parts below the motor,water cooling the motor during the operation,extending service life and enabling work at the low water level.
The design of the top outlet is more space saving.
The motor is optional with overheat protection.
There is a pressure relief hole on the pump,which could release the pressure exerted by the medium on the shaft seal.
Working condition
Medium temperature ≤ 60℃，medium density <1200kg/m³，PH 4-10 .
When used for pumping highly corrosive fluids or media with abrasive solid particles, the pump requires special customization.
The diameter of solid particles in the medium should be less than 80% of the minimum flow passage dimension.
The length of fibers in the medium should not exceed the diameter of the pump's discharge port.

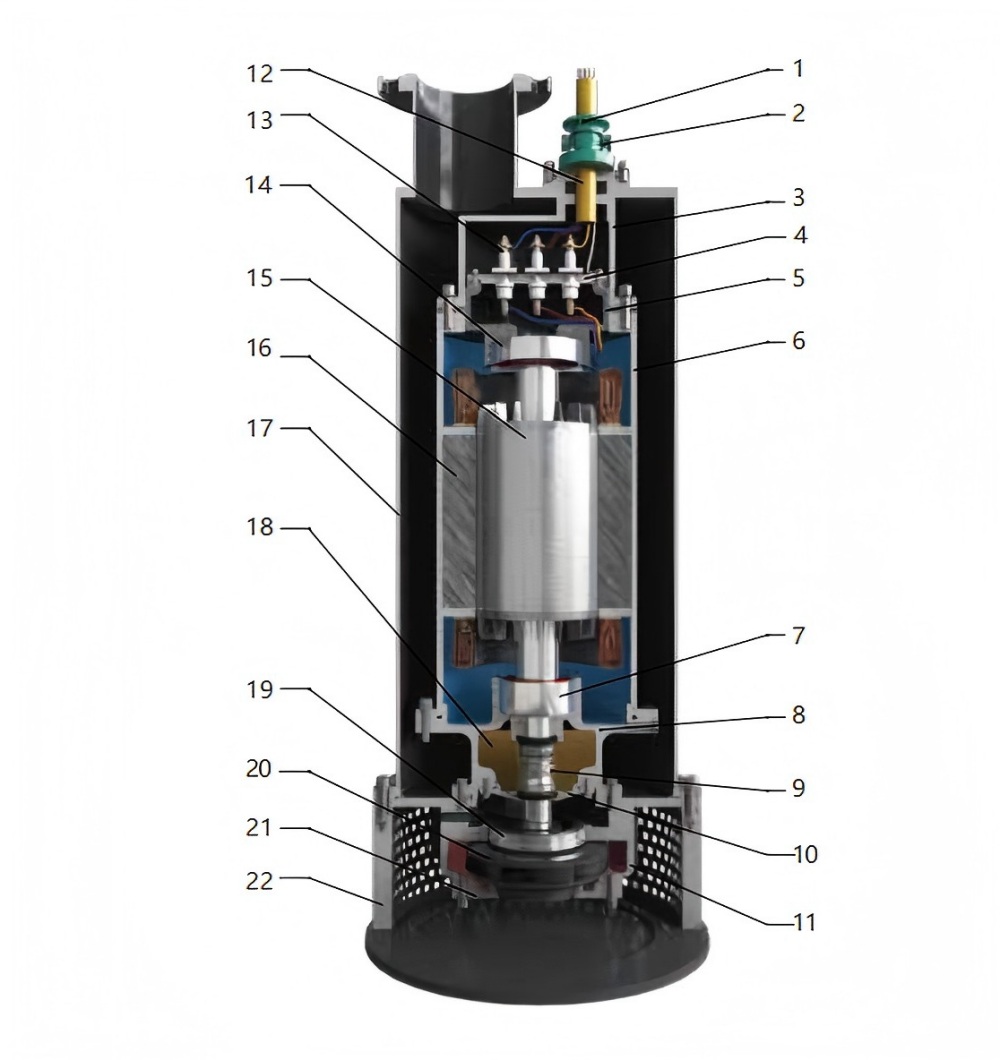

Exploded view
| No. | Description |
| 1 | Pressing sleeve |
| 2 | Pressing tablet |
| 3 | Outlet box |
| 4 | Terminal board |
| 5 | Upper bearing housing |
| 6 | Pump casing |
| 7 | Lower bearing |
| 8 | Lower bearing housing |
| 9 | Mechanical seal |
| 10 | Seal chamber cover |
| 11 | Volute |
| 12 | Cable |
| 13 | Wiring terminals |
| 14 | Upper bearing |
| 15 | Rotor |
| 16 | Stator winding |
| 17 | Pump casing |
| 18 | Mechanical oil |
| 19 | Wear ring of impeller |
| 20 | Impeller |
| 21 | Pump cover |
| 22 | Base |
Performance parameter
| No. | Model | Rated flow (m³/h) | Rated head (m) | Synchronous speed (r/min) | Rated power (kW) | Efficiency(%) | Outlet diameter (mm) |
| 1 | WQN10-23-1.5 | 10 | 23 | 3000 | 1.5 | 22.9 | 50 |
| 2 | WQN10-28-2.2 | 10 | 28 | 3000 | 2.2 | 29.2 | 50 |
| 3 | WQN15-25-3 | 15 | 25 | 3000 | 3 | 31 | 40 |
| 4 | WQN15-30-4 | 15 | 30 | 3000 | 4 | 31.5 | 40 |
| 5 | WQN20-40-5.5 | 20 | 40 | 3000 | 5.5 | 33.5 | 40 |
| 6 | WQN15-55/2-5.5 | 15 | 55 | 3000 | 5.5 | 33.5 | 40 |
| 7 | WQN20-50-7.5 | 20 | 50 | 3000 | 7.5 | 35 | 40 |
| 8 | WQN15-70/2-7.5 | 15 | 70 | 3000 | 7.5 | 33.2 | 40 |
| 9 | WQN20-68/2-11 | 20 | 68 | 3000 | 11 | 35.4 | 65 |
| 10 | WQN30-58/2-11 | 30 | 58 | 3000 | 11 | 39.4 | 65 |
| 11 | WQN20-80/2-15 | 20 | 80 | 3000 | 15 | 35.5 | 65 |
| 12 | WQN40-50-15 | 40 | 50 | 3000 | 15 | 38.2 | 65 |
| 13 | WQN20-100/2-18.5 | 20 | 100 | 3000 | 18.5 | 33.9 | 65 |
| 14 | WQN30-80/2-18.5 | 30 | 80 | 3000 | 18.5 | 38.6 | 65 |
| 15 | WQN30-105/2-22 | 30 | 105 | 3000 | 22 | 38.3 | 65 |
| 16 | WQN40-80/2-22 | 40 | 80 | 3000 | 22 | 39.9 | 65 |
| 17 | WQN50-100/2-30 | 50 | 100 | 3000 | 30 | 42.4 | 65 |
| 18 | WQN60-80-30 | 60 | 80 | 3000 | 30 | 41 | 100 |
| 19 | WQN30-130/2-30 | 30 | 130 | 3000 | 30 | 38.5 | 100 |
| 20 | WQN25-150/2-30 | 25 | 150 | 3000 | 30 | 35.7 | 100 |
| 21 | WQN70-100/2-37 | 70 | 100 | 3000 | 37 | 45.91 | 100 |
| 22 | WQN30-150/2-37 | 30 | 150 | 3000 | 37 | 38.65 | 100 |
| 23 | WQN50-120/2-37 | 50 | 120 | 3000 | 37 | 37 | 100 |
| 24 | WQN40-130/2-37 | 40 | 130 | 3000 | 37 | 38.5 | 100 |
| 25 | WQN30-170/2-45 | 30 | 170 | 3000 | 45 | 37.2 | 100 |
| 26 | WQN50-150/2-45 | 50 | 150 | 3000 | 45 | 40.5 | 100 |
| 27 | WQN85-100-45 | 85 | 100 | 3000 | 45 | 47.4 | 150 |
| 28 | WQN90-120/2-55 | 90 | 120 | 3000 | 55 | 43.8 | 100 |
| 29 | WQN25-320/6-55 | 25 | 320 | 1750 | 55 | 38.06 | 65 |
| 30 | WQN50-175/2-55 | 50 | 175 | 3000 | 55 | 41.43 | 65 |
| 31 | WQN70-136/2-55 | 70 | 136 | 3000 | 55 | 44.5 | 100 |
| 32 | WQN100-100-75 | 100 | 100 | 3000 | 75 | 44.48 | 100 |
| 33 | WQN50-210/2-75 | 50 | 210 | 3000 | 75 | 41.64 | 100 |
| 34 | WQN70-150/2-75 | 70 | 150 | 3000 | 75 | 43.33 | 100 |
| 35 | WQN50-240/2-90 | 50 | 240 | 3000 | 90 | 41.83 | 100 |
The fluid‑passing section adopts a lower‑support structure combined with multi‑stage impeller assembly, enabling the water pump to meet the requirements of high head and large flow under various installation conditions.
