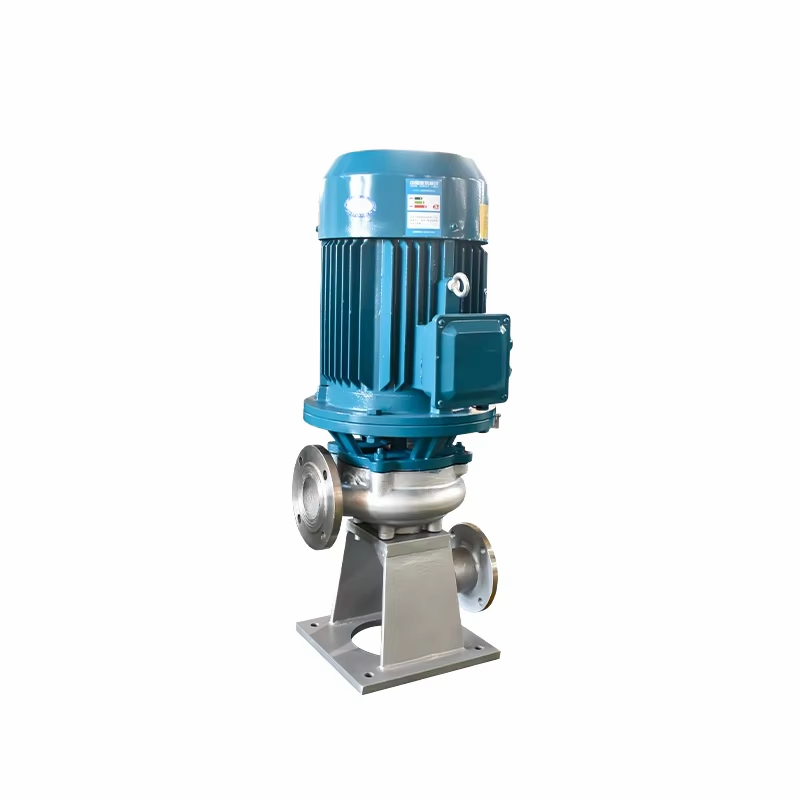

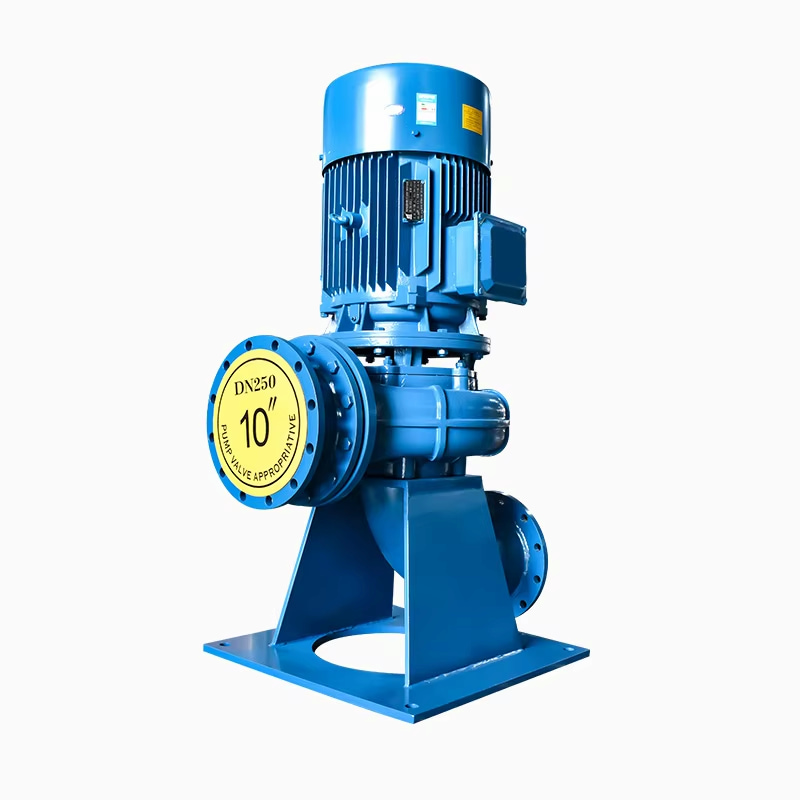

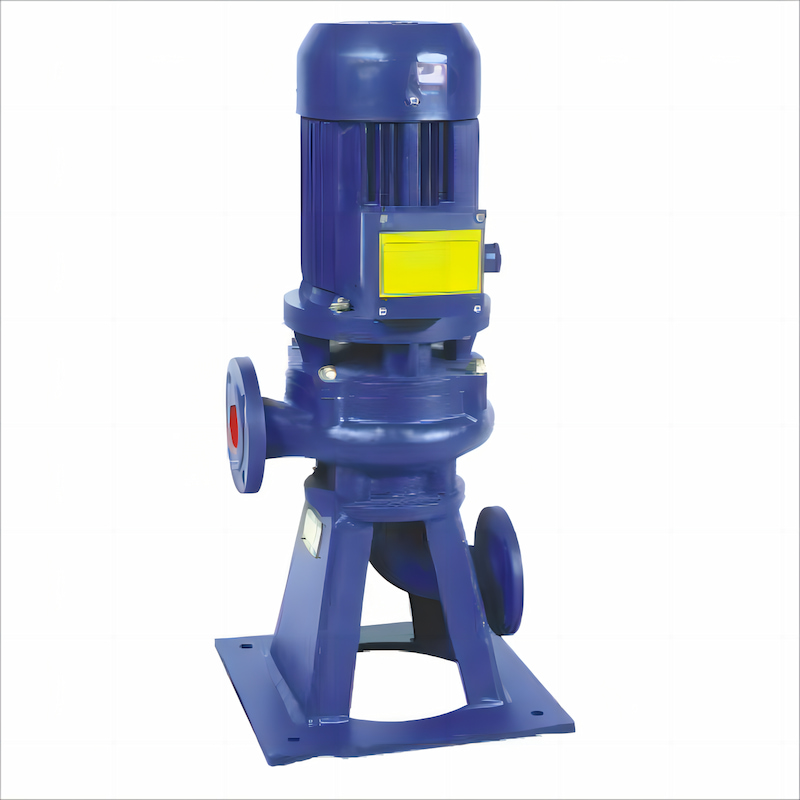

LW type non-clogging vertical sewage pump

vertical sewage pump

Technical parameters:

flow, Q: maximum 2600 m³/h

Head, H: maximum 60 m

Medium temperature: -15℃ - 60℃

System pressure: max. 16 bar

Overview

LW non-clogging vertical sewage pumps are new generation of products developed with the advanced technology home and abroad and on the base of the operational characteristics of pumps at home. Featuring distinguished effect in energy conservation, winding and clogging resistance, it is especially suitable for handling sewage containing solid particles and long fibre.

Provided with original impeller structure and latest mechanical seal, this pump can be used to effectively handle medium containing solid substances and long fibre. Compared with the conventional impellers, the impeller on this pump uses single-channel or double-channel. which is similar to an elbow of the same section to display outstanding throughput capacity. Plus the reasonable spiral housing to feature high efficiency. Impellers have been subject to balancing test so that there cannot be any vibration in operation.

This pump is given sophisticated hydraulic performance, with all performance indexes in accordance with relevant standard specifications. Ever since the products were put into market, they have been greatly recognized by the mass customers for their distinctive efficiency, reliable performance and consistent quality.

Features

1. Designed with large-flow and anti-clogging hydraulic components to have greatly improved the throughput capacity of sewage, it can handle fibre material with a length up to 5 times of pump diameter and solid particles with a diameter up to 50% of pump diameter.

2. Reasonable design, good matching of motor,  high efficiency and remarkable energy conservation.

3. Single-face mechanical seal made of durable wear and corrosion resisting hard tungsten carbide to enable pump working safely for continuously over 8,000 hours.

4.With pump and motor close coupled and coaxial.LW(I) is a product of mechanical and electrical integration to feature compact structure and consistent performance.

5. Outstanding hydraulic performance, high overall efficiency and low running noise.

6. If provided with a protective cover at the fan blade of motor,it can work outdoors, with no need of a pump room for the economy of construction cost.

7.Integral structure of pump and motor, with no need of adjustment upon installation.

Applicability

1.Drainage of seriously polluted wastewater in industrial and commercial areas.

2.Drainage system in municipal sewage plant.

3. Sewage drainage station in residential areas.

4.Drainage station in national defense system.

5.Sewage drainage in hospitals and hotels.

6.Municipal and construction projects.

7. Used as auxlllary equlpment in exploration and mining.

8.Methane pool and farmland irrigation in rural areas.

9. Water supply equipment in waterworks.
