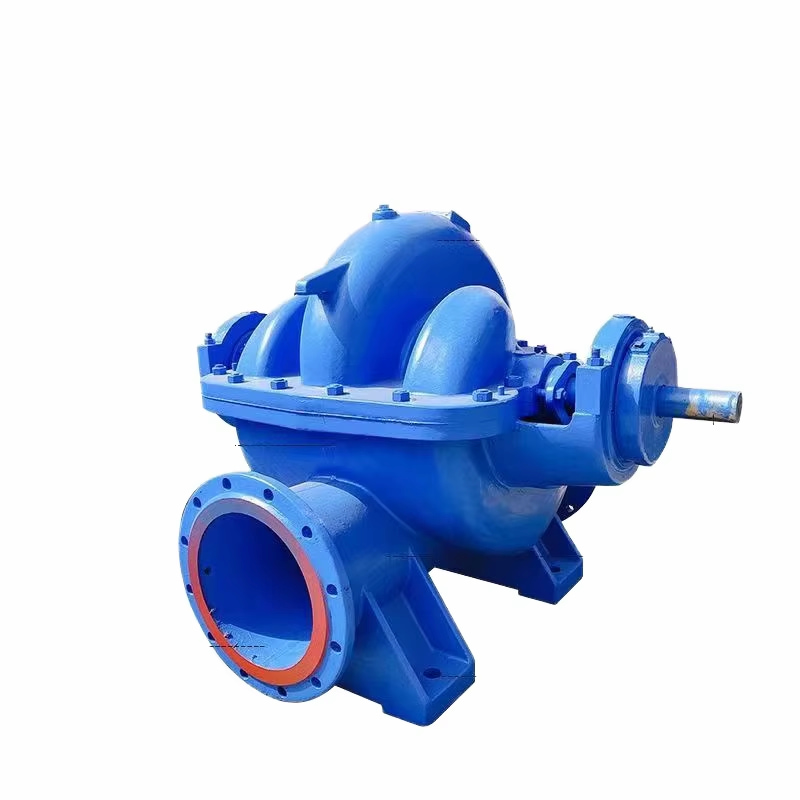

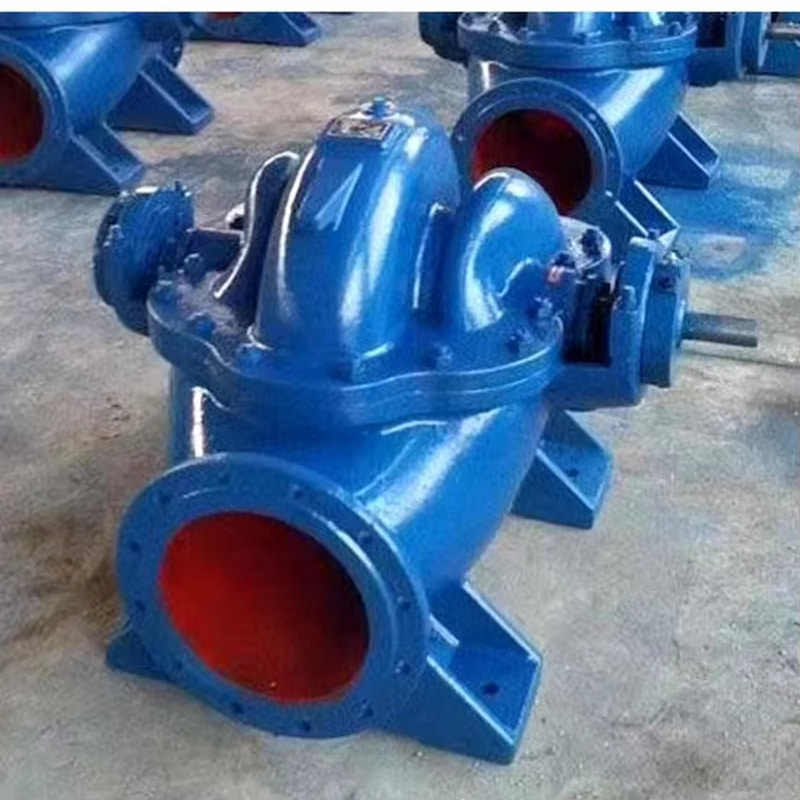

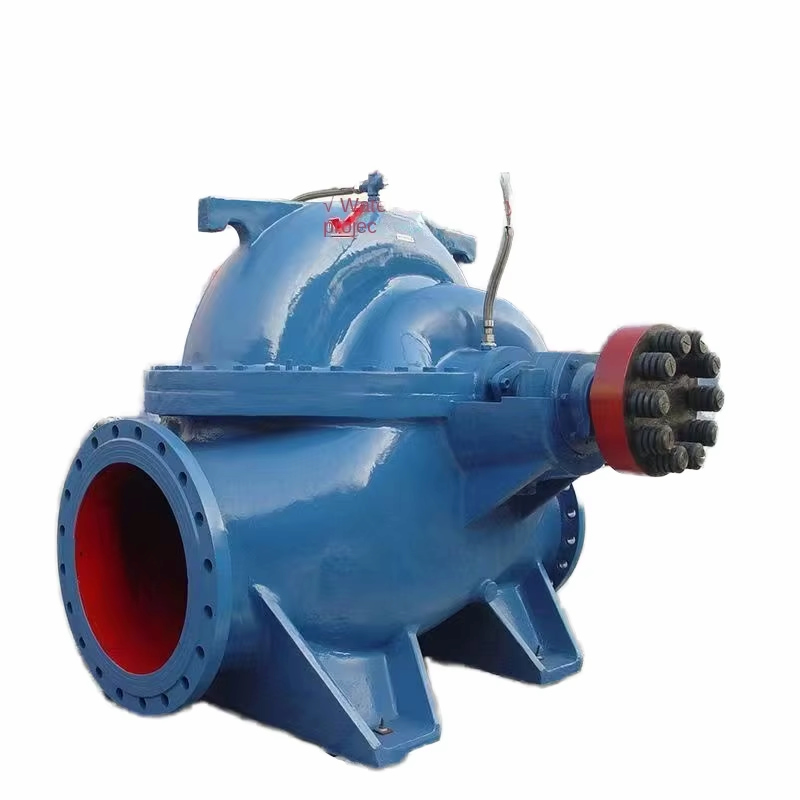

S Series High-Flow&High-Efficiency Split-Case Double-Suction Pump

Split-Case Standard Double-Suction Pump

Product overview

S series axial open standard double suction pump is a new product developed by our company with foreign advanced hydraulic technology and combined with the characteristics of the existing pumps in the industry, and has passed the national industrial pump quality supervision and testing center. S series of products, high efficiency, stable performance, compact structure, small vibration, convenient installation and maintenance. Compared with the traditional double suction pump in the industry, it has outstanding advantages and is an ideal substitute.

Technical parameter

Maximum flow rate Q: 11,160 m ³ / h

Maximum lift H: 200m

Maximum working pressure: 2.5MPa

Maximum suction port diameter: DN900 mm

Maximum operating temperature: 130°C;

Flange pressure level: PN1.6MPa, PN2.5MPa

Technology application

High efficiency, high strength, high reliability, and long-lasting service life;

Based on CFD technology, optimized hydraulic design can automatically balance axial and radial forces, ensuring high efficiency of pump operation; The compact structure, enhanced housing, and high-end configuration of components ensure high stability and reliability of pump operation.

Application area

Transfer of clear water or physical and chemical properties similar to clear water medium;

Water supply for water plants, urban drainage and agricultural irrigation, circulating water for power plants, water supply for hydropower stations, water supply and drainage for industrial and mining enterprises, central air conditioning circulating water, shipbuilding water, various industrial processes, etc.;

Delivery of a corrosive medium;

Seawater desalination, steel debrine, brine transport;

Delivery of a high-temperature medium;

Heat network circulating water, etc.;

Material configuration

Pump shell: cast iron, ductile cast iron, nickel cast iron, cast steel, stainless steel, double-phase stainless steel, etc.;

Impeller and sealing ring: cast iron, ductile iron, cast steel, stainless steel, bronze, double-phase stainless steel, etc.;

Pump shaft: carbon steel, stainless steel, dual-phase stainless steel, etc.;

Sealing shaft sleeve: stainless steel, double-phase stainless steel, etc.;

A variety of different materials combination, to meet the needs of different working conditions;

Special materials, can be customized according to the requirements;
