Reliable sewage and wastewater pumps for domestic and groundwater drainage systems.
Model :
Rexa MINI3-V05.09Export caliber (DN) :
G 1½Rated flow (m³/h) :
11Rated head (m) :
6.4Motor speed (rpm) :
2900Motor power (kw) :
0.5Material :
Hydraulics housing: Grey cast iron Impeller: compositeSewage Pump
Technical parameters:
Mains connection: 1~240 V, 50 Hz
Submerged operating mode: S1
Non-immersed operating mode: S3 15%
Protection class: IP68
Insulation class: F
Fluid temperature: 3 ... +40 °C (37 ... 104 °F)
Product overview

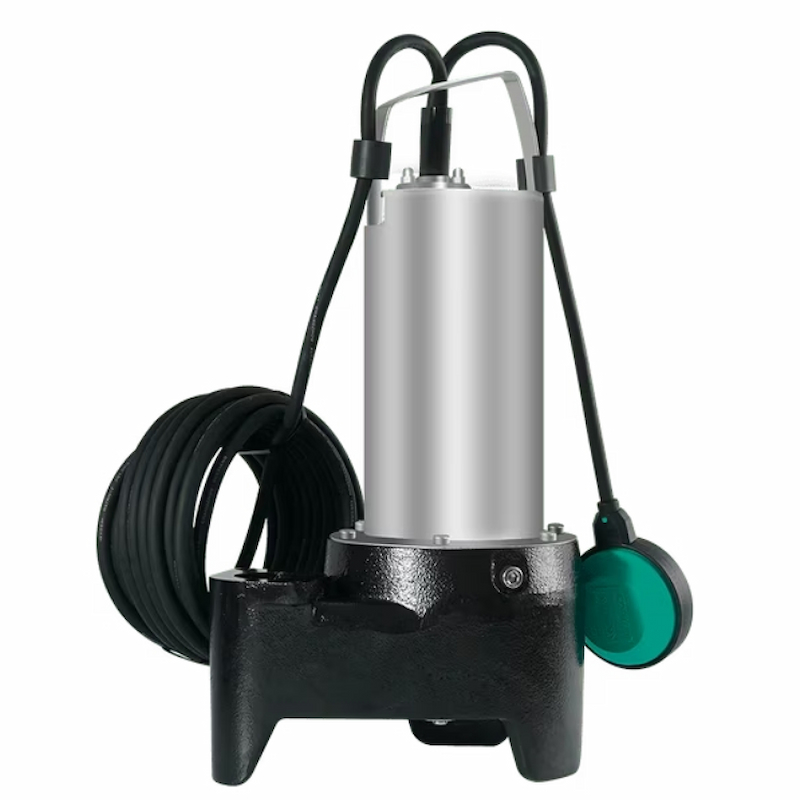

The Wilo-Rexa MINI3 is the ideal submersible pump for standard sewage in site drainage and domestic situations. It's 40 mm free ball passage makes it suitable for pumping wastewater and sewage free of faeces. The pump can be used flexibly for both stationary and portable wet well installations. The optimised hydraulics provide high levels of reliability for universal application in the pumping of a diverse range of fluids. It's compact design means it can even be installed in narrow drainage pits. The oil-filled sealing chamber and a double seal allow for longer maintenance intervals. Direct access to the most important components makes carrying out maintenance work very convenient.
Features/product advantages
>High efficiency and operational reliability thanks to the optimised hydraulics.
>Easy installation - even in narrow drainage pits - thanks to its lightweight,compact design with integrated condenser and threaded flange with hose nozzle.
> Reliable use in a variety of drainage applications thanks to the corrosion-free impeller and sealed cable inlet.
>Longer maintenance intervals thanks to the high-volume sealing chamber and double seal.
> Quick maintenance facilitated by direct access to the sealing chamber.
