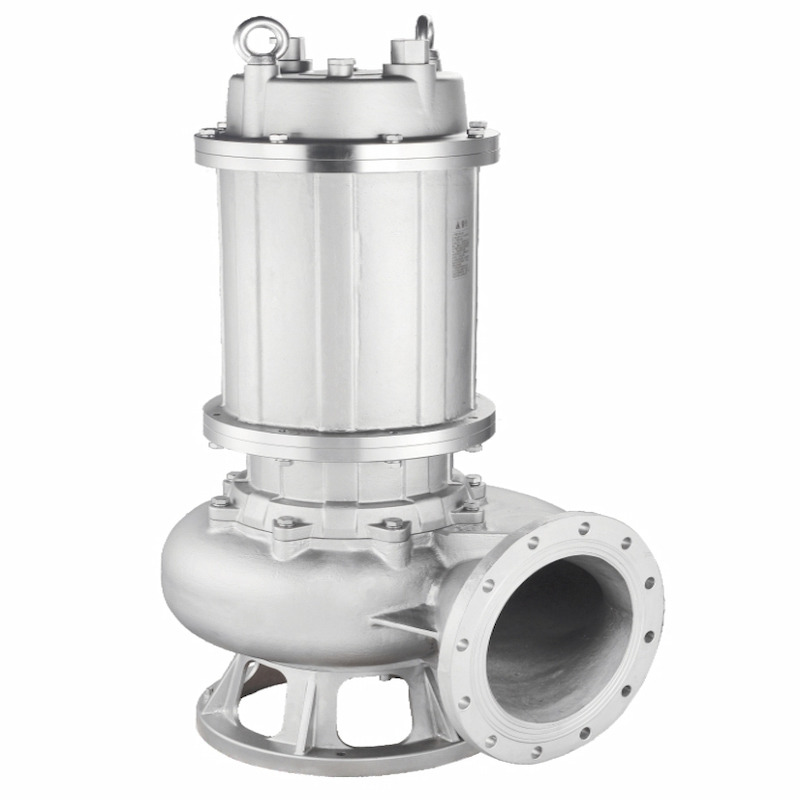

WQP sewage pump with double-end face mechanical seal

Self-priming Sewage Pump

Technical parameter:

Flow , Q: maximum 1000 m3/h

Head, H: maximum  65m

Product characteristics

1. The oil chamber is mechanically sealed with fluorine rubber double end surface, and the outer chamber adopts single end surface fluorine rubber mechanical oil seal structure, which effectively reduces the problem of water wear caused by friction between sediment and shaft.

2, The motor adopts vacuum immersion paint to achieve the F class insulation, 4kW heat protection device, effectively prolong the service life of the pump.

3, According to the special requirements of customers can customize the tetrafluorine machine seal, and high temperature resistant motor.(Solve the liquid temperature of 100℃service environment)

4, Can be customized to fully protect the electric pump.

Main application

It is suitable for buildings, hospitals, residential areas, municipal engineering, road traffic and construction, chemical electroplating, factory sewage, aquaculture, pharmaceutical, beverage, seawater salt water, solid particles contained in general corrosive medium, long fiber waste water, sewage.

Service condition

1. With the center of the impeller, the depth of 5m;

2. The temperature of the conveying medium is not higher than + 40℃;

3. The PH values of the delivery medium are 304 (4-10) and 316 (2-13);

4. The motion and viscosity of the conveying medium is 7x10-23 x 10 m/s;

5. The density of the delivery medium is 1.2 x 10 kg/m ';

6. Use the voltage is 220V / 380V, the frequency is 50Hz, and the voltage fluctuation shall not exceed ± 10% of the rated value.
