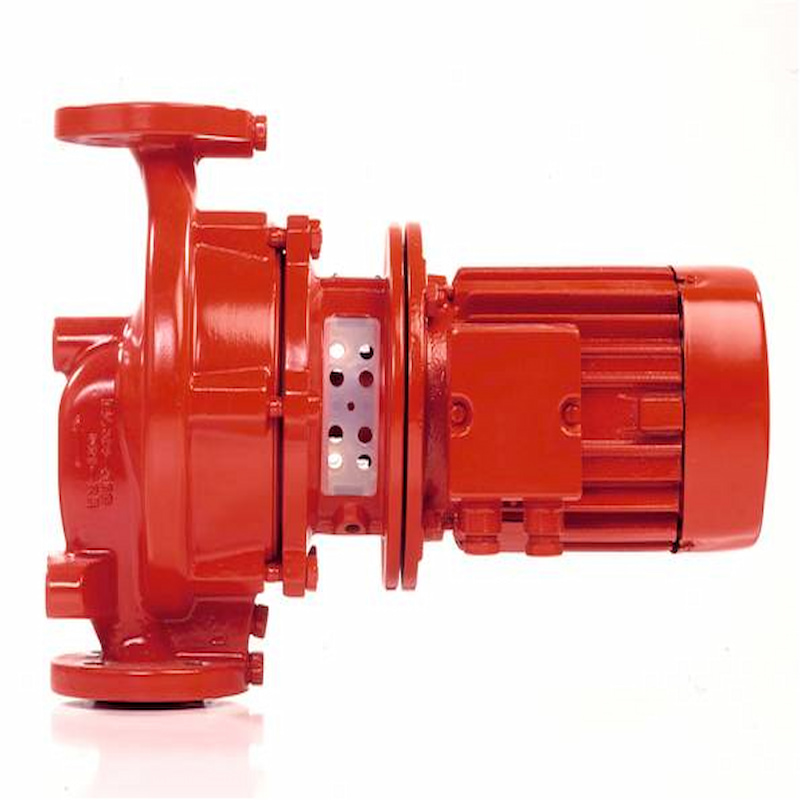

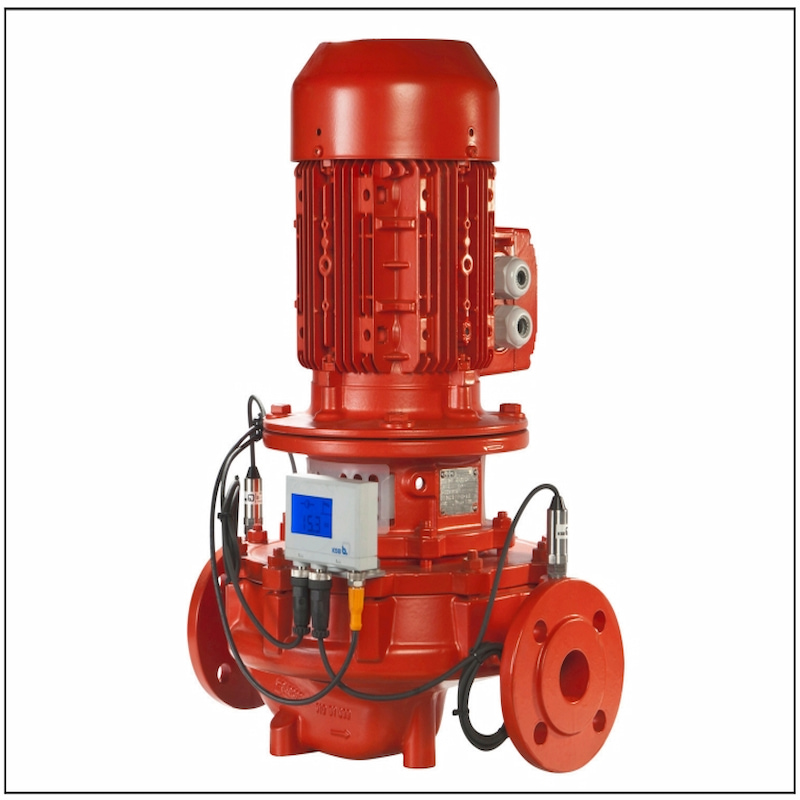

KSB ETL Series Single-stage Vertical In-Line PumpETL 1 25-125-250 GG
Pump body and standard motor directly connected pipeline circulating pump; Pipeline single-stage volute pump
Model :
ETL 125-125-250 GGImported caliber (DN) :
125Export caliber (DN) :
125Rated flow (m³/h) :
150Rated head (m) :
20Motor speed (rpm) :
1450Motor power (kw) :
15Material :
Cast iron/316FOB Price （USD$） :
27292Single-stage Vertical In-Line Pump
Product overview
Pump body and standard motor directly connected pipeline circulating pump; Pipeline single-stage volute pump, with non-magnet KSB SuPremE motor with energy efficiency class IE4/IE5 and PumpDrive speed regulation system, the pump is rigidly connected with the motor shaft. With an energy efficiency class of IE4/IE5 (according to the IEC TS 60034-30-2:2016 standard), the magnet-free synchronous reluctance motor KSB SuPremE (except that the motor with the size of 0.55 kW/0.75 kW and the speed of 1500 rpm is provided with permanent magnets) is operated in coordination with the KSB PumpDrive 2 or KSB PumpDrive 2 Eco speed regulation system without rotor position encoder. The fixed point conforms to EN 50347 standard, and the shell size conforms to DIN V 42673 (07-2011) standard. ATEX type can be purchased.
Main application
Industrial water equipment, heating equipment, industrial circulation system, air conditioning equipment, cooling circuit, water supply equipment.
Pumped medium
A liquid that has no chemical or mechanical attack on materials.
Horizontal type, using extended coupling, single-stage radial split volute (pump size larger than 125 adopts two-stage design) adopts back-pumping design, with replaceable shaft sleeve/shaft protection sleeve and replaceable pump body sealing ring, and the design conforms to ATEX；
