The KTV series are portable three-phase drainage pumps. Despite their three-phase configuration, their portable and lightweight design makes them suitable for general construction sites and foundation engineering. The semi-internal side water outlet design ensures cooling efficiency even when the pump is operated in the air. The slim body design allows the pump to be installed in confined spaces.
Model :
KTV2.75Discharge Bore（mm） :
50Rated flow (m³/min) :
0.1Rated head (m) :
12Motor power (kw) :
0.75Weight (KG) :
12.5Material :
Cast ironHeavy-duty cast iron drainage pump
Technical Parameters
Flow：1.5m³/min
Head：70m
Discharge Bore(mm)：50-150
Motor Output(kW)：1.5-22
Product Description

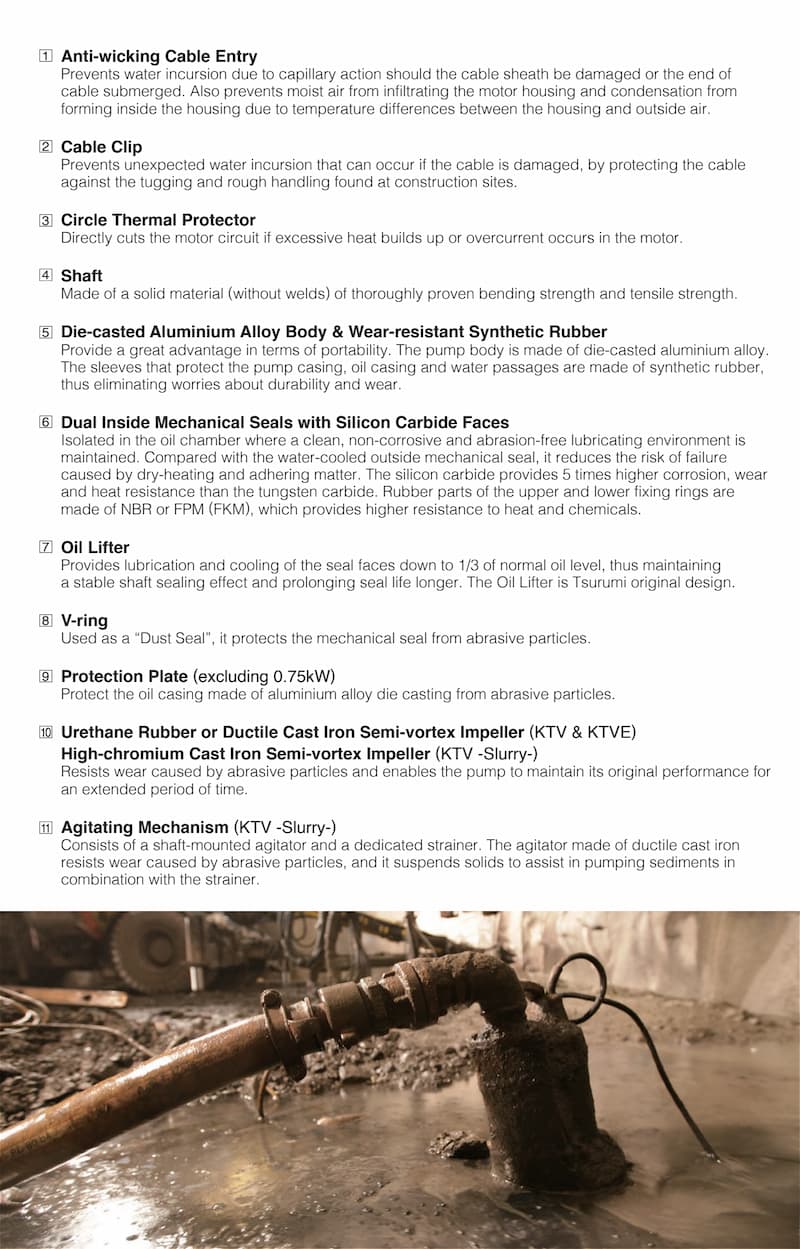

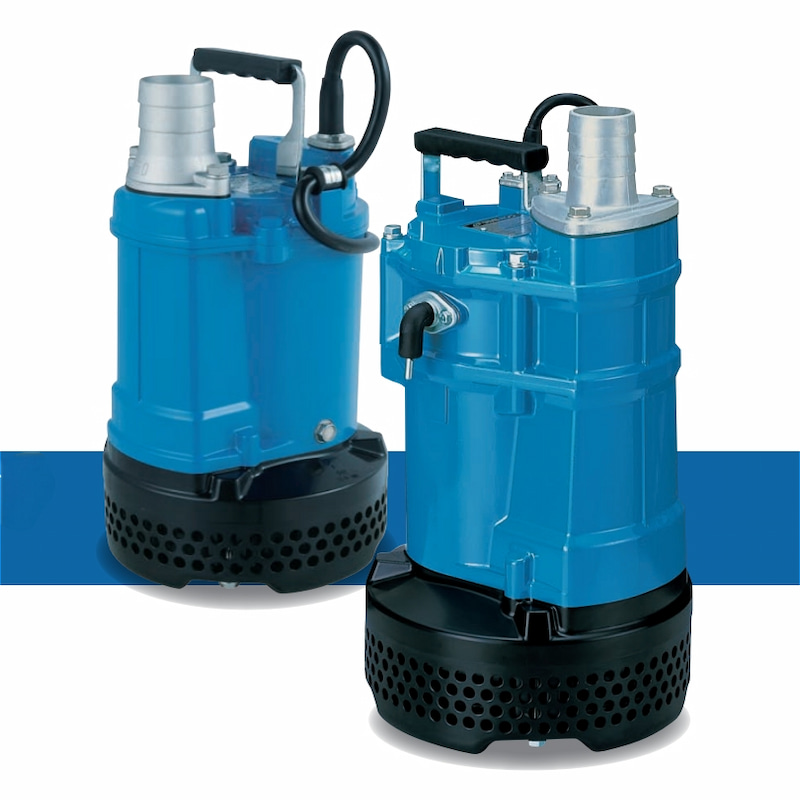

Tsurumi KTV-series features submersible pumps of lightweight compact design. The pump body is made of die-casted aluminium alloy, which is extremely advantageous in terms of portability. The sleeves that protect the pump casing, oil casing and water passages are made of synthetic rubber as a consideration against wear. With the exception of the 0.75kW models, all models of the KTV-series are equipped with a protection plate to prevent damage to the oil casing. The impeller is of semi-vortex design that considerably reduces performance drop caused by wear. As such, these Tsurumi pumps provide excellent reliability and durability that enable continuous duty for long periods of time.

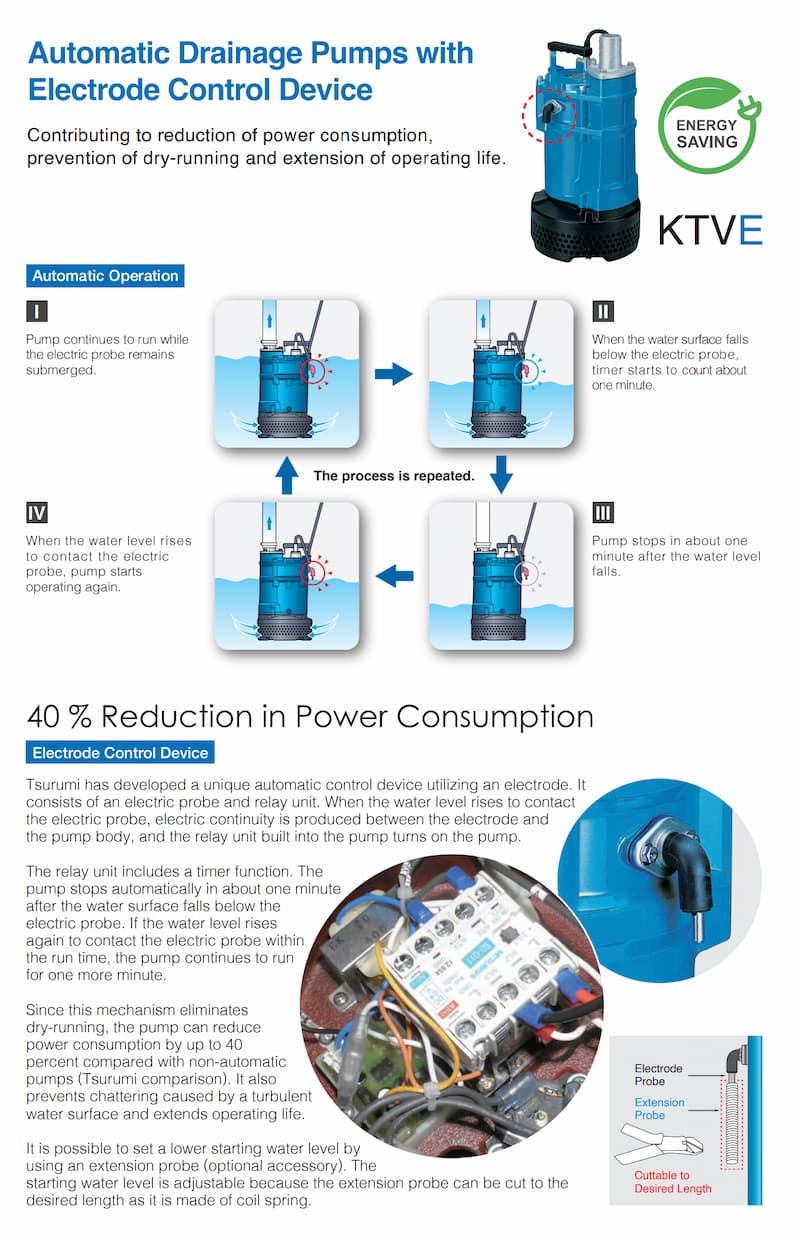

The KTVE-series features automatic pumps without cumbersome floats. An innovative electrode type relay unit built into the pump automatically starts and stops the pump to eliminate dry-running. This mechanism greatly reduces power consumption and extends operating life. Also available is the KTV (slurry)-series that Tsurumi equips with an agitator for slurry dewatering.
Tsurumi's pumps have been widely adopted in various fields from civil engineering and construction to large scale construction projects (tunnels, bridges, dams, etc.) where the pumps must perform reliably in severe environments.
Horizontal or vertical single-stage submersible pumps can be used as modular pump units. They can be equipped with various types of next-generation impellers, and can be installed in a wet or dry manner. They can be used statically or in combination with energy-saving motors in a mobile way. Explosion-proof models are also provided.
