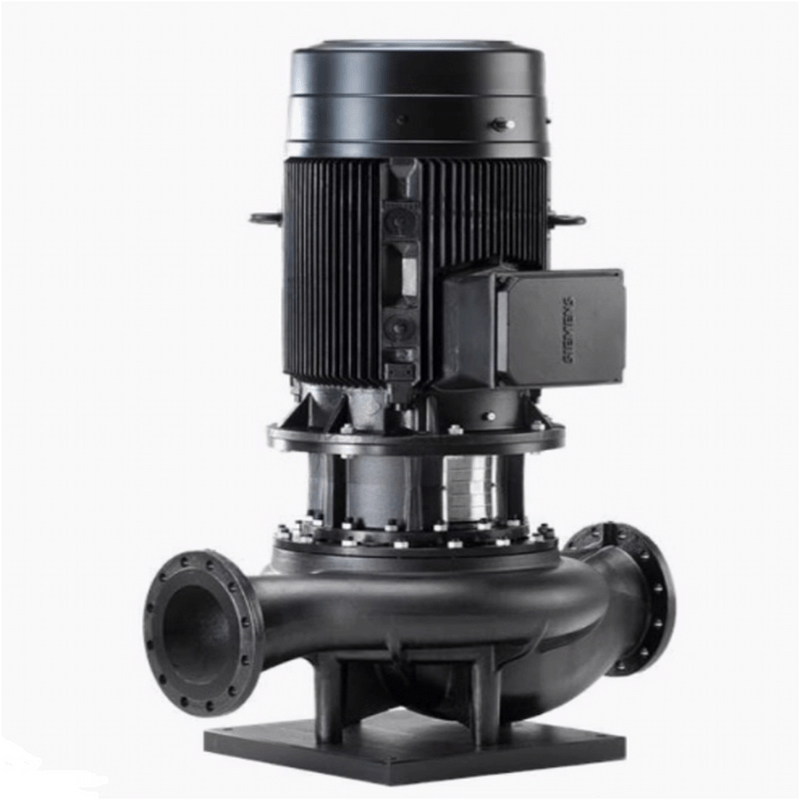

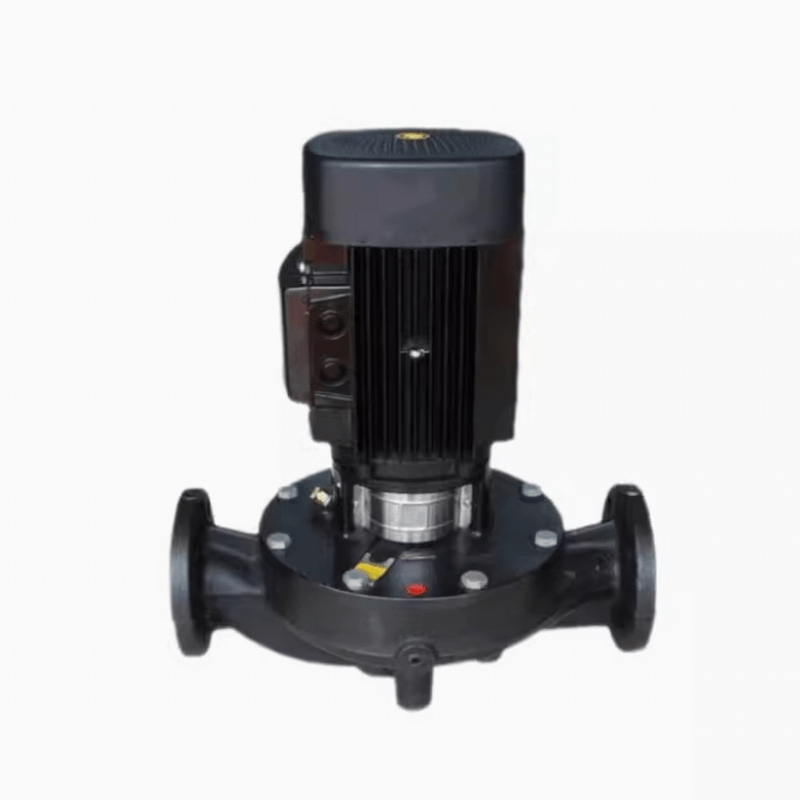

Single-stage pipeline centrifugal pump, equipped with a standard motor and a mechanical shaft seal. The pump has a direct-coupled structure, and the bare pump and the motor are independent units.

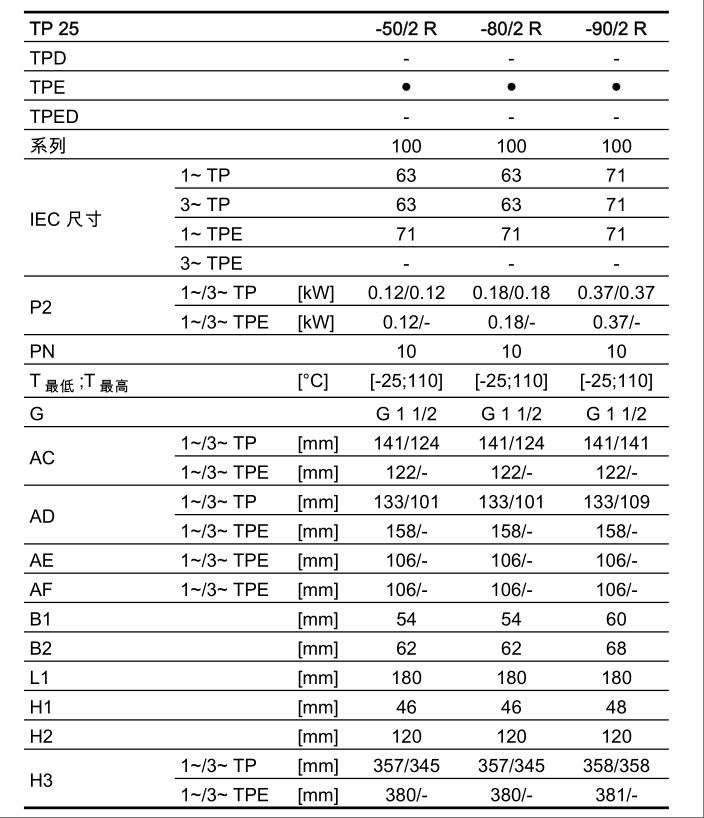

Model :
TP25-50/2RImported caliber (DN) :
25Export caliber (DN) :
25Rated flow (m³/h) :
5Rated head (m) :
5.6Motor speed (rpm) :
2900Motor power (kw) :
0.37Material :
All cast ironSingle-stage Vertical In-line Pump

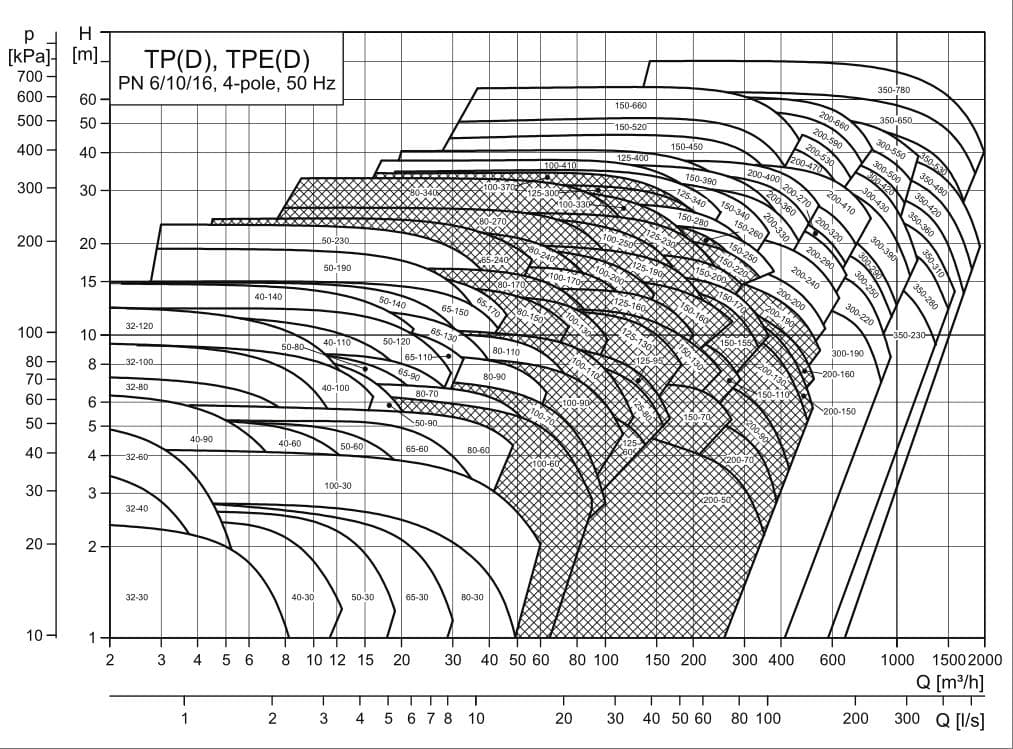

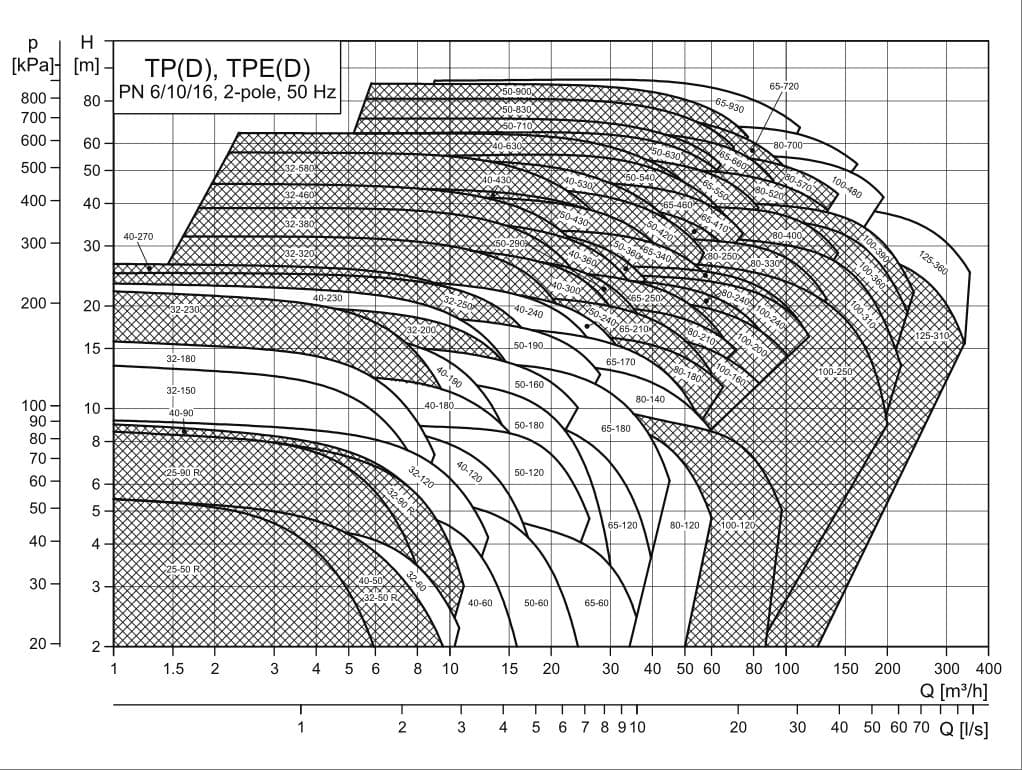

Technical parameters:
Flow rate, q: 825m³/h max.
Head, h: up to 93m.
Pressure, p: 16bar max.
Temperature, t:-25℃-+140℃

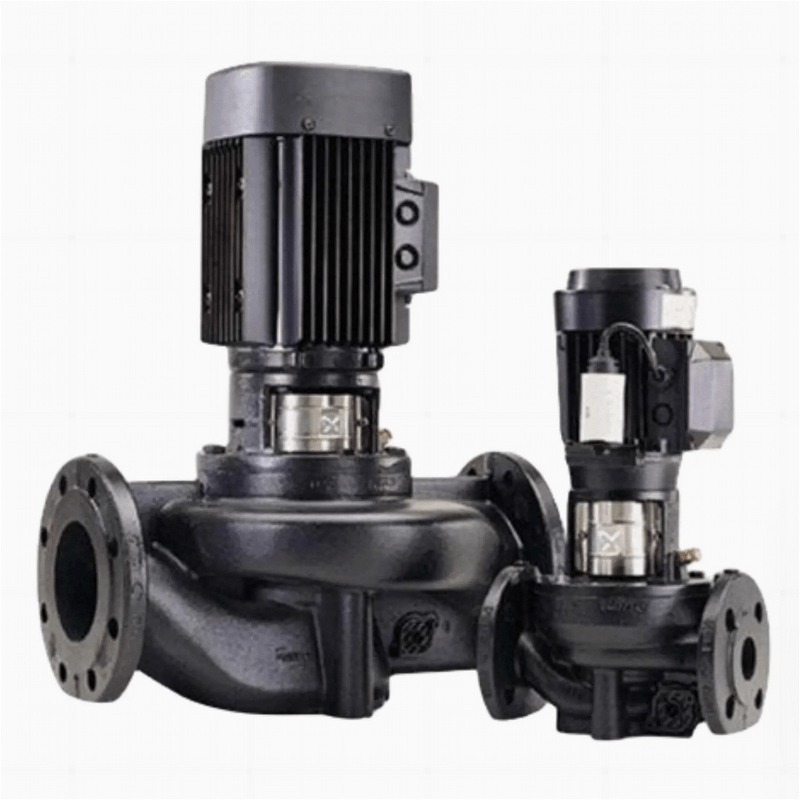

Product overview
Single-stage pipeline centrifugal pump with standard motor and mechanical shaft seal. The pump is a direct-connected structure, and the optical pump and the motor are independent units. The split structure of the pump is less susceptible to the influence of impurities in the pumped liquid than the similar closed rotor structure. The pumps are all designed with top pull-out, that is, the pumps can be disassembled without affecting the pipeline system on both sides of the pump housing. Therefore, even the largest pump, a person can also use tools for maintenance.
Application
District heating system
boiler system
air-conditioning system
District refrigeration system
supply water
Industrial production technology
Industrial cooling
Horizontal type, using extended coupling, single-stage radial split volute (pump size larger than 125 adopts two-stage design) adopts back-pumping design, with replaceable shaft sleeve/shaft protection sleeve and replaceable pump body sealing ring, and the design conforms to ATEX；
