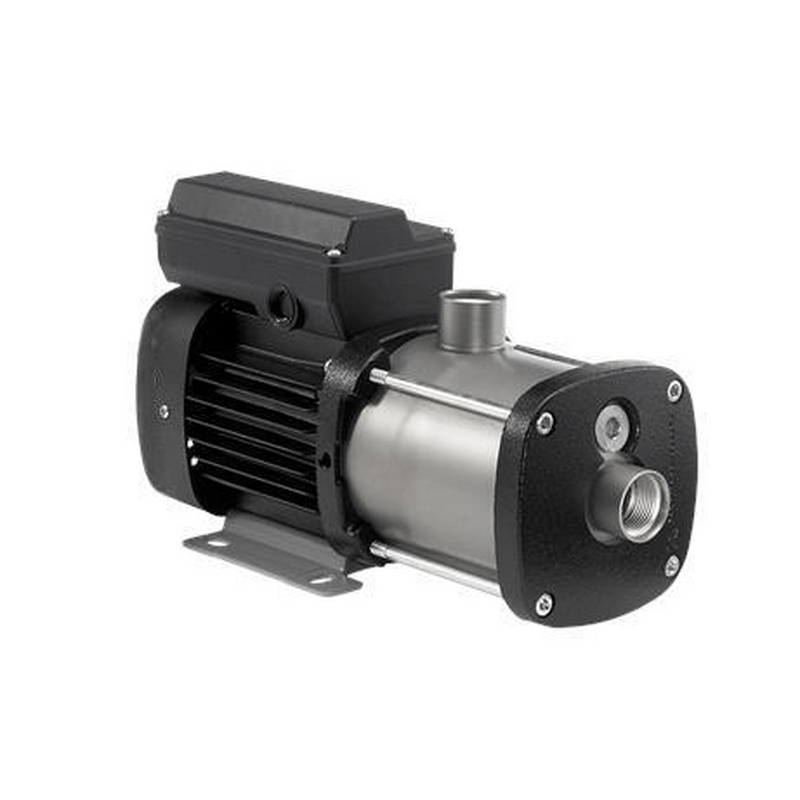

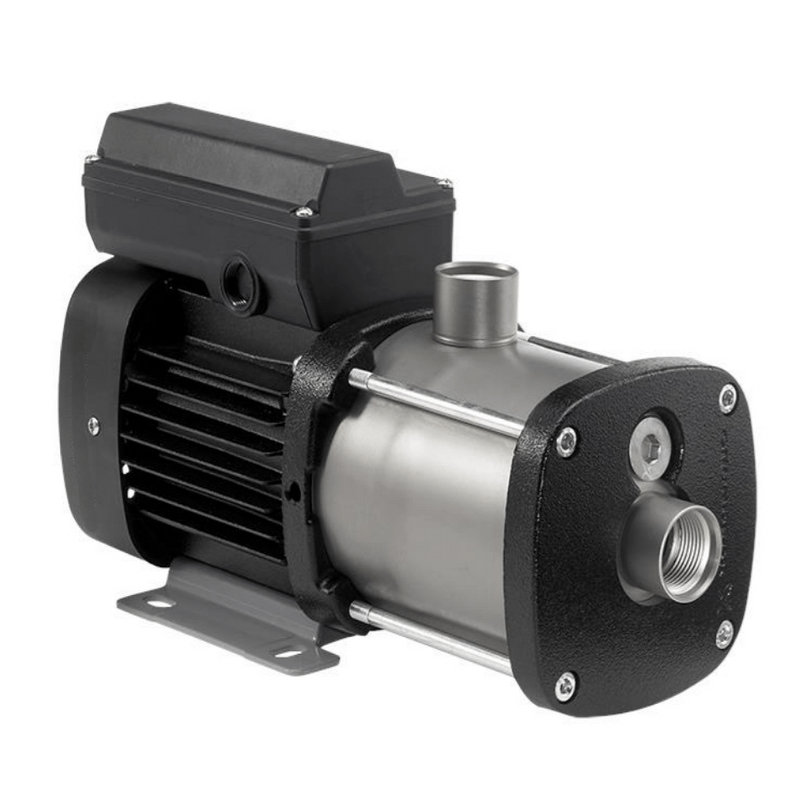

GRUNDFOS CM series horizontal multi-stage stainless steel high-pressure pumpCM1-5
CM and CME pumps are non-self-priming horizontal end-suction multistage centrifugal pumps. CM pump is equipped with power frequency motor, while CME pump motor has built-in frequency controller. Cm and CME pumps are equipped with mechanical seals
Model :
CM1-5Rated flow (m³/h) :
1Rated head (m) :
40Motor speed (rpm) :
2900Motor power (kw) :
0.45Material :
All cast ironHorizontal Multi-Stage Stainless Steel High-Pressure Pump
Technical parameters:
Flow rate, q: 36m3/h max.
Head, h: up to 140m.
Pressure, p: 16bar max.
Temperature, t:-20℃-+120℃
Product overview
Cm and CME pumps are non-self-priming horizontal end-suction multistage centrifugal pumps. CM pump is equipped with power frequency motor, while CME pump motor has built-in frequency controller. Cm and CME pumps are equipped with mechanical seals.
CM,CME series pumps have three material types:
Cast iron (EN-GJL-200)
Stainless steel (EN 1.4301/AISI 304)
Stainless steel (EN 1.4401/AISI 316)
Impeller, pump chamber and water injection plug are made of stainless steel (EN1.4301/AISI304)
The pump shaft is made of stainless steel (EN1.4057/AISI431)

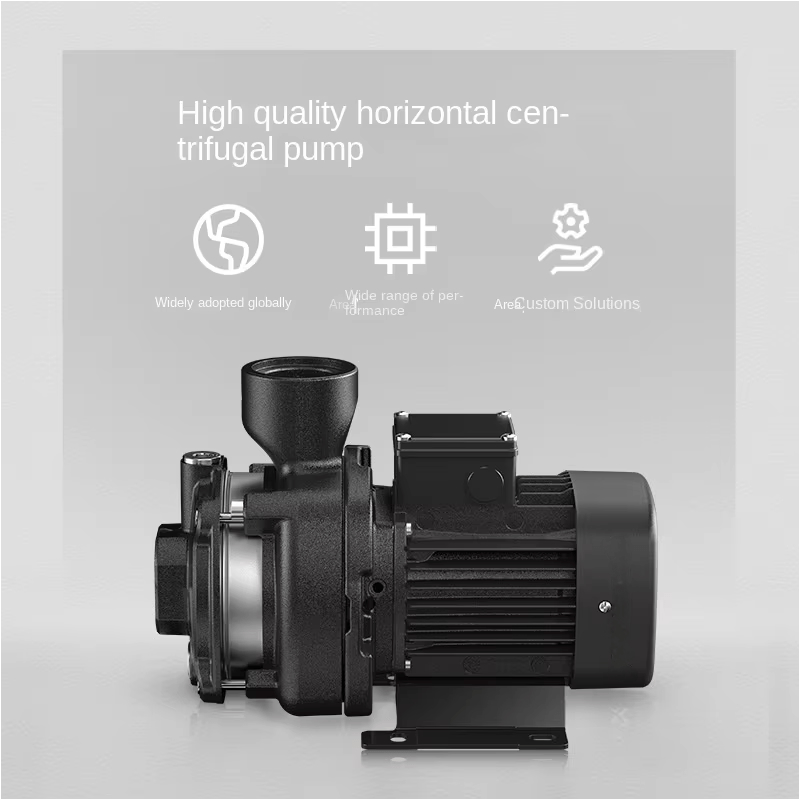

Advantages:
Compact design, can be used all over the world, high reliability, convenient maintenance, wide performance range, low noise, and customized solutions suitable for customers

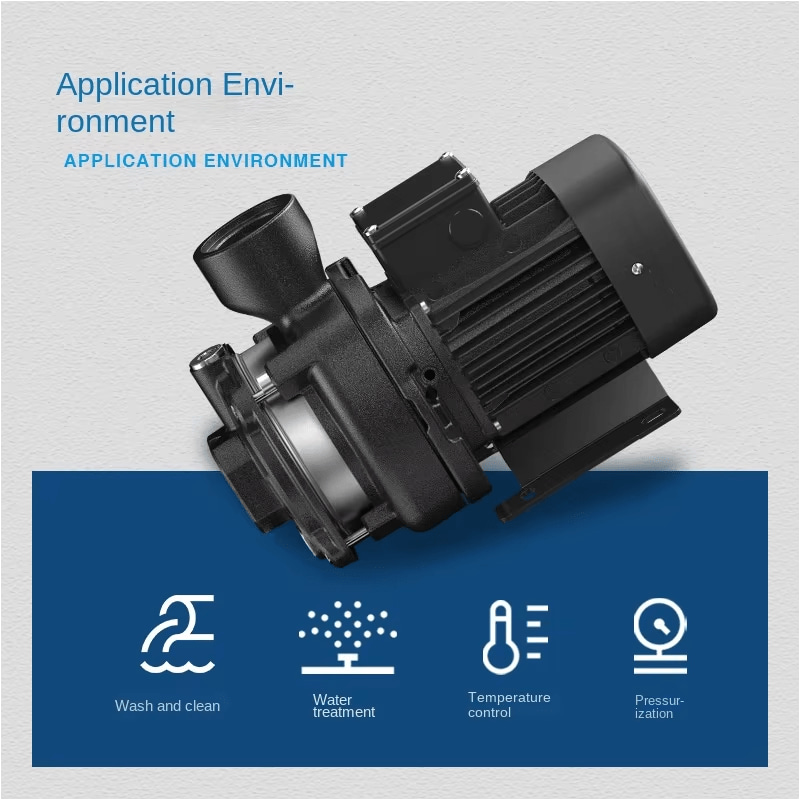

Application
Cleaning and washing, water treatment, temperature control, pressurization, distillation system, feeding/stirring, evaporation system, chemical industry and pharmacy.
Horizontal type, using extended coupling, single-stage radial split volute (pump size larger than 125 adopts two-stage design) adopts back-pumping design, with replaceable shaft sleeve/shaft protection sleeve and replaceable pump body sealing ring, and the design conforms to ATEX；
